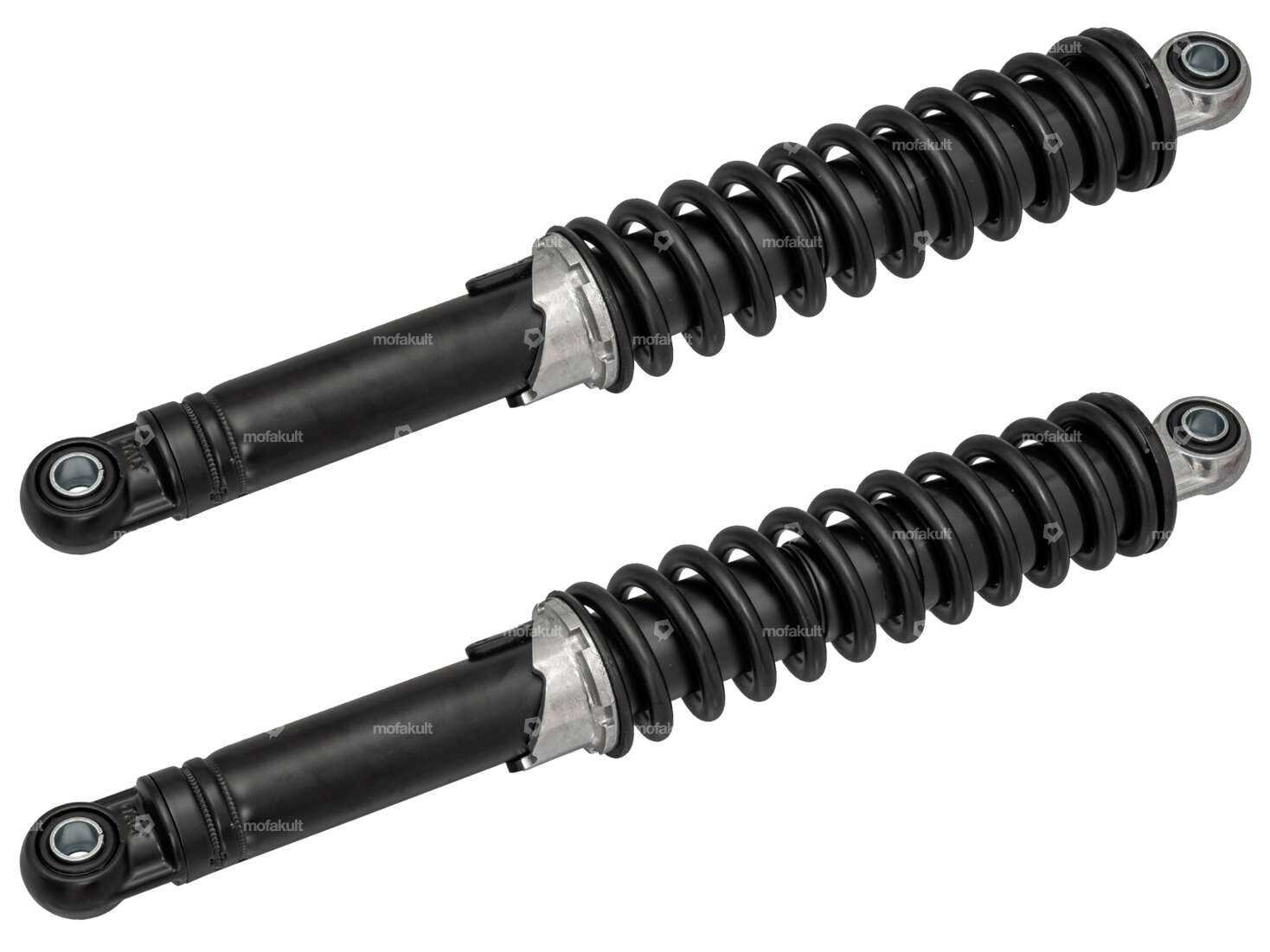

Black, adjustable shock absorbers for your moped, moped and small motorcycle.
The hardness or preload of the shock absorbers can be adjusted using the special spring mount.
Length (mount - mount): 320 mm
Ø outer coil spring: 44 mm
Ø spars: 28 mm
Ø bushings for fastening: 10 mm
The rear springs should always be secured with large washers to prevent the plastic bushings from shifting if lateral forces occur.
The scope of delivery corresponds to one pair.
Rear springs from other manufacturers, the matching adjustment key as well as the washers and fastening material can be found in the accessories section.
Quality product from the Italian manufacturer IMCA.
Details
| Manufacturer | IMCA |
| Material | Steel |
| Surface | varnished |
| Color | black |
| Damping type | Spring |
| Adjustable | Yes |
| Ø Fastening inside | 10 mm |
| Ø spars | 28 mm |
| Mounting type | Nuts & bolts |
| Ø outside | 44 mm |
| Total length | 320 mm |
| Number of fixing points | 2 pcs |
