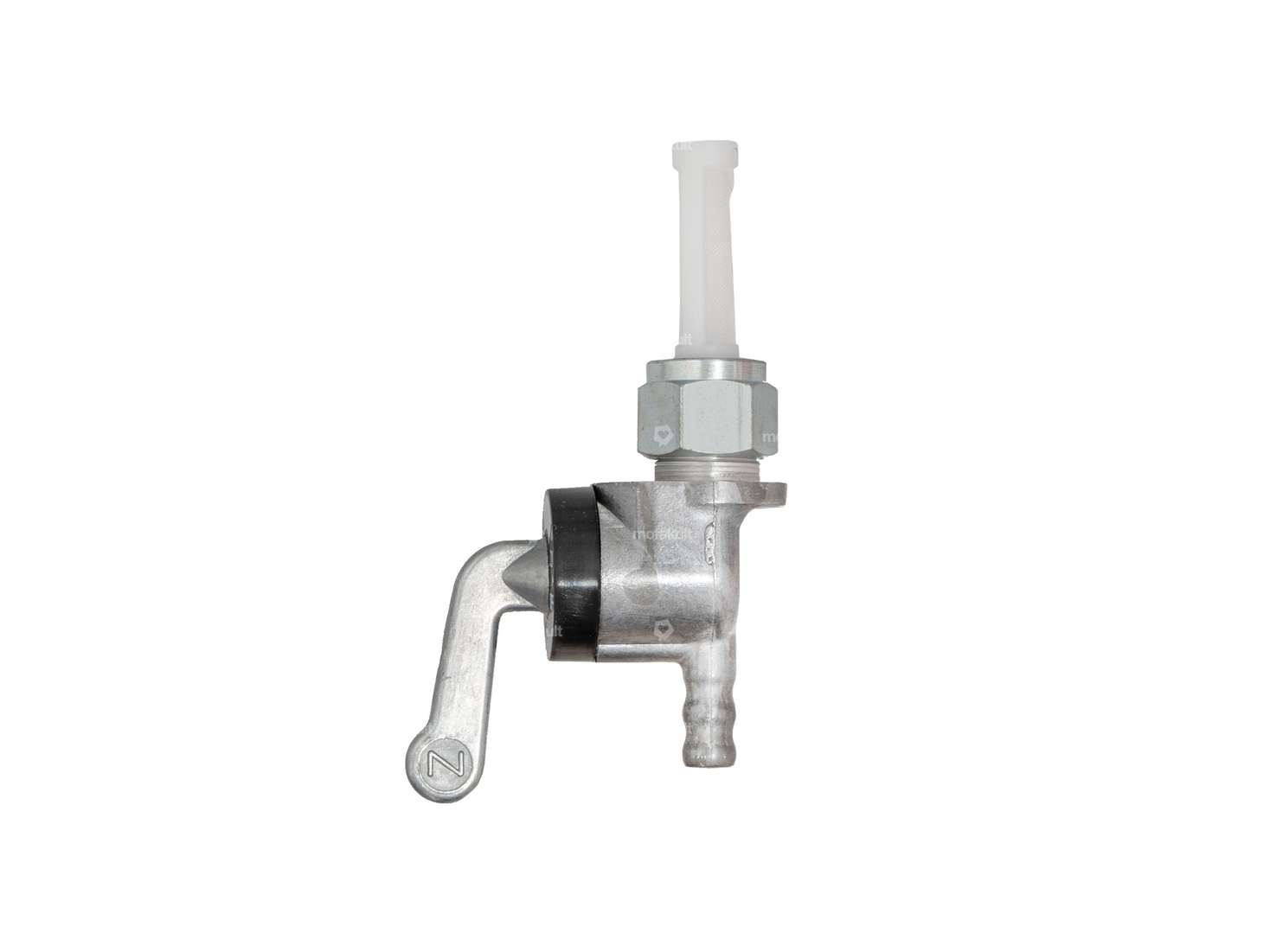

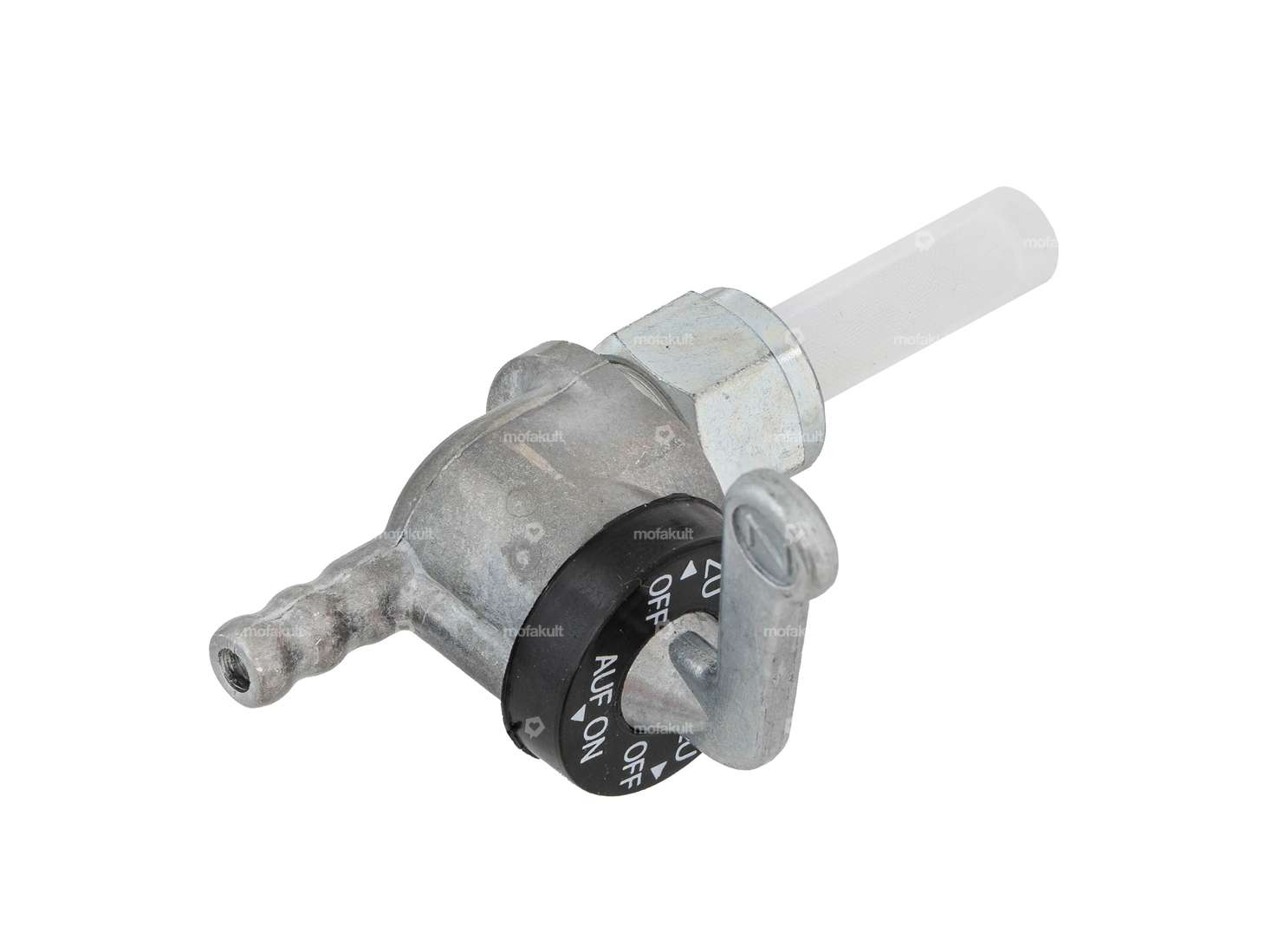

Universally usable fuel tap with vertical outlet and M12x1 üunion nut.
This fuel tap with integrated hose connection is made entirely of aluminum.
Technical features:
Connection thread: MF12 x 1 mm (fine pitch thread)
Connection type: union nut
Positions: closed / open / closed (metal lever)
Ø fuel hose connection: 6 mm
Filter length: 28 mm
German quality product from the manufacturer Karcoma in original equipment quality.
Details
Manufacturer | Karcoma |
Possible lever positions | geschlossen / offen / geschlossen |
Material lever | Metal |
Thread type | MF12x1 (fine pitch thread) |
Filter type | Plastic net |
Installation direction | vertical / vertical |
Outlet direction | below |
Spare tube shape | straight |
Mounting type | Union nut |
Reserve level | 28 mm |
Ø fuel hose connection | 6 mm |
