An extremely comprehensive repair manual for Puch mopeds, mopeds, mokicks or mopeds from 1955 onwards.

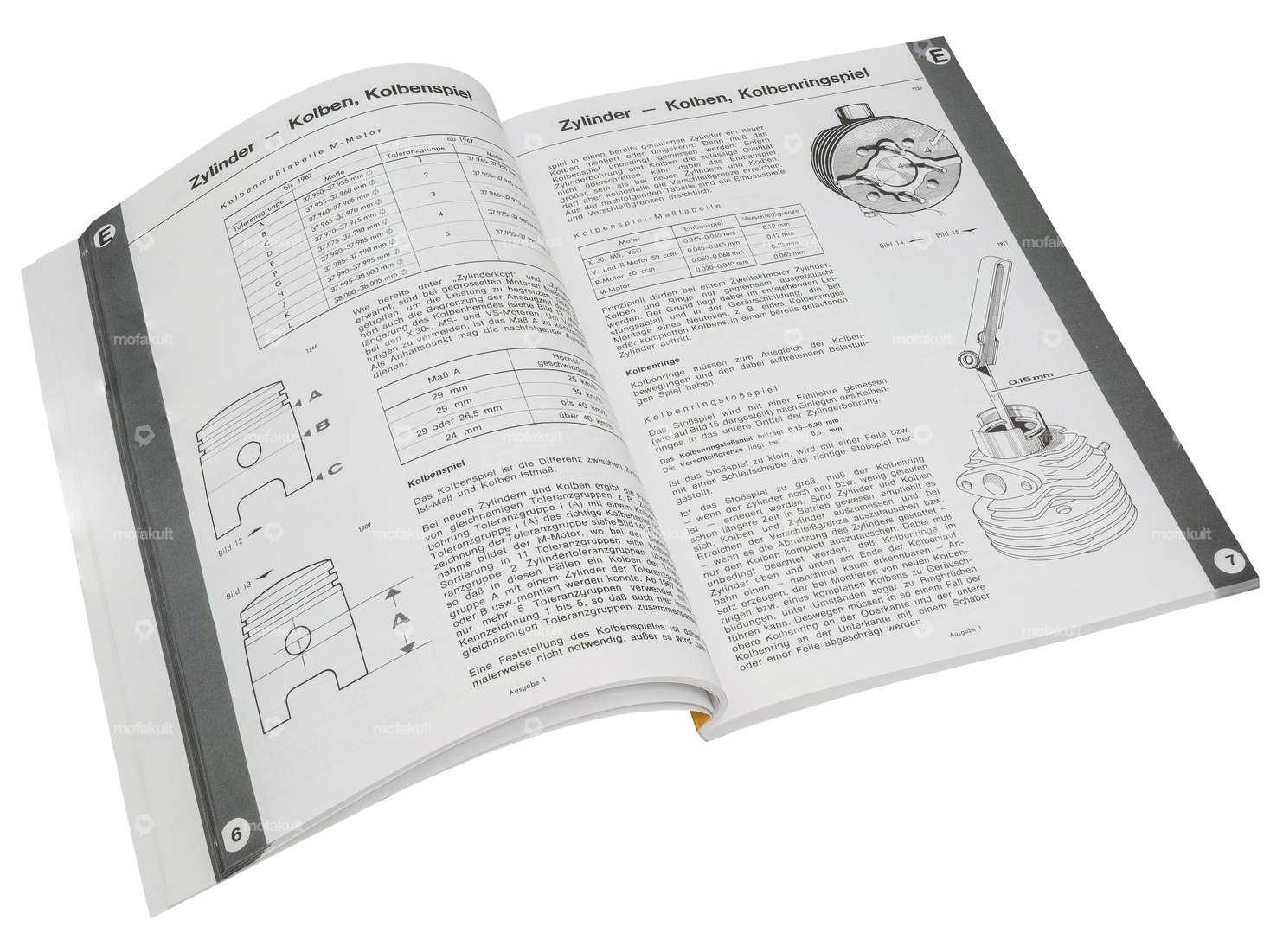

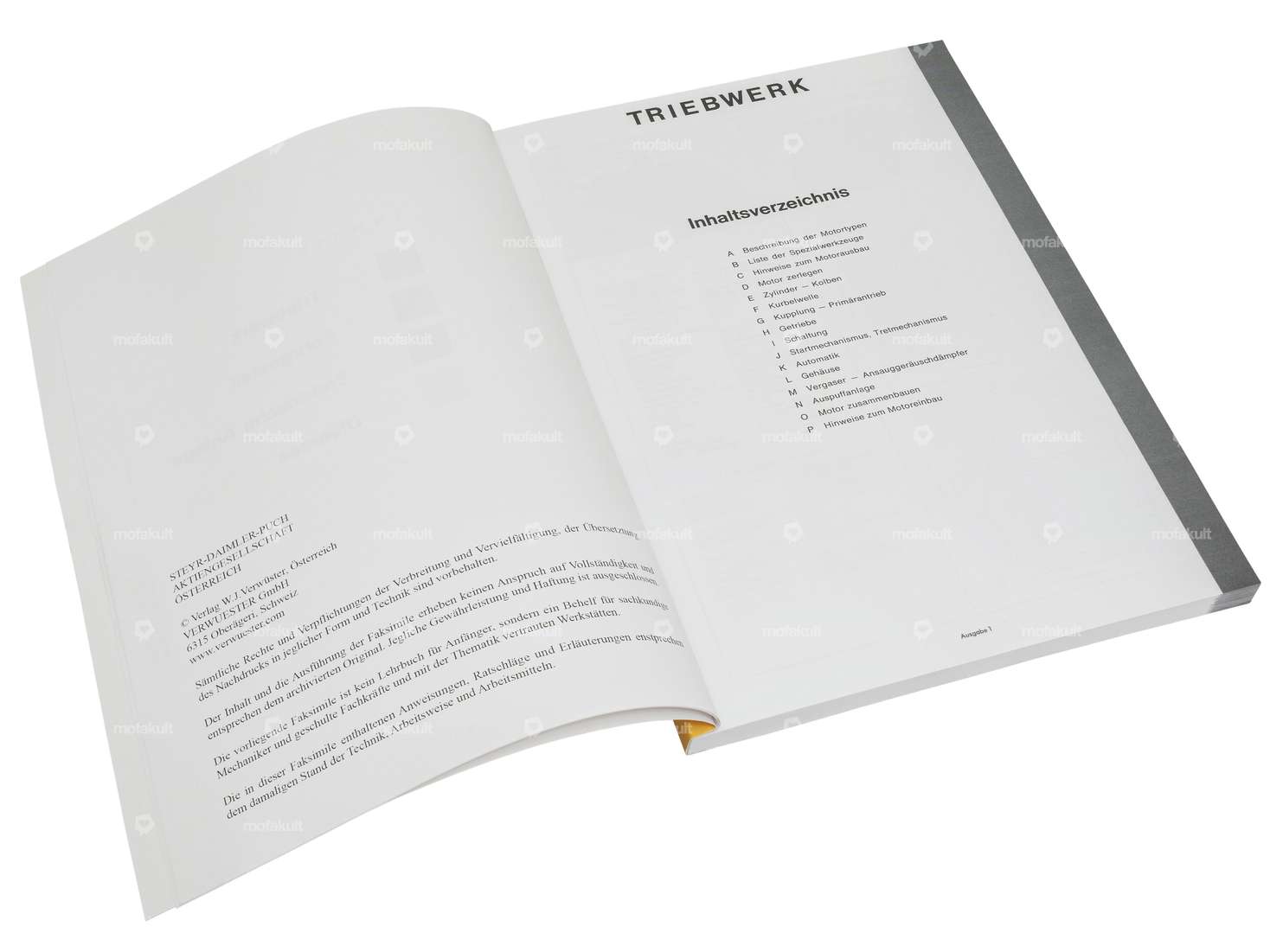

The manual is divided into 16 different categories and thus provides a simple overview of the variety of types described. The following models are described on 206 pages with many pictures and important facts:
- X30
- X30 Automatic
- Maxi
- MS 25/50
- MSA 50 Automatic
- VS 50
- DS 50/60
- MC 50/60
- VZ 50/60
- R 50/60
- M 50
- M 50 SE
- Derived types
The following is also referred to;special tools, engine, carburetor, frame, front fork, brakes, wheels and the electrical system. This Puch bible should not be missing in any Puch workshop.
Size: A4 (210 x 297 mm)
Pages: 206
Language: German
High-quality facsimile (reproduction) of the original edition.
Further workshop manuals, spare parts catalogs and repair manuals can be found in the accessories section.
Details
| Material | Paper |
| DIN format | A4 |
| Number of pages | 206 pcs |
| Width | 210 mm |
| Height | 297 mm |
Suitable for the following models
| Puch | E50 ZA50 (Fahrtwindgekühlt) ZA50 (Gebläsegekühlt) Z50 (X30 Sport) 2-Gang MS, MV, MV50 3-Gang VSD, DS, VZ, MC |
