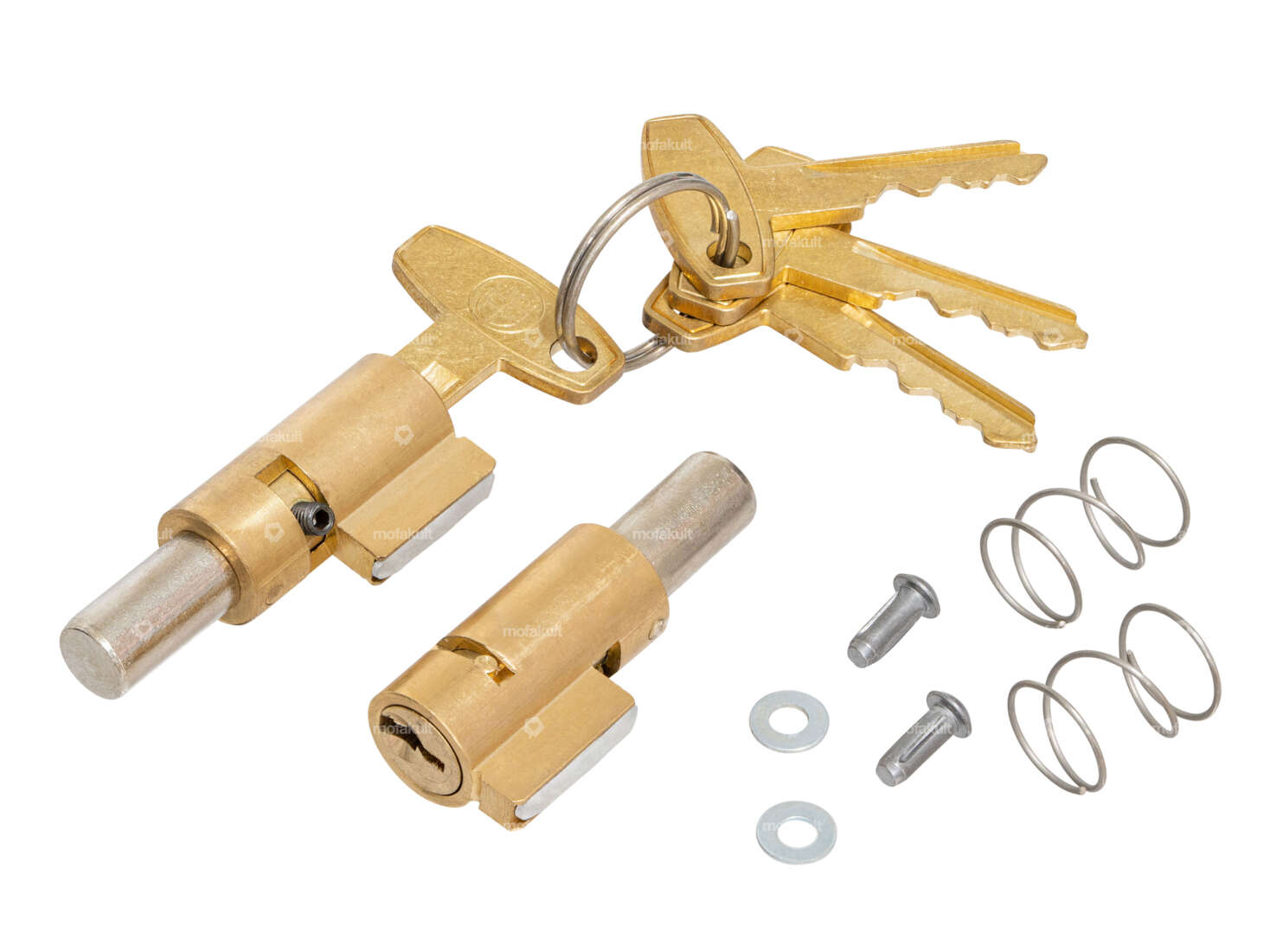

Lock set including springs and notches with washer for the steering lock and seat lock on Puch DS50 and Puch Turbo Sport mopeds / mopeds.
4 keys, 2 lock cylinders, 2 springs and 2 notches with washer are included.
Please compare the dimensions exactly before buying.
Ø Brass part: 11.9 mm
Ø bolt: 8 mm
Total length: 40.6 mm
Total length of brass part: 26.5 mm
Length of brass block: 15.5 mm
Width of brass block: 4.2 mm
Height brass block: 5.7 mm
The handlebar lock also fits various mopeds such as Pony, Sachs, Tomos, Kreidler, Piaggio etc.
Original Puch spare part number: 345.3.20.052.9
Details
| Total length | 40.6 mm |
| Ø rotating part | 8 mm |
| Wide locking block | 4.2 mm |
| Locking block length | 15.5 mm |
| Material | Brass, Steel, Spring steel |
| Surface | blank |
| Ø outside | 11.9 mm |
Suitable for the following models
| Puch |
