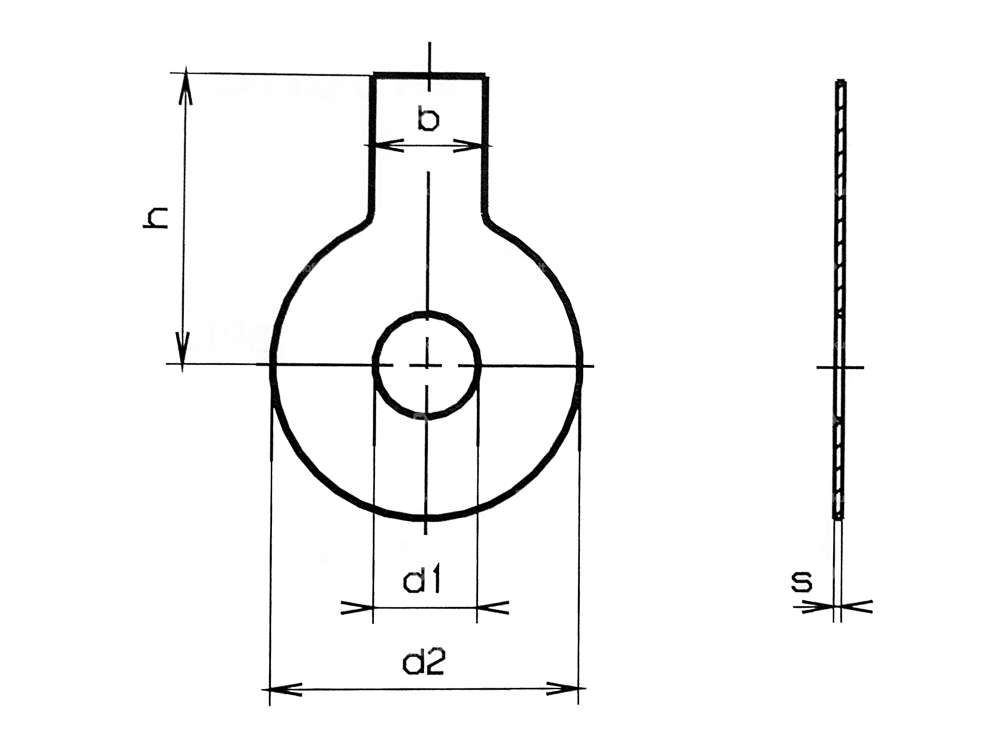

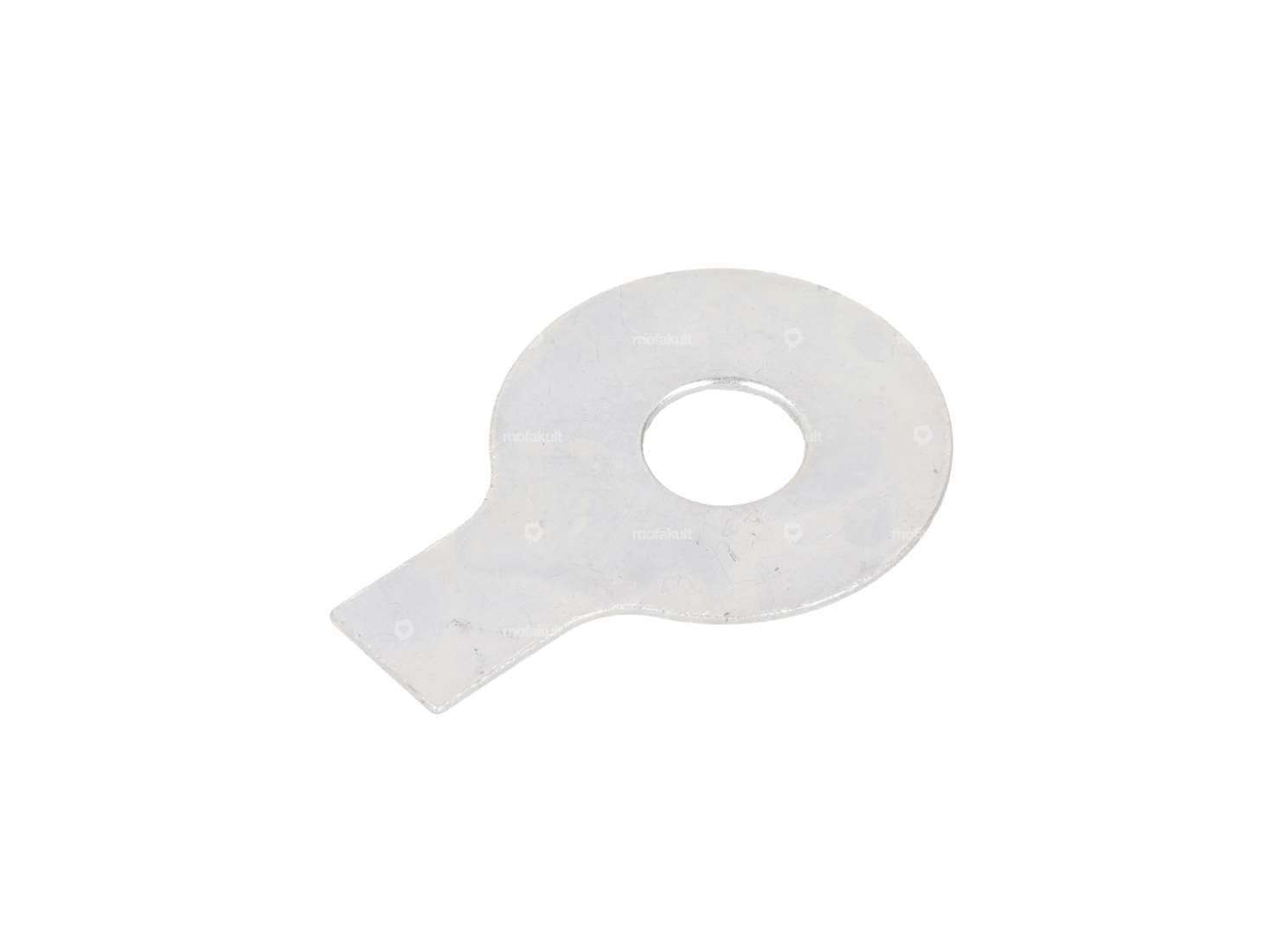

M6 lock washer 1 tab

GPO clutch plates (pair) | Puch X30

Manufacturer: GPO · Number of slats: 2 pcs · Area of application: Standard

GPO 15 mm carburetor tuning | Puch

Nominal diameter: 15 mm · Manufacturer: GPO · Material: Aluminum · Camouflaged: No · Area of application: Tuning · Carburetor type: SRE · Mounting type: Plug connection clamped · Width: 50 mm · Height: 95 mm · Total length: 66 mm · Nozzle thread: M3.5 · Ø Internal connection: 20 mm · Nozzle size: 62 · Ø Inside entrance: 15 mm · Ø Output inside: 15 mm · Ø Air filter connection: 20 mm · Ø fuel hose connection: 6 mm · Mixed oil connection: No · Vacuum connection: No · Choke control: Hand choke · Nozzle block: 2.17 · Clamping screw torque (max.): 4 N/m

GPO control bearing set M26x1 mm | Puch

Bearing type: Bearing ring · Manufacturer: GPO · Material: Steel · Surface: blue galvanized · Ø inside: 26.8 mm · Ø mounting frame: 31 mm · Ø outside: 41 mm · Color: silver · Thread type: MF26x1 (fine pitch thread)

swiing® ingenious clutch springs reinforced (+20%) (Version 2.0) | Puch E50

Spring design: Pressure spring · Ø wire: 1.7 mm · Manufacturer: swiing® ingenious parts · Area of application: Tuning · Material: Spring steel · Surface: coated · Number of components: 3 pcs · Ø inside: 4.8 mm · Total length: 28 mm · Ø outside: 8.3 mm · Color: blue

swiing® revival stud bolt inlet/outlet M6 x 30 mm (10.9 strength)

Manufacturer: swiing® revival parts · Material: Steel · Surface: blue galvanized · Total length: 30 mm · Diameter: 5.95 mm · Strength class: 10.9 · Thread length: 12 mm · Thread type: M6x1 (standard thread)

swiing® revival gasket set | Puch X30 Velux

Manufacturer: swiing® revival parts · Area of application: Standard · Number of components: 11 pcs · Ø outlet inside: 22 mm · Hole spacing outlet: 42 mm · Hole pattern [mm]: 44 x 44

Nut flywheel M10x1 SW15 serrated

Thread type: MF10x1 (fine pitch thread) · Area of application: Standard · Material: Steel · Surface: blue galvanized · Nut type: Flange nut · Drive: External hexagon · Width across flats SW: 15 mm · Ø outside: 19.8 mm · Height: 10.5 mm

Ignition rubber | Puch E50

Material: Rubber · Surface: raw · Ø inside: 2.5 mm · Ø inside 2: 5 mm · Total length: 30.3 mm · Width: 15 mm · Height: 11 mm · Waistband height: 2.5 mm · Color: black · Total height: 15 mm

swiing® revival set stud bolts M6 x 106 mm | Puch

Manufacturer: swiing® revival parts · Material: Steel · Surface: blue galvanized · Total length: 106 mm · Drive: External hexagon · Diameter: 5.9 mm · Thread length: 13 mm · Thread length: 18.5 mm · Width across flats SW: 10 mm · Thread type: M6x1 (standard thread) · Alternative version of the Puch spare part no.: 360.1.10.034.1
