Galvanized lock washer with 2 tabs for securing nuts and bolts.

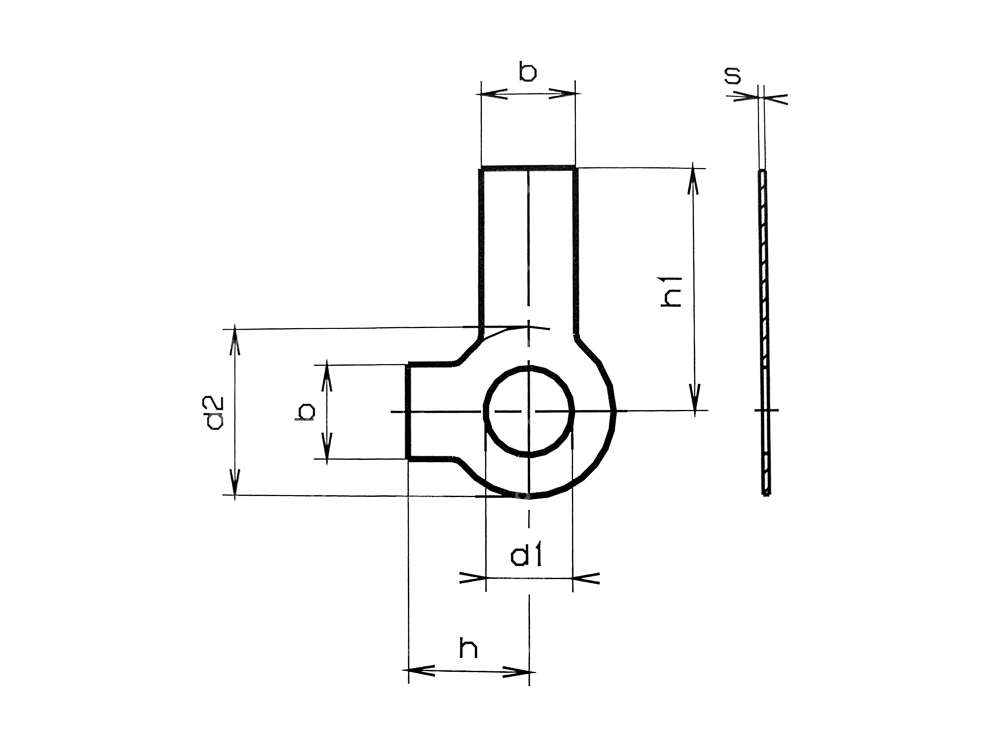

Take the following measurements from figure 2:
Details
Total length | 11 mm |
Width | 8 mm |
Material | Steel |
Surface | blue galvanized |
Thread size | M8 |
Thickness | 0.75 mm |
Number of lobes | 2 pcs |
Ø inside | 8.4 mm |
Ø outside | 17 mm |
Length 2 | 20 mm |
Width 2 | 8 mm |
