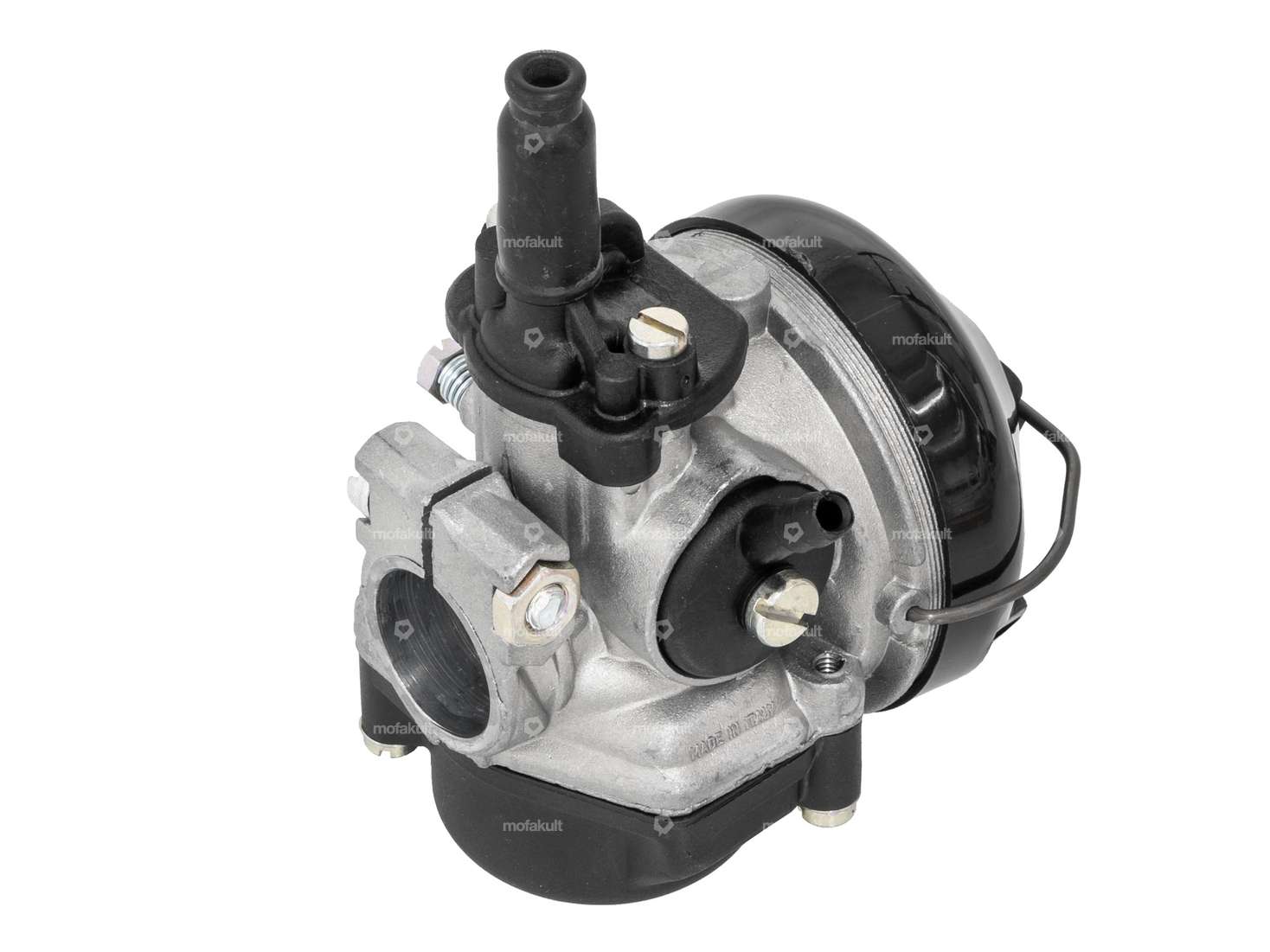

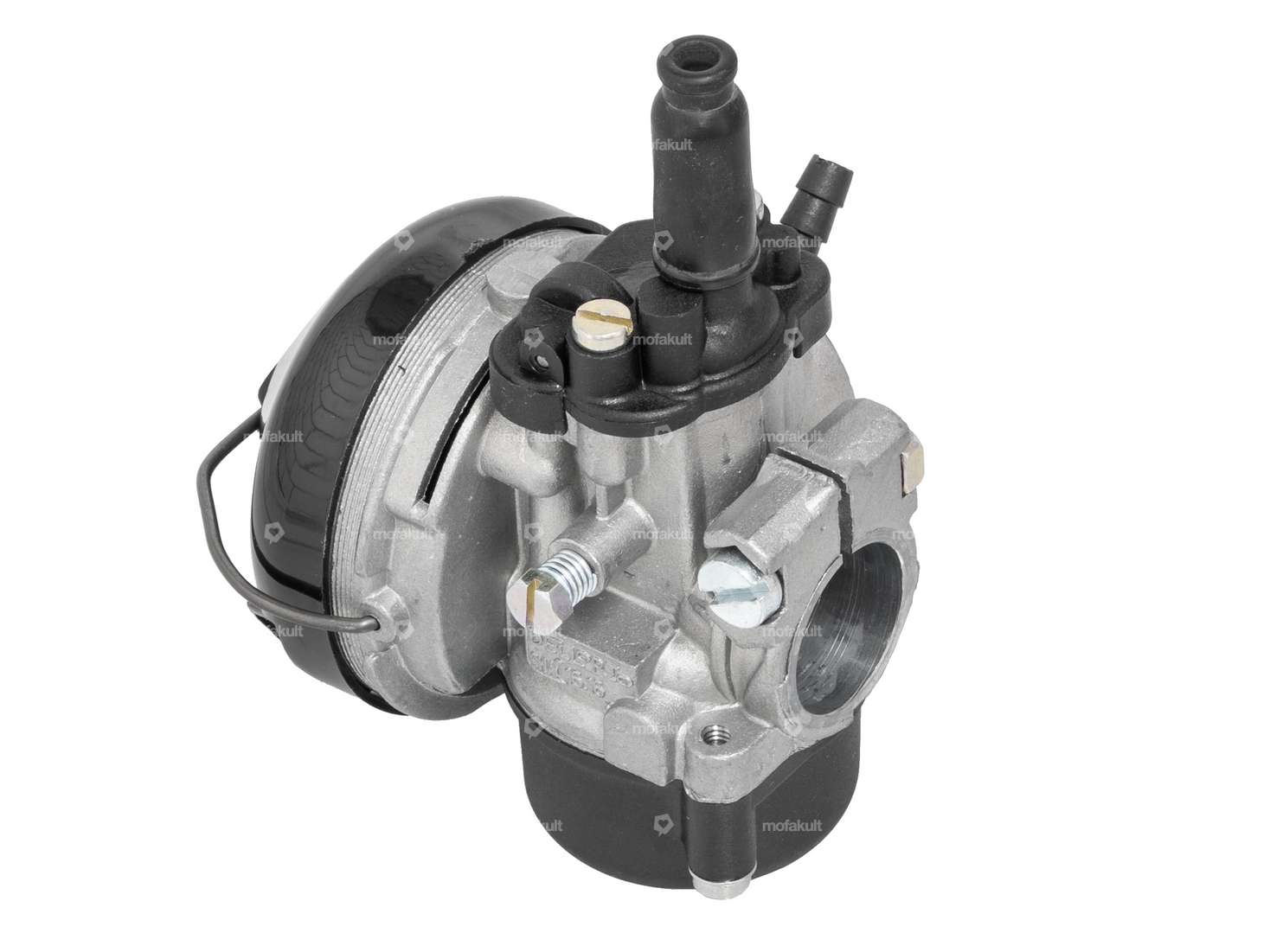

Carburetor set from Malossi. Consisting of a Dell'Orto 16/16 SHA carburetor with matching intake manifold and long yoke lever.

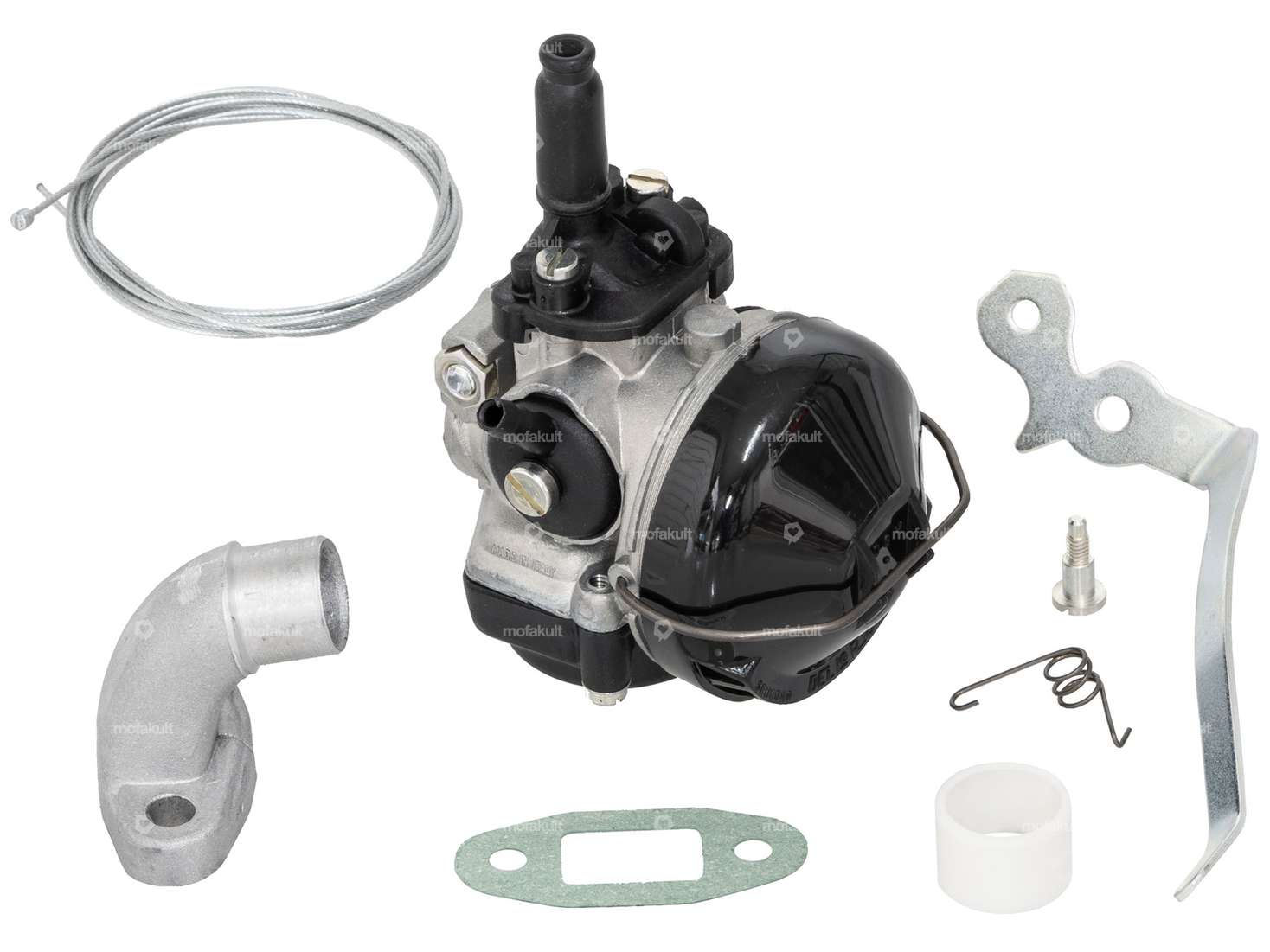

Scope of delivery as shown.
Assembled throttle body size: 82
Quality product from the Italian manufacturer Malossi.
Details
| Nominal diameter | 16 mm |
| Manufacturer | Malossi |
| Area of application | Tuning |
| Carburetor type | SHA (type 4) |
| Ø Internal connection | 18 mm |
| Ø without reducing sleeve | 21 mm |
| Ø Inside entrance | 16 mm |
| Ø Output inside | 16 mm |
| Mounting type | Plug connection clamped, Flange |
| Ø Air filter connection | 59 mm |
| Ø fuel hose connection | 6 mm |
| Choke control | Hand choke |
| Nozzle thread | M5 |
Suitable for the following models
