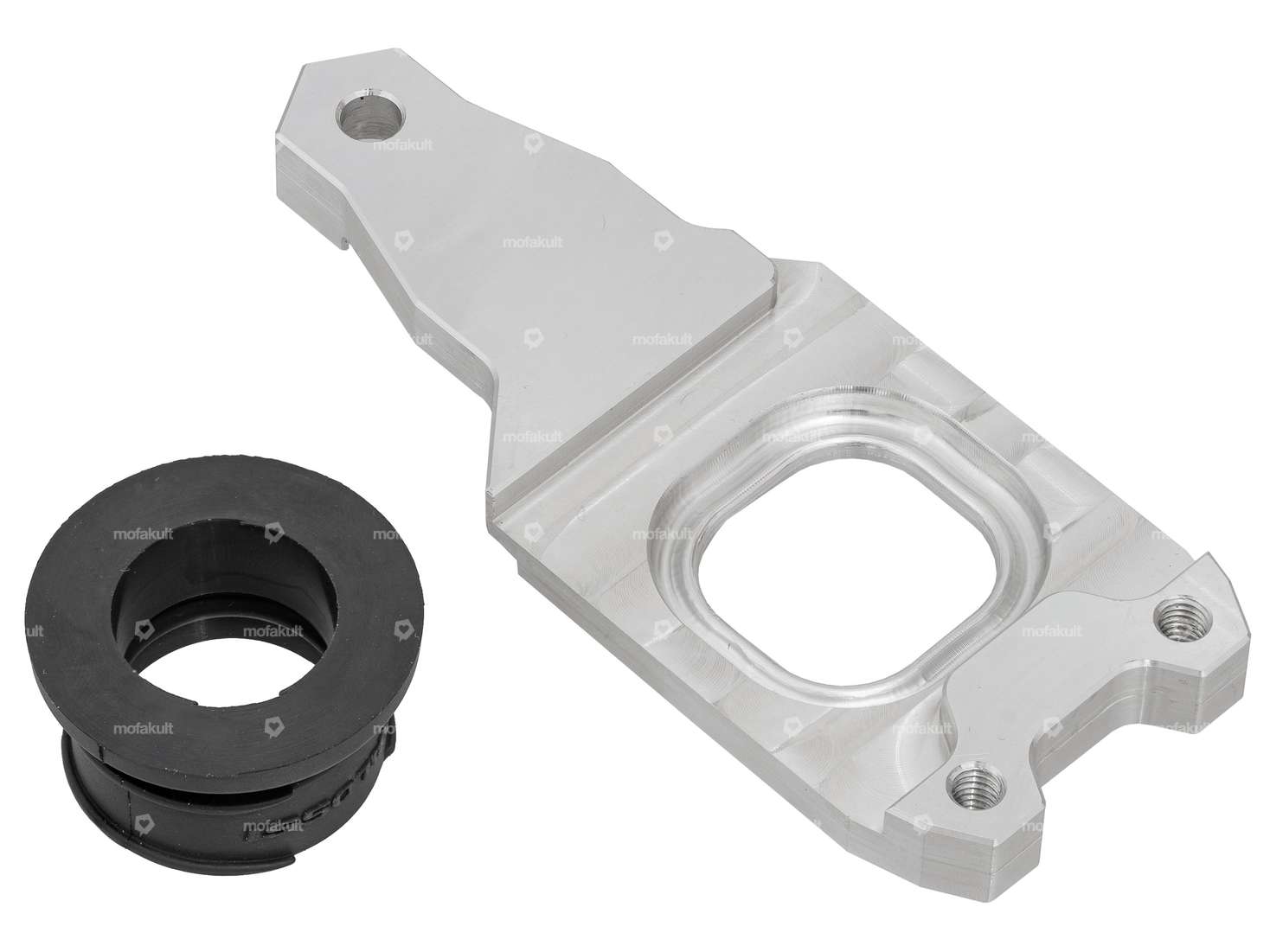

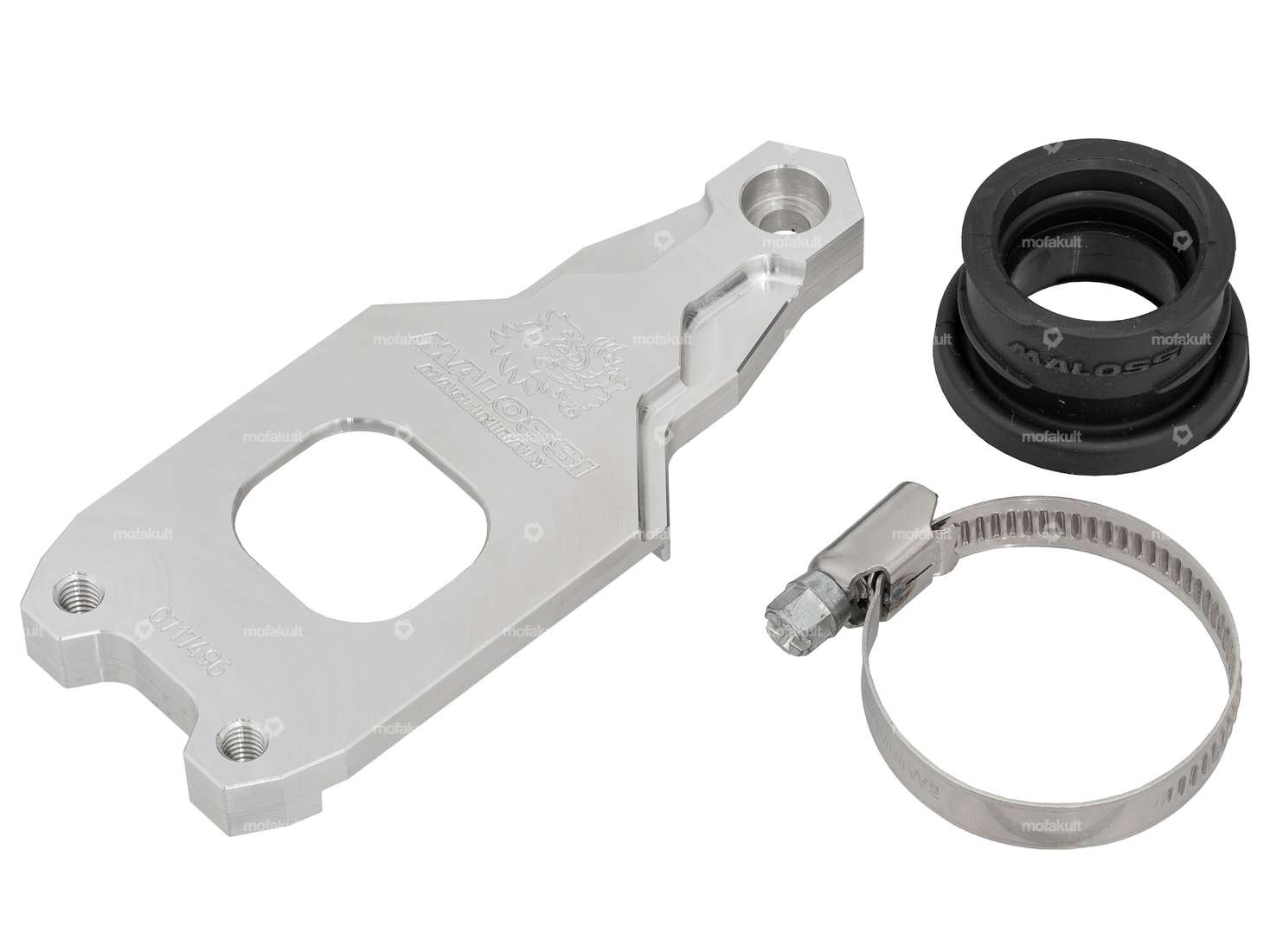

CNC machined aluminum reed flange for the MP-One engine housing. The diaphragm block only fits Piaggio Si, Bravo, Boxer and Gilera CBA mopeds / mopeds which have enough space to the rear. For use on a Piaggio Ciao, the frame must be massively adapted.
Conventional PHBG (DS / BS) carburetors can be fitted to the intake manifold made of hard-wearing Viton rubber compound.
Carburetor connection diameter: 25 mm
Ø internal passage: 21 mm
Material: aluminum, CNC machined
Corresponding add-on parts such as housings, racing carburetors, 4-flap diaphragms, air filters, etc. can be found in the accessories section.
Quality product from the Italian manufacturer Malossi.
Details
| Ø inside | 21 mm |
| Manufacturer | Malossi |
| Material | Aluminum, Rubber |
| Area of application | Tuning |
| Mounting type | Screws |
| Number of fixing points | 3 pcs |
| Ø External connection | 25 mm |
Suitable for the following models
| Piaggio | Ciao - Ciao, Ciao, Ciao, Ciao Si Bravo/Superbravo Boxer Grillo |
