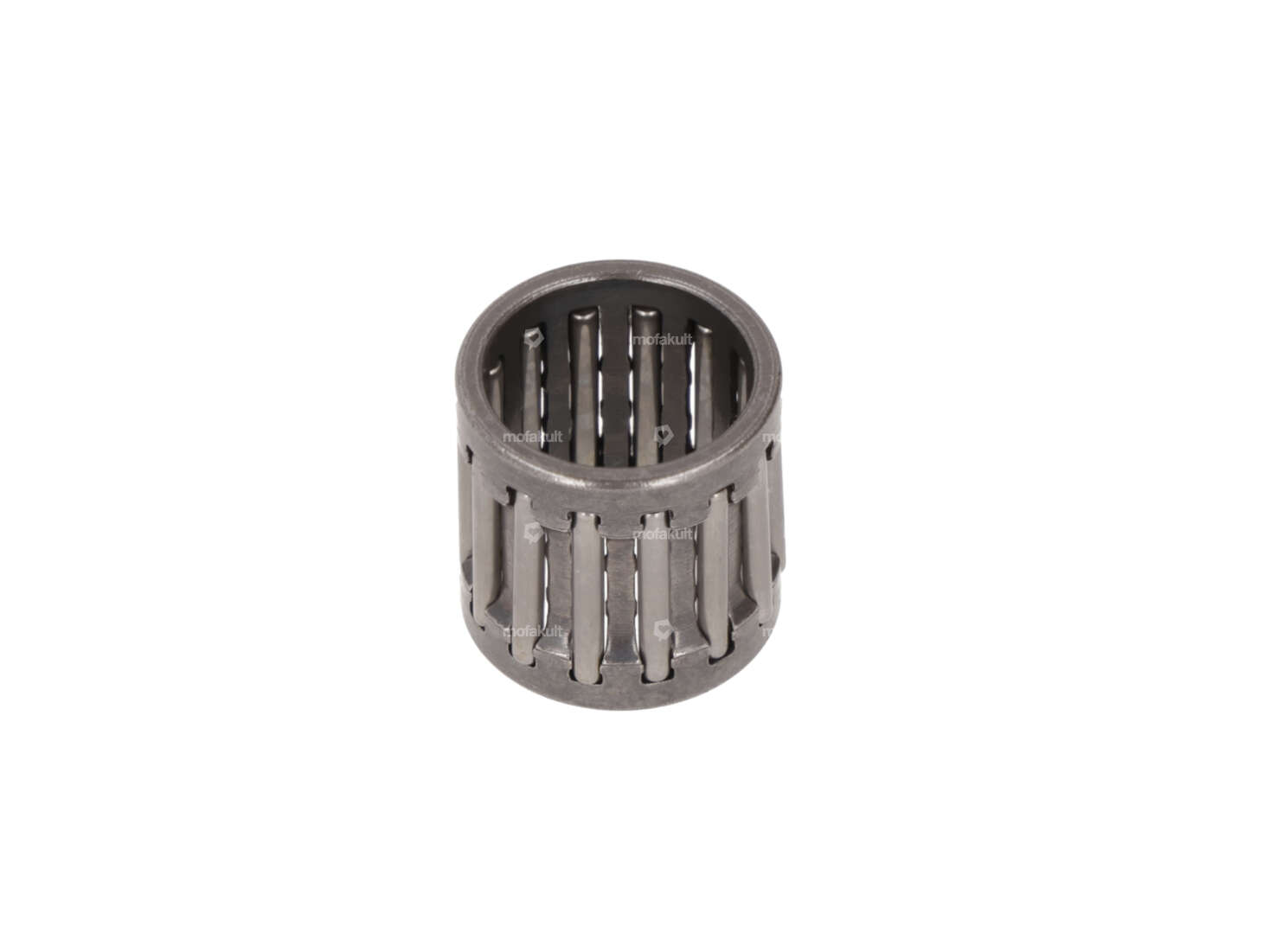

Mazzucchelli needle bearing 12/15/15 piston pin | Piaggio Ciao, SI, Bravo, Boxer

Jasil crankshaft "Racing" 12 mm KoBo | Piaggio Ciao, SI, Bravo, Boxer

Manufacturer: Jasil · Cheek type: standard · Area of application: Racing · Ø coupling pin / vario pin: 12 mm · Crankshaft stroke: 43 mm · Ø piston pin (B): 12 mm · Connecting rod length center-center: 87 mm · Total length crankpin ignition side: 91.5 mm · Ø Connecting rod eye: 15 mm · Ø Bearing seat (clutch side): 15 mm · Ø Bearing seat (ignition side): 15 mm · Dimension needle bearing: 12 / 15 x 14.7 mm (axe 12) · Thread type: M8x1.25 (standard thread) · Wide crank webs: 32.9 mm · Length 1st paragraph: 21.5 mm · Length 2nd paragraph: 44 mm · Length 3rd paragraph: 64.9 mm · Number of gears: 1 pcs

Malossi piston 43 mm (12 mm KoBo) old version | Piaggio Ciao, SI, Bravo, Boxer

Manufacturer: Malossi · Ø outside piston (A): 42.92 mm · Ø piston pin (B): 12 mm · Compression height (C): 26.1 mm · Curvature (D): 4.7 mm · Total piston height (E): 52.8 mm · Number of piston rings (F): 2 pcs · Nominal diameter: 43 mm · Piston ring mold: Rectangular ring · Piston ring impact: Internal fuse (IS) · Piston ring height: 1.5 mm · Piston weight: 90 g

Polini 46 mm piston (12 mm KoBo) | Piaggio Ciao, SI, Bravo, Boxer

Manufacturer: Polini · Ø outside piston (A): 45.94 mm · Ø piston pin (B): 12 mm · Compression height (C): 26 mm · Curvature (D): 2.7 mm · Total piston height (E): 50.7 mm · Number of piston rings (F): 2 pcs · Nominal diameter: 46 mm · Piston ring mold: Rectangular ring · Piston ring impact: Flank safety device (FS) · Piston ring height: 1.5 mm

Athena crankshaft "Racing" 12 mm KoBo | Piaggio Ciao, SI, Bravo, Boxer

Manufacturer: Athena · Cheek type: standard · Area of application: Racing · Ø coupling pin / vario pin: 12 mm · Crankshaft stroke: 43 mm · Ø piston pin (B): 12 mm · Connecting rod length center-center: 85 mm · Total length crankpin ignition side: 91.6 mm · Ø Connecting rod eye: 15 mm · Ø Bearing seat (clutch side): 15 mm · Ø Bearing seat (ignition side): 15 mm · Dimension needle bearing: 12 / 15 x 14.7 mm (axe 12) · Thread type: M8x1.25 (standard thread) · Wide crank webs: 33 mm · Length 1st paragraph: 21.9 mm · Length 2nd paragraph: 43.2 mm · Length 3rd paragraph: 63.5 mm · Number of gears: 1 pcs

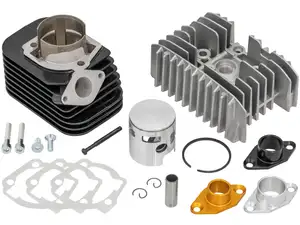

Pinasco 46 mm cylinder kit EVOTEN BIG 12 mm KoBo | Piaggio Ciao, SI, Bravo, Boxer

Manufacturer: Pinasco · Material: Aluminum · Area of application: Tuning · Displacement: 71 ccm · Surface: varnished · Crankshaft stroke: 43 mm · Ø piston pin (B): 12 mm · Nominal diameter: 46 mm · Ø cylinder neck: 49.9 mm · Camouflaged: No · Ø Outlet outside: 22.5 mm · Ø Outlet outside: 25 mm · Ø Outlet outside: 28 mm · Ø outlet inside: 18.5 mm · Ø outlet inside: 20.9 mm · Ø outlet inside: 24.4 mm · Hole pattern [mm]: 55 x 34 · Number of fixing points: 3 pcs · Decompressor: Yes · Hole spacing outlet: 47.5 mm · Outlet type: clamped · Outlet type: slanted · Thread outlet: M6x1 (standard thread)

Mazzucchelli needle bearing 10/13/14.5 piston pin | Piaggio Ciao, SI, Bravo, Boxer

Ø inside: 10 mm · Ø outside: 13 mm · Manufacturer: Mazzucchelli · Bearing type: Needle roller and cage assembly · Dimension needle bearing: 10/13 x 14.5 · Width: 14.5 mm

GPO sprocket 14 teeth (wide) | Puch

Manufacturer: GPO · Material: Steel · Surface: Hardened · Chain type: 415H · Recording type: Interlocking · Chain pitch: 1/2" x 3/16" · Number of teeth: 14 pcs · Total thickness: 4.6 mm

Sliding bush fork original | Puch

Ø inside: 23 mm · Ø outside: 27 mm · Manufacturer: Made in Italy · Material: Plastic · Surface: raw · Color: white · Total length: 30 mm

GPO mudguard strut silver | Puch Maxi S, N

Total length: 240 mm · Manufacturer: GPO · Wide intake: 53 mm · Material: Steel · Outer width: 25.5 mm · Surface: varnished · Wheel size [inch]: 17 " · Color: silver · Distance mudguard - center hole: 197 mm · Distance mudguard - center hole: 231 mm · Mounting type: Nuts & bolts · Number of fixing points: 8 pcs · Hole spacing: 40 mm · Ø mounting hole: 6 mm

swiing® revival screw set frame Inox | Puch Maxi N

Manufacturer: swiing® revival parts · Material: Chrome steel (stainless steel) · Area of application: Standard · Surface: stainless

GPO side bars chrome | Puch Maxi N

Manufacturer: GPO · Material: Steel · Surface: chrome-plated · Color: Chrome · Mounting type: Screws · Number of fixing points: 2 pcs · Hole spacing: 342 mm · Ø mounting hole: 8.1 mm · Total length: 360 mm · Width: 140 mm · Height: 60 mm

swiing® revival side protection screw set black | Puch Maxi S

Drive: Slot · Drive: Triangular head · Total length: 47 mm · Total length: 60 mm · Manufacturer: swiing® revival parts · Thread length: 35 mm · Thread length: 50 mm · Material: Plastic · Material: Steel · Surface: galvanized (blue) · Surface: raw · Color: silver · Thread type: M5x0.8 (standard thread)

Rim ring 1.50 x 17" (45 mm) chrome

Manufacturer: Made in Italy · Material: Steel · Surface: chrome-plated · Wheel size [inch]: 17 " · Color: Chrome · Nominal diameter: 432 mm · Rim well depth: 7.5 mm · Overall width outside: 56 mm · Number of spoke holes: 36 pcs · Ø Nipple hole: 6.5 mm · Jaw width: 38.5 mm · Jaw width [inch]: 1.5 "

Brass nut M6 3D

Ø outside: 9 mm · Drive: External hexagon · Width across flats SW: 10 mm · Material: Brass · Area of application: Standard · Nut type: Neck nut · Surface: blank · Shank length: 20 mm · Thread depth: 25 mm · Thread type: M6x1 (standard thread) · Height: 25 mm

swiing® ingenious puller flywheel | Piaggio Ciao, SI, Bravo, Boxer

Width across flats (trigger): 10 mm · Width across flats (trigger): 18 mm · Manufacturer: swiing® ingenious parts · Number of components: 2 pcs · Width across flats Screw: 19 mm · Material: Steel · Area of application: (Dis)assembly tool · Surface: blackened · Surface: galvanized (blue) · Diameter: 12 mm · Diameter: 24 mm · Thread type: MF12x1.5 (fine pitch thread) · Thread type: MF17x1 (fine pitch thread) · Total length: 100 mm
