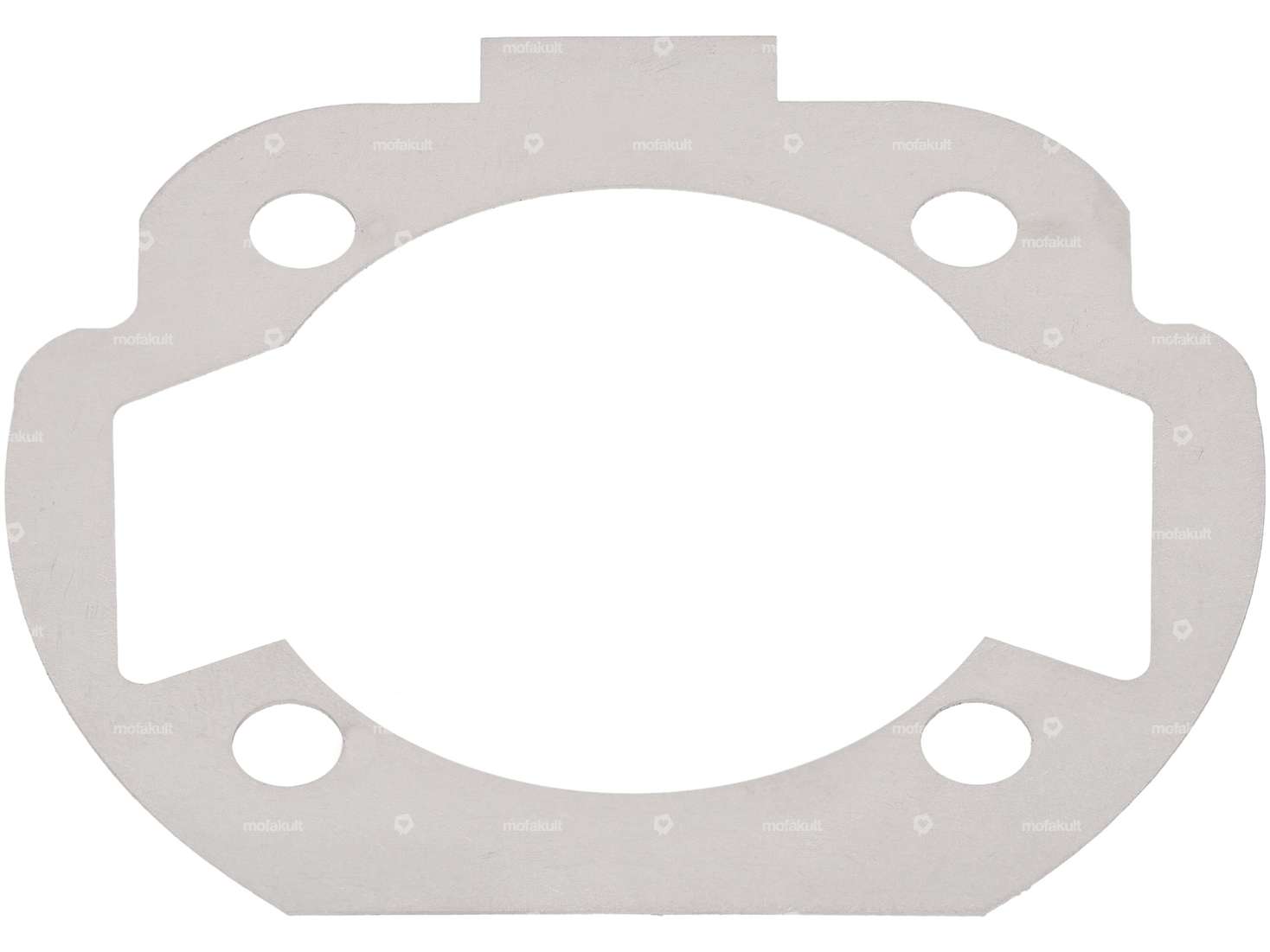

MBR 0.5 mm lifting plate Gilardoni italkit Inox | Puch

Gilardoni italkit 47 mm cylinder kit without cylinder head

Nominal diameter: 47 mm · Manufacturer: Gilardoni italkit · Material: Cast aluminum · Camouflaged: No · Area of application: Tuning · Surface: sandblasted · Crankshaft stroke: 43 mm · Displacement: 75 ccm · Ø piston pin (B): 12 mm · Hole spacing inlet: 35.5 mm · Ø cylinder neck: 51 mm · Hole spacing inlet: 60 mm · Ø Inlet inside: 18.3 mm · Ø outlet inside: 26.5 mm · Inlet window: 38.5 x 25.8 · Thread inlet: M6x1 (standard thread) · Hole spacing outlet: 42 mm · Decompressor: No · Outlet type: slanted · Thread outlet: M6x1 (standard thread) · Number of fixing points: 4 pcs · Hole pattern [mm]: 44 x 44

Motorex Automatic Motor Oil (ATF) 450 ml

Temperature resistance (min.): -45 - 200 °C · Manufacturer: Motorex · Area of application: Gearbox lubrication with clutch · Oil type: ATF Dextron 3 (DEXIII) · Contents [ml]: 450 ml · Gearbox type: Automatic machine · Pony spare part no.: A2080 · Sachs spare part no.: 0263 014 002

GPO 44 mm cylinder head tuning | Puch Maxi S, N / X30 NS, NL, N-2AH

Manufacturer: GPO · Area of application: Tuning · Camouflaged: Yes · Material: Aluminum · Surface: sandblasted · Total length: 135 mm · Width: 125 mm · Height: 55 mm · Ø cylinder: 44 mm · Number of fixing points: 4 pcs · Candle thread: short · Hole pattern [mm]: 44 x 44 · Decompressor: No

MBR Retaining plate, oil seal, ignition side Racing

Ø inside: 25.3 mm · Ø outside: 89.4 mm · Manufacturer: MBR · Material: Chrome steel (stainless steel) · Area of application: Tuning · Surface: brushed · Color: silver · Number of fixing points: 4 pcs

MBR 1.5 mm lift plate aluminum Gilardoni italkit Puch

Manufacturer: MBR · Material: Aluminum · Place of use: Cylinder base · Ø cylinder: 47 mm · Thickness: 1.5 mm · Area of application: Tuning

Inner cable set automatic | Puch E50

Ø Stranded wire: 1.25 mm · Ø Stranded wire: 1.5 mm · Ø Stranded wire: 1.8 mm · Nipple shape: Barrel (transverse) · Nipple shape: Cylinder · Nipple shape: Pears · Manufacturer: Made in Germany · Material: Steel · Quantity: 4 pcs · Total length: 1600 mm · Total length: 2200 mm

swiing® revival gasket gearbox cover engine 1 mm | Puch E50

Manufacturer: swiing® revival parts · Material: Sealing paper · Number of components: 1 pcs · Ø inside: 106 mm · Ø outside: 116 mm · Thickness: 1 mm · Number of fixing points: 4 pcs · Color: sand-colored · Alternative version of the Puch spare part no.: 349.1.10.349.1

swiing® ingenious crankshaft High End (+1 mm stroke) (Version 2.0) | Puch E50

Manufacturer: swiing® ingenious parts · Material: Aluminum · Area of application: High End · Material: Steel · Cheek type: Full cheeks · Crankshaft stroke: 44 mm · Ø piston pin (B): 12 mm · Thread type: MF10x1 (fine pitch thread) · Connecting rod length center-center: 90 mm · Total length of crankpin on clutch side: 74 mm · Total length crankpin ignition side: 66 mm · Ø crank webs: 69.9 mm · Ø Connecting rod eye: 15 mm · Ø Bearing seat (clutch side): 17 mm · Ø Bearing seat (ignition side): 17 mm · Thread length: 11 mm · Thread length: 15 mm · Dimension needle bearing: 12 / 15 x 14.2 mm (axe 12) · Wide crank webs: 34 mm · Length 1st paragraph: 9 mm · Length 2nd paragraph: 14.5 mm · Length 3rd paragraph: 25 mm · Ø 1st step (on the coupling side): 22 mm · Ø 2nd shoulder (on the clutch side): 17 mm · Ø 3rd step (on the clutch side): 15 mm · Length of shoulder (ignition side): 26.3 mm · Weight: 970 g · Number of gears: 1 pcs

Airsal gasket set cylinder 47 mm Puch

Manufacturer: Airsal · Area of application: Tuning · Number of components: 4 pcs · Ø cylinder: 47 mm · Hole spacing outlet: 42 mm · Hole pattern [mm]: 44 x 44 mm · Decompressor: No · Hole spacing inlet: 32 - 38 mm

swiing® ingenious crankshaft High End C3/4 & Viton (+1 mm stroke) (Version 2.0) | Puch E50

Manufacturer: swiing® ingenious parts · Area of application: High End · Material: Steel · Cheek type: Full cheeks · Crankshaft stroke: 44 mm · Ø piston pin (B): 12 mm · Thread type: MF10x1 (fine pitch thread) · Connecting rod length center-center: 90 mm · Total length of crankpin on clutch side: 74 mm · Total length crankpin ignition side: 66 mm · Ø crank webs: 69.9 mm · Ø Connecting rod eye: 15 mm · Ø Bearing seat (clutch side): 17 mm · Ø Bearing seat (ignition side): 17 mm · Thread length: 11 mm · Thread length: 15 mm · Dimension needle bearing: 12 / 15 x 14.2 mm (axe 12) · Wide crank webs: 34 mm · Length 1st paragraph: 9 mm · Length 2nd paragraph: 14.5 mm · Ø 1st step (on the coupling side): 22 mm · Ø 2nd shoulder (on the clutch side): 17 mm · Ø 3rd step (on the clutch side): 15 mm · Length of shoulder (ignition side): 26.3 mm · Weight: 970 g · Number of gears: 1 pcs
