37.98 mm piston with a 1.5 mm rectangular piston ring with internal circlip (IS) suitable for Sachs mopeds / mopeds with 503 ADV engines.
The detailed dimensions of the piston according to the technical drawing can be found in the details. You can also find out about the relevant piston rings, their positions and locking types on the legend in the images.
Tolerance C

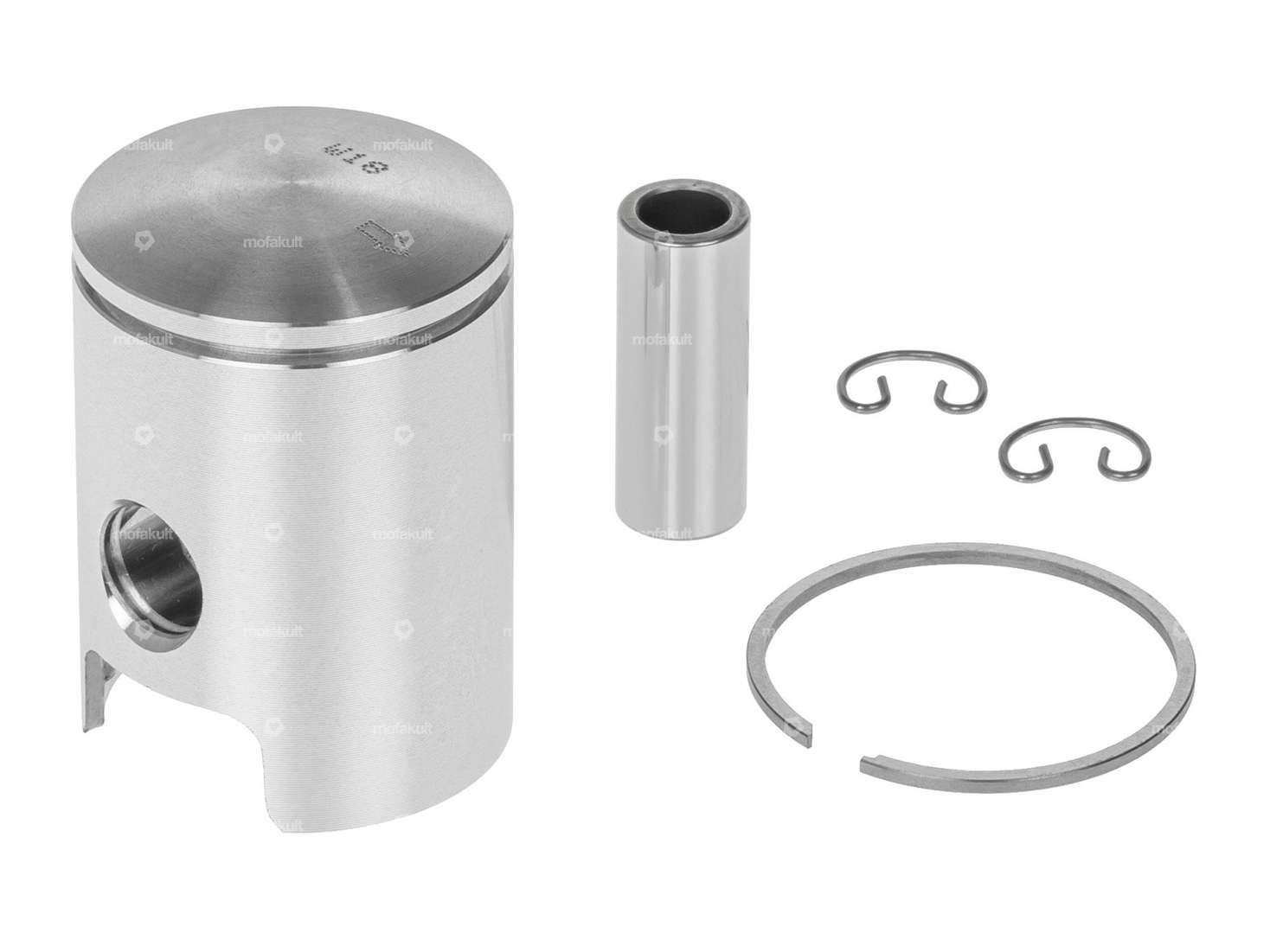

The piston kit contains piston pins, piston clips and piston rings.
You will find the corresponding assembly tool, piston pin locks and, if necessary, the corresponding cylinder in the accessories section.
Original Sachs spare part number: A2270C
Quality product from the Italian manufacturer Meteor.
Details
| Nominal diameter | 38 mm |
| Manufacturer | Meteor |
| Ø outside piston (A) | 37.98 mm |
| Compression height (C) | 28 mm |
| Curvature (D) | 3 mm |
| Total piston height (E) | 54 mm |
| Number of piston rings (F) | 1 pcs |
| Piston ring mold | Rectangular ring |
| Piston ring impact | Internal fuse (IS) |
| Piston ring height | 1.5 mm |
| Ø piston pin (B) | 12 mm |
| Tolerance group | C |
| Weight | 76 g |
Suitable for the following models
| Sachs | 503 - ADV |
