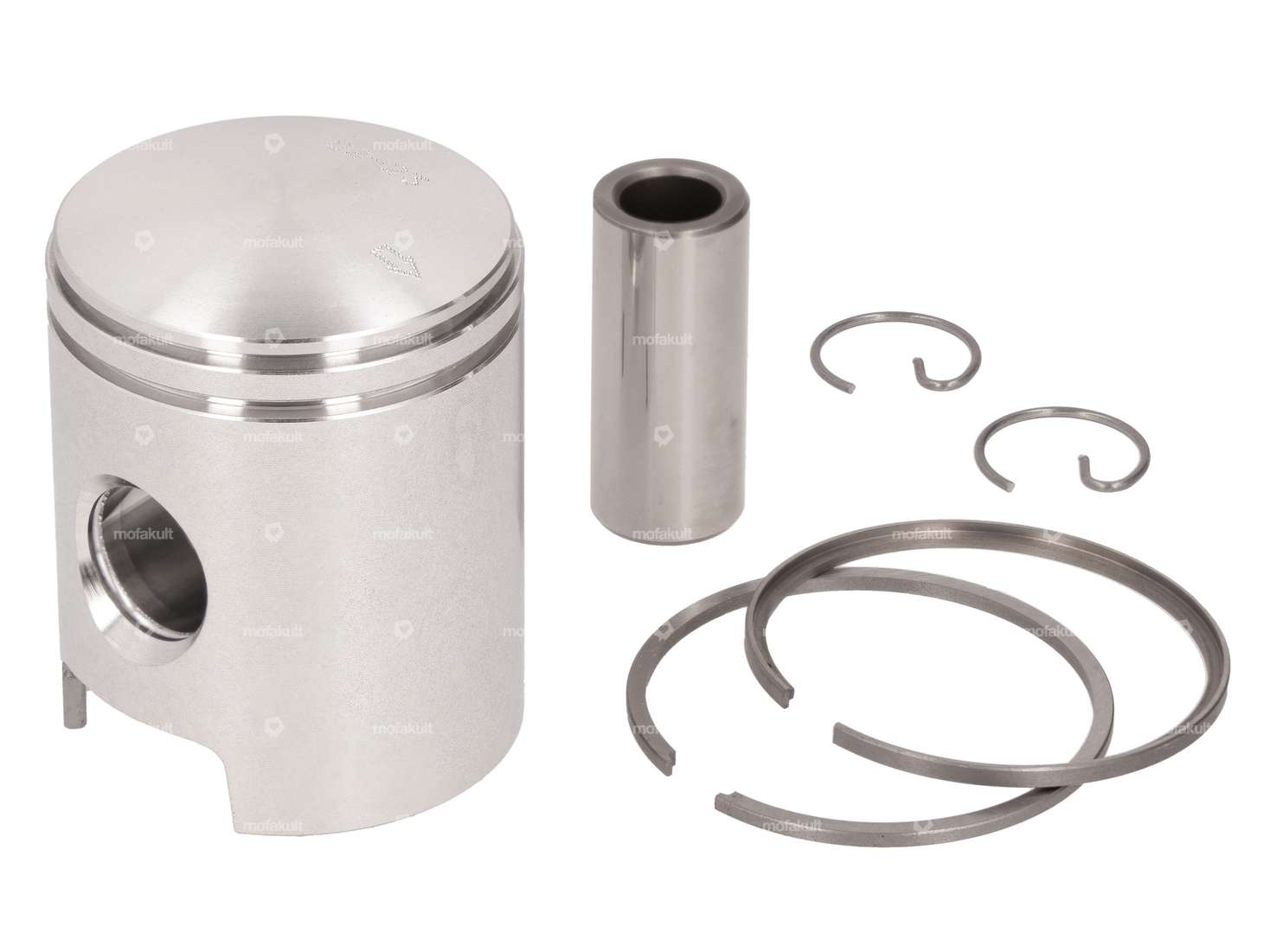

40.0 mm replacement piston with a 2 mm L-shaped piston ring with internal circlip (IS) and a 1.5 mm rectangular piston ring with internal circlip (IS) suitable for Kreidler Florett RS small engine bikes with 40 mm cylinder.
The detailed dimensions of the piston according to the technical drawing can be found in the details. You can also find out about the piston rings used, their dimensions and locking types on the legend in the images.
Tolerance type: B
The piston kit contains piston pins, piston clips and piston rings.
You will find the appropriate assembly tools, piston pin locks and, if necessary, the corresponding cylinder in the accessories section.
Quality product from the Italian manufacturer Meteor.
Details
| Nominal diameter | 40 mm |
| Manufacturer | Meteor |
| Ø outside piston (A) | 39.955 mm |
| Compression height (C) | 27 mm |
| Curvature (D) | 3 mm |
| Total piston height (E) | 51 mm |
| Number of piston rings (F) | 2 pcs |
| Piston ring mold | Rectangular ring, L-ring |
| Ø piston pin (B) | 14 mm |
| Piston ring impact | Internal fuse (IS) |
| Piston ring height | 1.5 mm, 2 mm |
| Tolerance group | B |
| Piston weight | 100 g |
Suitable for the following models
| Kreidler |
