logo_meteor-piston-mk

For: Piaggio

29716

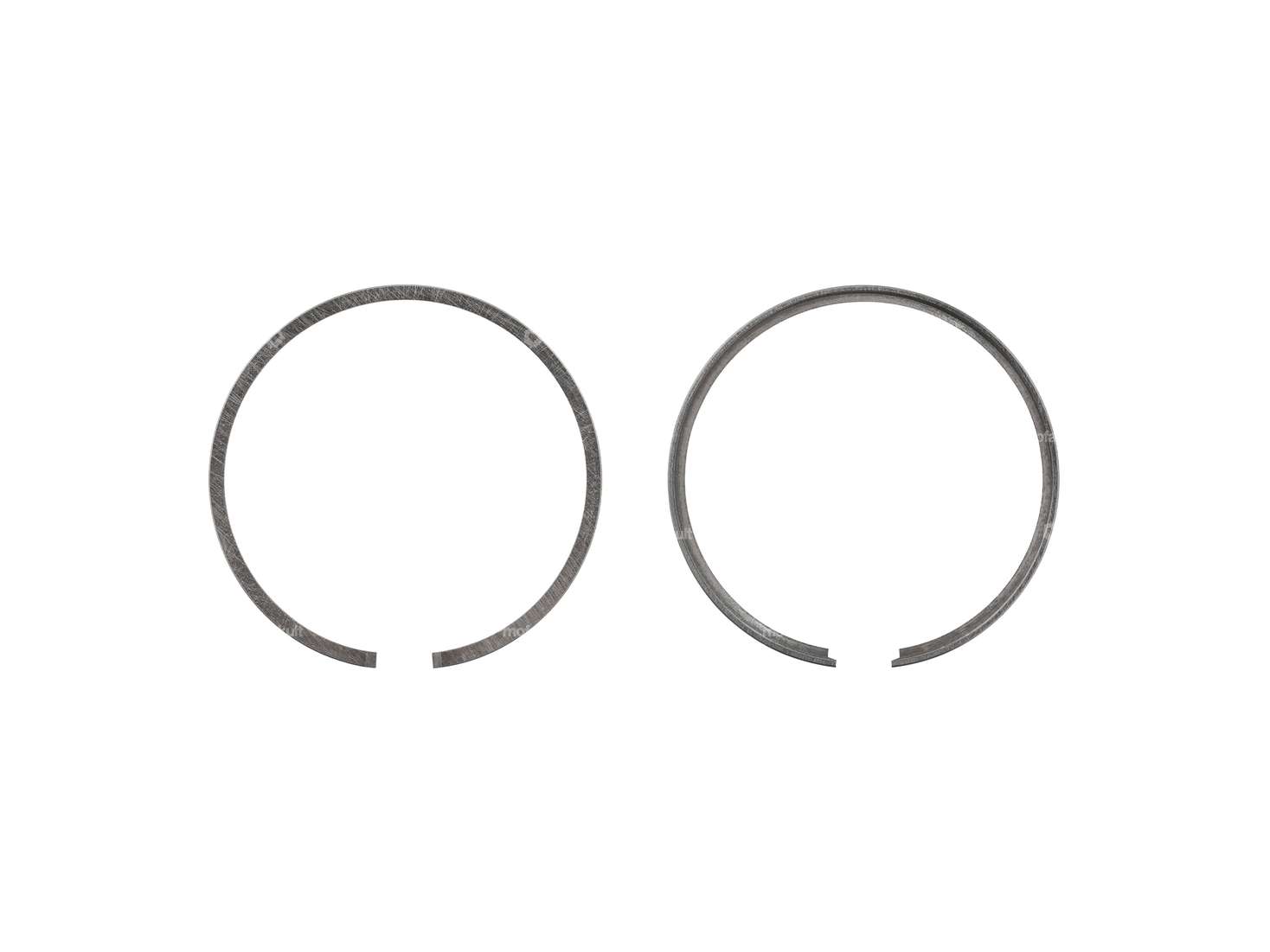

Meteor piston rings 38.2 mm (pair) | Piaggio Ciao, SI, Bravo, Boxer

Home
| Motor
| Cylinder
| Piston
19,50 EUR

Incl. 19% VAT.

A set of compression rings consisting of a rectangular ring and an L-piston ring suitable for Piaggio Ciao, Si, Bravo, Boxer, Grillo mopeds / mopeds.

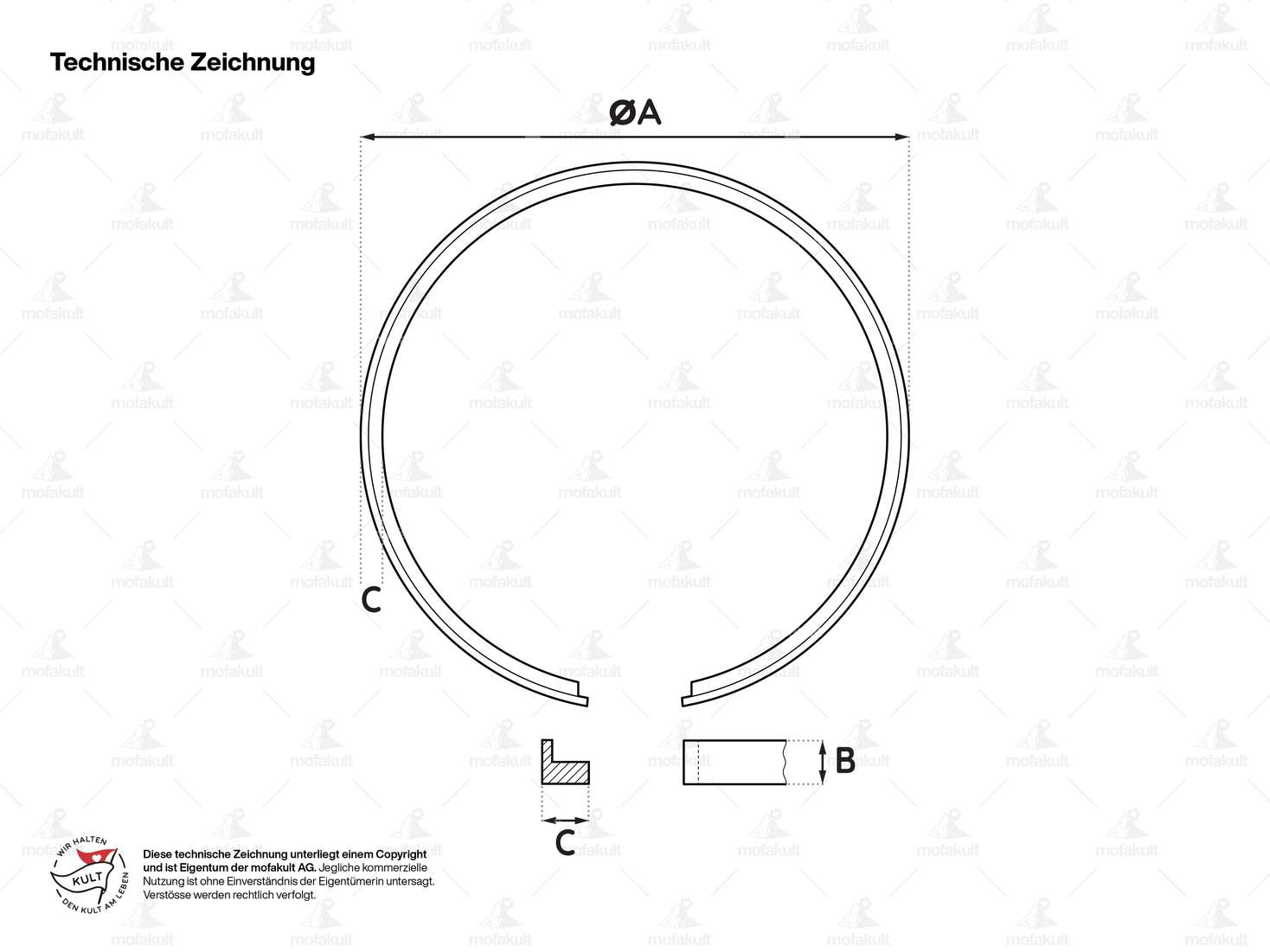

Dimension L-ring:
Ø outside (ØA): 38.20 mm
Height (B): 2.0 mm
Thickness (C): 1.75 mm
Piston ring shape: L-ring
Piston ring butt: Internal locking (IS)

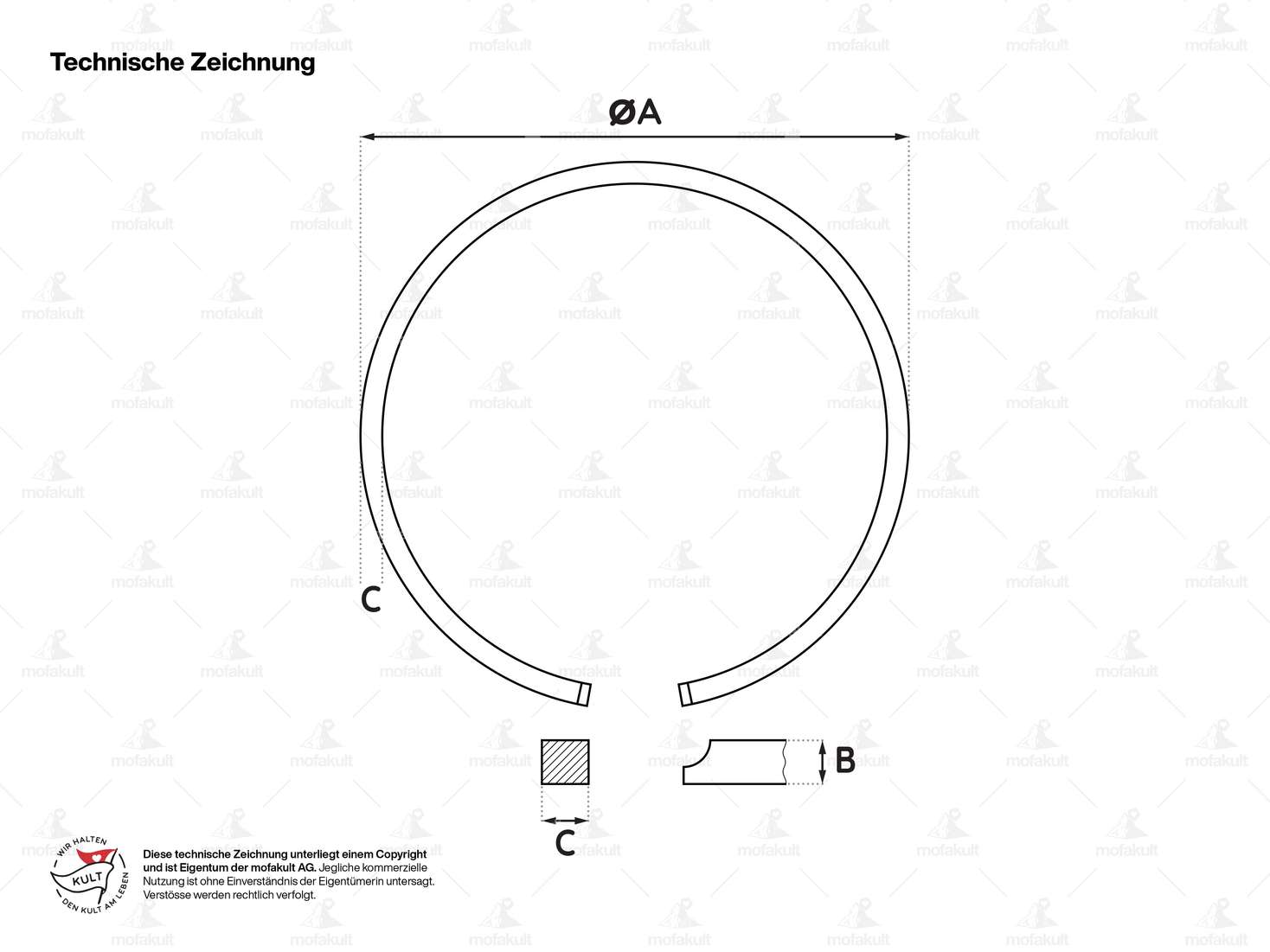

Size rectangular ring:
Ø outer (ØA): 38.20 mm
Height (B): 1.50 mm
Thickness (C): 1.60 mm
Piston ring shape: Rectangular ring
Piston ring butt: Flank lock (FS)

The scope of delivery corresponds to one pair.

Matching pistons, assembly tools and lubricant can be found in the accessories section.

Quality product from the Italian manufacturer Meteor.

The set includes the following fixed parts:

Meteor piston ring 38.2 x 1.5 mm (FS)

For: Piaggio

Meteor piston ring 38.2 x 1.5 mm (FS)

18636

Manufacturer: Meteor · Nominal diameter: 38 mm · Thick piston ring: 1.6 mm · Height: 1.5 mm · Piston ring mold: Rectangular ring · Piston ring impact: Flank safety device (FS)

Meteor L-piston ring 38.2 x 2 mm (IS)

For: Piaggio

Meteor L-piston ring 38.2 x 2 mm (IS)

29491

Manufacturer: Meteor · Nominal diameter: 38.2 mm · Thick piston ring: 1.75 mm · Height: 2 mm · Piston ring mold: L-ring · Piston ring impact: Internal fuse (IS)

Details

ManufacturerMeteor
Height2 mm, 1.5 mm
Thick piston ring1.75 mm, 1.6 mm
Nominal diameter38.2 mm
Piston ring moldL-ring, Rectangular ring
Piston ring impactInternal fuse (IS), Flank safety device (FS)

Suitable for the following models

Piaggio

Ciao - Ciao, Ciao, Ciao, Ciao

Si

Bravo/Superbravo

Boxer

Grillo
