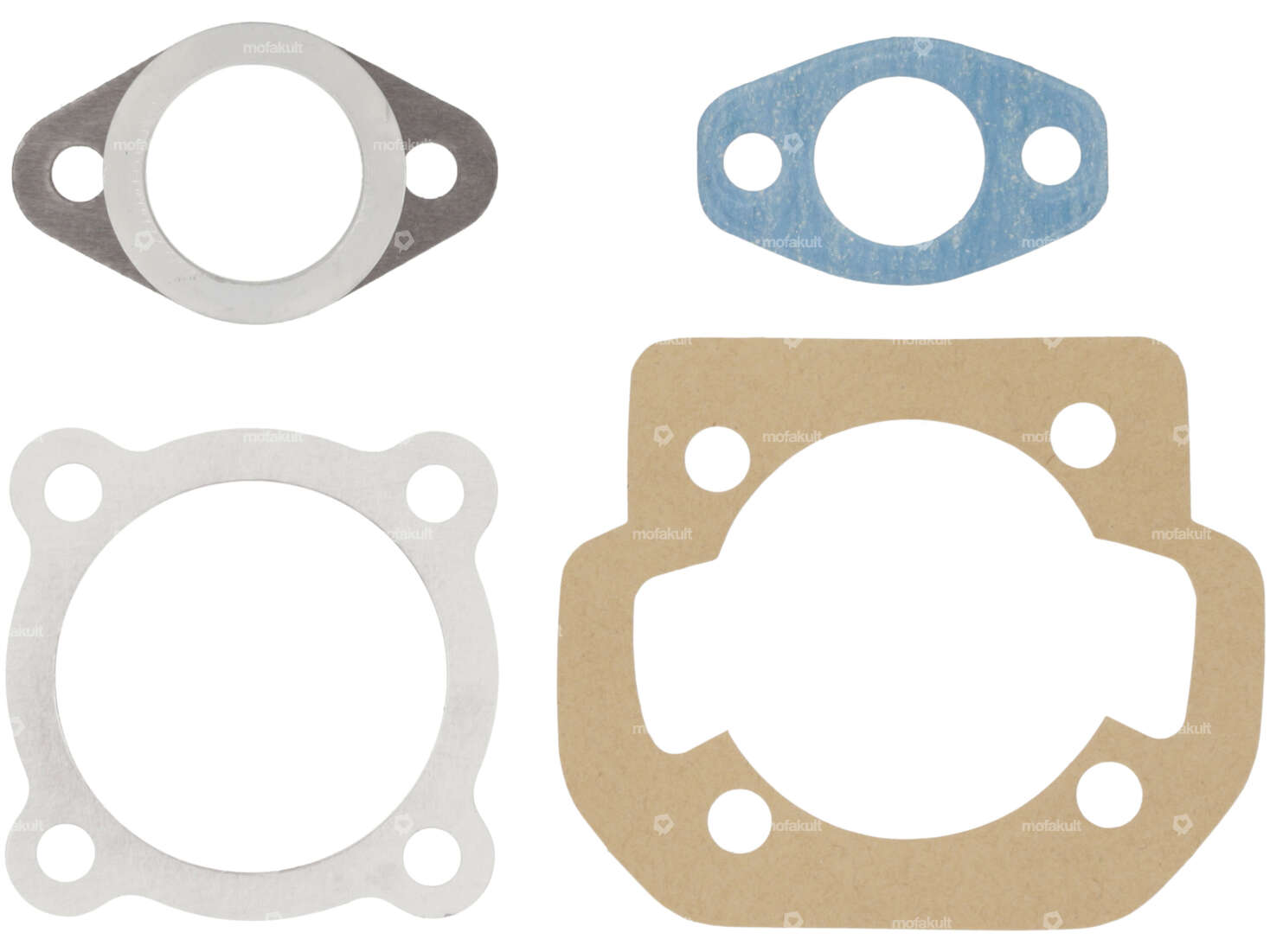

Gasket set Metrakit cylinder 47 mm with small ¨overflow channels.
Ø Exhaust: 24.6 mm
Hole spacing exhaust: 42.5 mm
Ø Intake: 21 mm
Hole spacing intake: 36
Hole pattern cylinder: 44.5 x 44.5 mm
Ø Cylinder head gasket inside: 47.5 mm
Thickness of cylinder head gasket: 0.6 mm
Ø cylinder base: 50 mm
Thickness of cylinder base gasket: 0.4 mm
You can find more gaskets and other Metrakit products in the accessories section.
Quality product from the Spanish cult manufacturer Metrakit.
Details
| Manufacturer | Metracite |
| Area of application | Tuning |
| Ø cylinder | 47 mm |
| Number of components | 4 pcs |
| Hole pattern [mm] | 44 x 44 mm |
| Hole spacing outlet | 42 mm |
| Hole spacing inlet | 38 mm |
Suitable for the following models
| Puch | E50 ZA50 (Fahrtwindgekühlt) Z50 (X30 Sport) |
