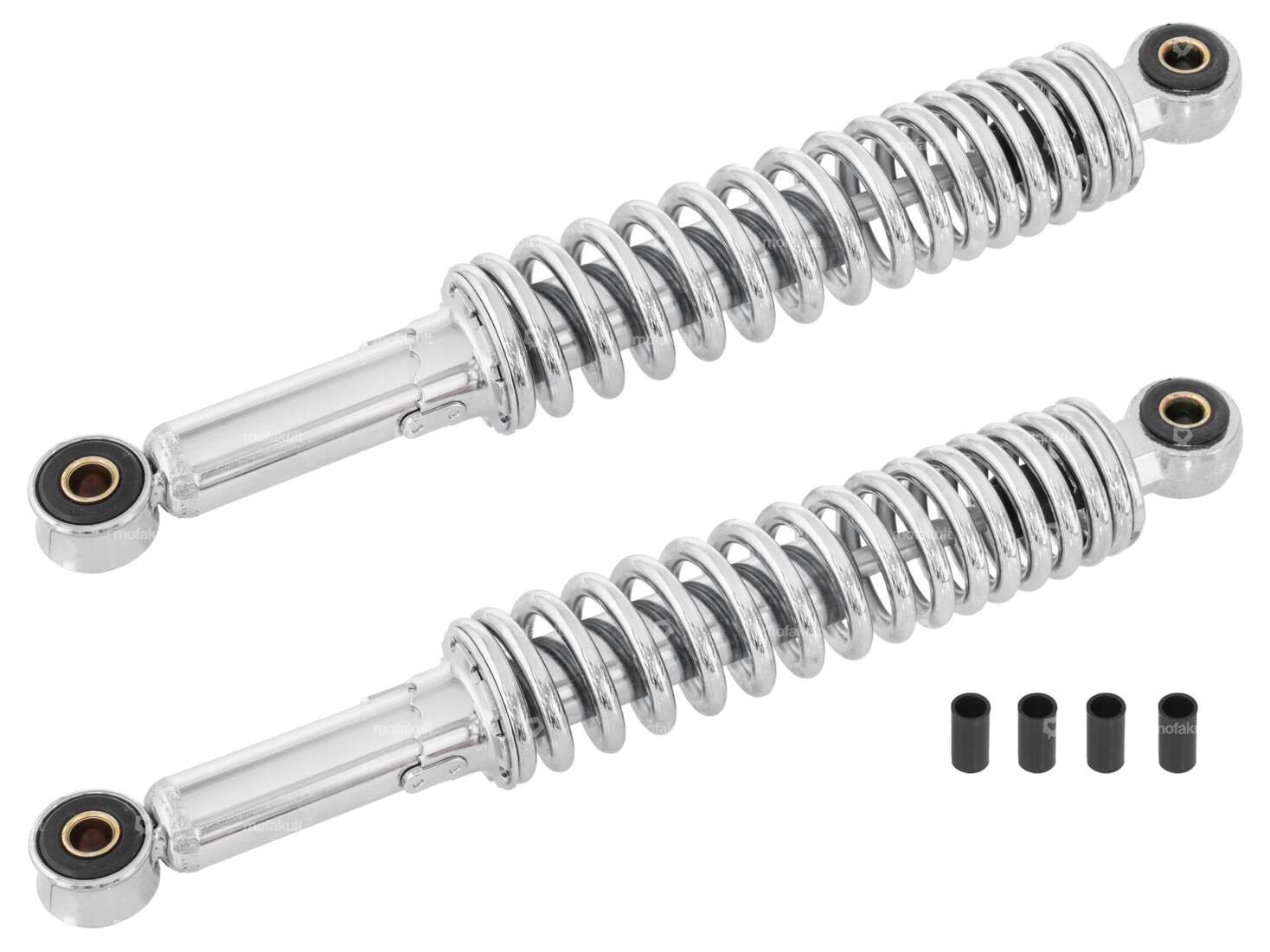

Chrome-plated, adjustable dampers for your moped, moped and small motorcycle.
The hardness or preload of the dampers can be adjusted in five stages thanks to the special spring mount.
Length (mount - mount): 310 mm
Outer diameter of coil spring: 46 mm
Holt diameter: 24 mm
Bush diameter for mounting: 10 / 8 mm
With the plastic bushes supplied, the diameter at the mounting points can be shortened from 10 mm to 8 mm.
The rear springs should always be secured with large washers to prevent the plastic bushes from shifting if lateral forces occur.
The scope of delivery includes one pair.
Rear springs in other colors, the matching adjustment key, washers and fastening material can be found in the accessories section.
Suspension strut from the MKX-SHOCK brand.
Details
Manufacturer | MKX |
Material | Steel |
Surface | chrome-plated |
Color | Chrome |
Damping type | Spring |
Adjustable | Yes |
Total length | 310 mm |
Ø outside | 46 mm |
Ø spars | 24 mm |
Number of fixing points | 2 pcs |
Ø Fastening inside | 8 mm, 10 mm |
Mounting type | Nuts & bolts |
