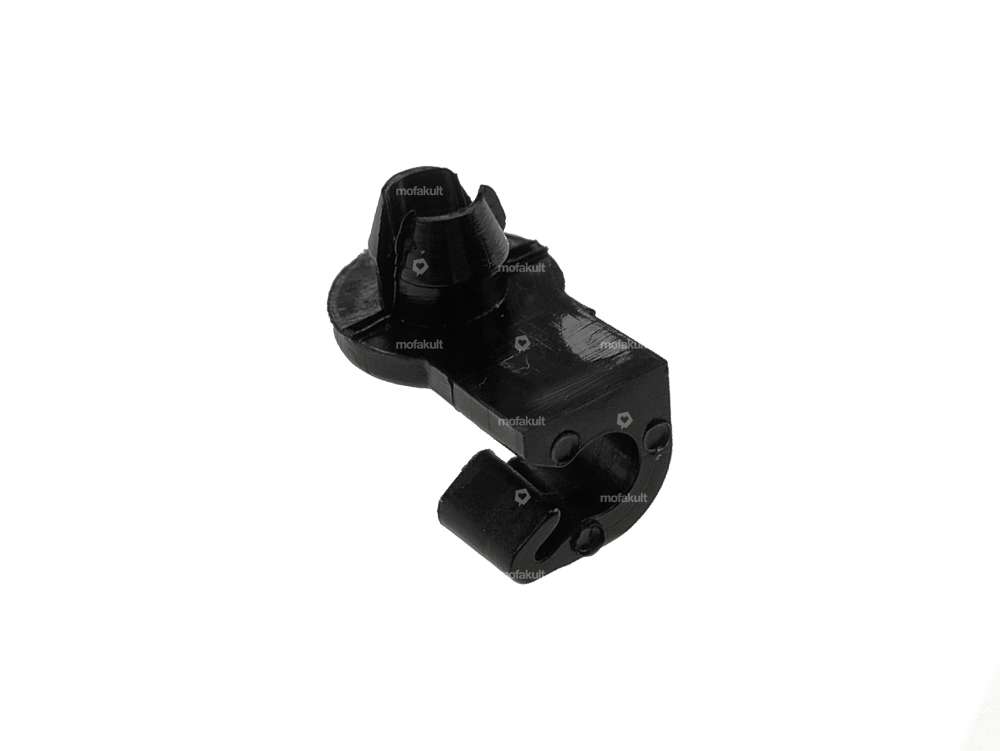

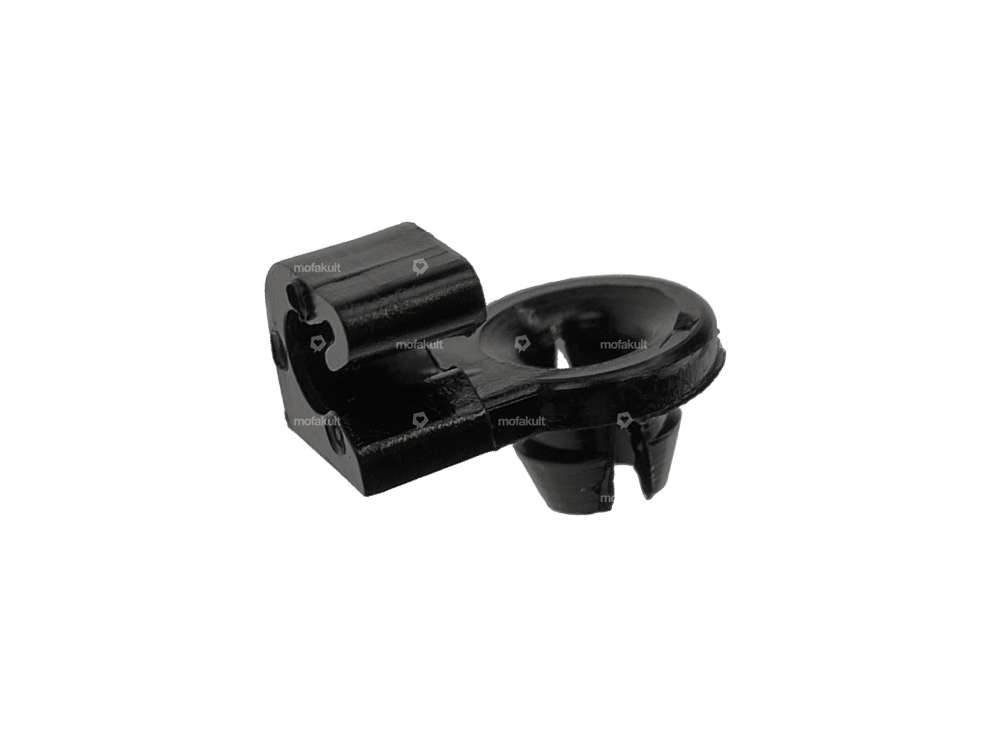

Mounting clip choke lever carburetor SHA original | Piaggio Ciao, SI

CIF Clamping screw front brake | Piaggio Ciao, SI, Bravo, Boxer

Ø outside: 11 mm · Drive: External hexagon · Screw head: Hexagon · Width across flats SW: 11 mm · Manufacturer: CIF · Thread length: 19.5 mm · Number of components: 6 pcs · Material: Steel · Area of application: Standard · Surface: galvanized (blue) · Thread type: M7x1 (standard thread) · Total length: 25 mm

Pedals angular | Piaggio Ciao. SI, Bravo

Drive: Outer edge · Width across flats SW: 15 mm · Material: Plastic · Surface: ribbed · Color: black · Reflectors: Yes · Thread type: FG14.3 (9/16" 20G) · Total length: 118 mm · Width: 51 mm · Height: 29 mm

EFFE breaker without cable | Piaggio Ciao, SI, Bravo, Boxer

Manufacturer: EFFE · Material: Steel · Area of application: Original · Area of application: Standard · Cable available: No · Number of fixing points: 1 pcs · Ø axle: 5 mm · Ø mounting hole: 4.5 mm · Piaggio OEM number: 103133

Dell'Orto 13/13 SHA carburetor hand choke | Piaggio Ciao PX, C24

Manufacturer: Dell'Orto · Material: Aluminum · Area of application: Tuning · Carburetor type: SHA (type 3) · Color: black · Nominal diameter: 13 mm · Camouflaged: No · Ø Internal connection: 16 mm · Ø without reducing sleeve: 18 mm · Ø Inside entrance: 13 mm · Mounting type: Plug connection clamped · Ø Output inside: 13 mm · Ø Air filter connection: 50.8 mm · Ø fuel hose connection: 5.2 mm · Ø fuel hose connection: 6 mm · Mixed oil connection: No · Vacuum connection: No · Choke control: Hand choke · Nozzle thread: M5x0.8 (standard thread) · Total length: 46 mm · Width: 60 mm · Nozzle size: 66 · Height: 96 mm

Cable set black matt | Piaggio Ciao, SI, Bravo, Boxer

Manufacturer: Made in Germany · Material: Steel · Quantity: 4 pcs · Ø Stranded wire: 1.25 mm · Ø Stranded wire: 1.5 mm · Ø Stranded wire: 1.8 mm · Color: black · Outer shell length: 1200 mm · Outer shell length: 1250 mm · Outer shell length: 1300 mm · Outer shell length: 2000 mm · Nipple shape: Ball · Nipple shape: Barrel (transverse) · Nipple shape: Pears · Total length: 1350 mm · Total length: 1600 mm · Total length: 2180 mm

CIF intermediate disk flywheel / clutch bell | Piaggio Ciao, SI, Bravo Boxer

Ø inside: 12 mm · Nominal diameter inside: 12 mm · Ø outside: 23 mm · Manufacturer: CIF · Ø Bundle: 16.3 mm · Material: Steel · Surface: galvanized (blue) · Total length: 5 mm

Choke rod original | Piaggio SI

Ø outside: 3.5 mm · Manufacturer: Piaggio · Material: Steel · Surface: galvanized (blue) · Carburetor type: SHA (type 3) · Choke control: Hand choke · Total length: 93 mm

Choke bracket plastic carburetor original | Piaggio Ciao

Manufacturer: Piaggio · Material: Plastic · Carburetor type: SHA (type 3) · Carburetor type: SHA (type 4) · Color: black

Large flywheel rubber (from 1975) original | Piaggio Ciao, SI, Bravo, Boxer

Manufacturer: Piaggio · Material: Rubber · Color: black · Total length: 42 mm · Total length: 47 mm · Width: 24 mm · Width: 27 mm · Piaggio OEM number: 166554

Choke lever black Dell'Orto SHA Type 3 | Piaggio Ciao PX, C24

Ø outside: 4 mm · Material: Plastic · Material: Steel · Surface: galvanized (blue) · Carburetor type: SHA (type 3) · Choke control: Hand choke · Total length: 92 mm · Width: 16 mm · Height: 21.5 mm · Piaggio OEM number: 188772 · Piaggio OEM number: 297837
