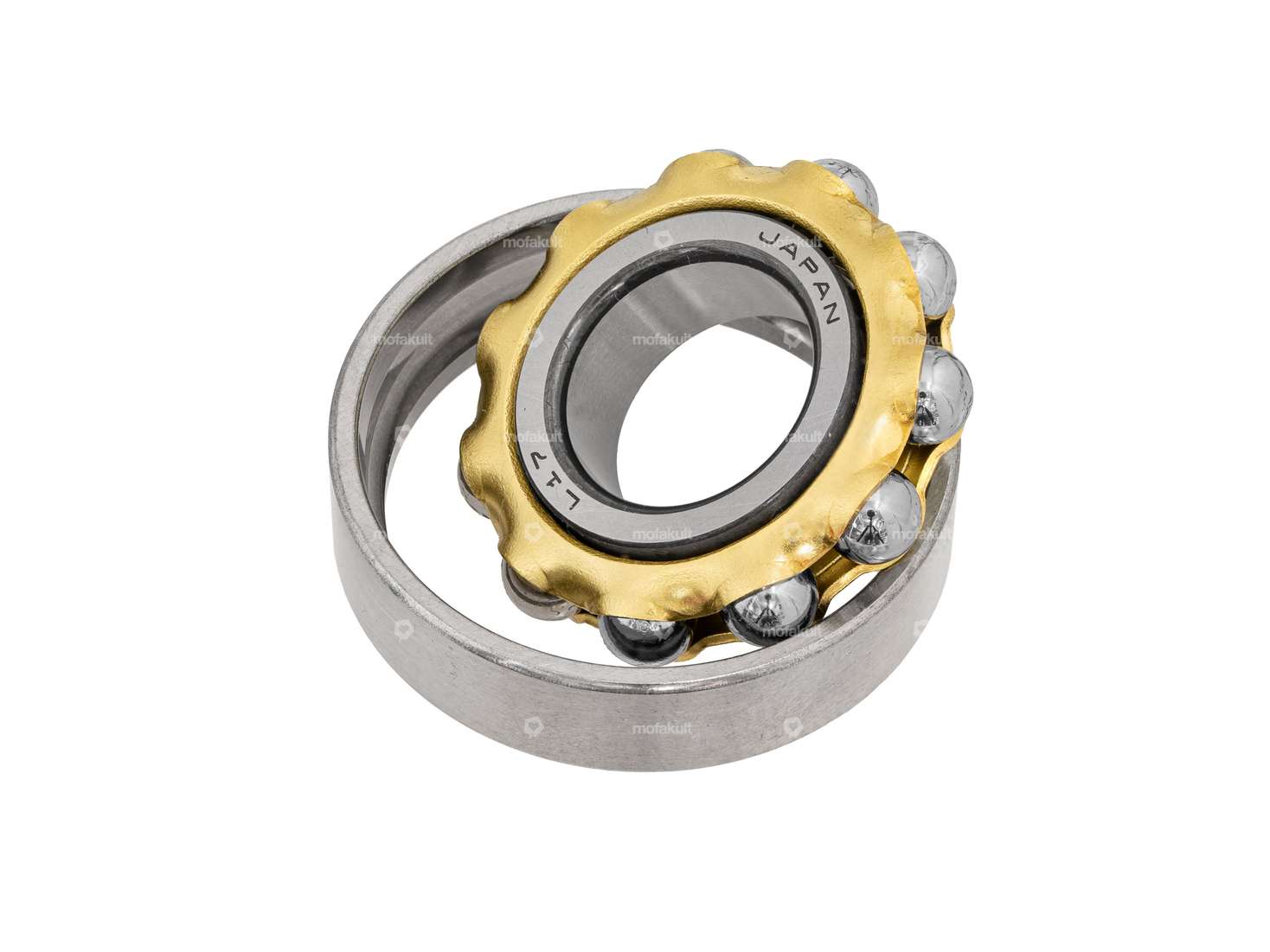

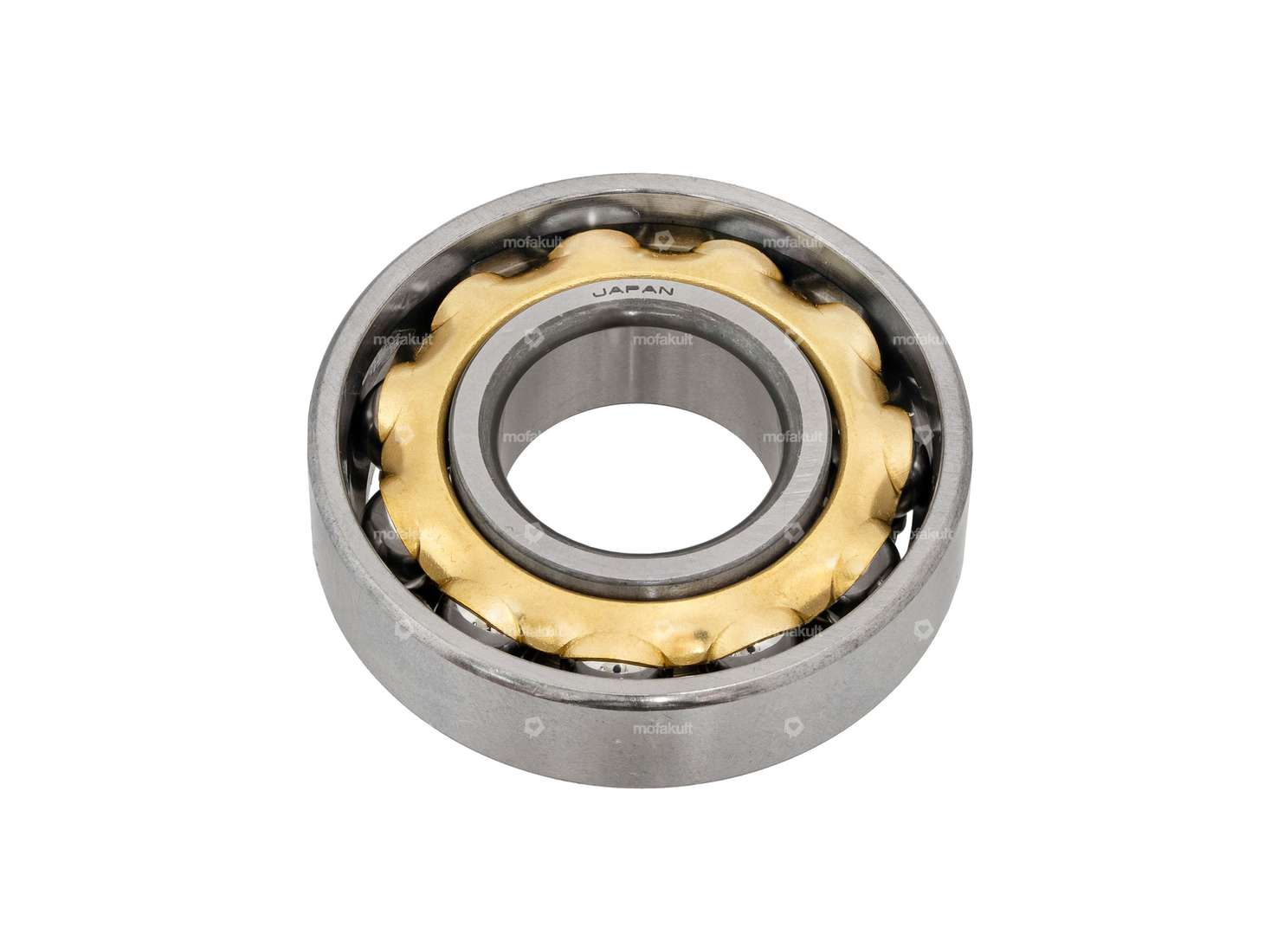

L17 shoulder bearing for ZA50 and Z50 Puch engines.
For the 2-speed automatic ZA50 engine, 1 piece is required
For the 2-speed manual Z50 engine, 2 pieces are required.
Outer diameter: 40 mm
Inner diameter: 17 mm
Width: 10 mm
Original spare part number: 900.2.6007
Quality product from the Japanese manufacturer NSK.
The set includes the following fixed parts:
Manufacturer: NSK · Material: Steel, Brass · Surface: blank / oiled · Area of application: Standard · Bearing type: Shoulder bearing · Stock number: L17 · Bearing clearance: CN (standard) · Ø inside: 17 mm · Ø outside: 40 mm · Width: 10 mm · Inner ring width: 10 mm · Ball bearing closed: No · Bearing cage: Brass cage ball-guided
Details
| Bearing type | Shoulder bearing |
| Stock number | L17 |
| Manufacturer | NSK |
| Width | 10 mm |
| Ø outside | 40 mm |
| Ø inside | 17 mm |
Suitable for the following models
| Puch | ZA50 (Fahrtwindgekühlt) ZA50 (Gebläsegekühlt) Z50 (X30 Sport) Z50 (X30 Velux) 2-Gang MS, MV, MV50 3-Gang VSD, DS, VZ, MC |
