For: Piaggio

18985

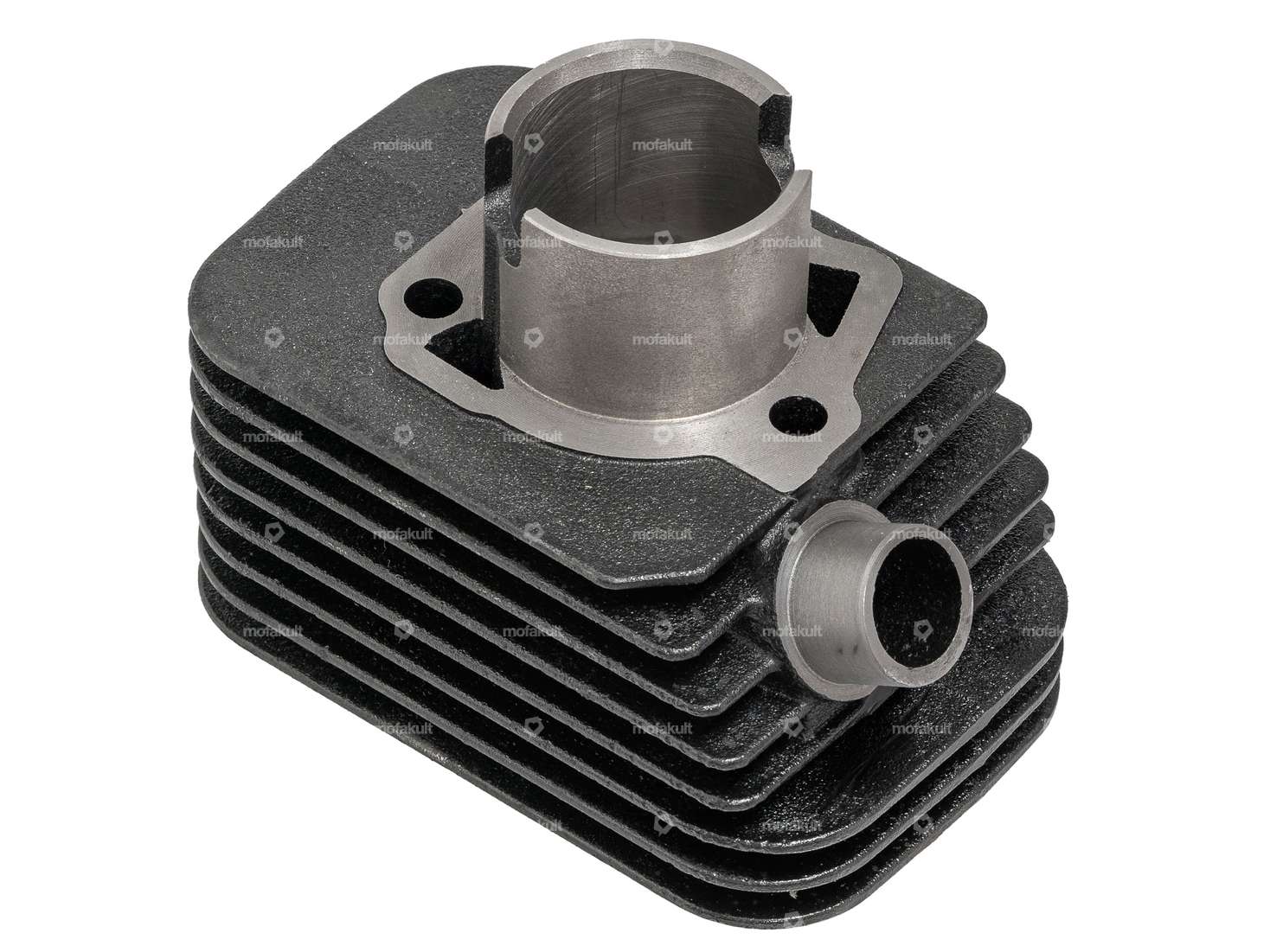

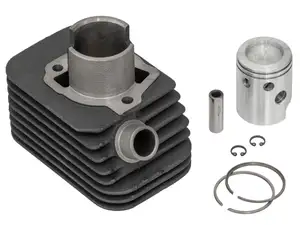

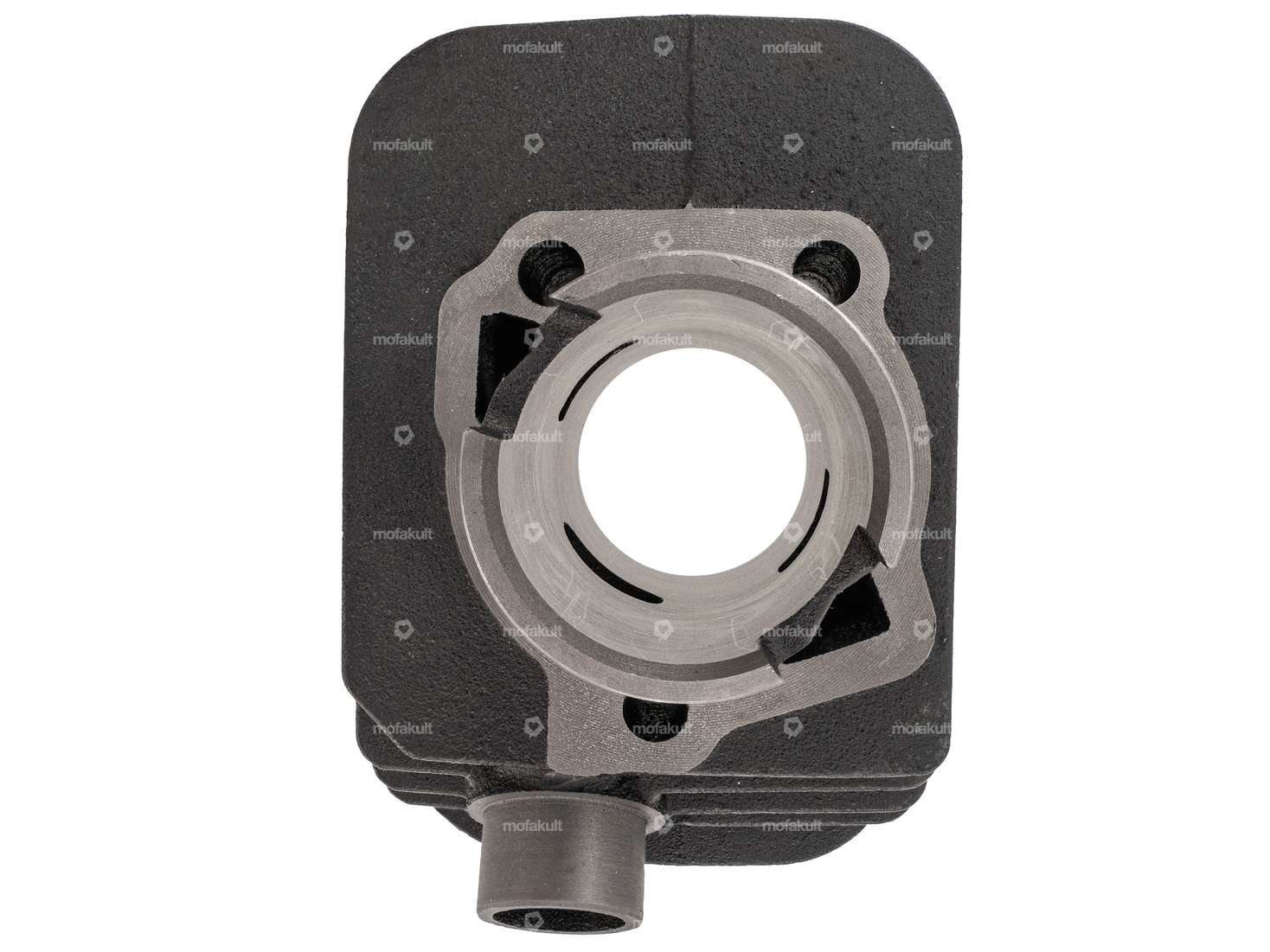

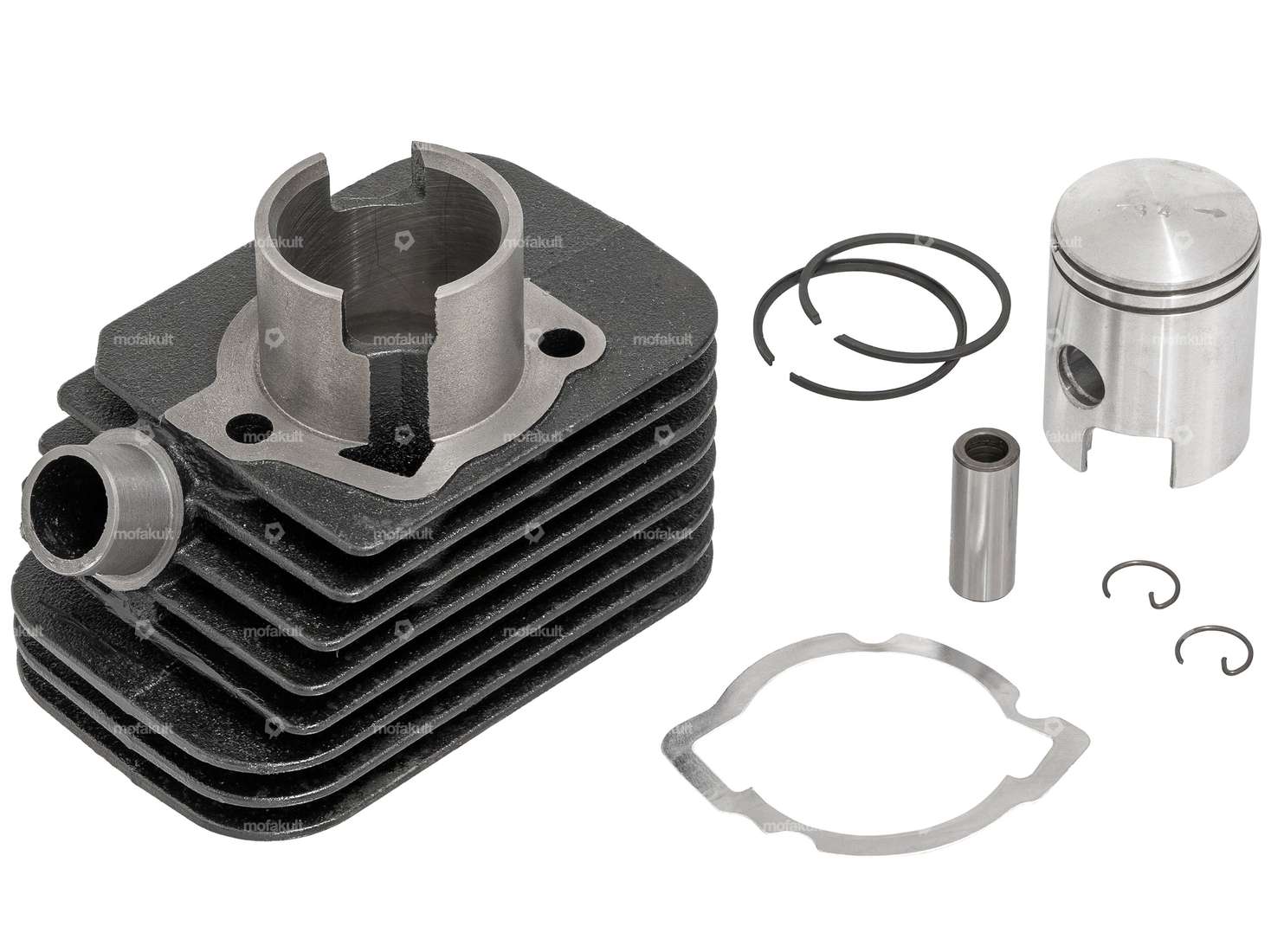

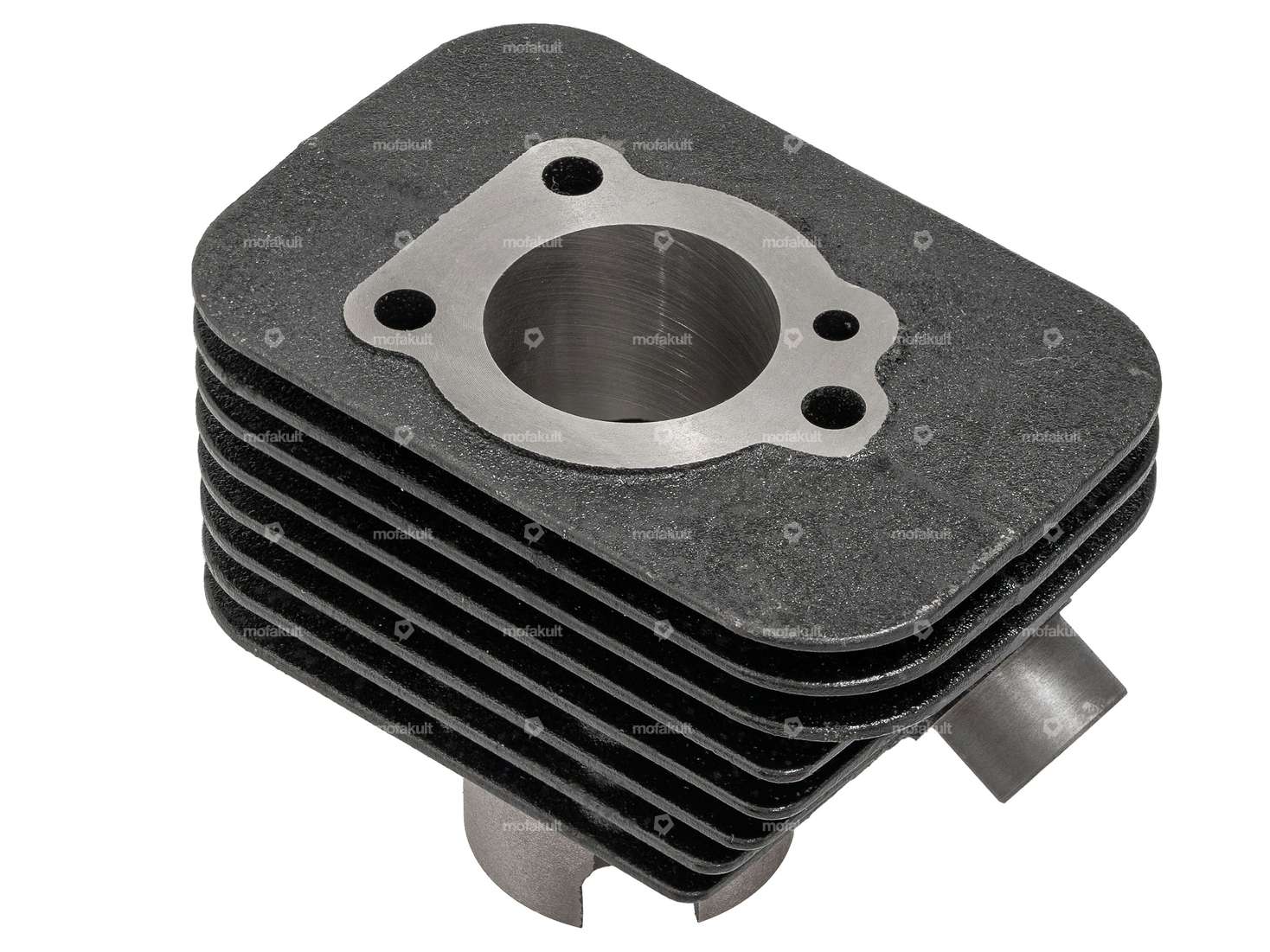

Olympia 38.4 mm cylinder kit 10 mm KoBo | Piaggio Ciao, SI, Bravo, Boxer

Home
| Motor
| Cylinder
| Cylinder & racing set
148,50 EUR

Incl. VAT, plus shipping costs

in stock

The item is in stock. Delivery time 2–4 workdays

This cast iron cylinder from the Italian brand manufacturer Olympia fits all Piaggio mopeds / mopeds.

Execution with 2 overflow springs.

Note: Check the piston ring joint before installation using a reed gauge. This should be between 0.15 - 0.4 mm to prevent the piston from jamming.

Details

Nominal diameter38.4 mm
ManufacturerOlympia
MaterialGray cast iron
Surfacevarnished
Displacement50 ccm
Crankshaft stroke43 mm
Ø cylinder neck46 mm
Ø Outlet outside22.4 mm
Ø outlet inside17.6 mm
Ø piston pin (B)10 mm
Outlet typeclamped
Area of applicationTuning
Number of fixing points3 pcs
Hole pattern [mm]55 x 34
DecompressorYes
CamouflagedNo

Suitable for the following models

Piaggio

Ciao - Ciao, Ciao, Ciao, Ciao

Si

Bravo/Superbravo

Boxer

Grillo
