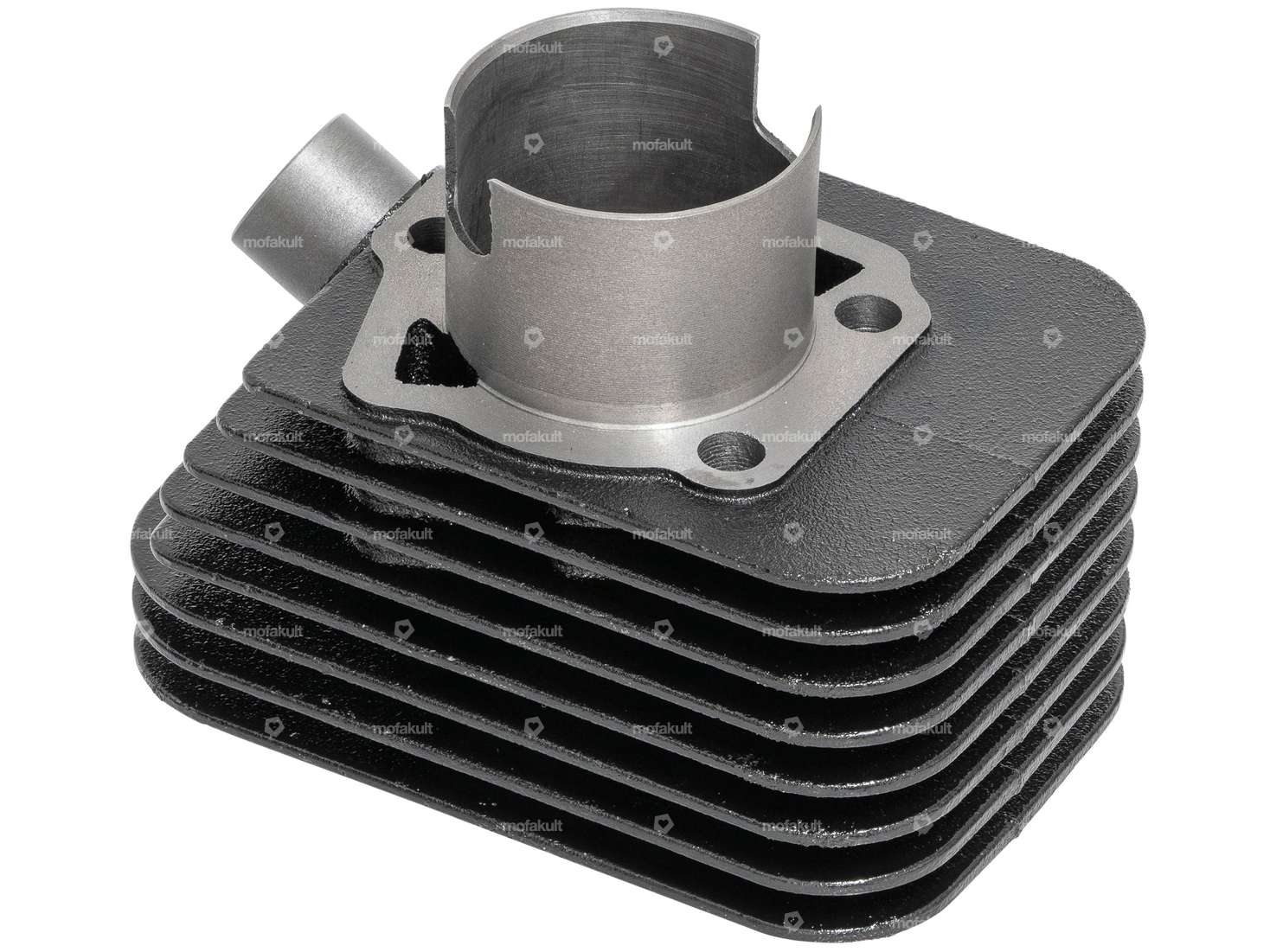

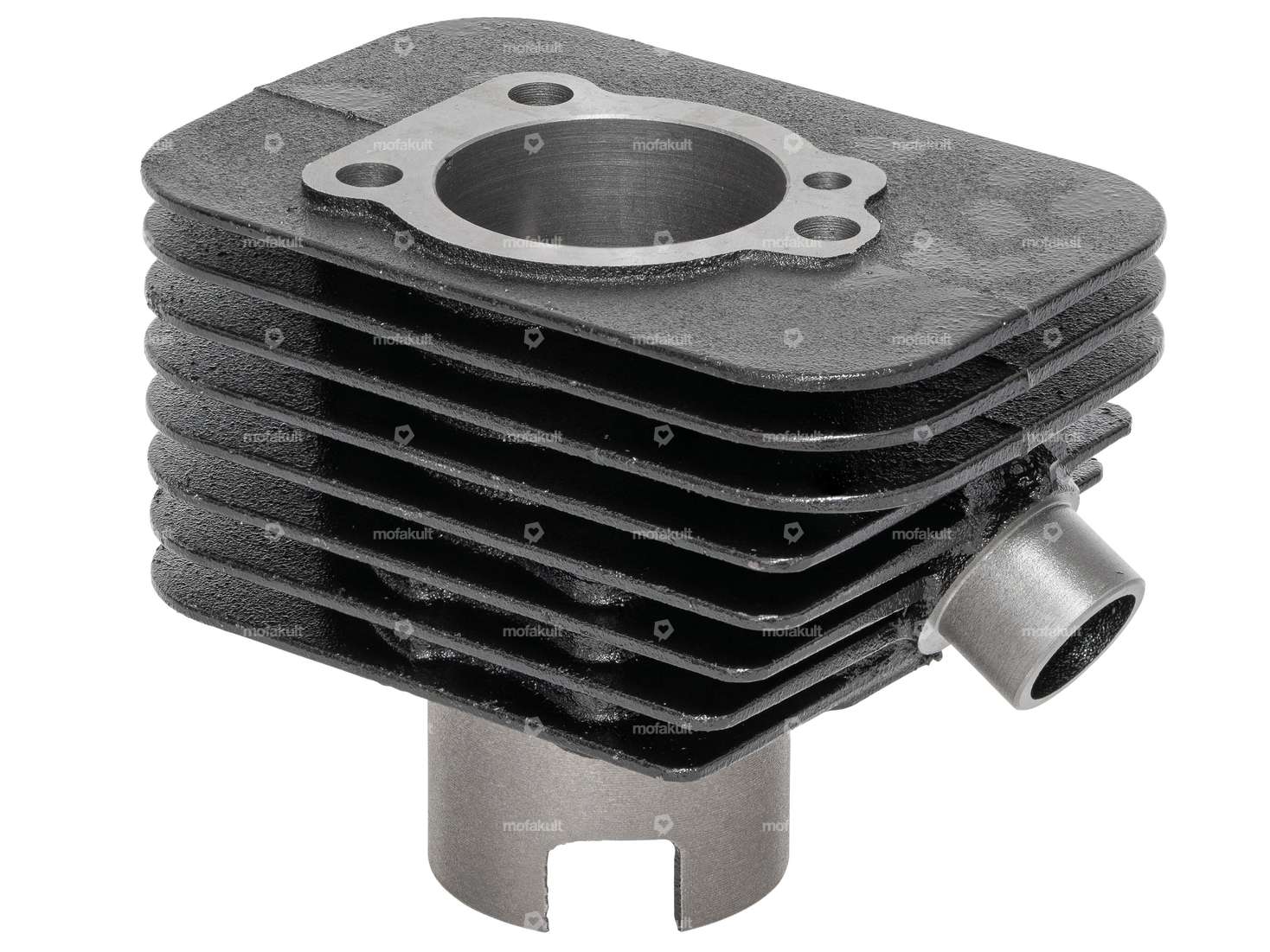

Cast tuning cylinder with 10mm KoBo suitable for your Piaggio Si, Bravo 2 and 3 as well as Grillo mopeds
.With a piston diameter of 43mm, this cylinder set delivers a full 63cc of displacement to get your scooter up to speed.

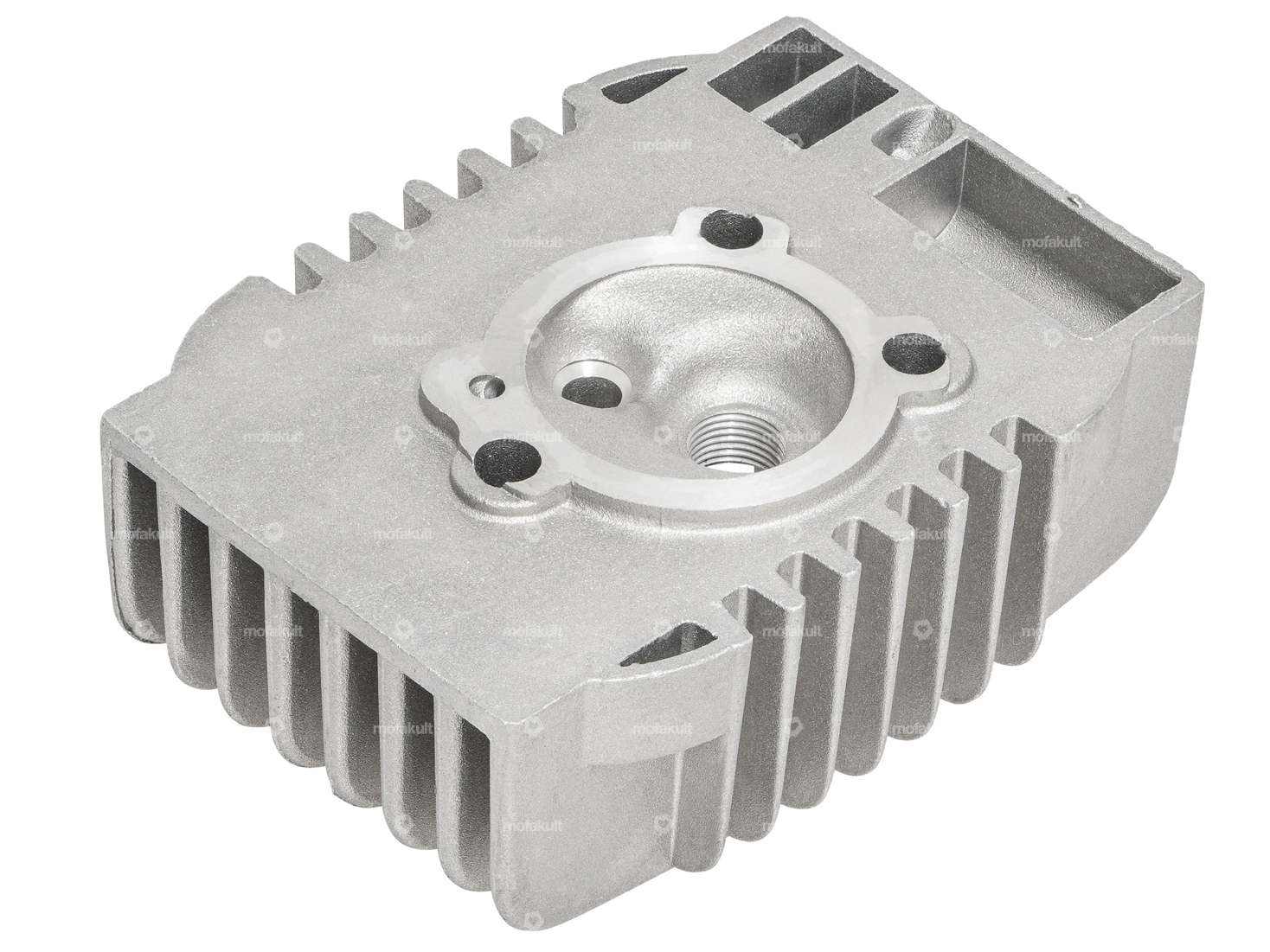

All necessary parts are included in the scope of delivery, including a matching cylinder head for installation.
Notes: We recommend using this tuning cylinder in conjunction with a larger exhaust and a larger carburetor. This racing cylinder may still contain residues from the manufacturing process. For this reason, the cylinder should be cleaned with compressed air or brake cleaner before installation. This should be between 0.15 - 0.4 mm to prevent the piston from jamming.
The set includes the following fixed parts:
Manufacturer: Olympia · Ø cylinder: 41 - 43 mm · Area of application: Racing
Hole pattern [mm]: 35 x 55 · Manufacturer: Olympia · Material: Gray cast iron · Surface: varnished · Displacement: 63 ccm · Crankshaft stroke: 43 mm · Nominal diameter: 43 mm · Ø cylinder neck: 46 mm · Ø Outlet outside: 22.3 mm · Ø outlet inside: 17.8 mm · Ø piston pin (B): 10 mm · Outlet type: clamped · Number of fixing points: 3 pcs · Decompressor: Yes · Camouflaged: No · Area of application: Tuning
Details
Manufacturer | Olympia |
Camouflaged | No |
Area of application | Tuning |
Material | Gray cast iron |
Surface | varnished |
Displacement | 63 ccm |
Crankshaft stroke | 43 mm |
Nominal diameter | 43 mm |
Ø cylinder neck | 46 mm |
Ø Outlet outside | 22.3 mm |
Ø piston pin (B) | 10 mm |
Outlet type | clamped |
Number of fixing points | 3 pcs |
Decompressor | Yes |
Suitable for the following models
Piaggio | Si Bravo/Superbravo Grillo |
