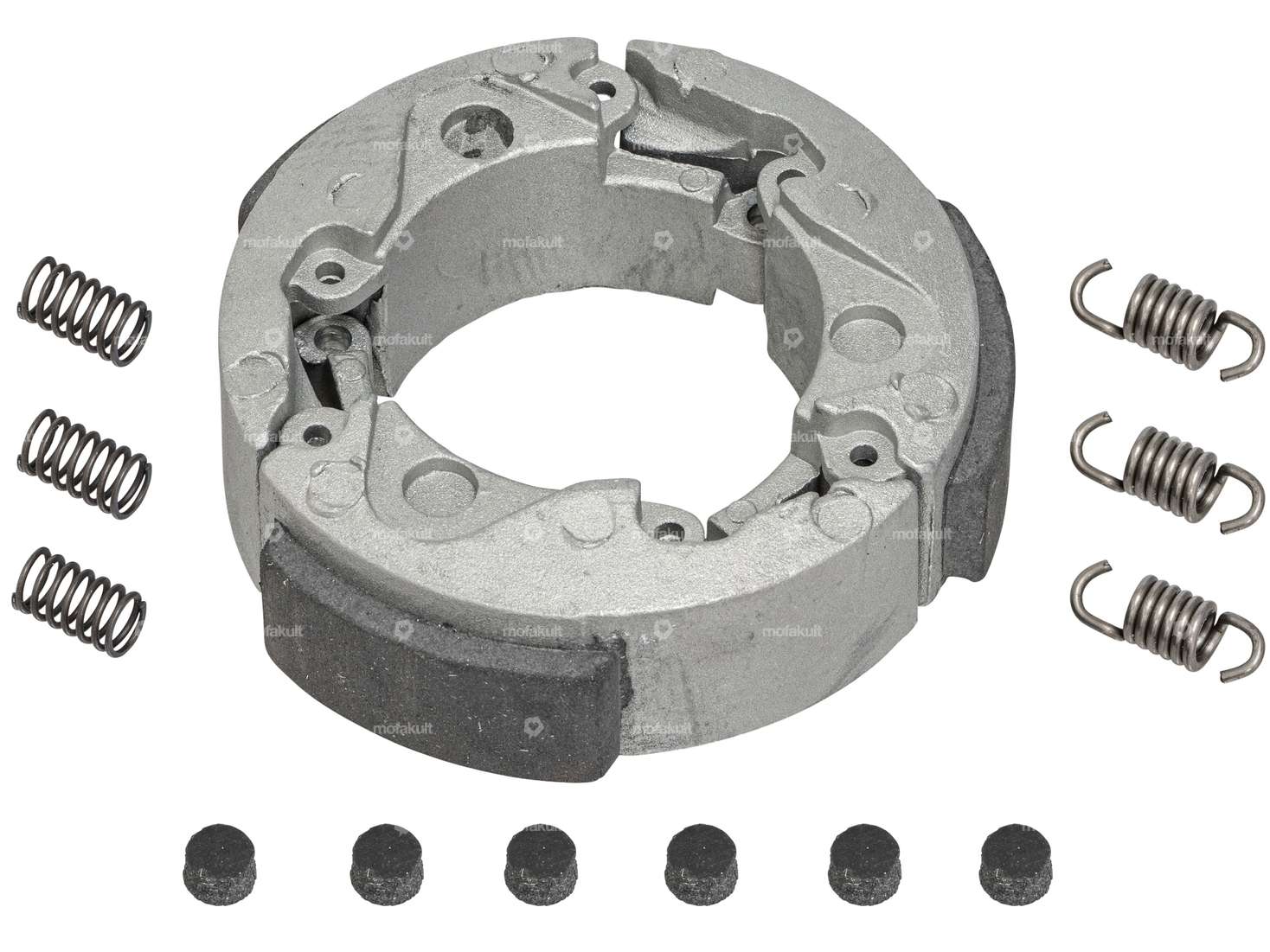

Set of clutch linings for original torque converters of Piaggio Ciao, Si, Bravo, Boxer and Grillo mopeds / mopeds with variomatic drive.
Ø Mounting hole: 4.1 mm
Total weight: 534 grams
Number of clutch shoes: 3 pieces
Number of springs: 3 pieces
Number of sliders: 6 pieces
Number of springs for sliders: 3
Notes: These pads do not fit the Fly Clutch torque converter, the Malossi overrange kit or original torque converters from earlier generations.
In some cases, there are slight weight differences between the pads, which has a negative effect on the concentricity of the converter and can therefore increase vibrations. This should not be a problem with original or only slightly tuned mopeds. For heavily tuned mopeds, however, you should use the Malossi pads from the accessories range, as these are much better balanced and therefore smoother running.
Unfortunately, it can also happen that the shoes do not have the required outer diameter of 90 mm after installation and therefore rub in the clutch bell even when idling. To rectify this problem, you will need to grind the linings down slightly with sandpaper.
You can find more parts for your Vario drive in the accessories section.
Original Piaggio spare part number: 249817
Made by the Italian brand Olympia.
Details
| Manufacturer | Olympia |
| Number of springs | 3 pcs |
| Number of jaws | 3 pcs |
| Gearbox type | Vario |
| Weight | 534 g |
Suitable for the following models
| Piaggio | Ciao - Ciao, Ciao, Ciao, Ciao Si Bravo/Superbravo Boxer Grillo |
