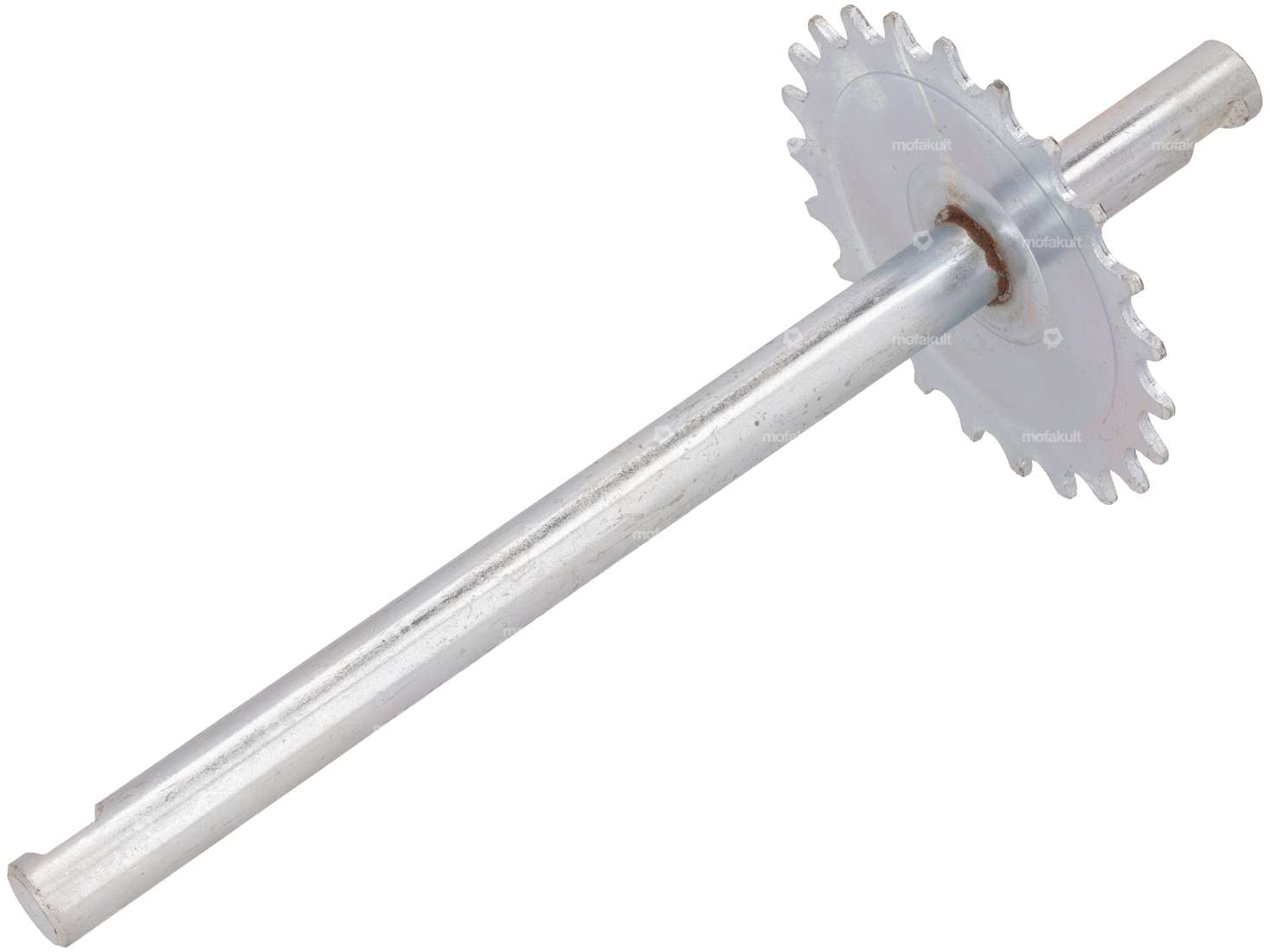

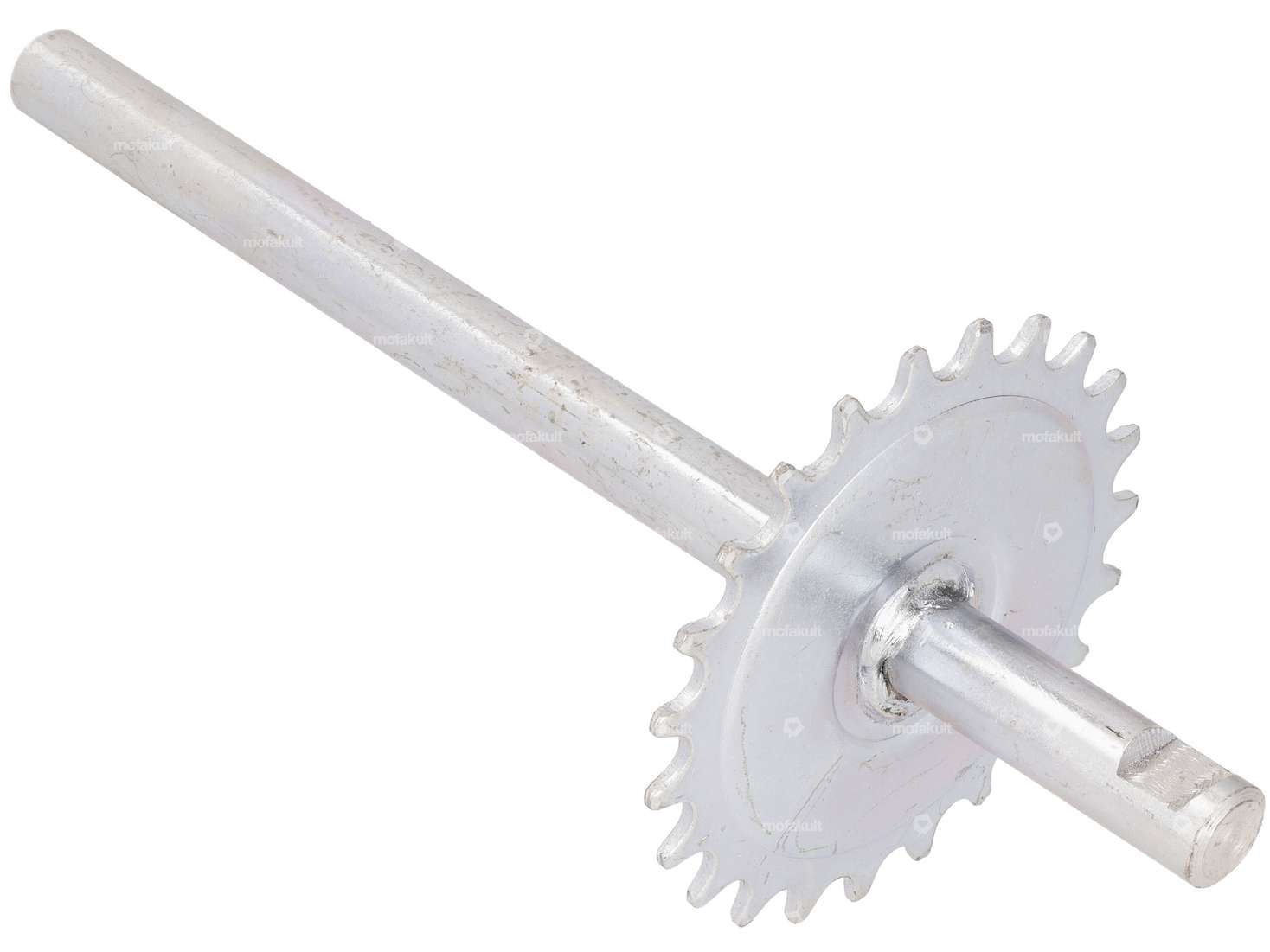

Zinc-plated pedal axle with keyway suitable for Piaggio Si mopeds / mopeds.
The pedal shaft is designed for mounting the pedal arms by means of a key.
The pedal axle is firmly welded to the sprocket.
You can find an alternative pedal shaft and other attachments in the accessories section.
Original Piaggio spare part. NOS – New from old stock.
Original Piaggio spare part number: 269153
Details
| Manufacturer | Piaggio |
| Material | Steel |
| Surface | galvanized (blue) |
| Chain pitch | 1/2" x 1/8" |
| Number of teeth | 23 pcs |
| Total length | 260 mm |
| Wavelength from wreath | 196 mm, 57 mm |
| Ø Outer sprocket | 99 mm |
| Ø Pedal arm holder | 16 mm |
| Ø Bearing support | 16 mm |
| Crank (wreath) | 2 mm |
| Piaggio OEM number | 269153 |
Suitable for the following models
| Piaggio | Si |
