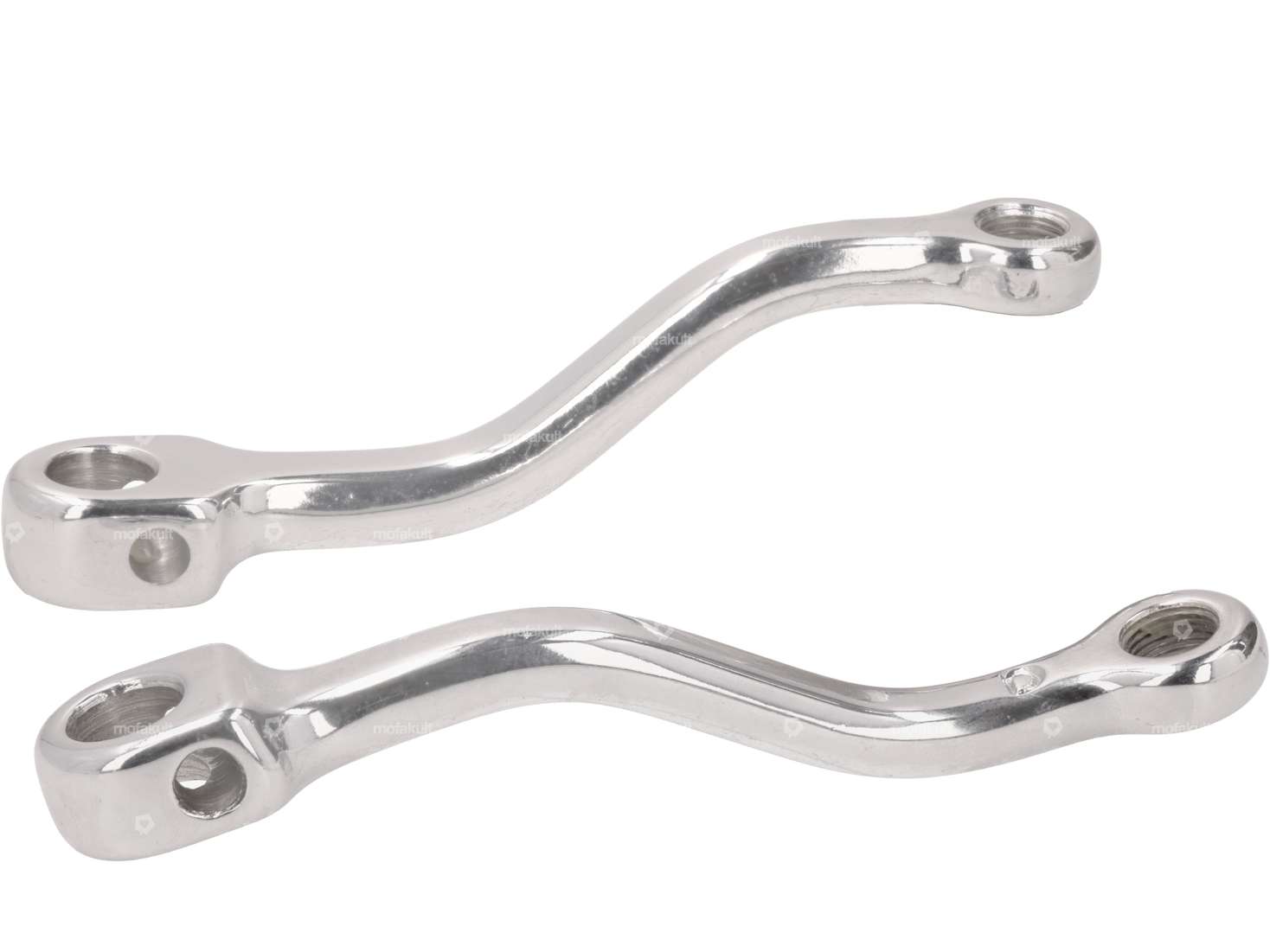

Chrome-plated pedal arms for universal use on your moped / moped.

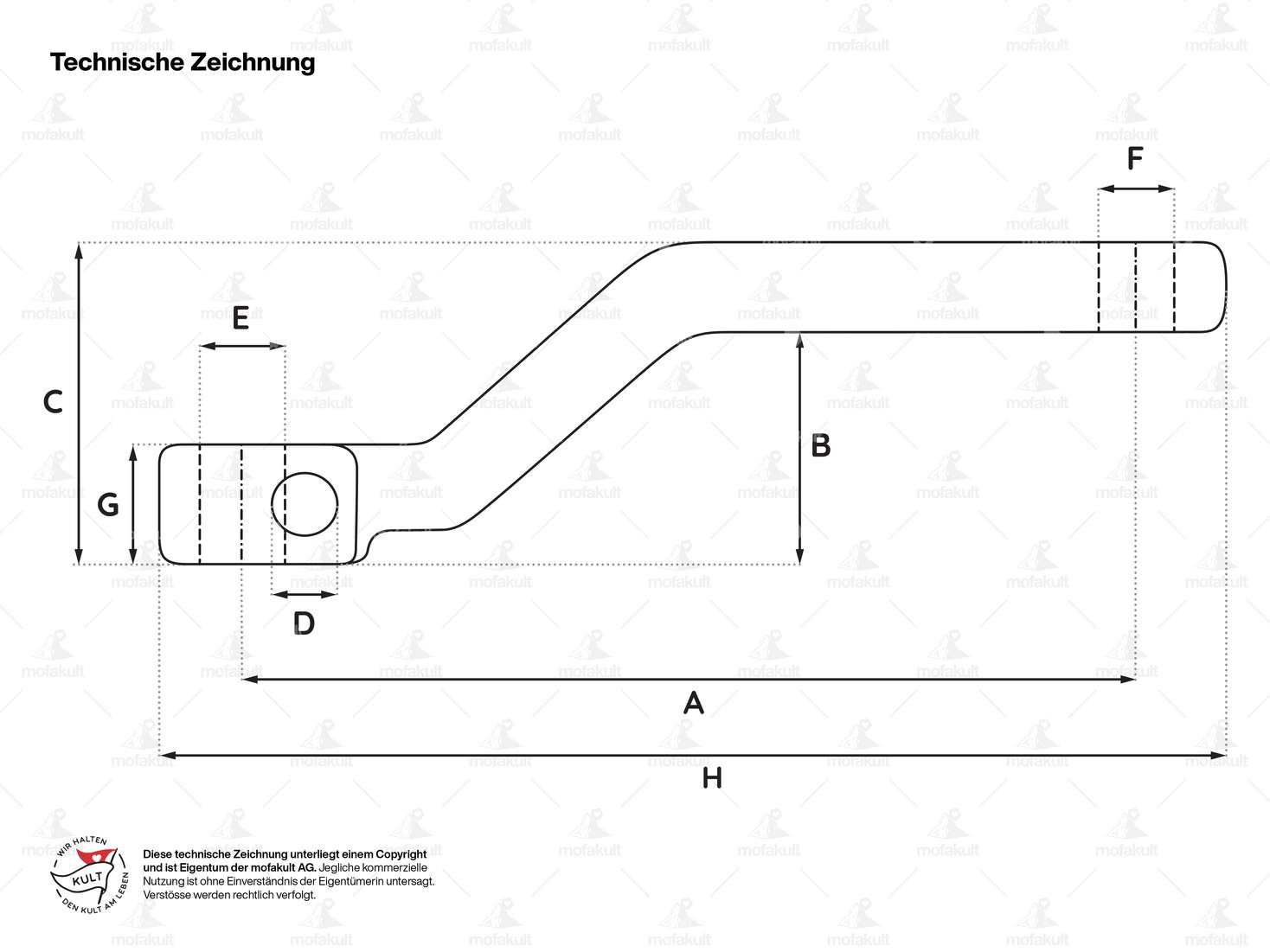

Crank length center axle - center thread (A): 150 mm
Internal curvature (B): 43 mm
External curvature (C): 35 mm
Ø pedal wedge (D): 9.0 mm
Ø pedal axle (E): 16 mm
Thread for pedal arm (F): MF14x1.25 mm
Width of mount (G): 17.6 mm
Total length (H): 169 mm
Note: Note the dimension of the connection thread of M14 x 1.25 mm when selecting the corresponding pedals.
Wedges and matching footrests can be found in the accessories section.
Details
| Material | Steel |
| Surface | chrome-plated |
| Color | Chrome |
| Thread type | MF14x1.25 (fine pitch thread) |
| Crank length (center-center) | 150 mm |
| Cranking (offset) | 35 mm, 43 mm |
| Ø Pedal wedge | 9 mm |
| Total length | 169 mm |
| Ø Pedal axle | 16 mm |
| Wide intake | 17.6 mm |
Suitable for the following models
| Universal | |
| Motobecane | |
| Peugeot |
