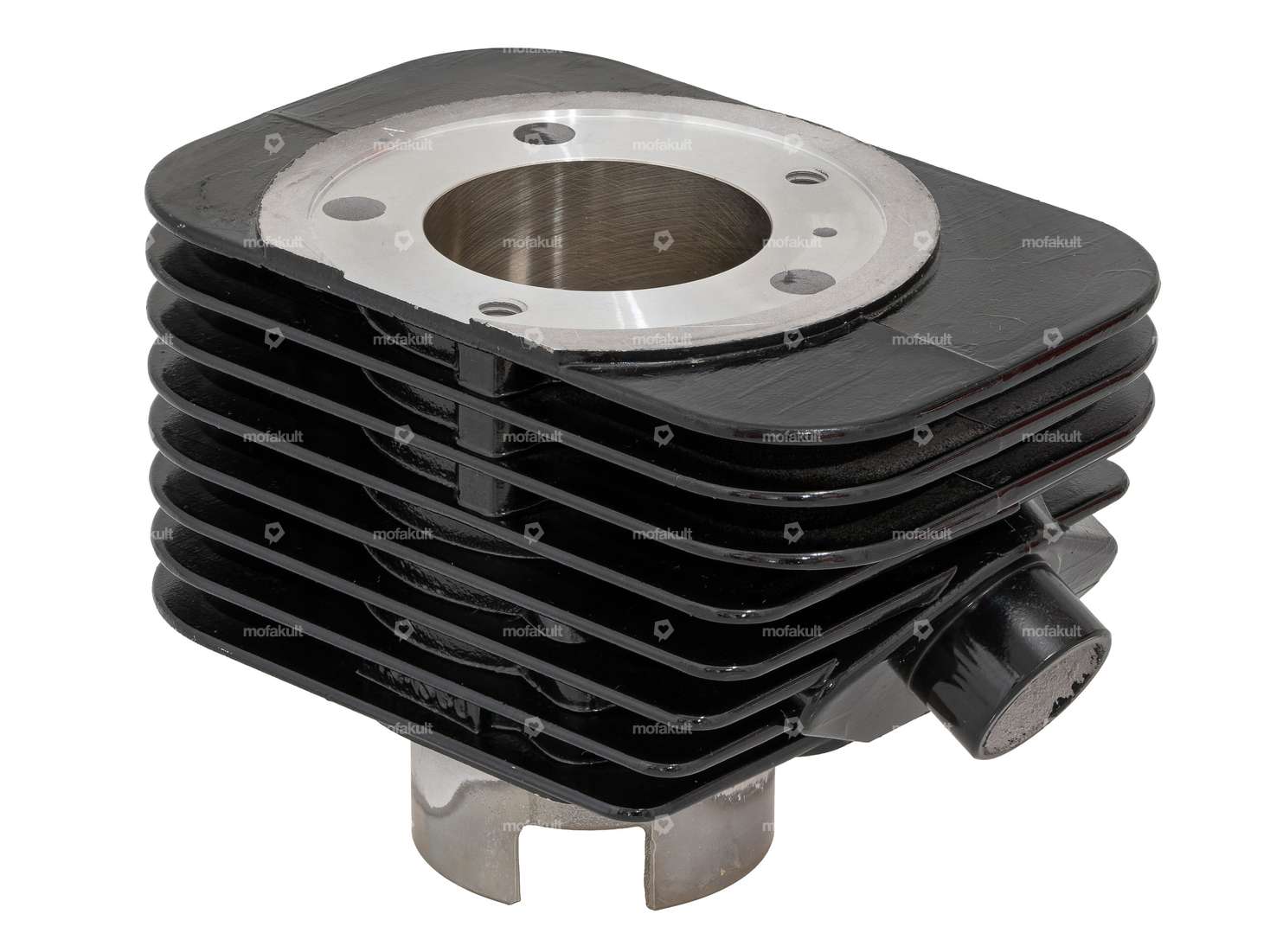

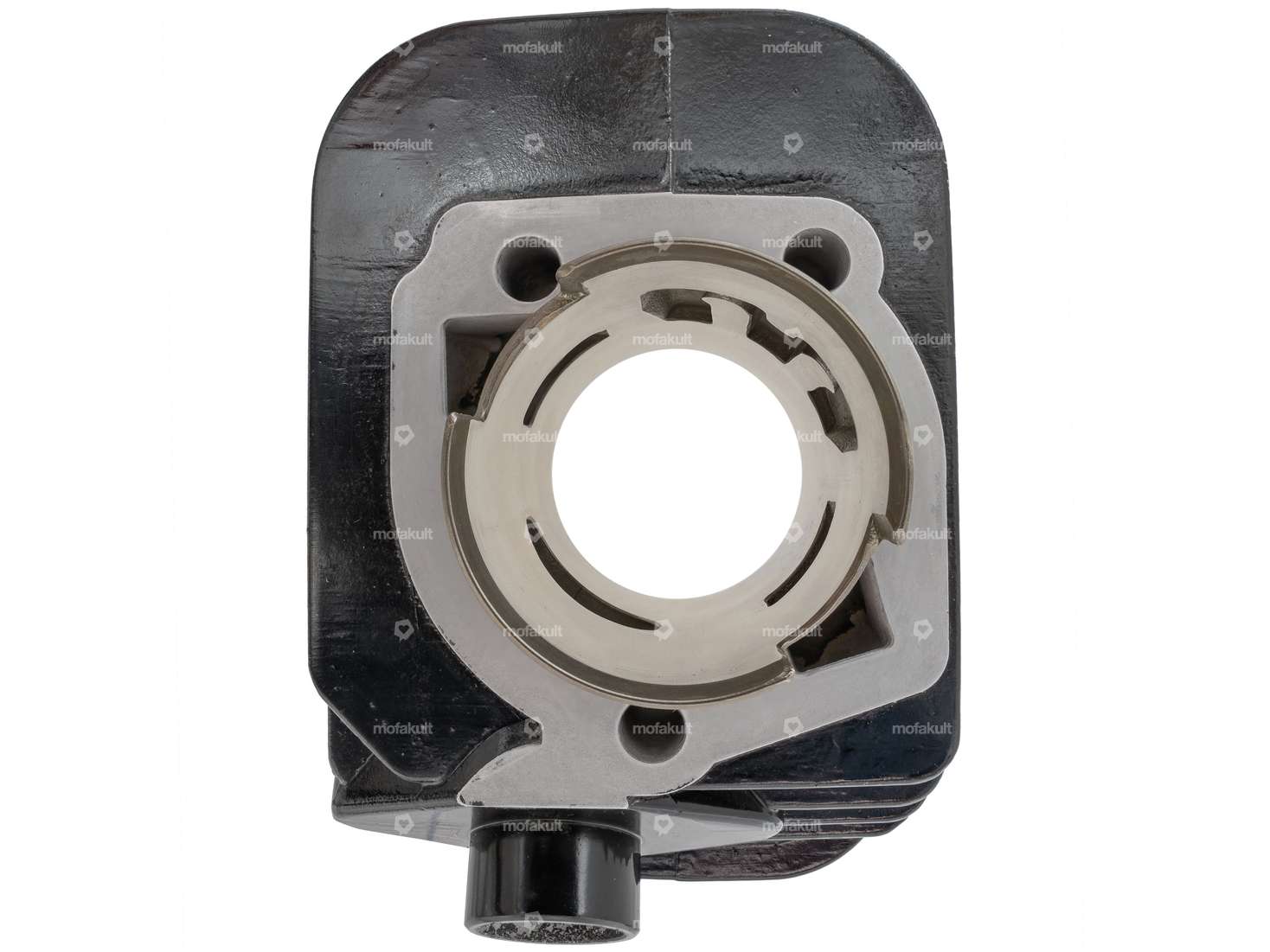

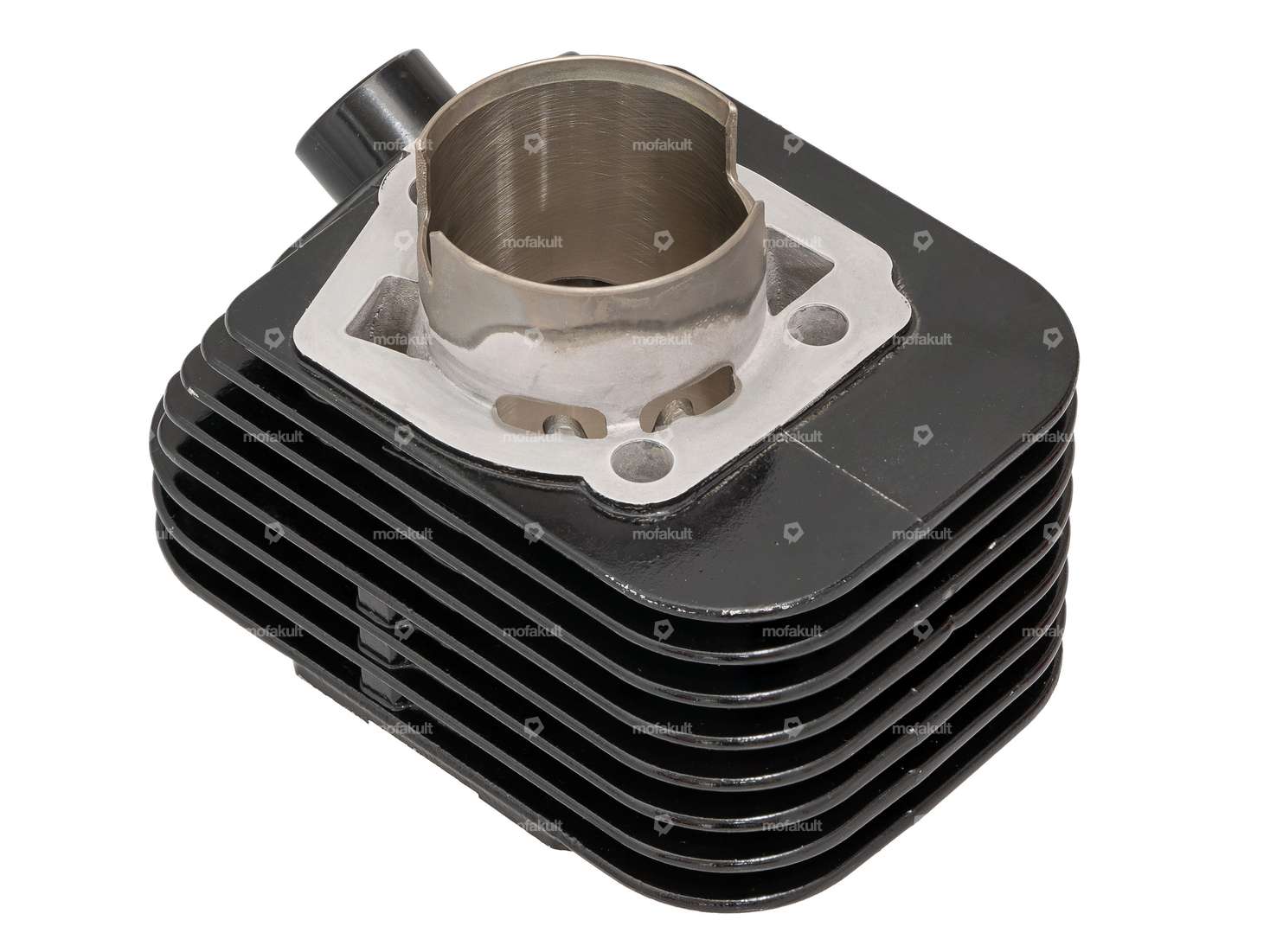

Pinasco «EVOTEN» cylinder with 42 mm bore and 60 cc for your Piaggio Ciao, Si, Bravo, Boxer, Grillo moped / moped.
The completely üreworked 42 mm cylinder from Pinasco is now supplied with a 5-channel layout and the 5-fold bolted cylinder head manufactured for the highest loads. Various racing exhausts can be fitted to the supplied exhaust flange with 22.5 mm outer connection diameter.
The cylinder head is fitted without gasket. For optimum sealing, the tightening torque of 10 Nm for the M6 bolts and 14 Nm for the M7 stud bolts must therefore be observed.

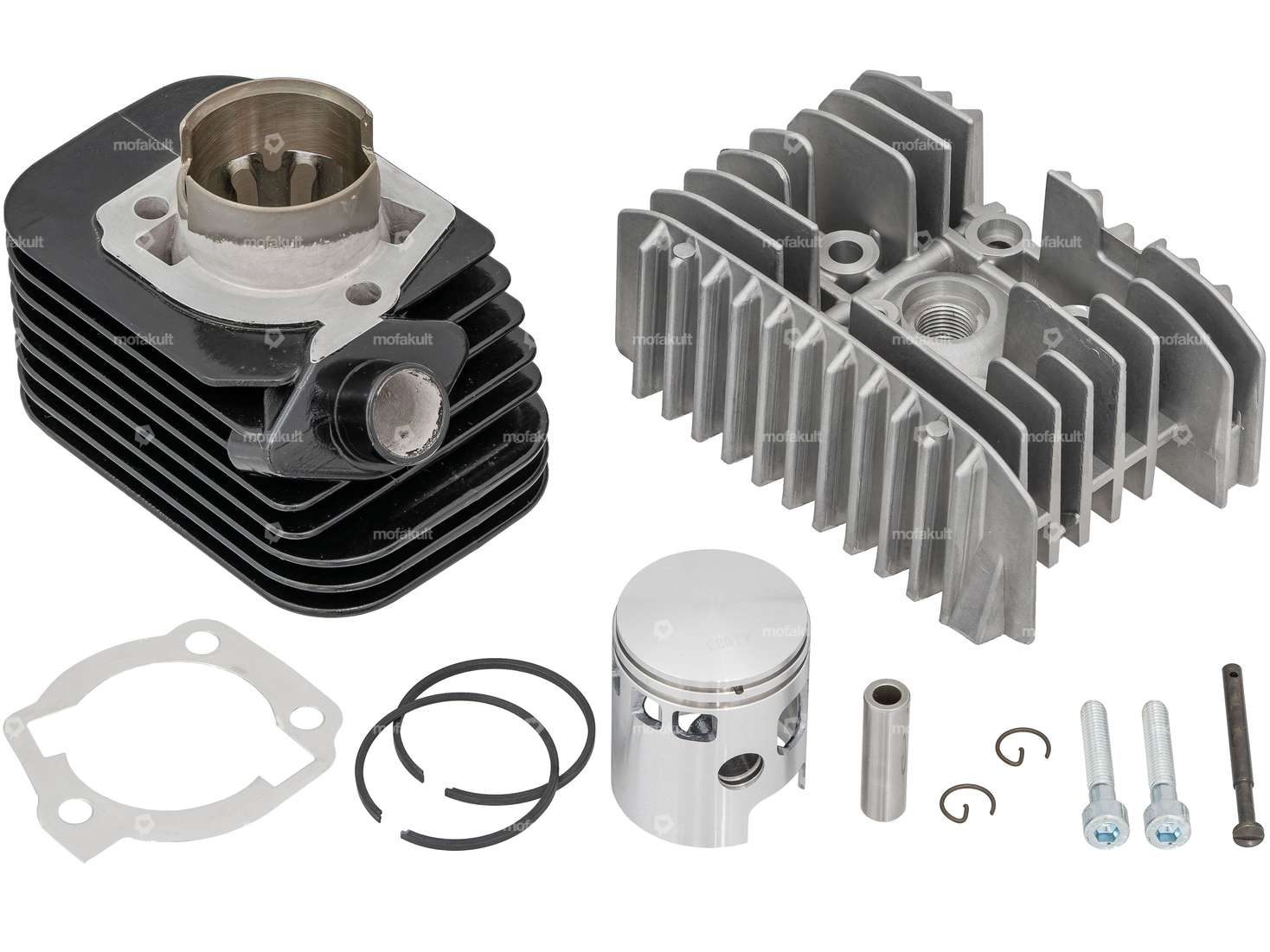

The following parts are included in the scope of delivery:
- Additional bolts for the cylinder head
- Decompressor valve (actuation not included)

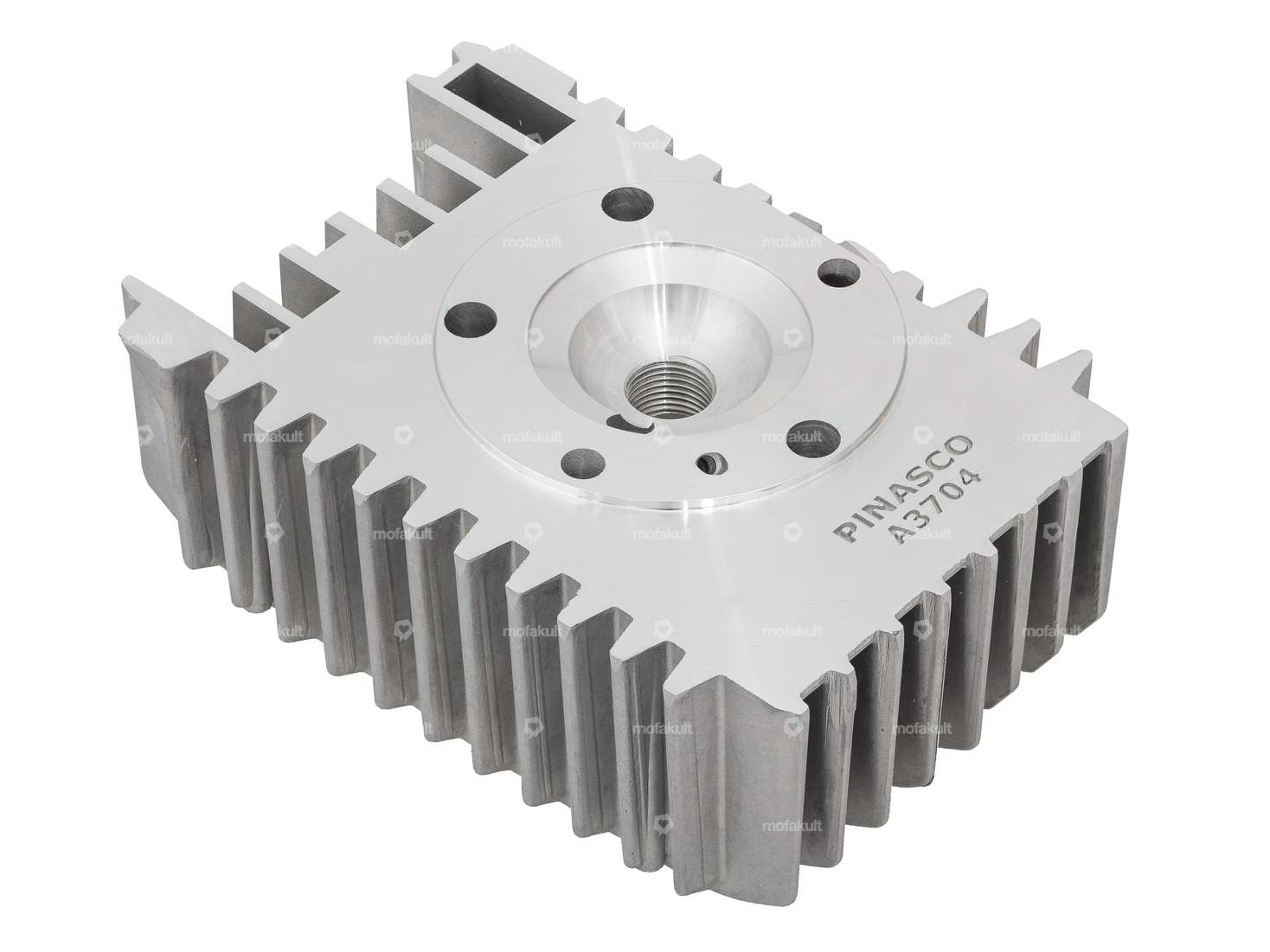

- Cylinder head empty
- Cylinder and accessories
- Piston with L-ring, rectangular ring and 10 mm piston pin (axe 10)
- Various gaskets for the cylinder base
- Cylinder head with L-ring, rectangular ring and 10 mm piston pin (axe 10)
- Various gaskets for the cylinder base
- Piston with L-ring, rectangular ring and 10 mm piston pin (axe 10);for the cylinder base
- Installation instructions in Italian
High-quality cast aluminum and durable Nikasil coating characterize this high-end tuning cylinder.
The cylinder kit develops maximum power in the mid to upper rev range. We recommend using the racing cylinder in combination with a variomatic drive.
Mounting on an original engine housing is only possible with major modifications. The cylinder kit can be fitted to the well-known Pinasco, Polini and Malossi racing cases without any adaptation work.
Note: If the cylinder kit is fitted to a Piaggio Ciao, this must be ground down on the cooling fins on the right-hand side. Due to the cut-out for the Ciao's cable duct, the hook on the head for the decompression cable is also missing. As a result, the cylinder cover is only suitable to a limited extent for Piaggio Si, Bravo of the newer generations or Grillo. This can be remedied by attaching the decompression cable to the cylinder head from the front, as on the Ciao or Boxer.
Corresponding add-on parts such as racing gearboxes, racing crankshaft, racing variator etc. can be found in the accessories section.
Quality product from the Italian manufacturer Pinasco.
Details
| Manufacturer | Pinasco |
| Material | Aluminum |
| Camouflaged | No |
| Surface | varnished |
| Displacement | 60 ccm |
| Area of application | Tuning |
| Crankshaft stroke | 43 mm |
| Ø piston pin (B) | 10 mm |
| Nominal diameter | 42 mm |
| Ø Outlet outside | 22.5 mm |
| Number of fixing points | 3 pcs |
| Outlet type | clamped |
| Decompressor | Yes |
Suitable for the following models
| Piaggio | Ciao - Ciao, Ciao, Ciao, Ciao Si Bravo/Superbravo Boxer Grillo |
Accessories & related products
swiing® ingenious needle roller bearing 12/15/16.2 "Racing" silver cage
Bearing cage: Silver cage · Ø inside: 12 mm · Manufacturer: swiing® ingenious parts · Bearing type: Needle roller and cage assembly · Width: 16.2 mm · Ø outside: 15 mm · Dimension needle bearing: 12/15 x 16.2 · Tomos spare part no.: 035548
15,50 EUR
Pinasco crankshaft "Racing" 12 mm KoBo | Piaggio Ciao, SI, Bravo, Boxer
Manufacturer: Pinasco · Area of application: Racing · Material: Steel · Cheek type: standard · Crankshaft stroke: 43 mm · Ø coupling pin / vario pin: 12 mm · Connecting rod length center-center: 87 mm · Thread length: 13.5 mm · Weight: 712 g · Total length crankpin ignition side: 91.5 mm · Total length crankpin ignition side: 105 mm · Ø crank webs: 69.7 mm · Ø piston pin (B): 12 mm · Ø Connecting rod eye: 15 mm · Bearing seat right: 15 mm · Thread type: M8x1.25 (standard thread) · Ø Bearing seat (ignition side): 15 mm · Dimension needle bearing: 12 / 15 x 14.7 mm (axe 12) · Wide crank webs: 32.5 mm · Length 1st paragraph: 21 mm · Length 2nd paragraph: 44 mm · Length 3rd paragraph: 63 mm · Ø 1st step (on the coupling side): 15 mm · Ø 2nd shoulder (on the clutch side): 14.4 mm · Ø 3rd step (on the clutch side): 12 mm · Inlet control time: 146 ° · Control time before O.T: 88 ° · Control time according to O.T: 58 ° · Number of gears: 1 pcs
262,60 EUR
Pinasco flywheel carbon | Piaggio Ciao, SI, Bravo, Boxer
Manufacturer: Pinasco · Material: Aluminum · Material: Carbon · Surface: varnished · Direction of rotation: right · Thread length: 7.5 mm · Weight: 650 g · Ø cone small inside: 12.4 mm · Height: 38.7 mm · Ø cone large inside: 14.5 mm · Cone length: 12.5 mm · Cone ratio: 1:5 · Ø Internal flywheel: 106 mm · Ø Flywheel outside: 135 mm · Thread type: MF16x1 (fine pitch thread)
236,30 EUR
swiing® revival stud bolt set M7x120 mm cylinder | Piaggio Ciao, SI, Bravo, Boxer
Manufacturer: swiing® revival parts · Material: Steel · Surface: blue galvanized · Diameter: 6.2 mm · Total length: 120 mm · Drive: External hexagon · Thread length: 25 mm · Width across flats SW: 11 mm · Strength class: 8 · Strength class: 8.8 · Thread type: M7x1 (standard thread)
13,00 EUR
swiing® ingenious stud bolt M7x120 / Ø 7.3 shank - 10.9 strength
Manufacturer: swiing® ingenious parts · Material: Steel · Surface: blue galvanized · Diameter: 7.3 mm · Total length: 120 mm · Thread length: 20 mm · Thread length: 30 mm · Strength class: 10.9 · Thread type: M7x1 (standard thread)
5,45 EUR
