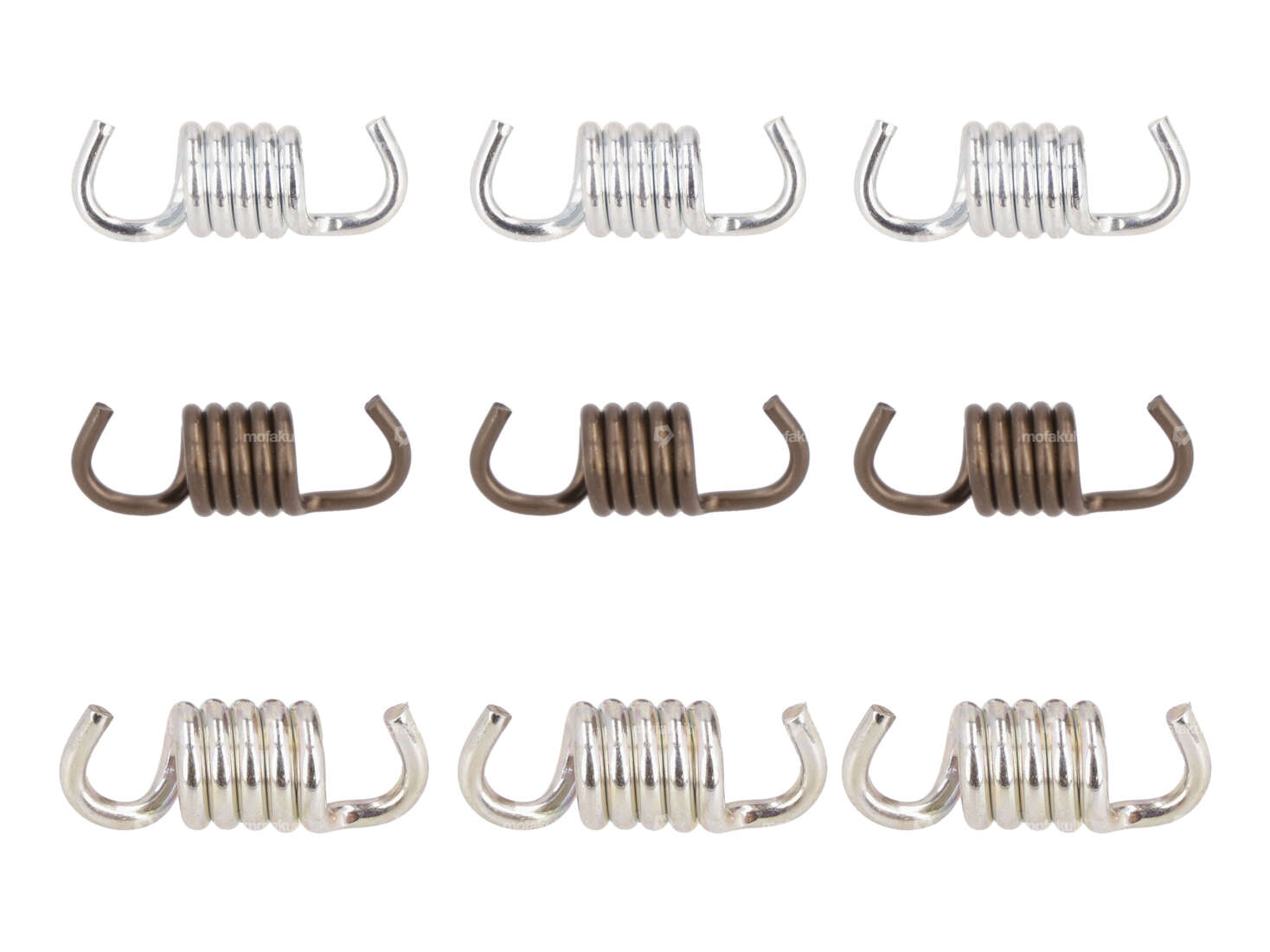

Set with different clutch springs for your Piaggio Ciao, Si, Bravo and Boxer moped / moped with variomatic drive.
The reinforced springs allow your engine to reach a higher speed before the converter unit engages, which leads to better acceleration.
Unfortunately, the manufacturer does not provide us with information on the percentage increase in spring force. However, this should be easy to recognize by the different colors. We would not like to withhold this valuable information from you.
Length of all springs: 22.5 mm
Ø outer: 7.5 / 7.9 / 8.3 mm
Wire thickness black: 1.4 mm
Wire thickness galvanized: 1.6 mm
Wire thickness silver: 1.8 mm
You can find more parts for your variator in the accessories section.
Quality product from the Italian manufacturer Pinasco.
Details
| Spring design | Tension spring |
| Total length | 22.5 mm |
| Ø wire | 1.4 mm, 1.6 mm, 1.8 mm |
| Manufacturer | Pinasco |
| Material | Spring steel |
| Color | black, gray, silver |
| Ø outside | 7.5 mm, 7.9 mm, 8.3 mm |
| Area of application | Tuning |
Suitable for the following models
| Piaggio | Ciao - Ciao, Ciao, Ciao, Ciao Si Bravo/Superbravo Boxer Grillo |
