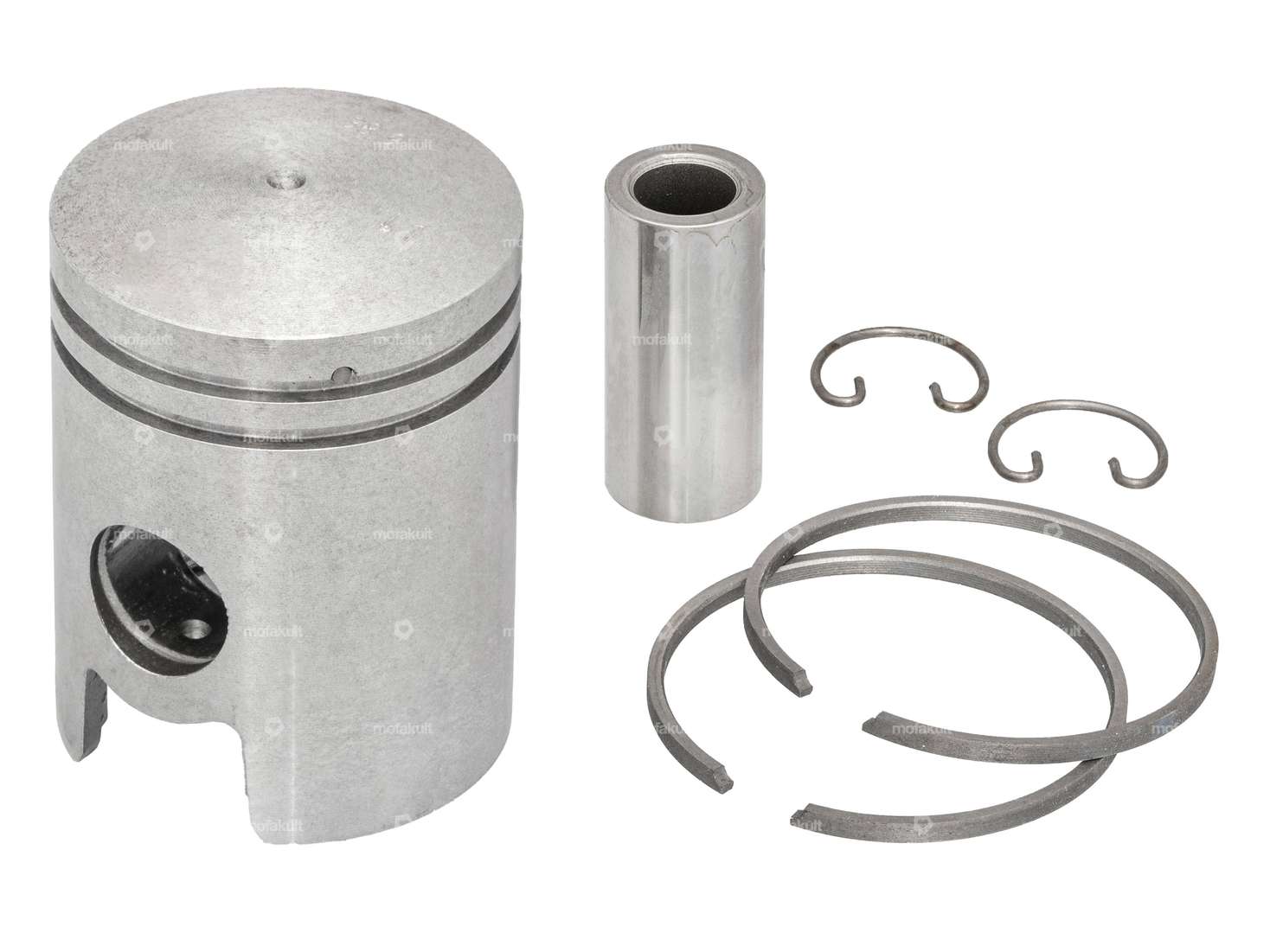

38.30 mm dimension piston with 2 rectangular piston rings with flank lock (FS) in 1st dimension for Sachs mopeds, mopeds and small motorcycles with Sachs 50 engines.
The detailed dimensions of the piston according to the technical drawing can be found in the details. In addition, you can find out about the relevant piston rings, their stems and locking types on the legend in the pictures.
The piston kit contains piston pins, piston clips and piston rings.
You will find the corresponding assembly tools, piston pin locks and, if necessary, the corresponding cylinder in the accessories section.
NOS – new from old stock.
Original Sachs spare part number: 0286 357 001
Details
| Manufacturer | Sachs |
| Ø outside piston (A) | 38.25 mm |
| Ø piston pin (B) | 14 mm |
| Compression height (C) | 28 mm |
| Curvature (D) | 2 mm |
| Total piston height (E) | 53 mm |
| Number of piston rings (F) | 2 pcs |
| Nominal diameter | 38 mm |
| Piston ring mold | Rectangular ring |
| Piston ring impact | Flank safety device (FS) |
| Tolerance group | 1 |
| Piston weight | 99 g |
Suitable for the following models
| Sachs | 50/5 |
Accessories & related products
GPO piston pin extractor Ø 10, 12, 14 mm
Width across flats SW: 10 mm · Width across flats SW: 17 mm · Manufacturer: GPO · Number of components: 7 pcs · Material: Steel · Area of application: (Dis)assembly tool · Surface: burnished · Diameter: 10 mm · Diameter: 12 mm · Diameter: 14 mm · Total length: 130 mm
23,10 EUR

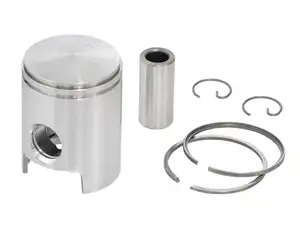

Meteor piston 38.0 mm (14 mm KoBo) B | Sachs 50
Manufacturer: Meteor · Ø outside piston (A): 37.96 mm · Ø piston pin (B): 14 mm · Compression height (C): 28 mm · Curvature (D): 2 mm · Total piston height (E): 51 mm · Number of piston rings (F): 2 pcs · Nominal diameter: 38 mm · Piston ring mold: L-ring · Piston ring mold: Rectangular ring · Piston ring impact: Flank safety device (FS) · Piston ring impact: Internal fuse (IS) · Piston ring height: 1.5 mm · Piston ring height: 2 mm · Tolerance group: B · Piston weight: 86 g
73,10 EUR
