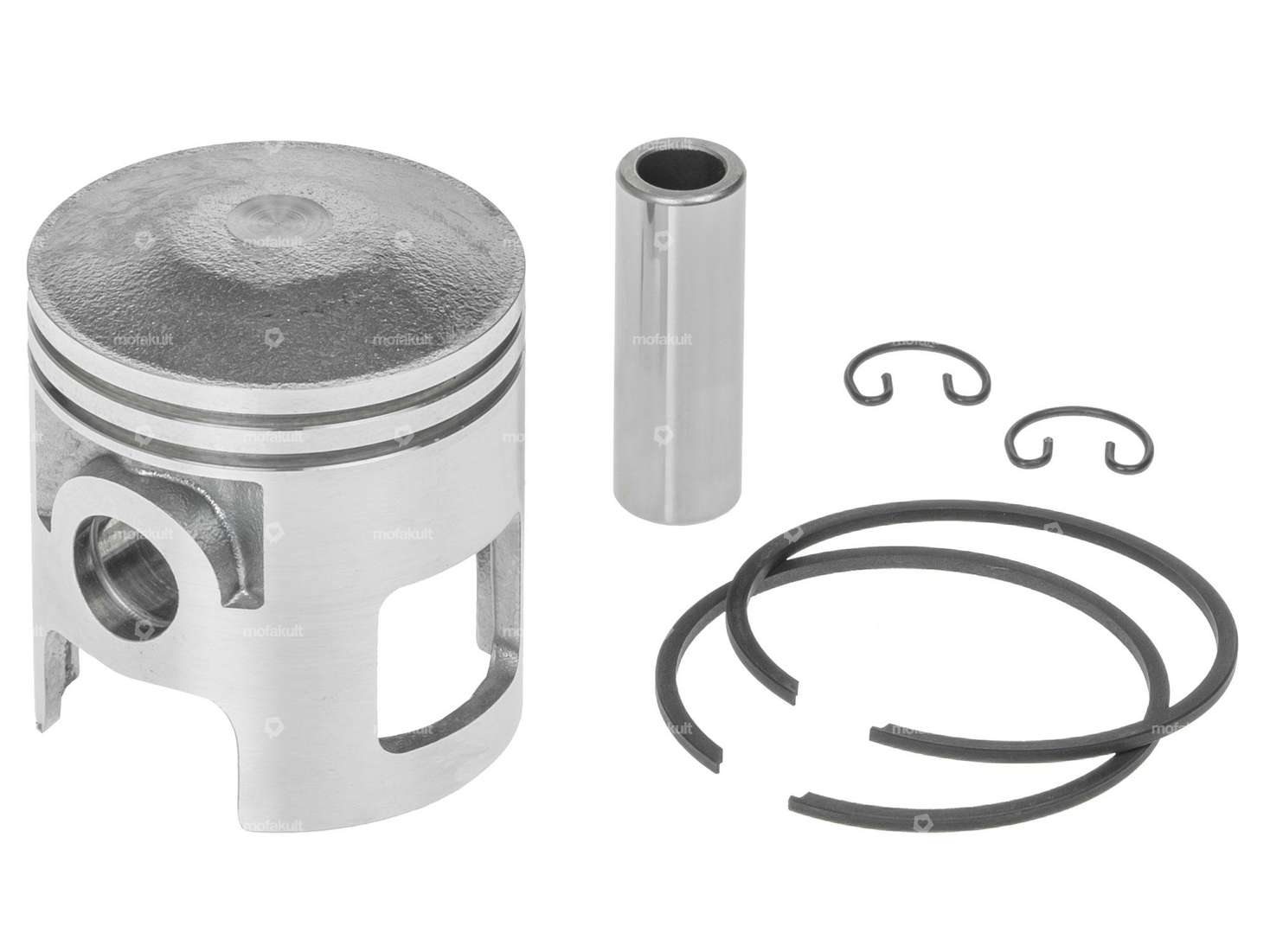

45.0 mm piston kit with two 1.5 mm rectangular piston rings with internal fuse (IS) to fit the 45.00 mm cylinder kit for Tomos A3 / A35 mopeds / mopeds.
The detailed dimensions of the piston according to the technical drawing can be found in the details. In addition, you can find out about the relevant piston rings, their positions and locking types on the legend in the pictures.
The piston kit contains piston pins, piston clips and piston rings.
You will find the corresponding assembly tools, piston pin locks and, if necessary, the corresponding cylinder in the accessories section.
Details
Ø outside piston (A) | 44.94 mm |
Compression height (C) | 22 mm |
Curvature (D) | 4 mm |
Total piston height (E) | 49.55 mm |
Number of piston rings (F) | 2 pcs |
Nominal diameter | 45 mm |
Piston ring mold | Rectangular ring |
Piston ring impact | Internal fuse (IS) |
Piston ring height | 1.5 mm |
Ø piston pin (B) | 12 mm |
Suitable for the following models
Tomos |
Accessories & related products
GPO piston pin extractor Ø 10, 12, 14 mm
Diameter: 10 mm · Diameter: 12 mm · Diameter: 14 mm · Total length: 130 mm · Width across flats SW: 10 mm · Width across flats SW: 17 mm · Manufacturer: GPO · Area of application: (Dis)assembly tool · Material: Steel · Surface: burnished · Number of components: 7 pcs
22,20 EUR
Moped fans like you also bought:
Fortune / Merrick 2.00-2.50 x 16/17" inner tube
Valve type: TR4 Auto valve · Manufacturer: Fortune · Tire width [inch]: 2 - 2.5 " · Tire width [mm]: 50.8 - 63.5 · Tire height [%]: 100 · Width [inch]: 2 · Width [inch]: 2 1/4 · Width [inch]: 2 1/2 · Old designation: 20 x 2 · Old designation: 20 x 2.25 · Old designation: 20 x 2.5 · Old designation: 21 x 2 · Old designation: 21 x 2.25 · Old designation: 21 x 2.5 · Wheel size [inch]: 16 - 17 " · Wheel size [inch]: 17 "
11,10 EUR
Continental Go 2.25 x 17" Semi-Slick
Manufacturer: Continental · Tire width [inch]: 2.25 " · Color: black · Tire width [mm]: 57.15 · Old designation: 21 x 2.25 · Speed index: J = 100 km/h · Load capacity index: 39 = 136 kg · Profile type: ContiGo! · Tire type: Semi-slick · White wall: No · Wheel size [inch]: 17 " · Tubeless (yes/no): Tubetype TT (requires hose)
64,70 EUR
swiing® revival screw set engine galvanized | Puch Maxi
Manufacturer: swiing® revival parts · Material: Steel · Surface: blue galvanized · Drive: Cross recess · Drive: Hexagon socket · Screw head: Countersunk head · Screw head: Cylinder head · Screw head: Lens head · Puch spare part no.: 900.1216 · Puch spare part no.: 901.1308
11,10 EUR

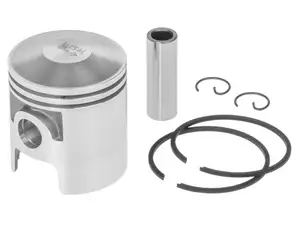

Airsal piston 44 mm (12 mm KoBo) | Tomos A35
