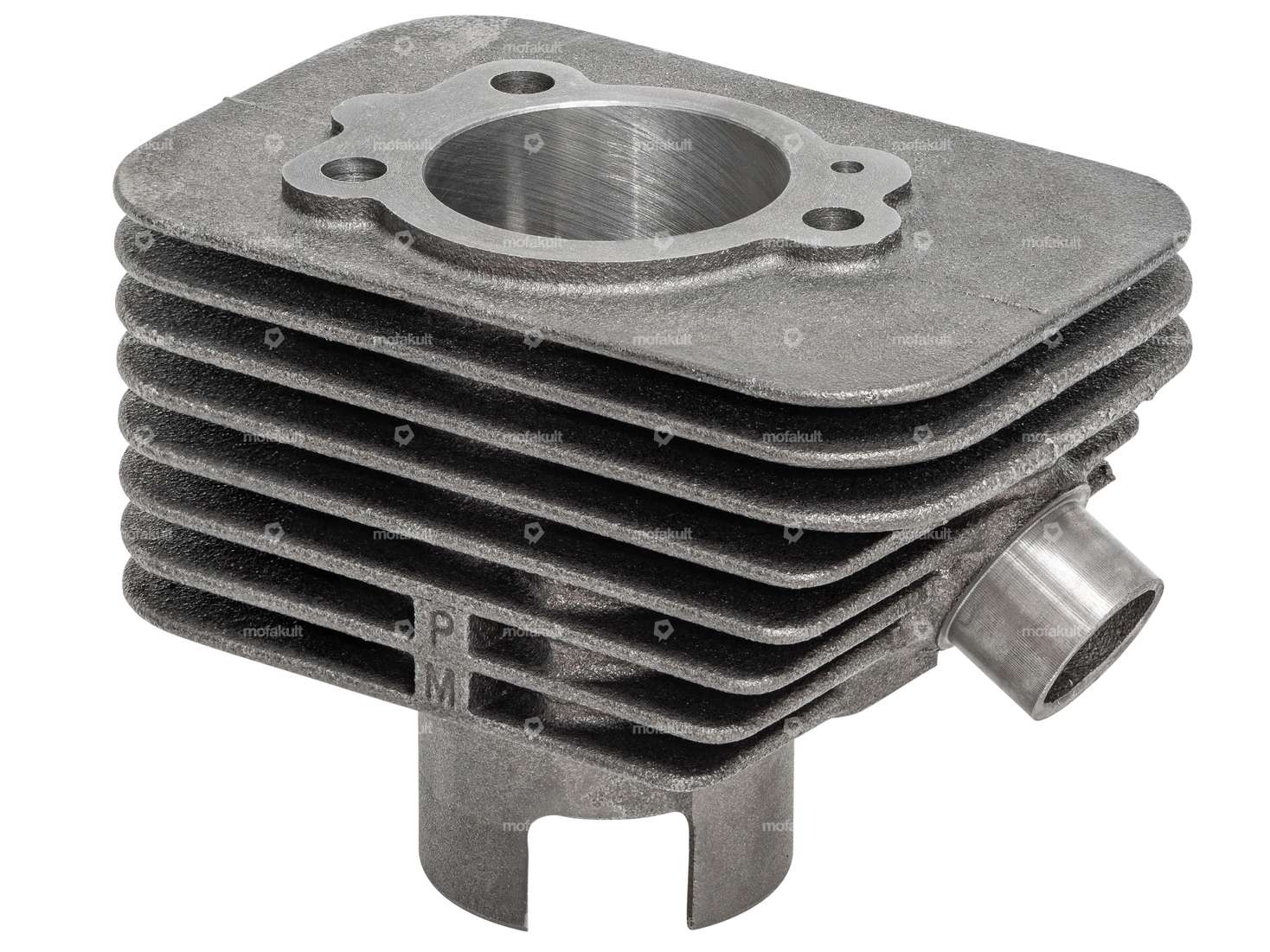

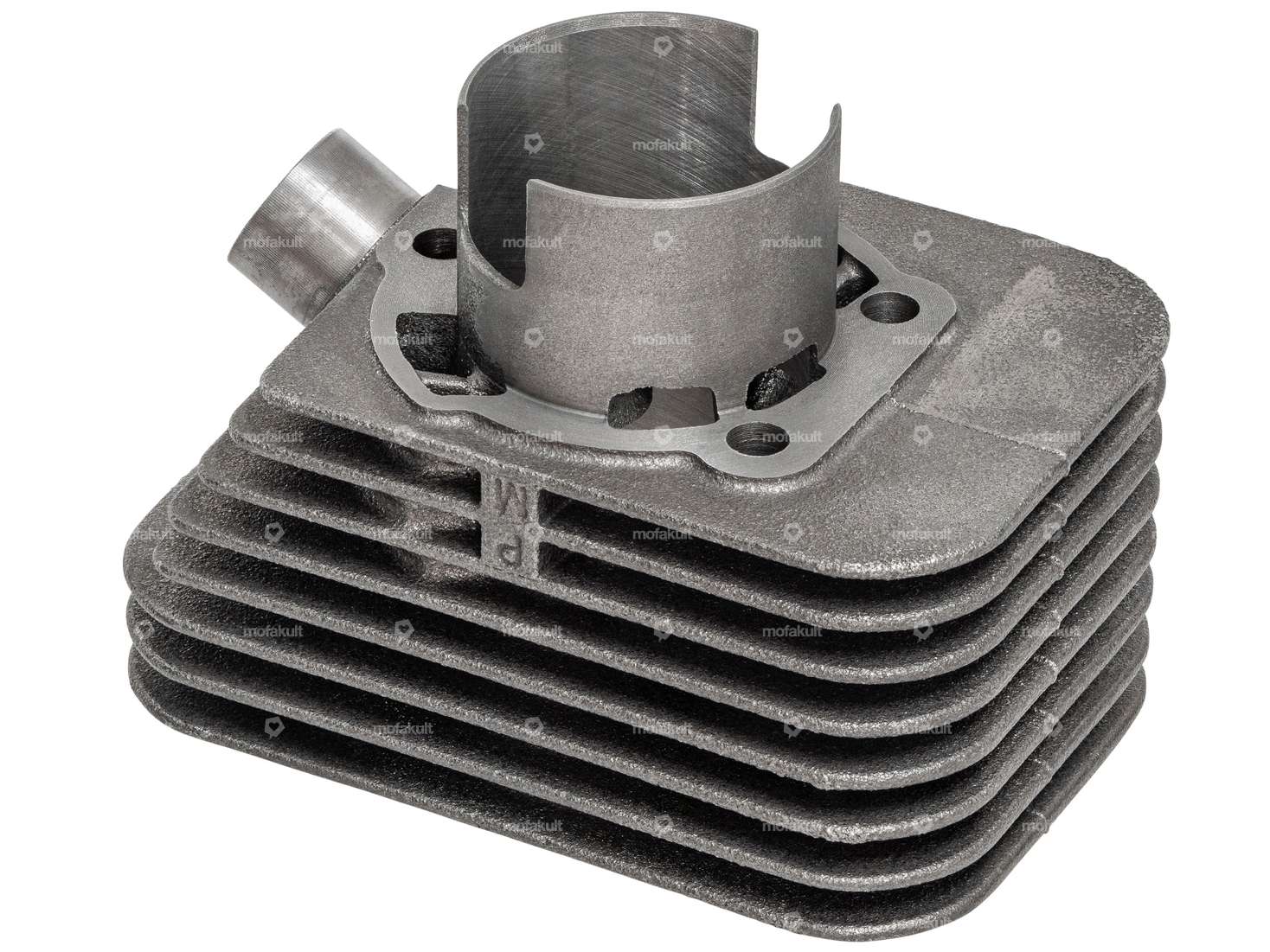

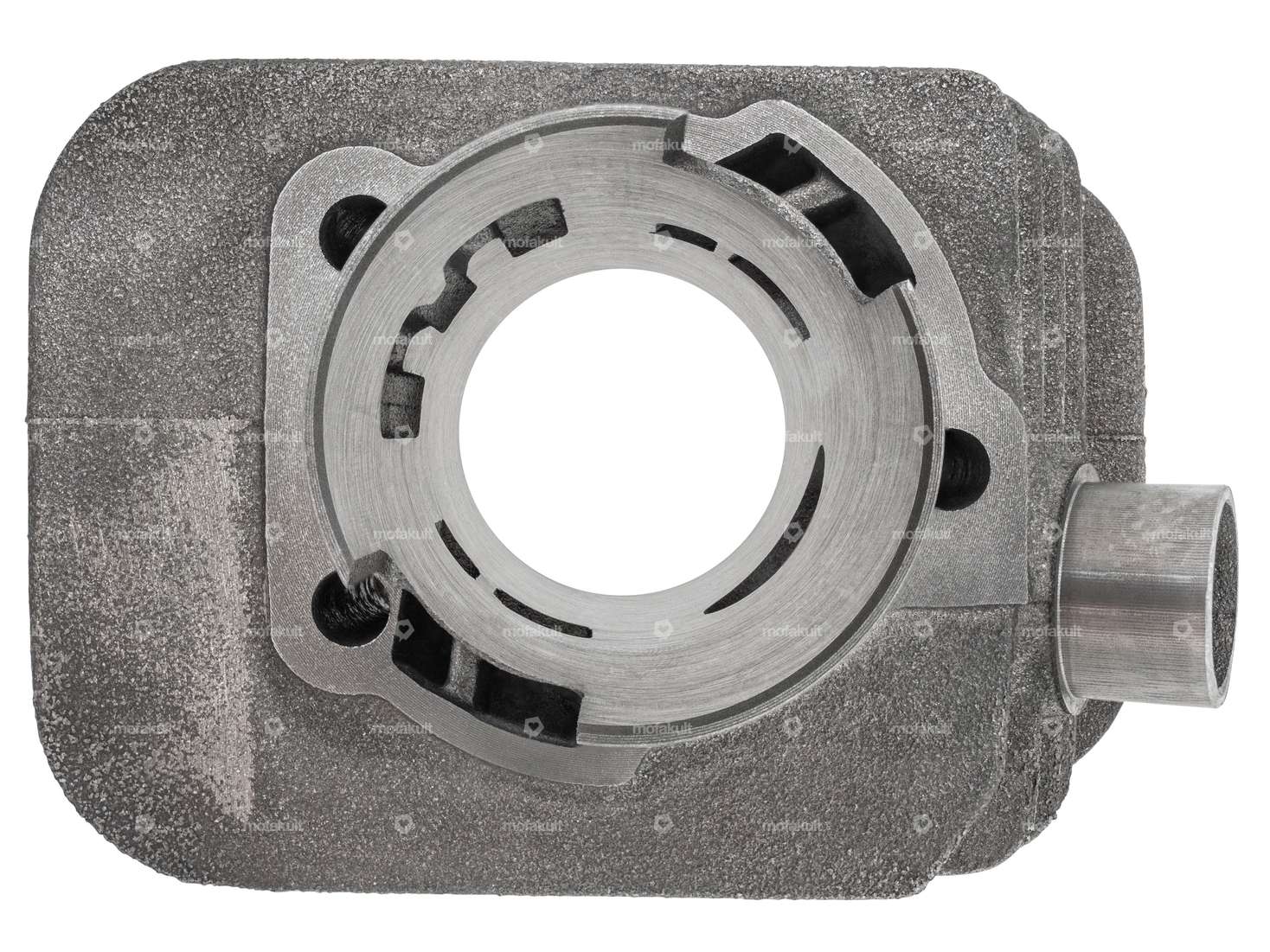

This cast iron cylinder, which is supplied with the matching cylinder head, fits all Piaggio Ciao, Bravo 1 and Boxer mopeds.
Excellent workmanship and durability, combined with an exceptional price-performance ratio make this cylinder one of the most popular on the market.
The piston pin has a diameter of 12 mm.
We can also offer you this cylinder kit without cylinder head, or with 10 mm piston pin diameter.
Quality product from the Italian manufacturer Polini.

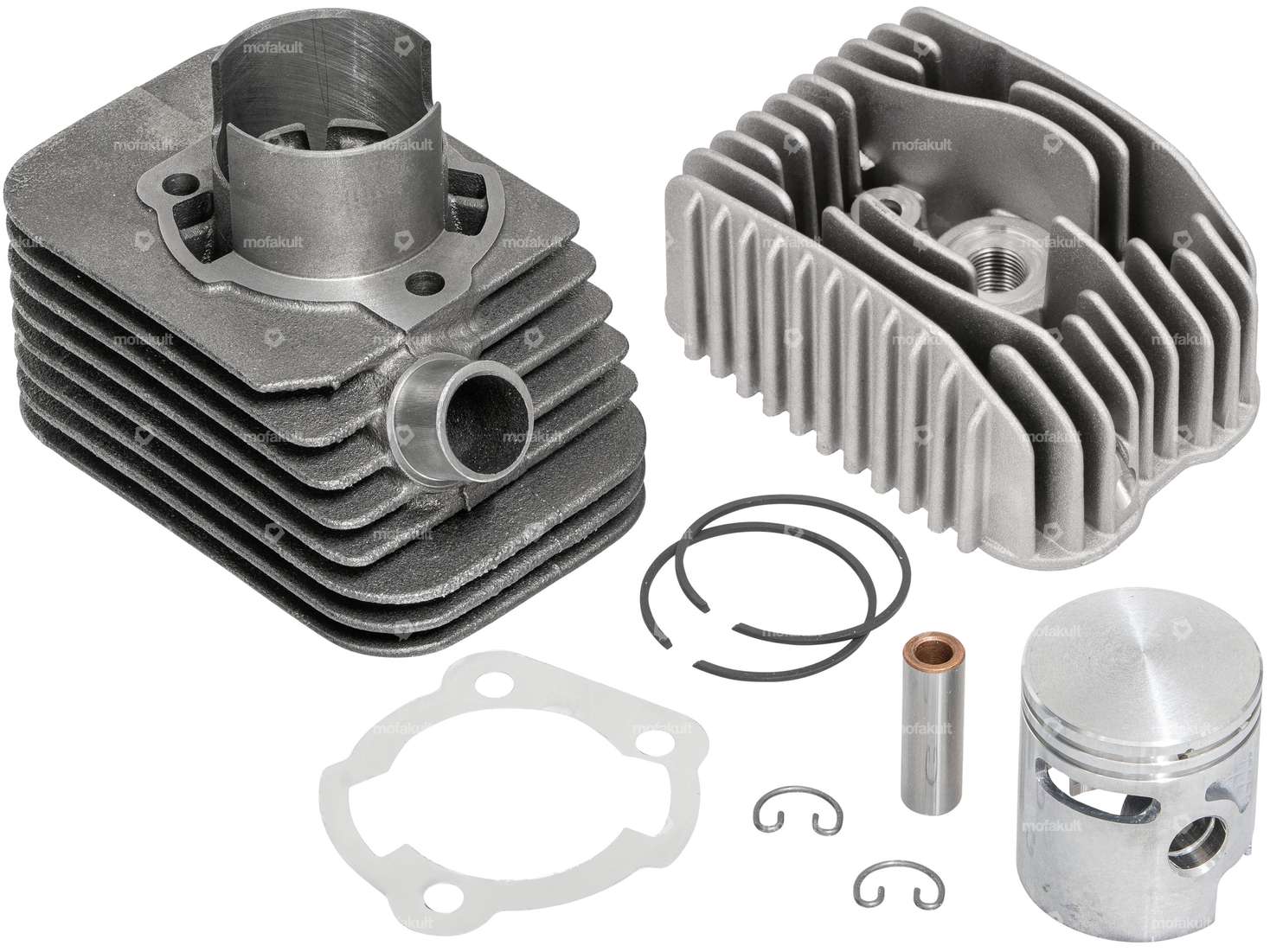

The set includes the following fixed parts:

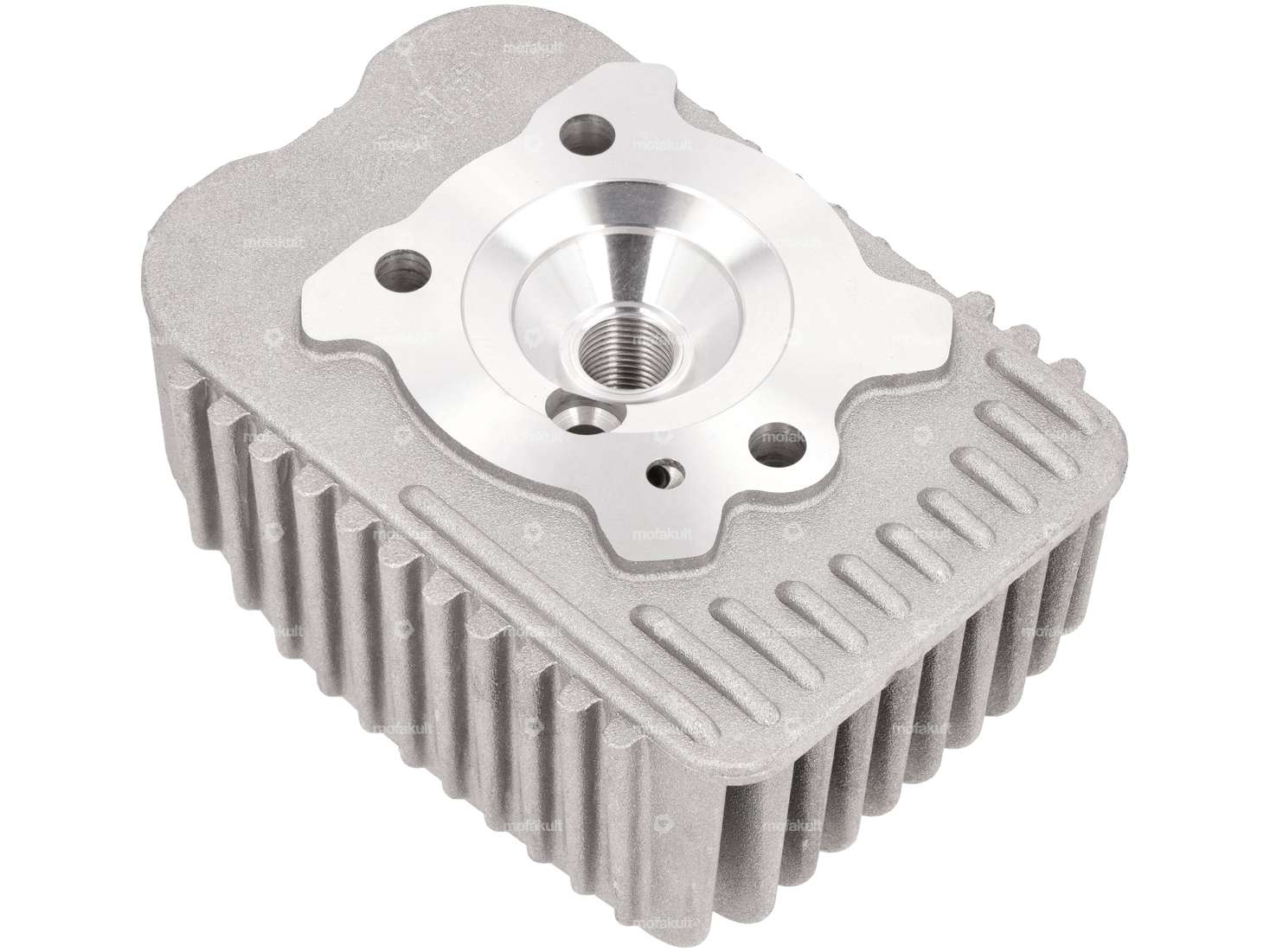

Manufacturer: Polini · Material: Aluminum · Ø cylinder: 38.4 - 43 mm · Camouflaged: No · Candle thread: long · Decompressor: Yes · Total length: 118 mm · Width: 85 mm · Height: 58 mm · Area of application: Tuning
Manufacturer: Polini · Material: Gray cast iron · Surface: sandblasted · Displacement: 63 ccm · Crankshaft stroke: 43 mm · Nominal diameter: 43 mm · Ø cylinder neck: 45.8 mm · Ø piston pin (B): 12 mm · Outlet type: clamped · Number of fixing points: 3 pcs · Decompressor: Yes · Camouflaged: No · Area of application: Tuning · Ø Outlet outside: 22.6 mm · Ø outlet inside: 18.4 mm · Hole pattern [mm]: 55 x 34
Details
Nominal diameter | 43 mm |
Manufacturer | Polini |
Area of application | Tuning |
Material | Gray cast iron |
Surface | sandblasted |
Displacement | 63 ccm |
Crankshaft stroke | 43 mm |
Ø piston pin (B) | 12 mm |
Outlet type | clamped |
Number of fixing points | 3 pcs |
Decompressor | Yes |
Camouflaged | No |
Suitable for the following models
Piaggio | Ciao - P, SC, PX, C24 Bravo / Super Bravo Boxer |
