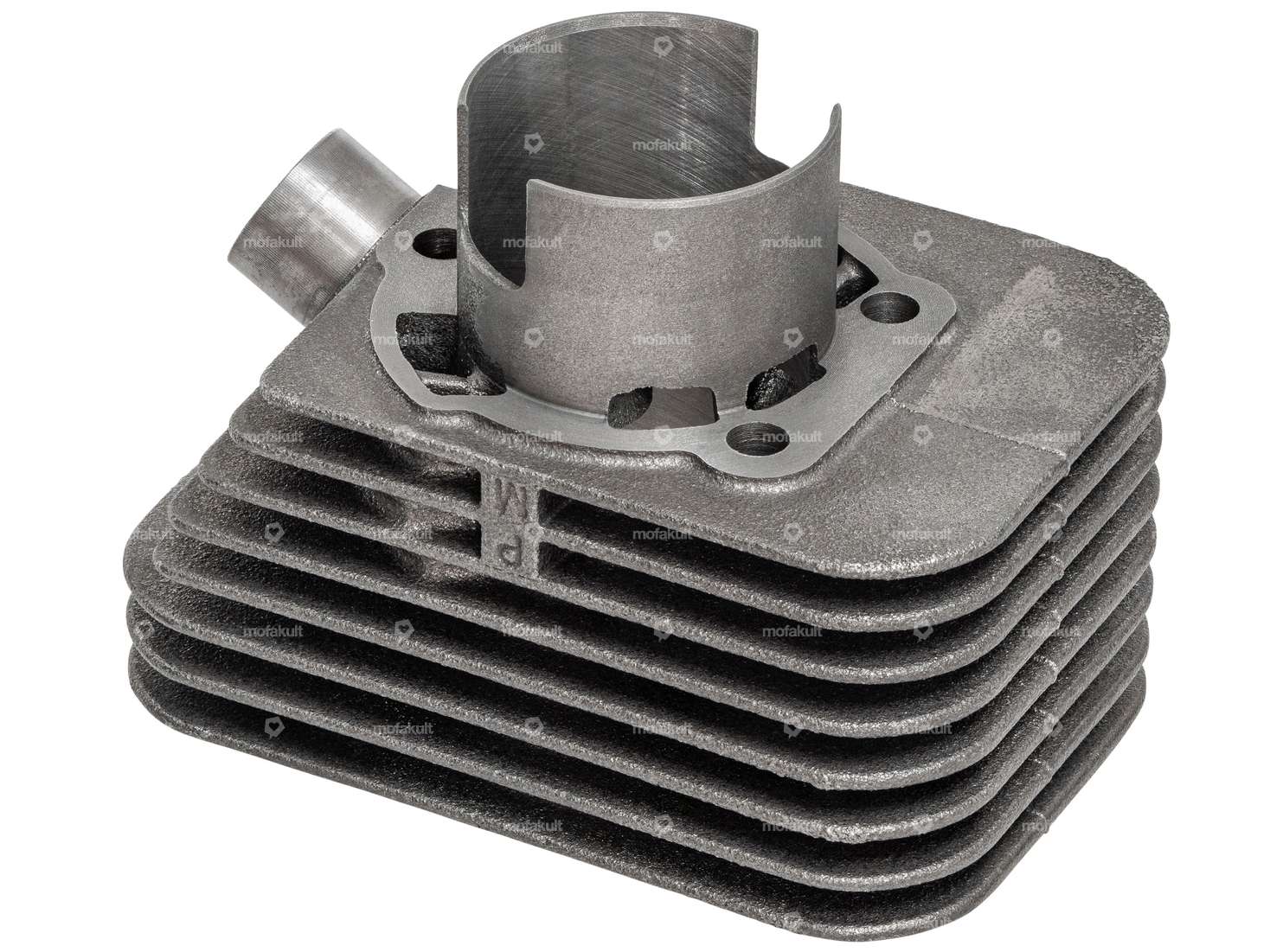

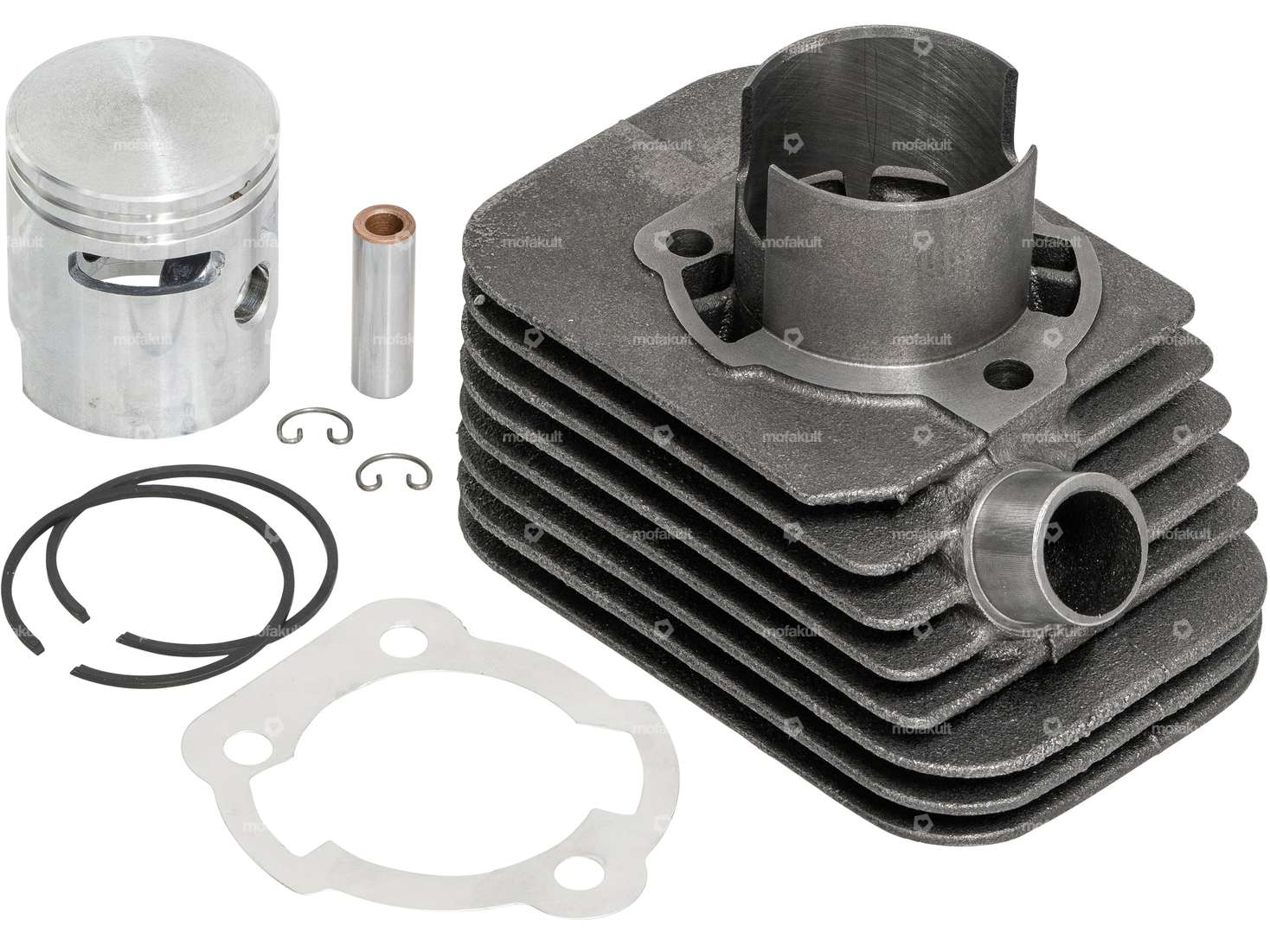

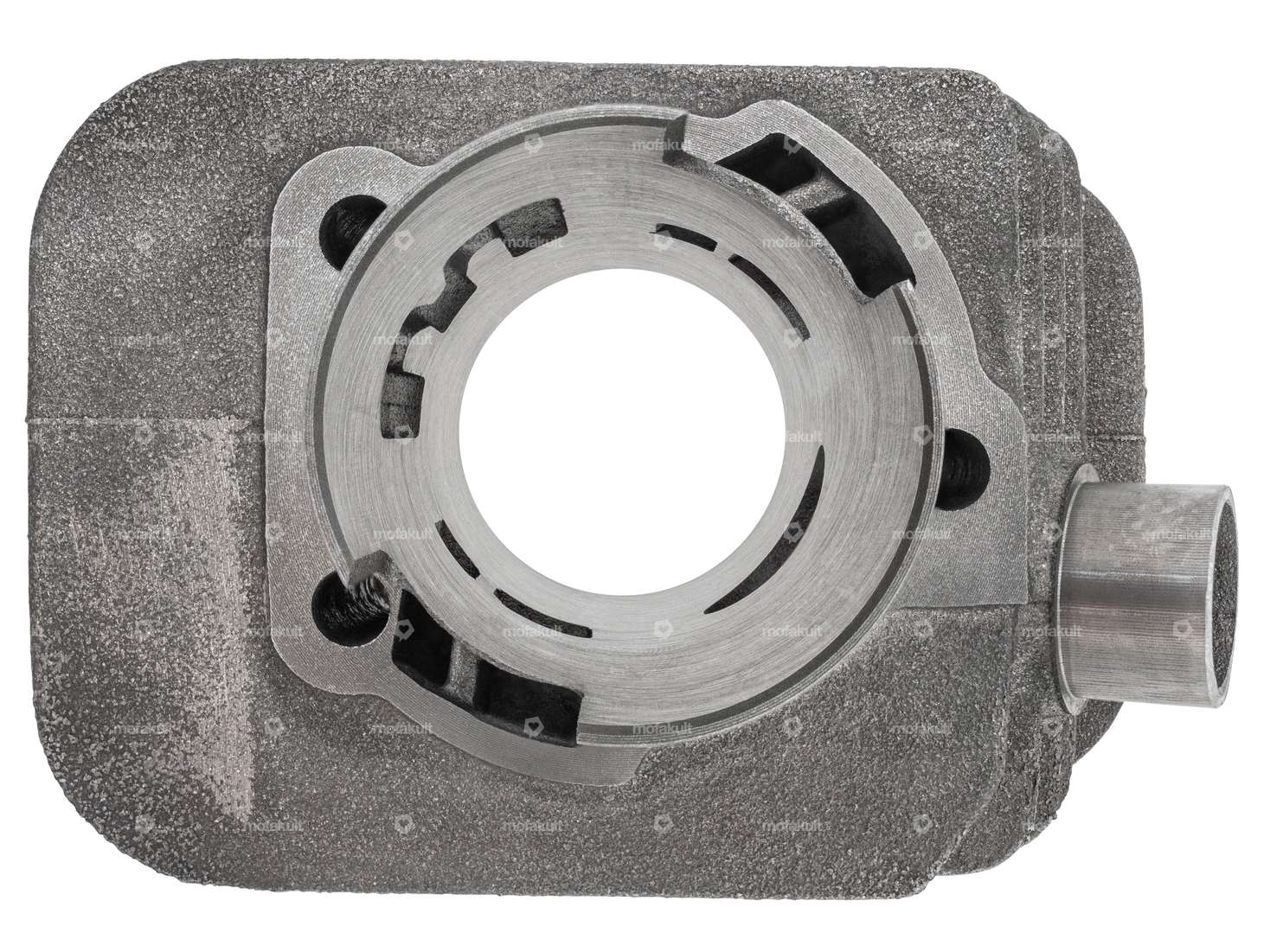

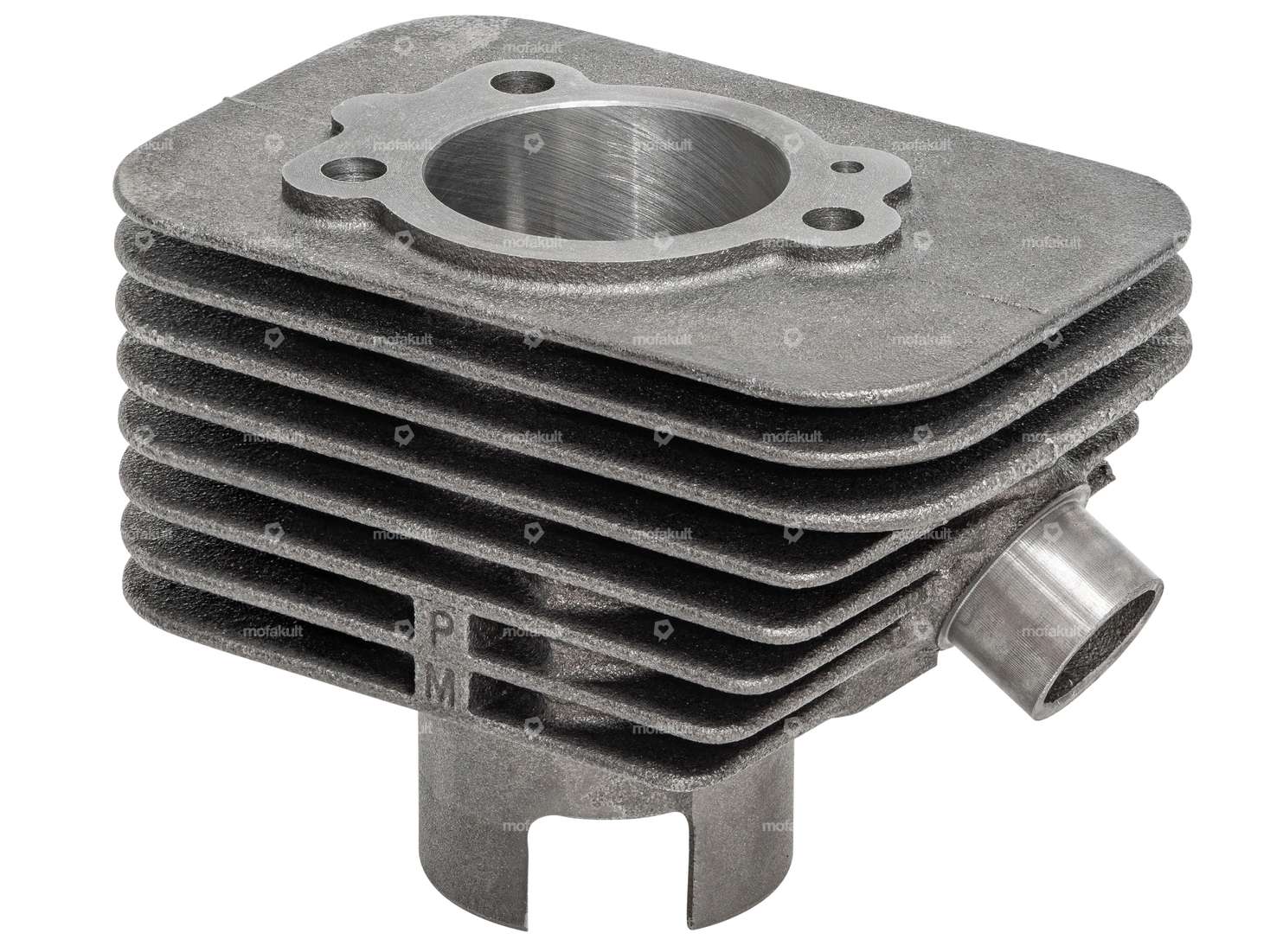

This cast iron cylinder, which is supplied without a cylinder head, fits all Piaggio mopeds.
Excellent workmanship and durability, combined with an exceptional price-performance ratio make this cylinder one of the most popular on the market.
The piston pin has a diameter of 10 mm.
We can also offer you this cylinder kit with cylinder head, or with 12 mm piston pin diameter.
Quality product from the Italian manufacturer Polini.
Details
Nominal diameter | 43 mm |
Manufacturer | Polini |
Material | Gray cast iron |
Surface | sandblasted |
Displacement | 63 ccm |
Crankshaft stroke | 43 mm |
Ø cylinder neck | 45.8 mm |
Ø Outlet outside | 22.6 mm |
Ø outlet inside | 18.4 mm |
Number of fixing points | 3 pcs |
Hole pattern [mm] | 55 x 34 |
Ø piston pin (B) | 10 mm |
Outlet type | clamped |
Decompressor | Yes |
Camouflaged | No |
Area of application | Tuning |
Suitable for the following models
Piaggio | Ciao - P, SC, PX, C24 Si Bravo / Super Bravo Boxer Grillo |
