Gasket set suitable for the 47 mm Polini EVO racing cylinder for your Piaggio Ciao, Si, Bravo and Grillo moped / moped.

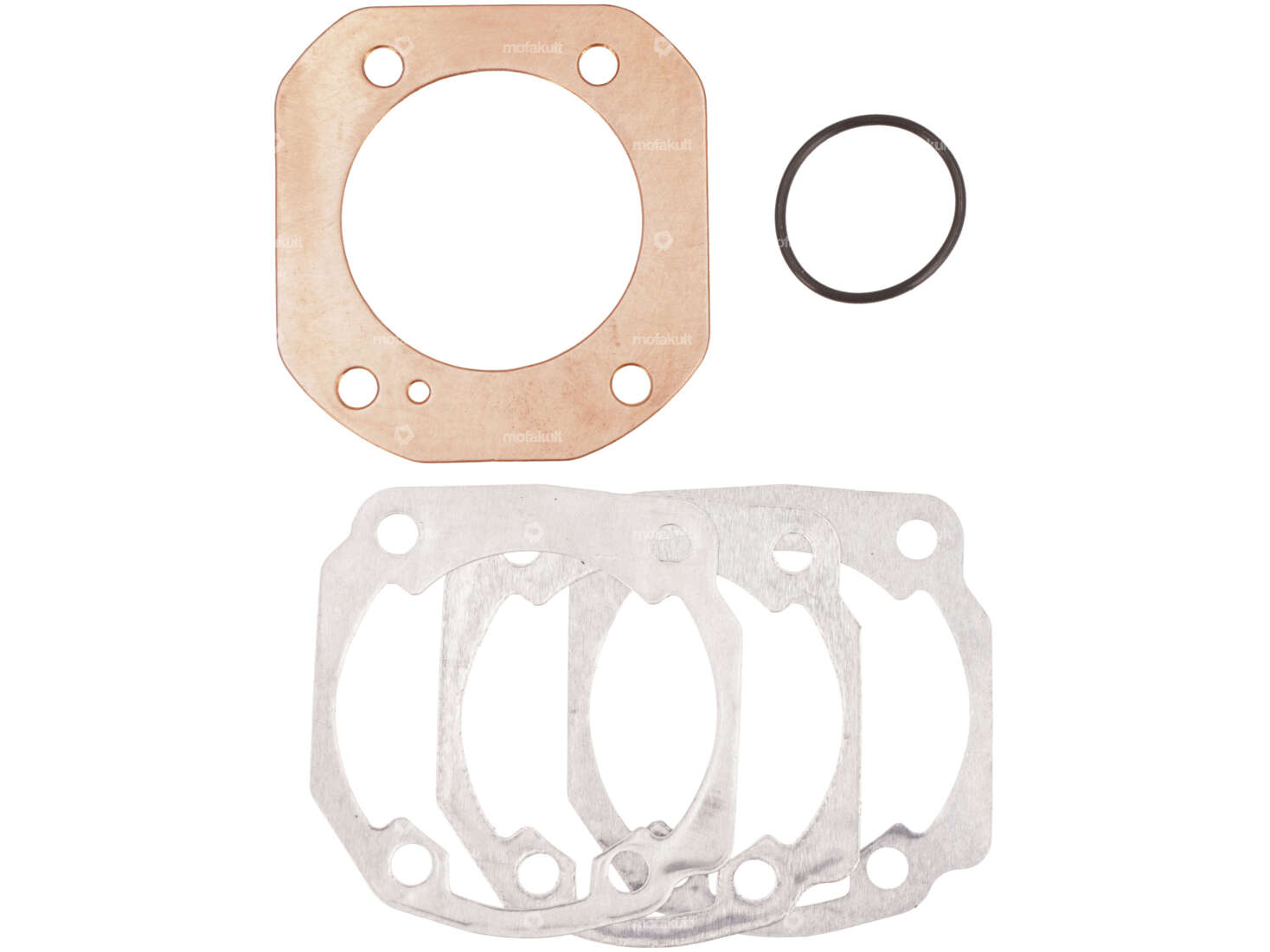

The gasket set consists of three cylinder base gaskets of different thicknesses, cylinder head gasket and the cord gasket for the exhaust port.
In addition, a Polini sticker with the dimensions 112 x 32 mm is included free of charge.
1 pc. Cylinder base gasket (aluminum) 0.1 mm
1 pc. Cylinder base gasket (aluminum) 0.2 mm
1 pc. Cylinder base gasket (aluminum) 0.5 mm
1 pc. Cylinder head gasket (copper) 0.5 mm
1 pc. O-ring exhaust port
Other parts from the EVO series, such as the racing kit, can be found under accessories.
Quality product from the Italian manufacturer Polini.
Details
Manufacturer | Polini |
Material | Aluminum, Copper, NBR |
Thickness | 0.1 mm, 0.2 mm, 0.5 mm |
Number of components | 5 pcs |
Suitable for the following models
Piaggio | Ciao - Ciao, Ciao, Ciao, Ciao Si Bravo/Superbravo Boxer Grillo |
