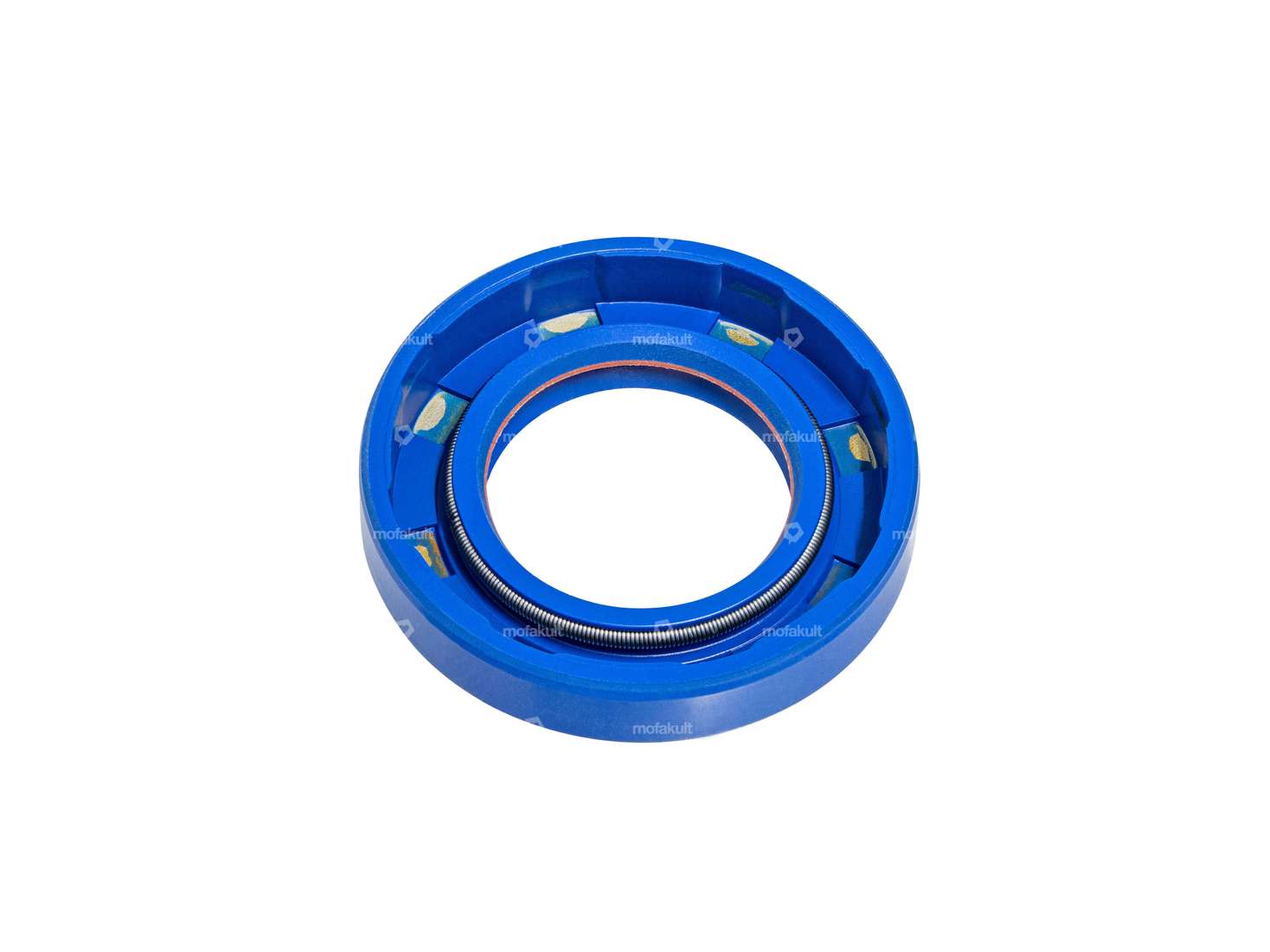

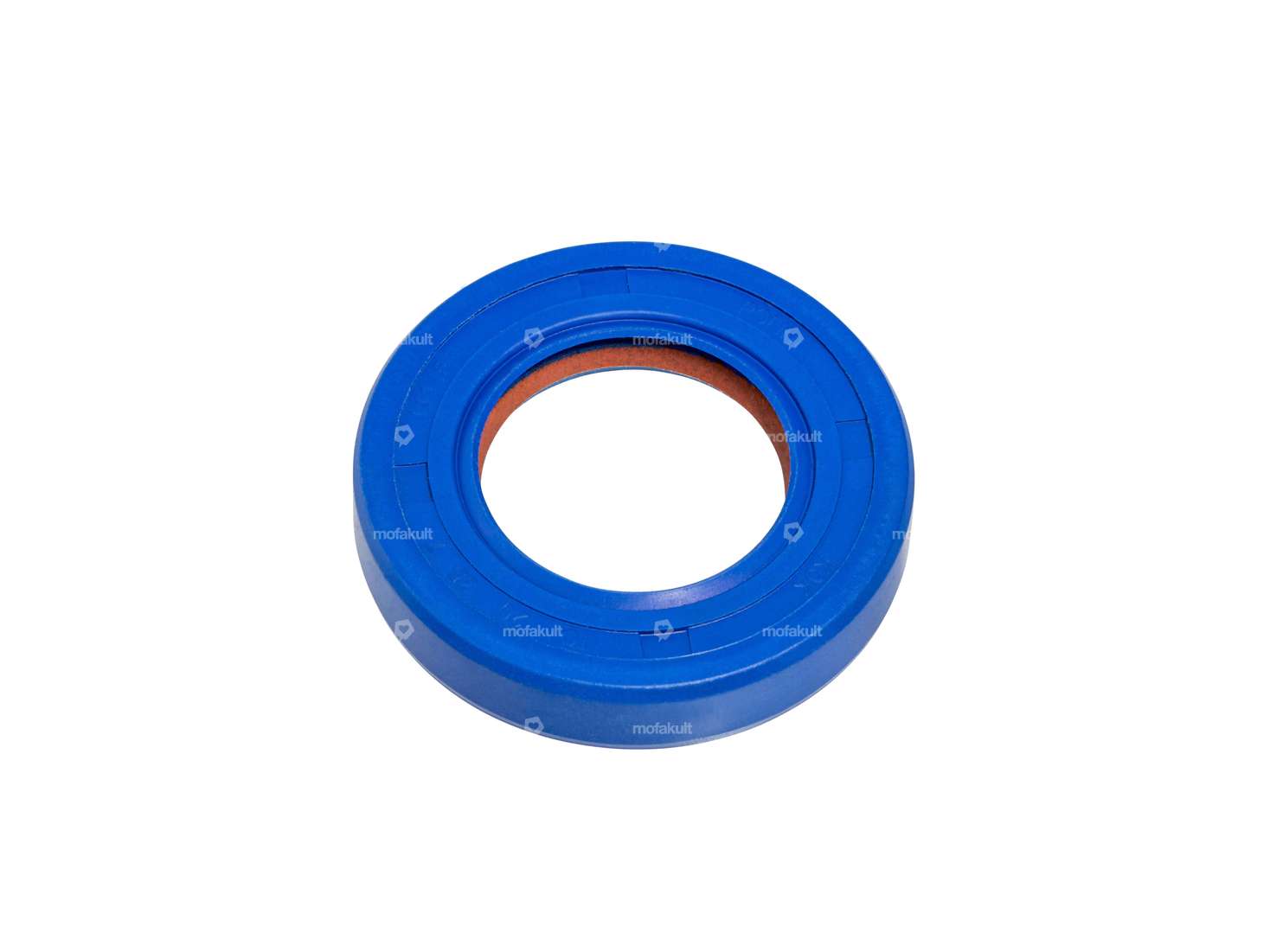

Shaft seal ring with sealing lip made of PTFE (also known under the trademarked brand name Teflon®) with the dimensions 20x35x7 mm for use in the ZA50 engine of your Puch moped / moped.
This seal ring fits the ZA50 engine of Puch Maxi S / N, as well as Puch Supermaxi LG2 mopeds.
This radial shaft seal with fluorine rubber outer jacket is resistant up to a temperature of 200 °C.
Manufactured NBR shaft seals are temperature-resistant up to 100 °C.
FPM or FKM rotary shaft seals (also known under the trademarked brand name VITON®) are particularly suitable for racing, as they are designed for higher speeds and can therefore withstand higher temperatures.
This radial sealing ring (also known under the famous brand name Simmerring®) has an additional sealing lip made of PTFE, a material with high thermal resistance which does not interact with the lubricant and can therefore withstand the highest loads.
Ø inner: 20 mm
Ø outer: 35 mm
Width: 7 mm
Material: Fluorocarbon rubber FPM / FKM
Temperature-resistant: -30 to +200 °C, briefly up to 220 °C
Type AS - With rubberized outer jacket, one sealing lip and one dust lip.
Other useful parts for your Puch moped can be found in the accessories section.
Quality product from the Italian manufacturer Polini.
Details
| Simmering type | AS - With rubberized outer casing / one sealing lip / one dust lip. |
| Manufacturer | Polini |
| Material | FPM / FKM (known as VITON®) |
| Surface | rubberized |
| Place of use | Crankshaft, Universal |
| Ø inside | 20 mm |
| Ø outside | 35 mm |
| Temperature resistance (min.) | -30 - 200 °C |
| Width | 7 mm |
Suitable for the following models
| Puch | ZA50 (air-cooled) ZA50 (fan-cooled) |
