High-end CNC aluminum transmission cooler for your moped / moped with Puch E50 engine.
Thanks to improved cooling, the clutch works more stress-free. However, this technical miracle also lowers the temperature at the cylinder head.
All components from your original engine can be used, only the cooling fin is fitted in between. Due to the different threads, you have a variety of connection options, such as a temperature sensor.

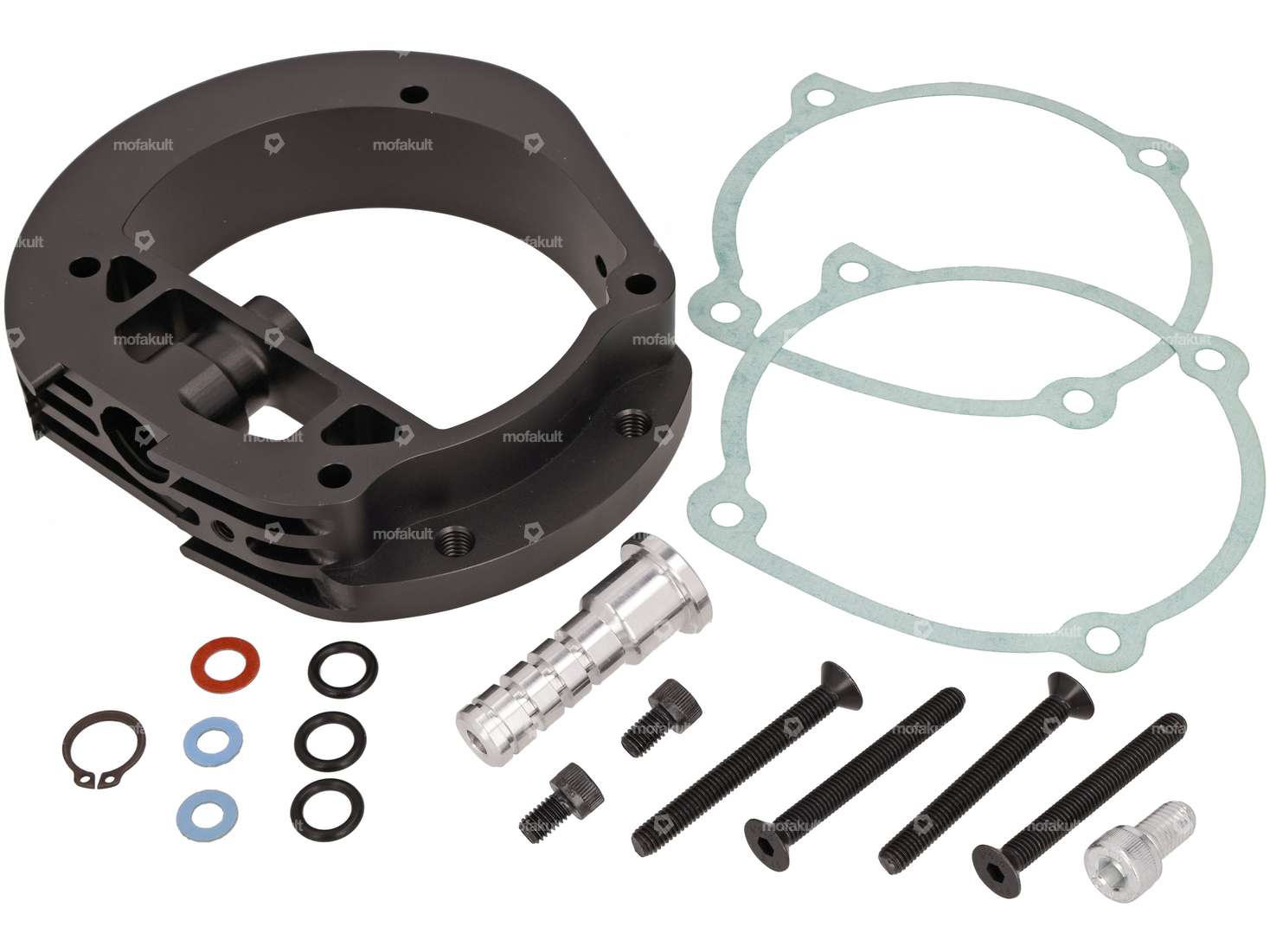

The following components are included in the scope of delivery:

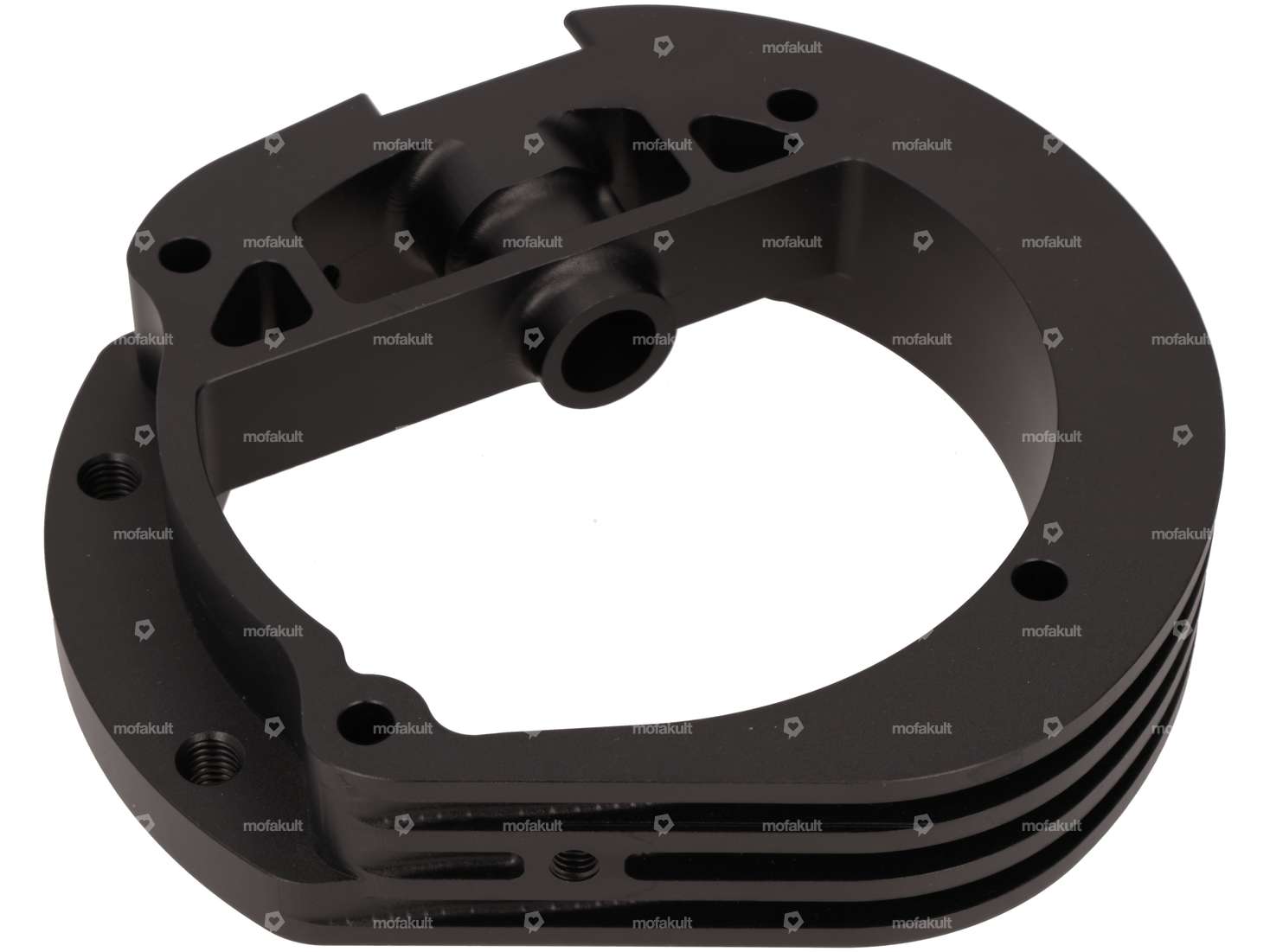

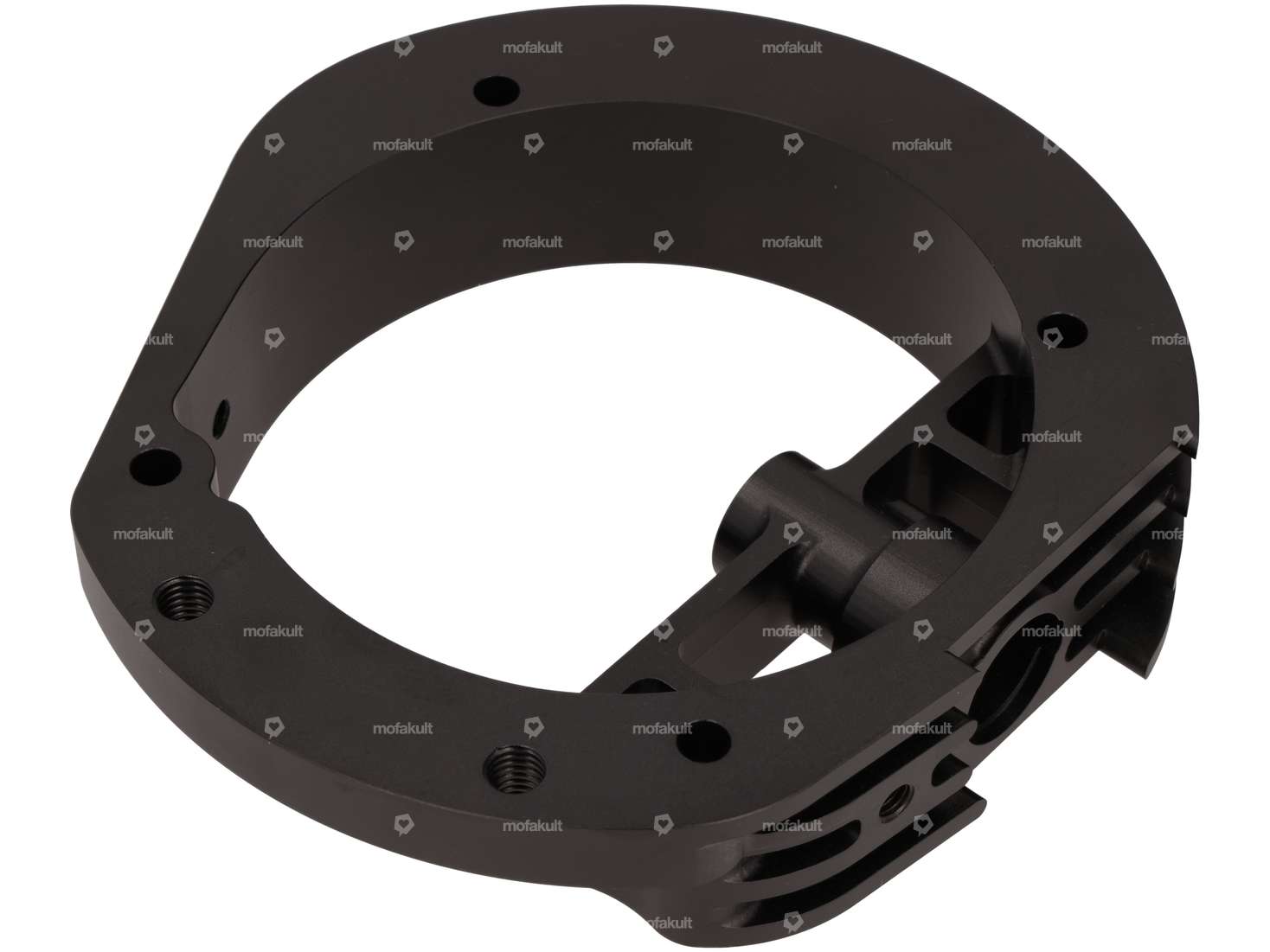

1x cooling fin, black anodized aluminium
2x seal
1x aluminium bushing
3x O-ring seal

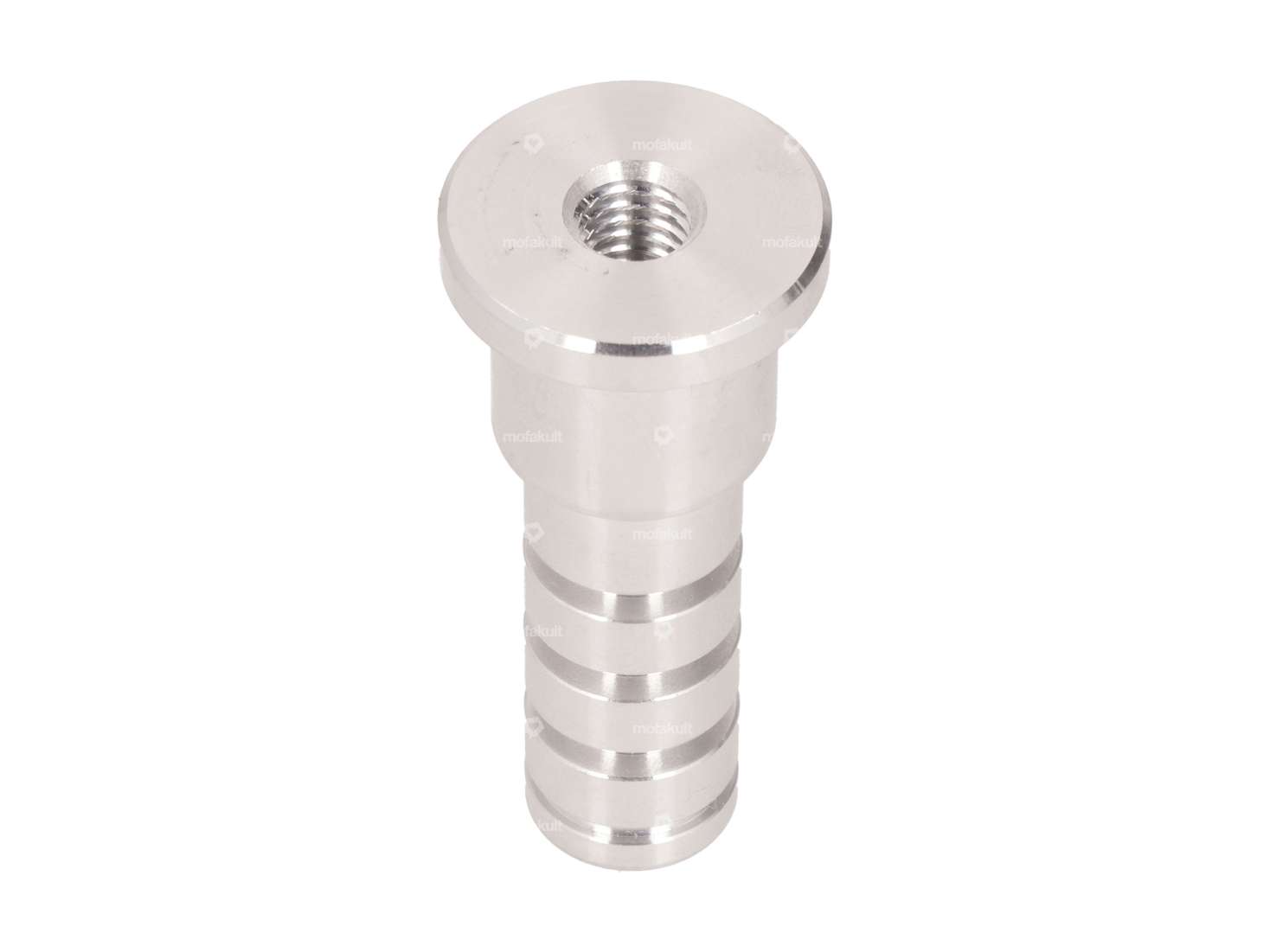

1x hose nozzle
1x circlip / retaining ring
4x countersunk screws hexagon socket M6 x 55 (fastening of cooler / coupling cover)
Details
| Width | 32 mm |
| Material | Aluminum |
| Surface | anodized |
| Ø inside | 107 mm |
| Ø outside | 150 mm |
| Color | black-matt |
Suitable for the following models
| Puch | E50 |
