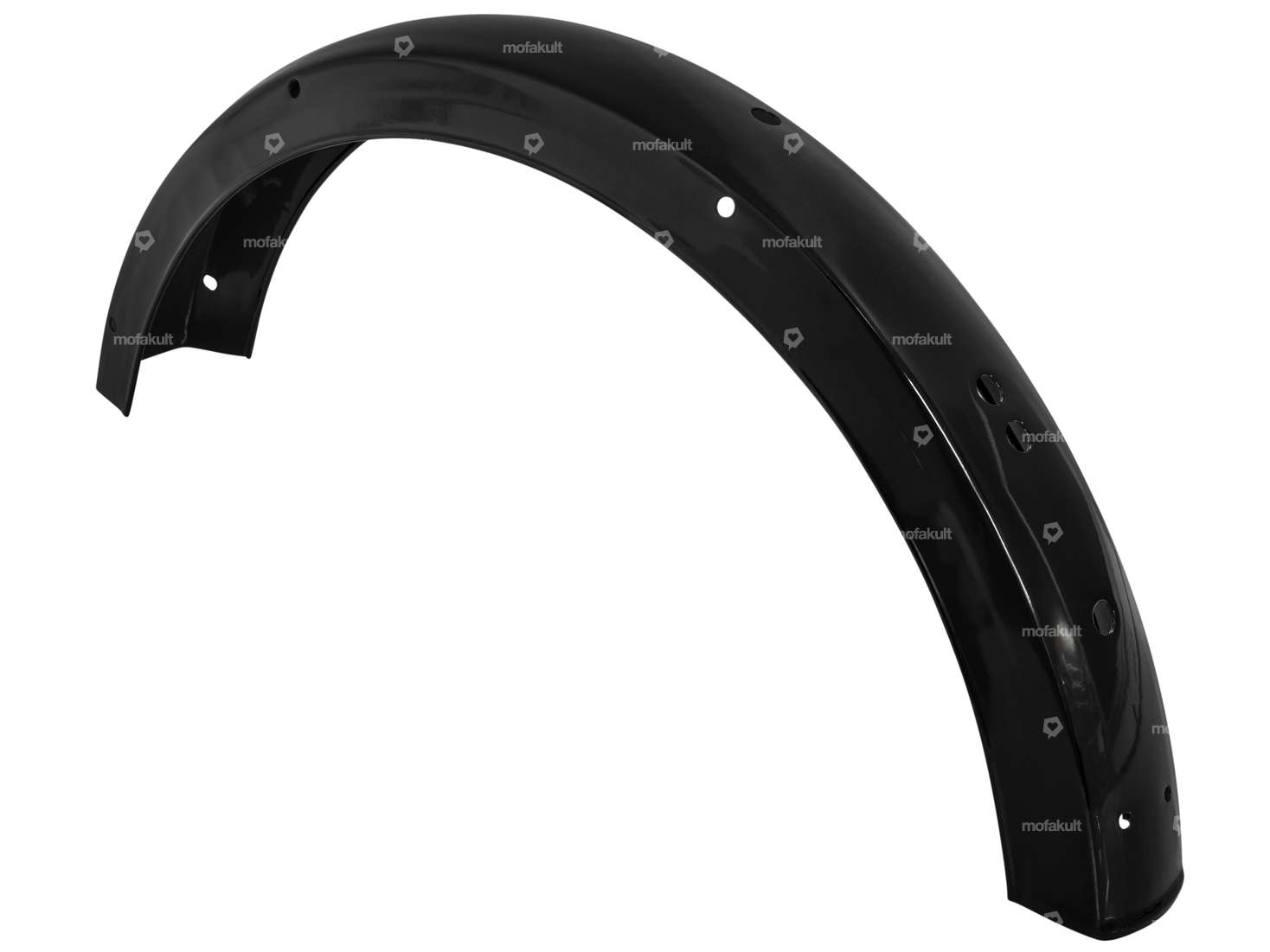

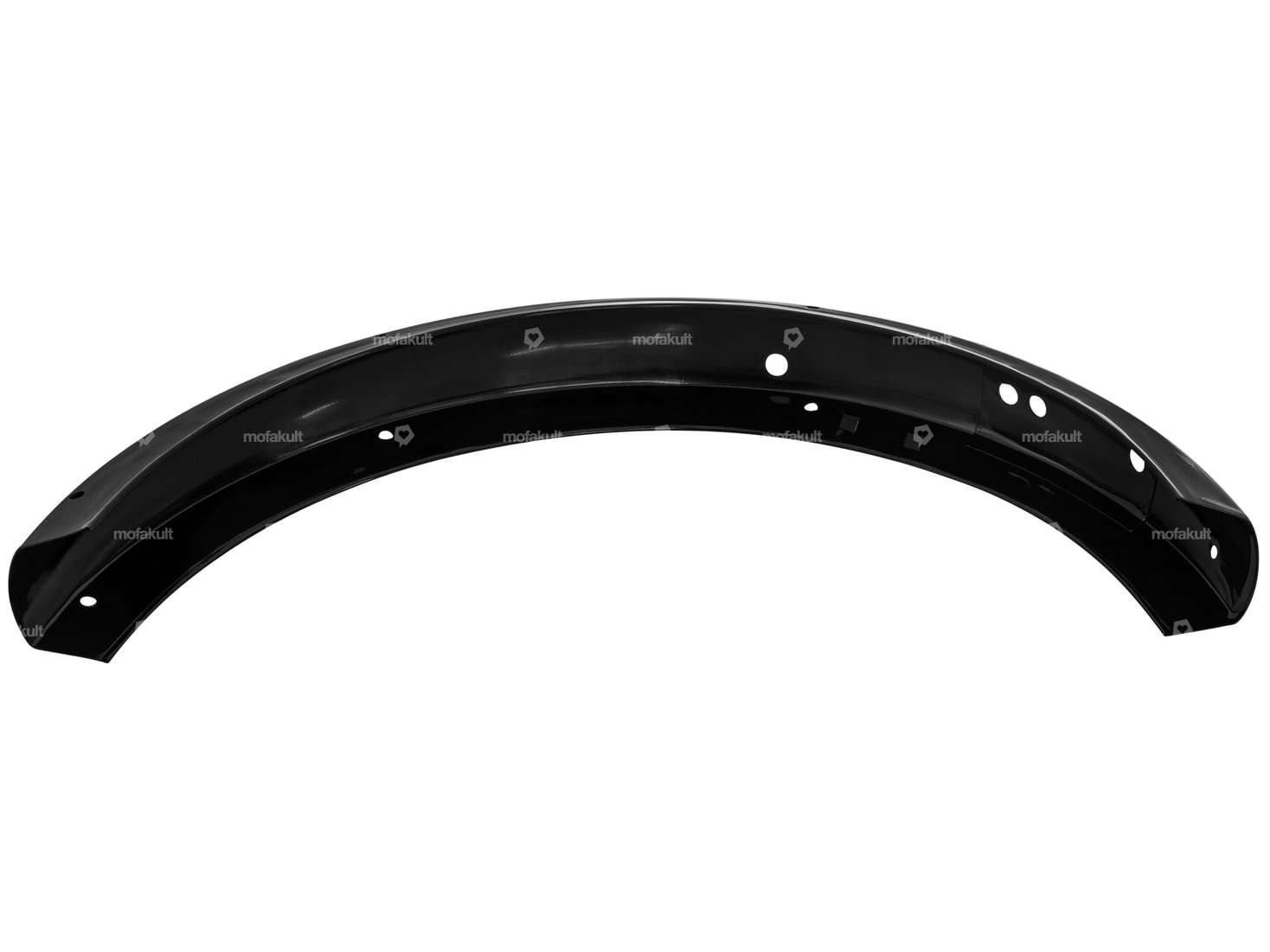

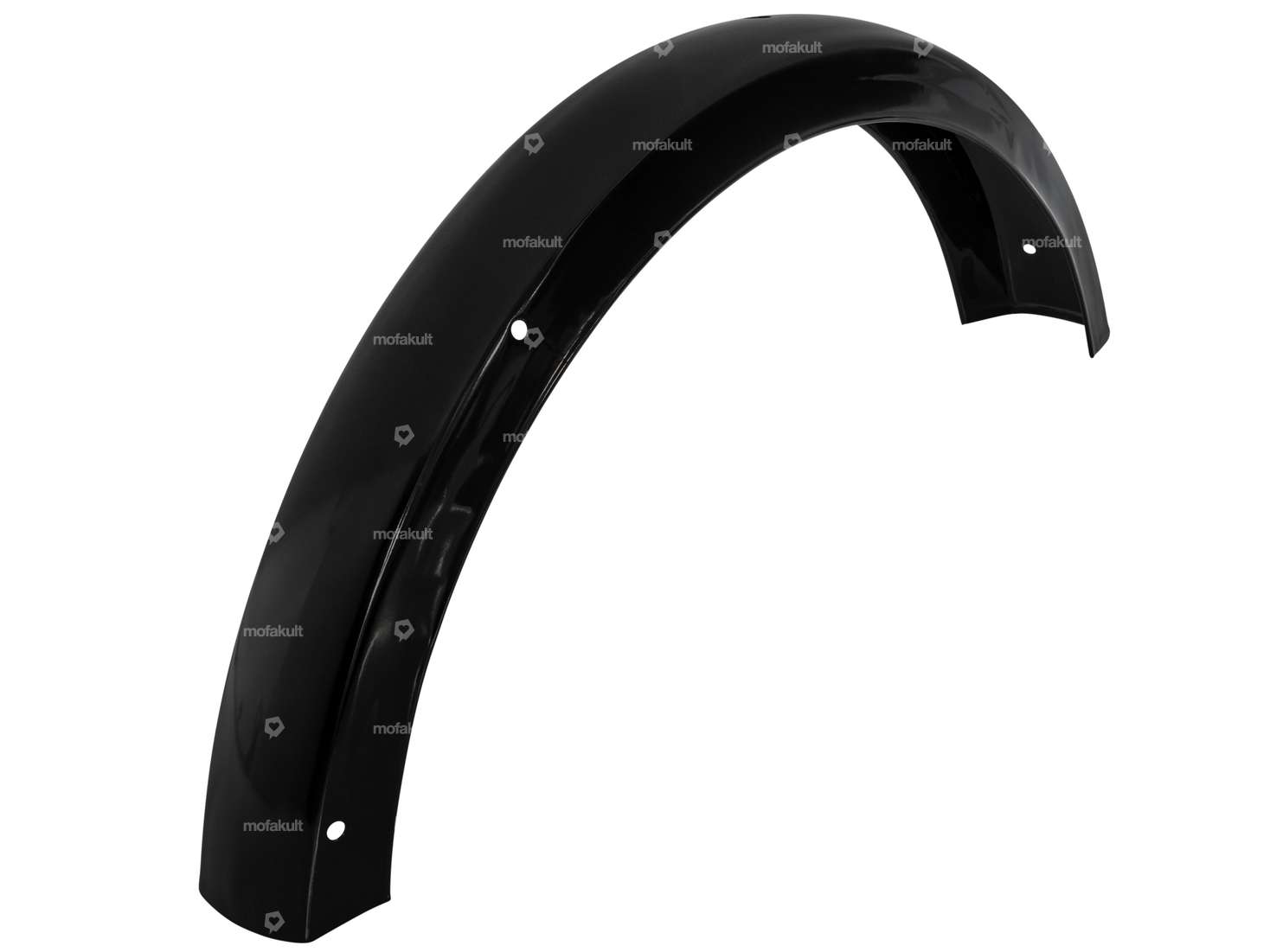

Rear fender black | Tomos A35

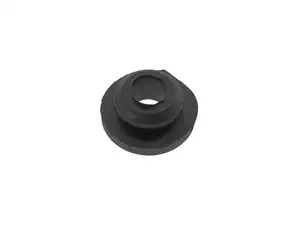

Rubber grommet side panel | Tomos

Color: black · Ø Cable bushing: 6 mm · Manufacturer: Tomos · Material: Rubber · Height: 7.5 mm · Clamping diameter: 10 mm

Cable grommet Ø 10 / 13 mm PVC

Ø Cable bushing: 10 mm · Manufacturer: Made in Germany · Color: black · Material: Polyvinyl chloride (PVC-U_hard) · Ø mounting hole: 13 mm · Height: 6 mm · Material thickness: 2 mm · Ø outside: 10 mm

swiing® revival stud bolt inlet/outlet M6 x 30 mm (10.9 strength)

Manufacturer: swiing® revival parts · Material: Steel · Surface: galvanized (blue) · Total length: 30 mm · Diameter: 5.95 mm · Thread type: M6x1 (standard thread) · Thread length: 12 mm · Strength class: 10.9

Airsal 38 mm cylinder kit 12 mm KoBo | Tomos A35

Nominal diameter: 38 mm · Manufacturer: Airsal · Material: Aluminum · Surface: sandblasted · Displacement: 50 ccm · Ø cylinder neck: 47 mm · Ø outlet inside: 25 mm · Inlet window: 28 / 24 x 38 · Thread inlet: M5x0.8 (standard thread) · Hole spacing inlet: 32 mm · Hole spacing inlet: 35 mm · Hole spacing inlet: 38 mm · Ø piston pin (B): 12 mm · Outlet type: slanted · Hole spacing outlet: 42 mm · Thread outlet: M6x1 (standard thread) · Number of fixing points: 4 pcs · Hole pattern [mm]: 44 x 44 · Decompressor: No · Camouflaged: No · Area of application: Tuning

GPO cranks chrome 163 mm pair

Manufacturer: GPO · Material: Steel · Surface: chrome-plated · Color: Chrome · Total length: 163 mm · Crank length (center-center): 137 mm · Ø Pedal wedge: 9.5 mm · Cranking (offset): 24 mm · Thread type: FG14.3 (9/16" 20G)

Throttle grip right | Tomos Quadro, Sprint, Classic, Fun Sport'R

Material: Plastic · Material lever: Cast aluminum · Brake light switch: Yes · Color: black

Front fender black wide | Tomos A35 from 2007 onwards

Material: Steel · Surface: varnished · Color: black · Mounting type: Nuts & bolts

Front fender black primed | Tomos A35 from 2008 onwards

Material: Steel · Surface: primed · Color: black · Mounting type: Nuts & bolts

Control bearing set | Tomos A3, A35

Material: Steel · Surface: galvanized (blue) · Color: silver · Bearing type: Bearing ring · Bearing type: open / individual parts · Ø inside: 26 mm · Ø ball [inch] / [mm]: 3/16" (4.78 mm)

Gearbox cover gasket | Tomos

Number of components: 1 pcs · Manufacturer: Tomos · Material: Sealing paper · Number of fixing points: 9 pcs · Tomos OEM number: 209083

Brake light switch (1/4" - 32 UNEF) | Tomos

Manufacturer: Tomos · Material: Plastic · Housing material: Aluminum · Thread type: MF6x0.75 (fine pitch thread) · Number of cables: 2 pcs · Number of positions: 2 pcs · Total length: 36 mm

Front mudguard strut | Tomos Classic, Quadro, Sprint, Fun Sport'R

Material: Steel · Outer width: 104 mm · Surface: varnished · Color: black · Mounting type: Nuts & bolts · Number of fixing points: 6 pcs · Hole spacing: 40 mm · Hole spacing: 43 mm · Total length: 56 mm · Ø mounting hole: 6 mm · Ø mounting hole: 7 mm
