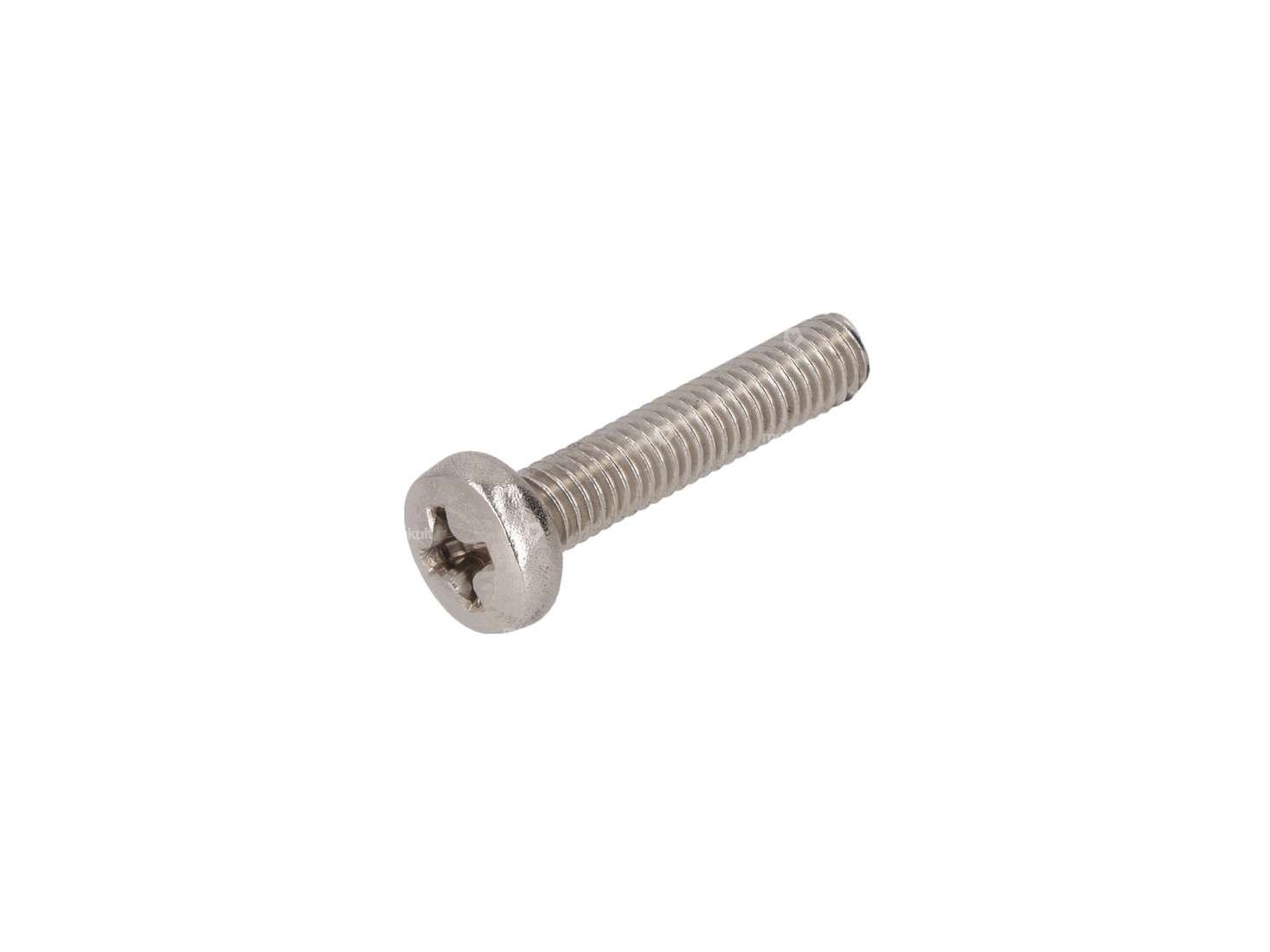

Screw M4x20 Lamp pot Egg lamp Inox

Screwdriver set 7 pcs.

Drive: Cross recess · Drive: Slot · Area of application: (Dis)assembly tool · Number of components: 7 pcs

Loctite 243 medium-strength threadlocker 10 ml

Manufacturer: Loctite · Material to be used: Aluminum · Material to be used: Metal · Material to be used: Steel · Area of application: Chemistry · Color: blue · Contents [ml]: 10 ml · Hazard warning: Causes serious eye irritation · Hazard warning: Causes skin irritation · Hazard warning: Harmful to aquatic organisms (with long-term effects) · Hazard warning: May cause allergic skin reactions · Hazard warning: May irritate the respiratory tract · Signal word: Attention · Hazard pictogram: GHS07 - Caution dangerous · Hazard pictogram: GHS09 - Hazardous to the aquatic environment · Adhesion: medium strength · Type of application: 1K · Gap dimension (max.): 0.01 mm · Alignment time: 600 sec · Temperature resistance (min.): -75 - 200 °C · Breakaway torque (according to material): 3 N/m · Breakaway torque (according to material): 12 N/m · Breakaway torque (according to material): 26 N/m

Headlight head Ø 103 mm egg-shaped lamp

Bulb holder: BA15d · Ø Frame: 31 mm · Ø outside: 103 mm · Ø inside: 98 mm

Lamp pot egg lamp Ø 103 mm black (side fitting)

Test mark: none · Housing material: Steel · Surface: varnished · Color: black · Speedometer recording: 48 mm · Ø outside: 103 mm · Width: 105 mm · Depth: 110 mm · Mounting type: Screws · Number of fixing points: 2 pcs · Thread size: M6

Lamp pot egg lamp Ø 103 mm silver (central fitting)

Test mark: none · Housing material: Steel · Surface: varnished · Color: silver · Speedometer recording: 48 mm · Ø outside: 103 mm · Depth: 110 mm · Mounting type: Screws · Number of fixing points: 1 pcs · Thread size: M8

Egg lamp Ø 103 mm, black (side fitting)

Housing material: Steel · Surface: varnished · Color: black · Bulb holder: BA15d · Speedometer recording: 48 mm · Ø outside: 103 mm · Width: 105 mm · Depth: 140 mm · Mounting type: Screws · Number of fixing points: 2 pcs · Thread size: M6

Chrome cable duct | Puch Maxi

Material: Plastic · Surface: chrome-plated · Total length: 320 mm · Width: 58 mm · Color: Chrome · Height: 22 mm · Number of fixing points: 2 pcs · Ø mounting hole: 5.3 mm

Side panels black matt | Puch Maxi S

Manufacturer: Made in Italy · Material: Plastic · Color: black · Puch OEM number: 349.4.28.502.2 · Alternative version of the Puch OEM number: 349.4.28.603.2 · Puch OEM number: 349.7.28.503.2

GPO gasket set | Puch E50

Manufacturer: GPO · Material: Aluminum · Material: Fiber · Material: Sealing carton · Material: Sealing paper · Number of components: 7 pcs · Hole spacing inlet: 32 - 38 mm · Ø outlet inside: 19.9 mm · Hole spacing outlet: 42 mm · Hole pattern [mm]: 44 x 44 · Decompressor: Yes · Area of application: Standard

Oil filler plug with sealing ring | Puch Maxi

Material: Steel · Surface: galvanized (blue) · Thread type: M10x1.5 (standard thread) · Drive: Slot · Screw head: Lens head · Ø External head: 14 mm · Total length: 14.6 mm · Thread length: 6 mm · Number of components: 2 pcs · Puch OEM number: 364.1.10.660.1

swiing® revival M8x12 oil drain plug & copper ring | Puch E50, Z50

Manufacturer: swiing® revival parts · Material: Copper · Material: Steel · Surface: galvanized (blue) · Color: silver · Thread type: M8x1.25 (standard thread) · Thread length: 12 mm · Screw head: Hexagon · Drive: External hexagon · Drive: Slot · Width across flats Screw: 13 mm · Total length: 18 mm · Puch OEM number: 901.1053

Magura cable holder

Color: silver · Ø outside: 8 mm · Total length: 14.5 mm · Ø Bundle: 10 mm · Ø Cable bushing: 4 mm · Ø Nipple hole: 6.2 mm · Manufacturer: Magura · Material: Brass · Surface: nickel-plated · Area of application: Standard

Gas cable Ø 1.25 mm x 220 cm (cylindrical nipple) Bing

Ø nipple: 3 mm · Nipple length: 5 mm · Manufacturer: Made in Germany · Area of application: Standard · Material: Steel · Surface: galvanized (blue) · Number of components: 1 pcs · Ø Stranded wire: 1.25 mm · Cable length: 2200 mm · Nipple shape: Cylinder

Union pedals aluminum

Manufacturer: Union · Material: Aluminum · Surface: rubberized · Color: silver · Drive: Outer edge · Thread type: FG14.3 (9/16" 20G) · Width across flats SW: 15 mm · Total length: 122 mm · Width: 69 mm · Height: 29 mm · Reflectors: Yes

Woodruff key 3 x 3.7 mm

Total length: 9.15 mm · Width: 3 mm · Height: 3.7 mm · Material: Steel

Sliding bush fork original | Puch

Ø inside: 23 mm · Ø outside: 27 mm · Manufacturer: Made in Italy · Material: Plastic · Surface: raw · Color: white · Total length: 30 mm
