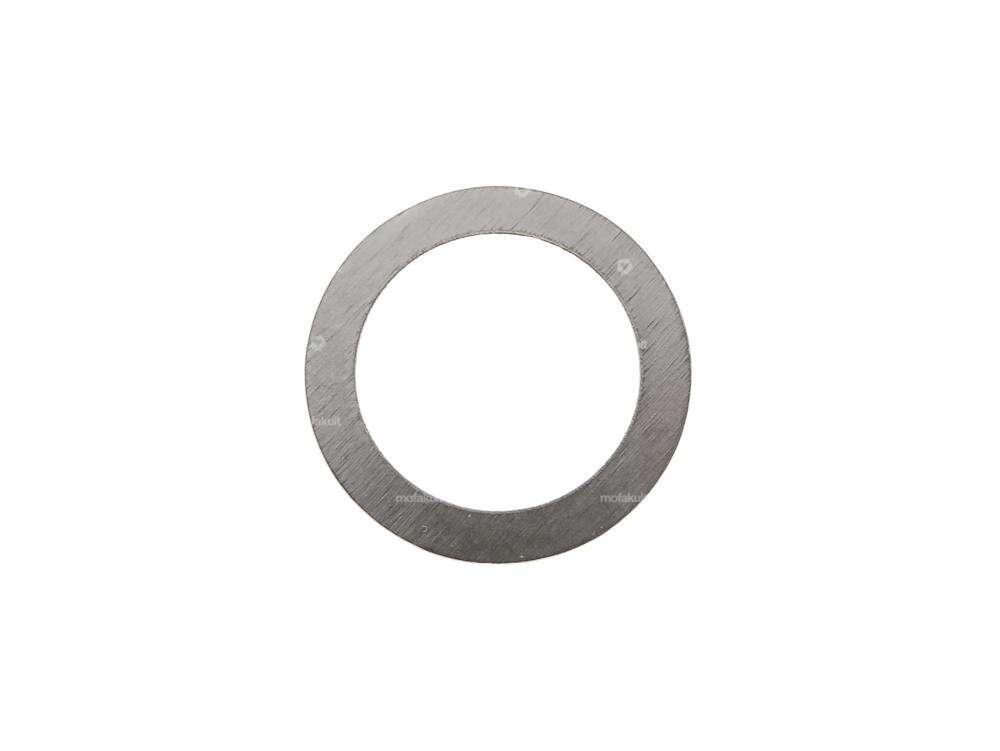

Shim 16/22/0.5 crankshaft original | Piaggio Ciao, SI, Bravo, Boxer

Shim 15/21/0.5

Ø inside: 15 mm · Material: Steel · Surface: blank / oiled · Ø outside: 21 mm · Nominal diameter: 15 mm · Thickness: 0.5 mm

SKF Bearing Set Engine | Piaggio Ciao, SI, Bravo, Boxer, Grillo

Manufacturer: SKF · Number of components: 3 pcs · Material: Plastic · Material: Steel · Area of application: Standard

EFFE breaker without cable | Piaggio Ciao, SI, Bravo, Boxer

Manufacturer: EFFE · Material: Steel · Cable available: No · Ø axle: 5 mm · Area of application: Original · Area of application: Standard · Ø mounting hole: 4.5 mm · Number of fixing points: 1 pcs · Piaggio spare part no.: 103133

Engine gasket | Piaggio Ciao, SI, Bravo, Boxer

Ø inside: 75 mm · Material: Sealing paper · Color: black · Total length: 125 mm · Width: 95 mm · Ø outside: 85 mm · Thickness: 0.2 mm · Number of fixing points: 7 pcs · Number of components: 1 pcs · Piaggio spare part no.: 112967

Shim 16/22/0.5

Material: Steel · Surface: blank / oiled · Nominal diameter: 16 mm · Thickness: 0.5 mm · Ø outside: 21 mm · Ø inside: 16 mm

Spring washer flywheel | Piaggio Ciao, SI, Bravo, Boxer

Spring design: Special spring · Manufacturer: Made in Italy · Ø inside: 14.7 mm · Material: Spring steel · Surface: blank · Ø outside: 20.5 mm · Area of application: Standard · Material thickness: 0.2 mm

Wedge 12.1x4.9x3 mm

Width: 3 mm · Height: 4.9 mm · Material: Steel · Total length: 12.5 mm

Mazzucchelli crankshaft "Racing" 12 mm KoBo | Piaggio Ciao, SI, Bravo, Boxer

Dimension needle bearing: 12 / 15 x 14.7 mm (axe 12) · Manufacturer: Mazzucchelli · Material: Steel · Cheek type: standard · Thread type: M8x1.25 (standard thread) · Ø coupling pin / vario pin: 12 mm · Crankshaft stroke: 43 mm · Connecting rod length center-center: 87 mm · Weight: 705 g · Total length crankpin ignition side: 90 mm · Total length crankpin ignition side: 106 mm · Ø crank webs: 69.7 mm · Area of application: Racing · Ø Connecting rod eye: 15 mm · Bearing seat right: 15 mm · Thread length: 16 mm · Ø piston pin (B): 12 mm · Ø Bearing seat (ignition side): 15 mm · Wide crank webs: 33 mm · Length 1st paragraph: 21 mm · Length 2nd paragraph: 44 mm · Length 3rd paragraph: 63.5 mm · Ø 1st step (on the coupling side): 15 mm · Ø 2nd shoulder (on the clutch side): 14.4 mm · Ø 3rd step (on the clutch side): 12 mm · Inlet control time: 139 ° · Control time before O.T: 81 ° · Control time according to O.T: 58 ° · Number of gears: 1 pcs

Mazzucchelli crankshaft "Racing" 10 mm KoBo | Piaggio Ciao, SI, Bravo, Boxer

Manufacturer: Mazzucchelli · Area of application: Racing · Material: Steel · Cheek type: standard · Crankshaft stroke: 43 mm · Ø coupling pin / vario pin: 12 mm · Connecting rod length center-center: 87 mm · Thread length: 16 mm · Weight: 698 g · Total length crankpin ignition side: 90 mm · Total length crankpin ignition side: 106 mm · Ø crank webs: 69.7 mm · Ø piston pin (B): 10 mm · Ø Connecting rod eye: 13 mm · Bearing seat right: 15 mm · Thread type: M8x1.25 (standard thread) · Ø Bearing seat (ignition side): 15 mm · Dimension needle bearing: 10 / 13 x 14.2 mm (axe 10) · Wide crank webs: 33 mm · Length 1st paragraph: 21 mm · Length 2nd paragraph: 44 mm · Length 3rd paragraph: 63.5 mm · Ø 1st step (on the coupling side): 15 mm · Ø 2nd shoulder (on the clutch side): 14.4 mm · Ø 3rd step (on the clutch side): 12 mm · Inlet control time: 139 ° · Control time before O.T: 81 ° · Control time according to O.T: 58 ° · Number of gears: 1 pcs

Shim 15/21/0.5 crankshaft original | Piaggio Ciao, SI, Bravo, Boxer

Nominal diameter: 15 mm · Ø inside: 15 mm · Ø outside: 21 mm · Thickness: 0.5 mm · Manufacturer: Piaggio · Material: Steel · Surface: blank / oiled
