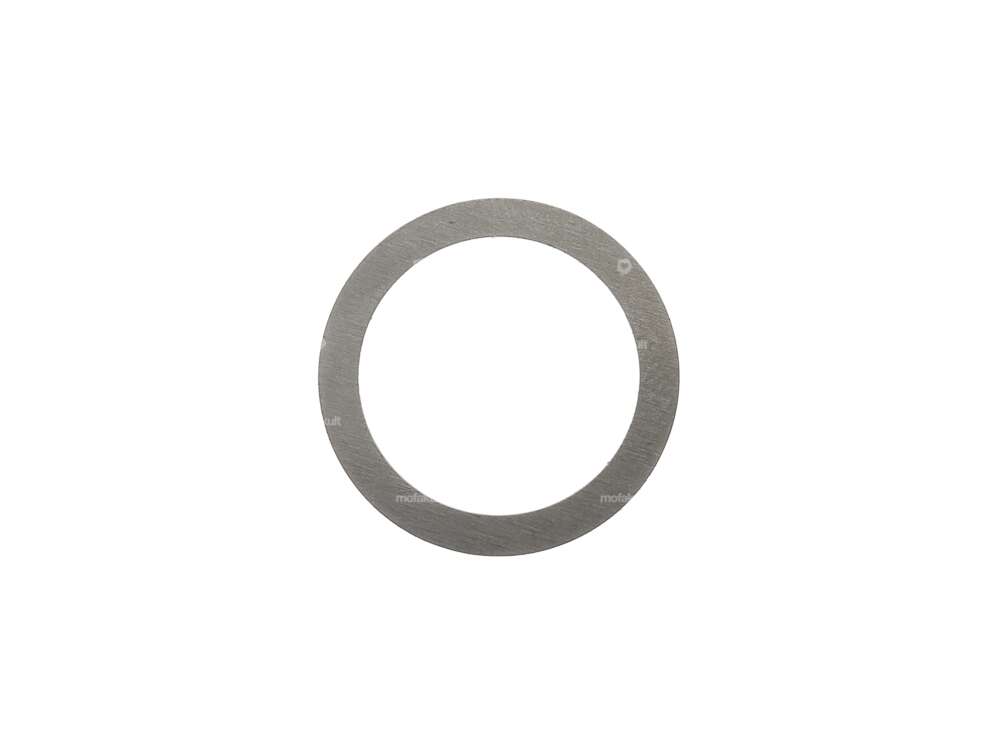

Shim 18.6/24/0.2 Crankshaft | Tomos

Jasil crankshaft | Tomos

Manufacturer: Jasil · Area of application: Racing · Total length of crankpin on clutch side: 93 mm · Total length crankpin ignition side: 64 mm · Tomos spare part no.: 223421

swiing crankshaft Racing Tomos

Manufacturer: swiing · Cheek type: Full cheeks · Connecting rod length center-center: 115 mm · Total length of crankpin on clutch side: 93 mm · Total length crankpin ignition side: 64 mm · Ø crank webs: 70 mm · Ø piston pin (B): 12 mm · Thread type: MF10x1 (fine pitch thread) · Wide crank webs: 34 mm · Area of application: Racing · Tomos spare part no.: 223421

Crankshaft original | Tomos

Manufacturer: Tomos · Cheek type: standard · Connecting rod length center-center: 115 mm · Total length of crankpin on clutch side: 93 mm · Total length crankpin ignition side: 64 mm · Ø crank webs: 70 mm · Thread type: MF10x1 (fine pitch thread) · Dimension needle bearing: 12 / 15 x 14.2 mm (axe 12) · Wide crank webs: 34 mm · Area of application: Original · Tomos spare part no.: 223421

NTN 6203 C3 Ball bearing 17/40/12

Bearing type: Deep groove ball bearing · Inner ring width: 12 mm · Manufacturer: NTN · Bearing clearance: C3 · Bearing cage: "-" Sheet steel cage ball-guided · Groove ring: No · Material: Steel · Surface: blank · Ø inside: 17 mm · Ø outside: 40 mm · Width: 12 mm · Stock number: 6203 · Area of application: Standard · Ball bearing closed: No

Shim 19/26/0.5

Ø inside: 19 mm · Nominal diameter: 19 mm · Ø outside: 26 mm · Material: Steel · Surface: blank / oiled · Thickness: 0.5 mm

Engine gasket set | Tomos A35

Area of application: Standard · Number of components: 6 pcs

Spacer washer 10.5/14.1/0.2 Gear shaft | Tomos

Ø inside: 10.5 mm · Nominal diameter: 10 mm · Ø outside: 14.15 mm · Thickness: 0.2 mm · Manufacturer: Tomos · Material: Steel · Surface: blank / oiled · Tomos spare part no.: 209075

Spacer washer 10.1/16/2 gear shaft | Tomos

Ø inside: 10.1 mm · Nominal diameter: 10 mm · Ø outside: 16 mm · Thickness: 2 mm · Manufacturer: Tomos · Material: Steel · Surface: blank / oiled · Tomos spare part no.: 223469

Clutch hub spring washer | Tomos

Ø inside: 10.5 mm · Ø outside: 18 mm · Manufacturer: Tomos · Tomos spare part no.: 031978

Spacer washer 16/26/0.5 Pedal axle | Tomos

Ø inside: 16 mm · Nominal diameter: 16 mm · Ø outside: 26 mm · Thickness: 0.5 mm · Manufacturer: Tomos · Material: Steel · Surface: blank / oiled · Tomos spare part no.: 200175

Spacer washer 16/26/1 pedal axle galvanized | Tomos

Nominal diameter: 16 mm · Thickness: 1 mm · Manufacturer: Tomos · Material: Steel · Surface: blue galvanized · Ø outside: 26 mm · Ø inside: 16 mm · Tomos spare part no.: 209224

NTN 6203 C3 ball bearing 17/40/12 crankshaft | Tomos

Bearing type: Deep groove ball bearing · Ø inside: 17 mm · Stock number: 6203 · Ø outside: 40 mm · Width: 12 mm · Manufacturer: NTN · Bearing clearance: C3 · Tomos spare part no.: 035070

Seeger ring 20 mm freewheel Tomos

Fuse type: Outside · Nominal diameter: 20 mm · Manufacturer: Tomos · Material: Spring steel · Tomos spare part no.: 032077
