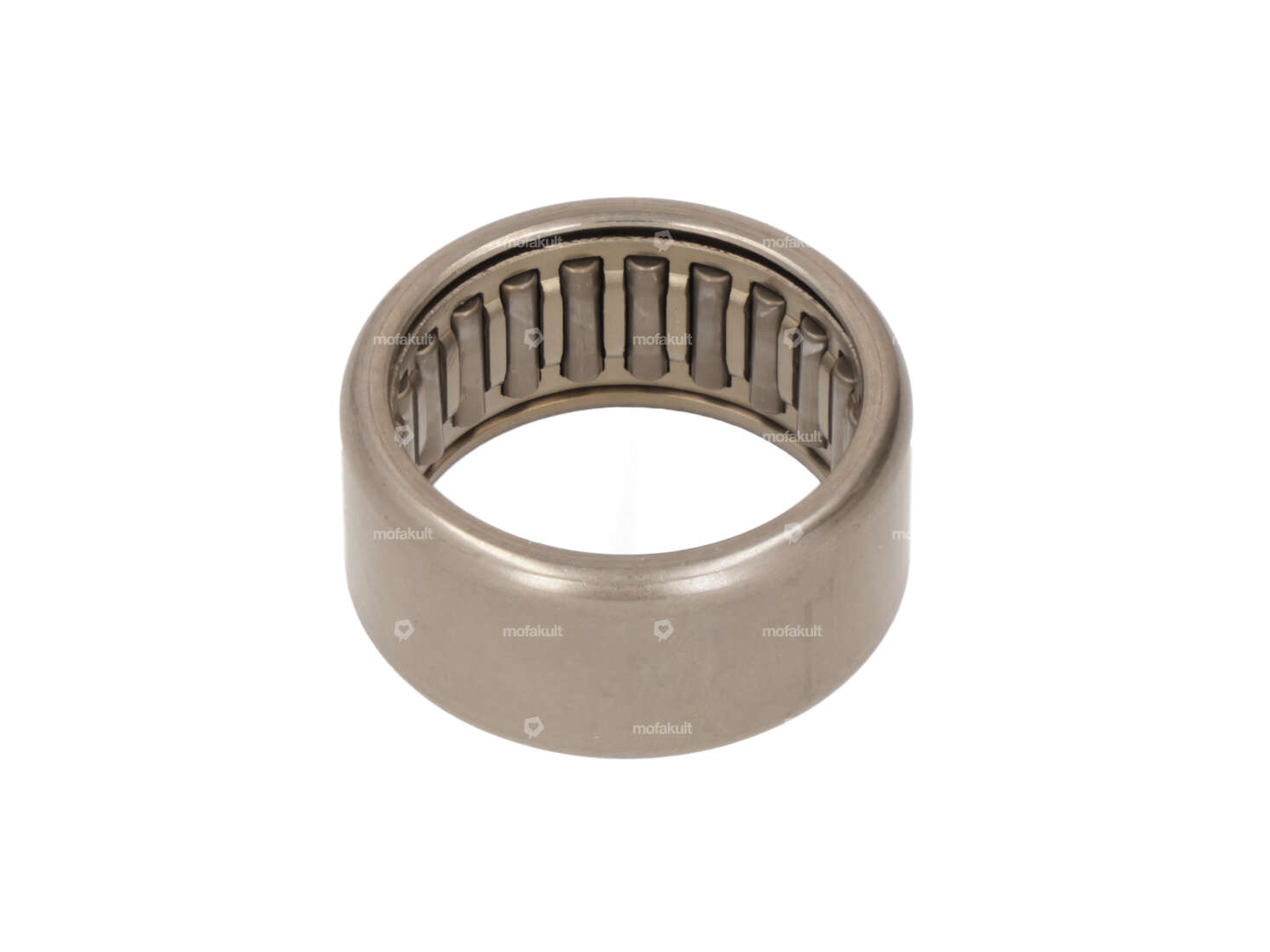

HK2012 needle bearing sleeve for the output shaft in mono and variomatic transmissions of all Piaggio Ciao, Si, Bravo and Boxer mopeds / mopeds.
The needle roller and cage assembly, which is open on the back, is installed in the lower housing section.
Other needle bearing bushes can be found in the accessories section.
Quality product from the world's leading ball bearing manufacturer SKF.
Original Piaggio spare part number: 131509
The set includes the following fixed parts:
Details
| Bearing type | Needle sleeve |
| Bearing cage | Sheet steel cage |
| Stock number | HK2012 |
| Manufacturer | SKF |
| Width | 12 mm |
| Ø outside | 26 mm |
| Ø inside | 20 mm |
| Dimension needle bearing | 20/26 x 12 |
| Piaggio spare part no. | 131509 |
Suitable for the following models
| Piaggio | Ciao - Ciao, Ciao, Ciao, Ciao Si Bravo/Superbravo Boxer Grillo |
