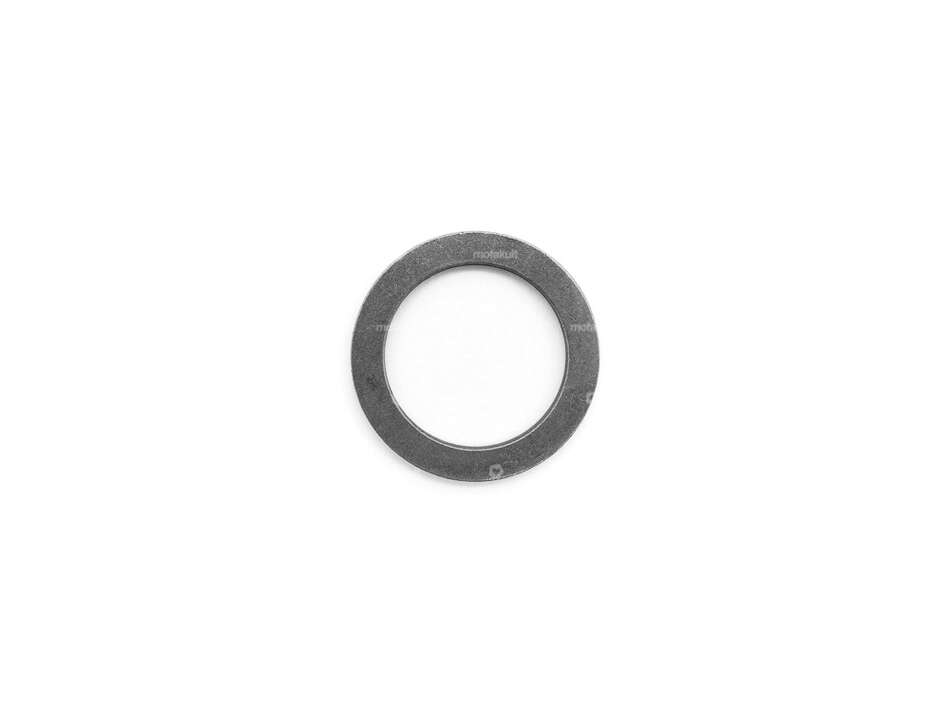

Washer for main shaft (pinion shaft) and kick starter fits the following Sachs engines:
- 503 ABL / AB / 2AL / 2BL / ADV
- 504 (manual / automatic)
- 50/2 ML / 50/3 / 50/4
Ø inner: 13.1 mm
Ø outer: 19 mm
Thickness: 0.1 mm
Spacers of different thicknesses were installed under the following original Sachs spare part numbers: A1533 / A1534 / A1535 / A1536 / A1537 / A1538 A1539 / A1540
Details
| Material | Steel |
| Surface | blank / oiled |
| Nominal diameter | 13 mm |
| Thickness | 0.1 mm |
| Manufacturer | Sachs |
| Ø outside | 19 mm |
| Ø inside | 13 mm |
Suitable for the following models
| Sachs | 50 (Fahrtwind, 1.25 / 1.5 PS, DE) 502 (Saxonette) - AL 50/2 - L CH (0.8 PS) 50/3 50/4 - MLFB (2.6 PS), LKH (4.5 PS) |
