Catalog with all exploded views of the Sachs three-speed 50/3 engines.

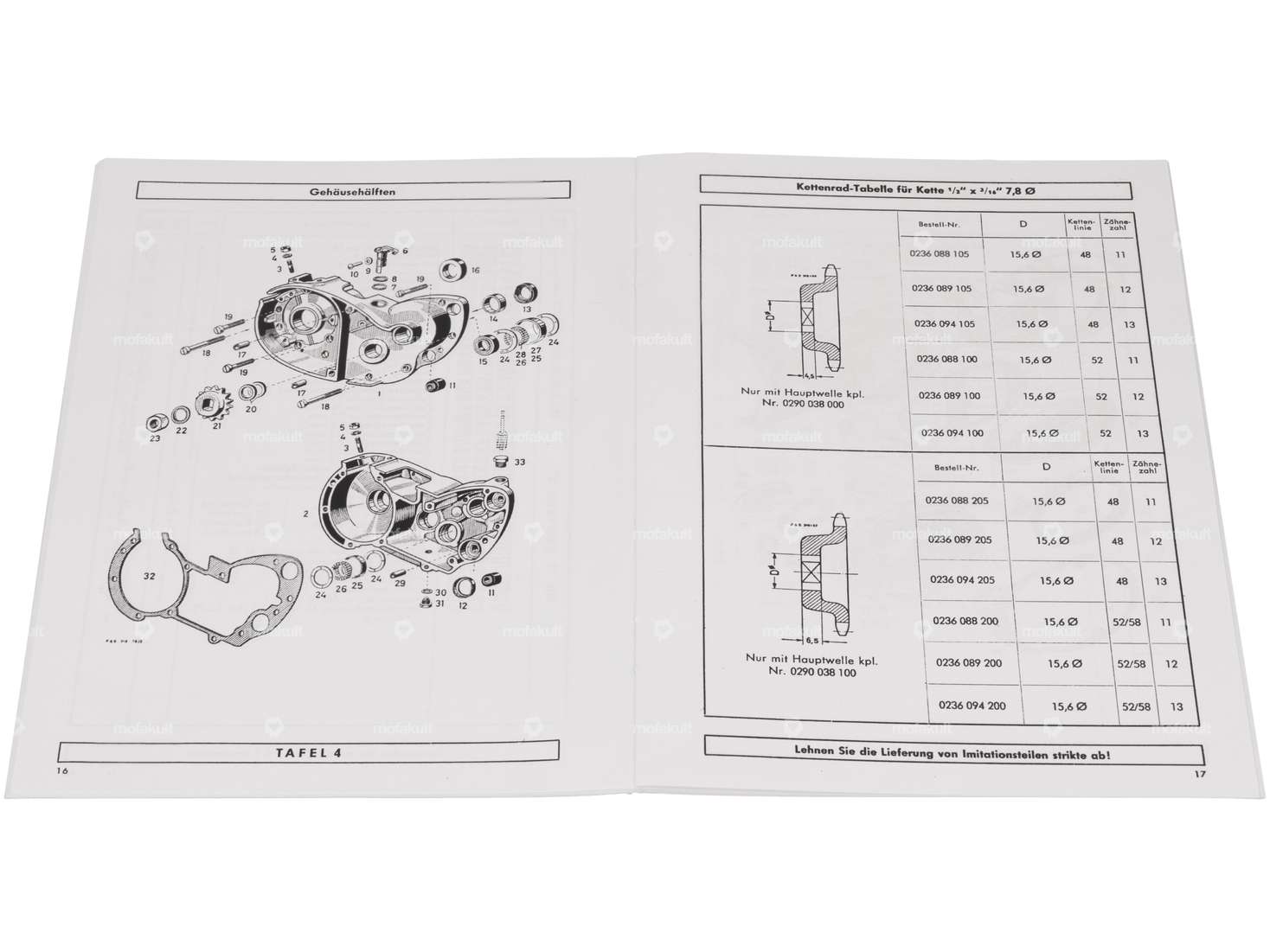

The complete engine from cylinder to carburetor is recorded in helpful exploded views. Each individual component is provided with part number, spare part number, weight and installation location.

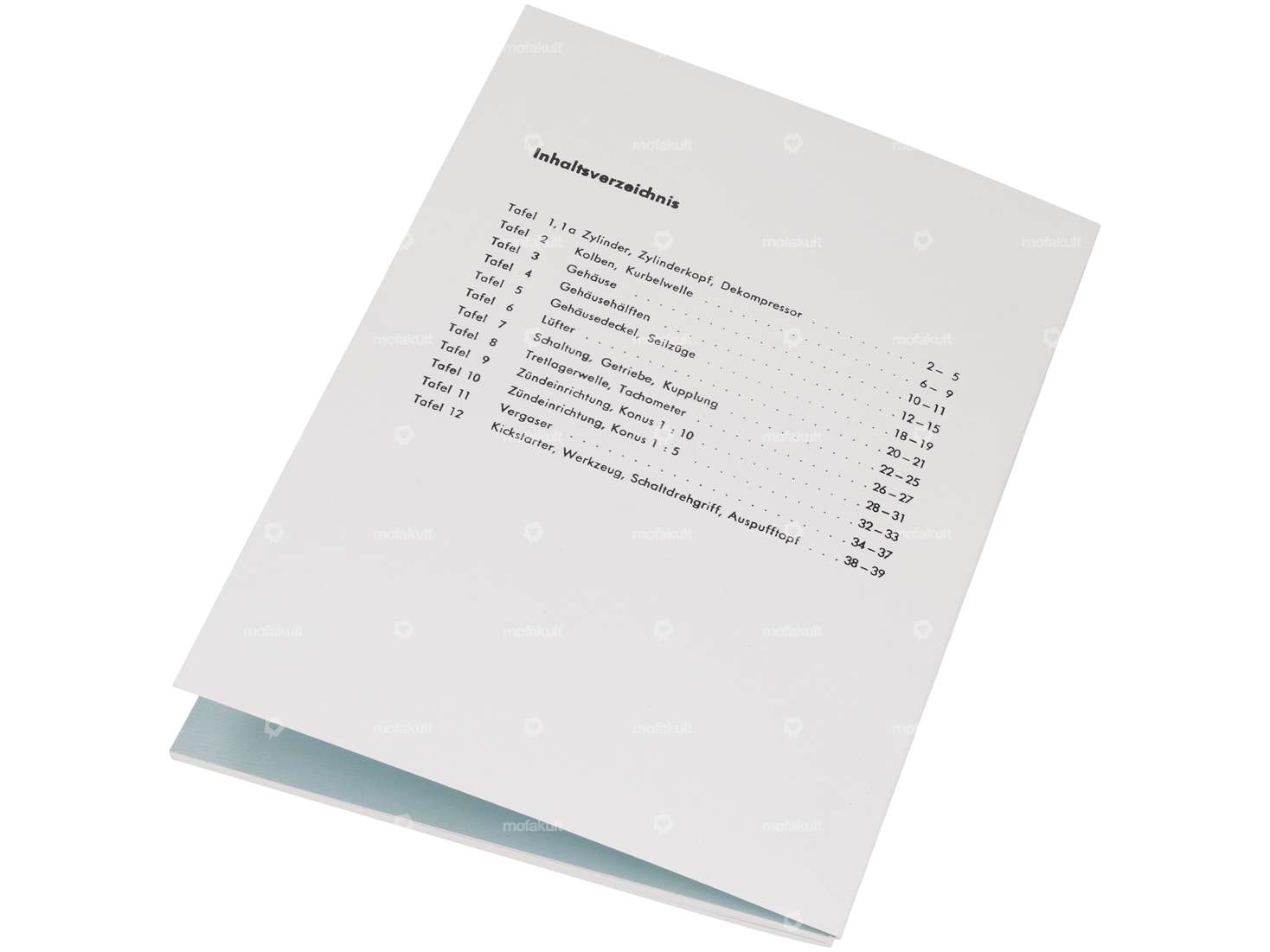

A helpful catalog with 40 interesting pages.
List number: 316.6/7
Details
| Material | Paper |
| DIN format | A5 |
| Number of pages | 40 pcs |
Suitable for the following models
| Sachs | 50/3 |
