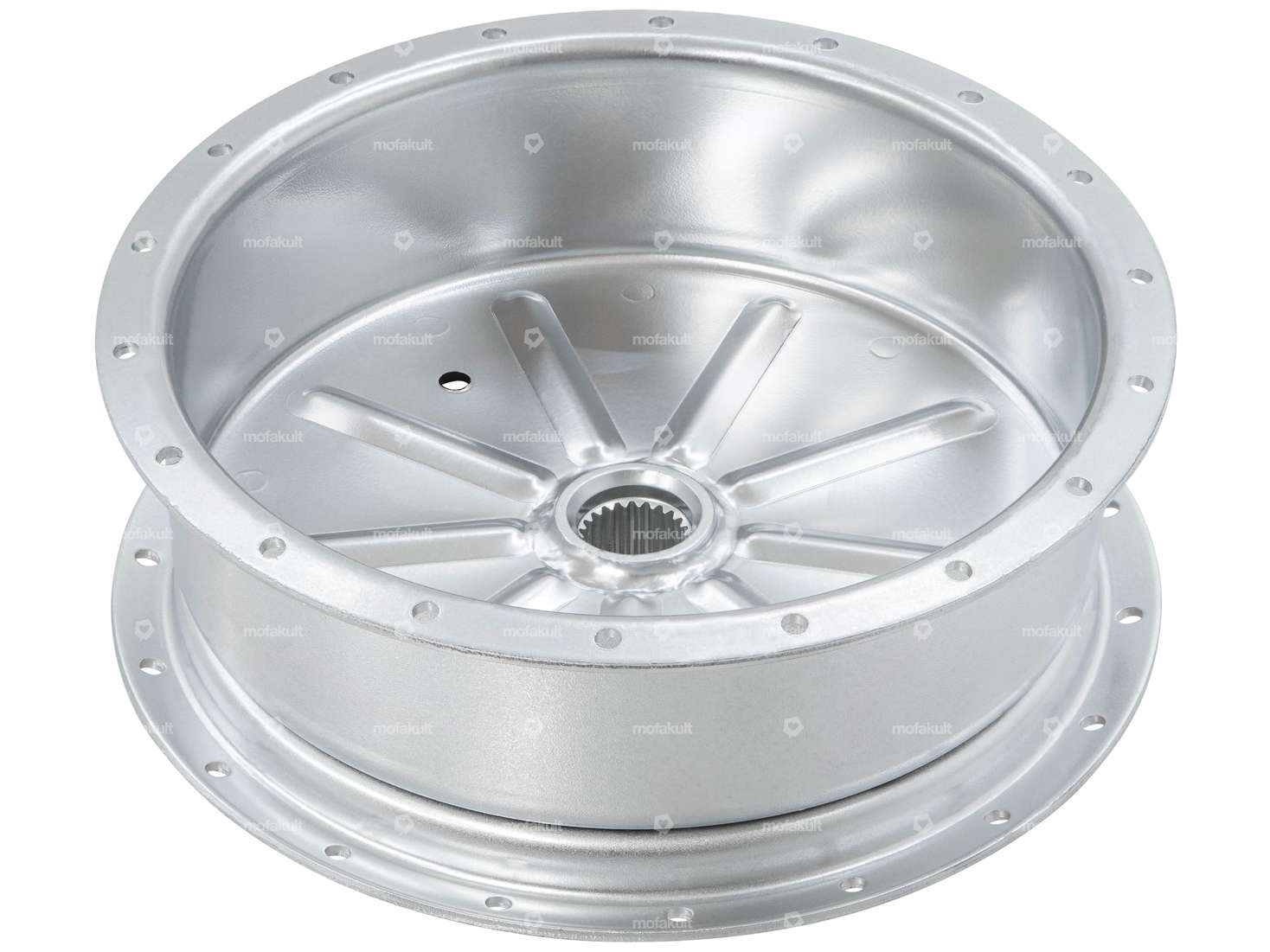

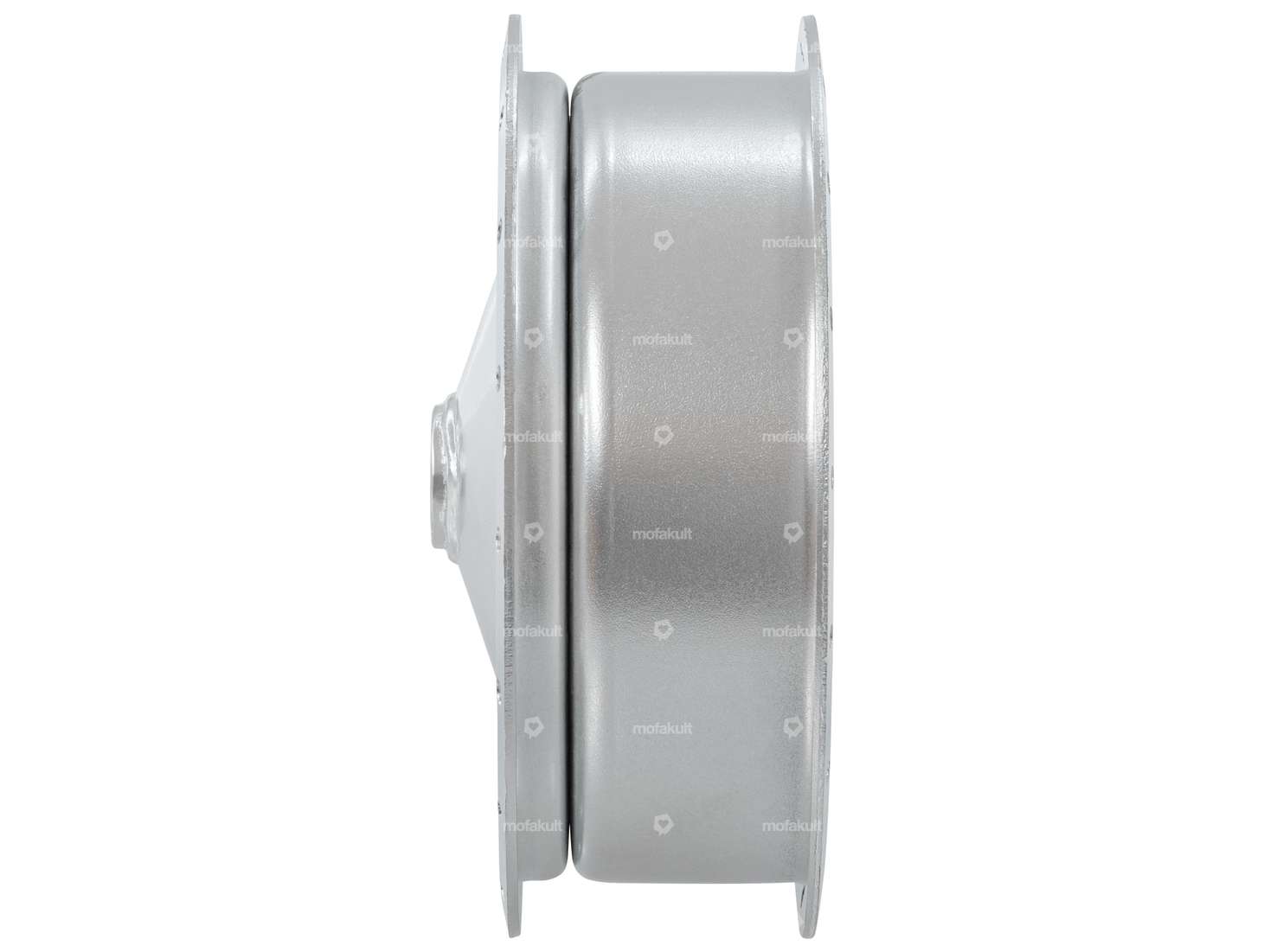

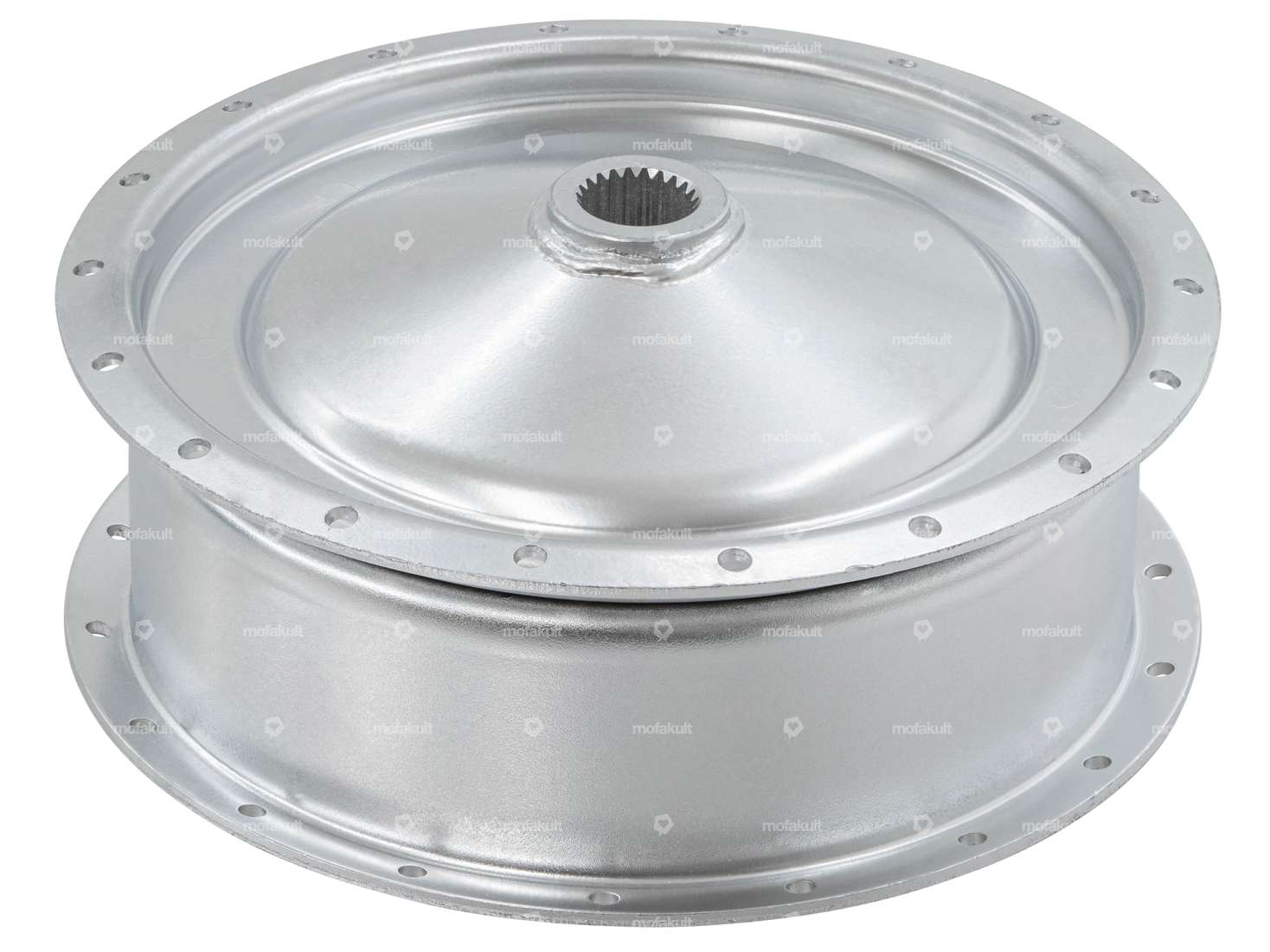

Wheel hub for old Piaggio Ciao, Bravo and Boxer mopeds / mopeds with spoke rims.
The gear hub is painted silver like ex works, albeit in a slightly lighter color.
Ø brake drum: 135 mm
Ø outer: 160 mm
Ø toothing: 17 mm
Number of spoke holes per side: 18
Ø nipple holes: 3.8 mm
Accessories such as spokes or a rim ring can be found in the accessories section.
Note: The hub is not suitable for the first gearbox generation with keyway.
Original Piaggio spare part number: 132900
Details
| Material | Steel |
| Surface | varnished |
| Color | silver |
| Wheel size [inch] | 16 ", 17 " |
| Ø inside | 135 mm |
| Ø outside | 160 mm |
| Width | 55 mm |
| Number of spoke holes | 36 pcs |
| Ø spoke hole | 3.8 mm |
| Piaggio spare part no. | 132900 |
Suitable for the following models
| Piaggio | Ciao - Ciao, Ciao Bravo/Superbravo Boxer |
Accessories & related products
Rim ring 1.60 x 16" (60 mm) chrome
Ø Nipple hole: 6.5 mm · Manufacturer: Made in Italy · Material: Steel · Surface: chrome-plated · Wheel size [inch]: 16 " · Nominal diameter: 403 mm · Rim well depth: 8.2 mm · Overall width outside: 60 mm · Jaw width: 41.6 mm · Jaw width [inch]: 1.6 " · Number of spoke holes: 36 pcs · Color: Chrome
85,40 EUR

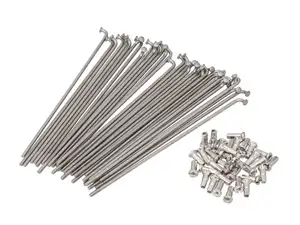

GPO spoke set incl. nipple (2.9 x 157 mm) rear wheel Inox | Piaggio Ciao, Bravo, Boxer
Nipple length: 14.3 mm · Manufacturer: GPO · Material: Chrome steel (stainless steel) · Surface: raw · Quantity: 36 pcs · Length from hook: 157 mm · Nominal diameter (thread): 3.15 mm · Ø spoke head: 5.3 mm · Ø spoke: 2.9 mm · Ø nipple head: 7.75 mm · Ø Nipple neck: 5 mm · Hook length: 9.5 mm · Thread length: 11 mm · Hook angle: 90 ° · Color: silver
67,00 EUR

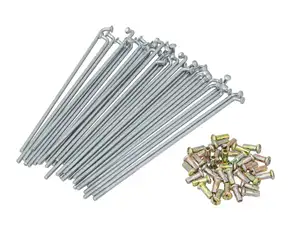

GPO spoke set incl. nipple (2.9 x 157 mm) rear wheel steel galvanized | Piaggio Ciao, Bravo, Boxer
