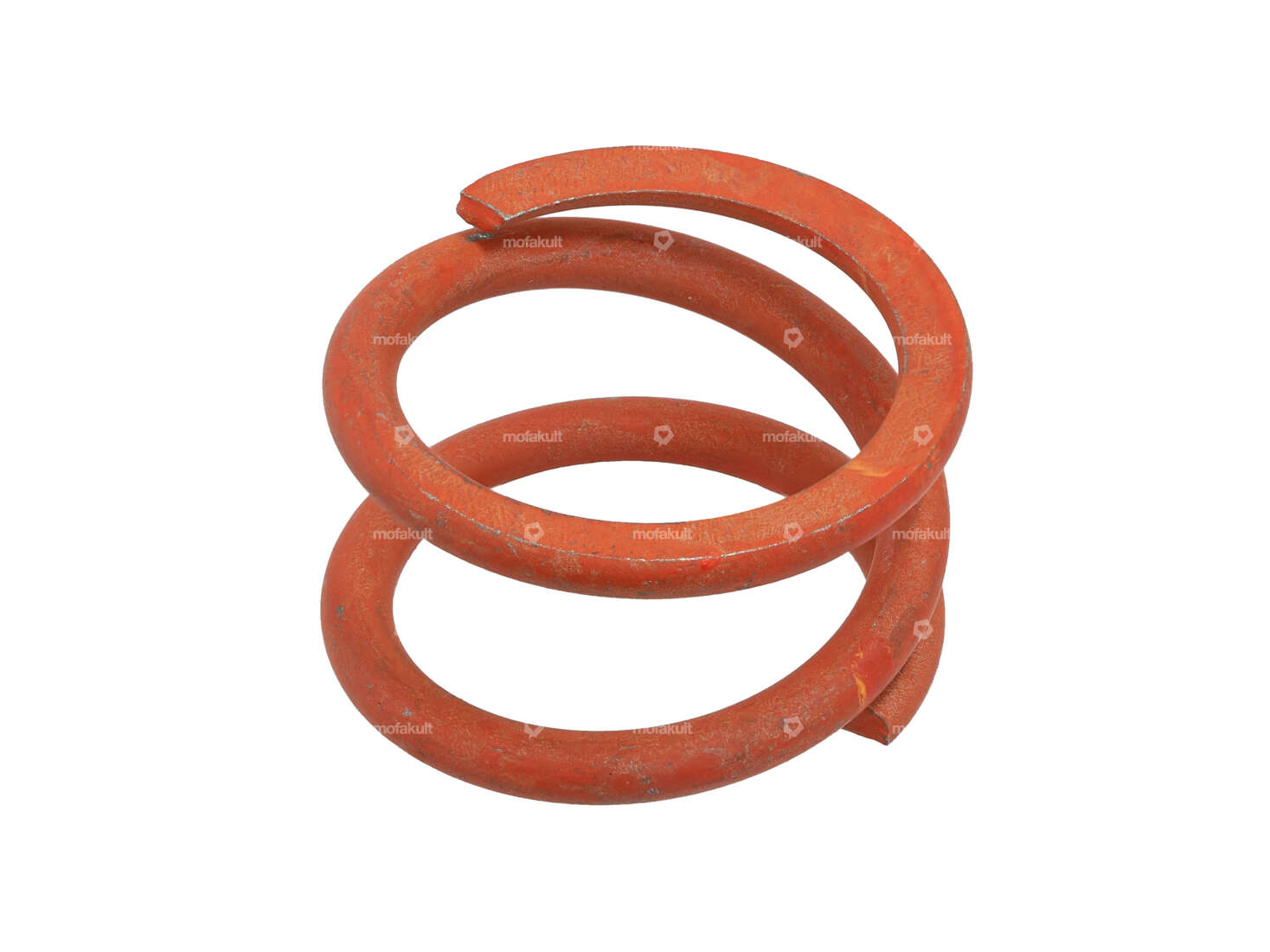

Reinforced clutch pressure spring for the manual Z50 engine of Puch X30 Sport NS, NL and Velux mopeds / mopeds with 2-plate clutch.
Revised version, the spring fits perfectly and the paint no longer chips off.
The overall force is 40% stronger than the original spring (level 2, red), used in lightly tuned engines.
The spring wire is made of valve spring steel, which makes it resistant to the highest loads!
Height: 22.9 mm
Ø outer: 39 mm
Color marking: Red coated
Material: Valve spring steel
&Revised version of the previously offered compression spring.
Exceptional product for the highest demands of the quality brand swiing®.
Details
| Spring design | Pressure spring |
| Ø inside | 30 mm |
| Ø wire | 4.5 mm |
| Manufacturer | swiing® ingenious parts |
| Area of application | Tuning |
| Material | Spring steel |
| Color | red |
| Surface | coated |
| Total length | 23.5 mm |
| Ø outside | 39 mm |
| Number of components | 1 pcs |
Suitable for the following models
| Puch | Z50 (X30 Sport) Z50 (X30 Velux) 2-Gang MS, MV, MV50 3-Gang VSD, DS, VZ, MC |
