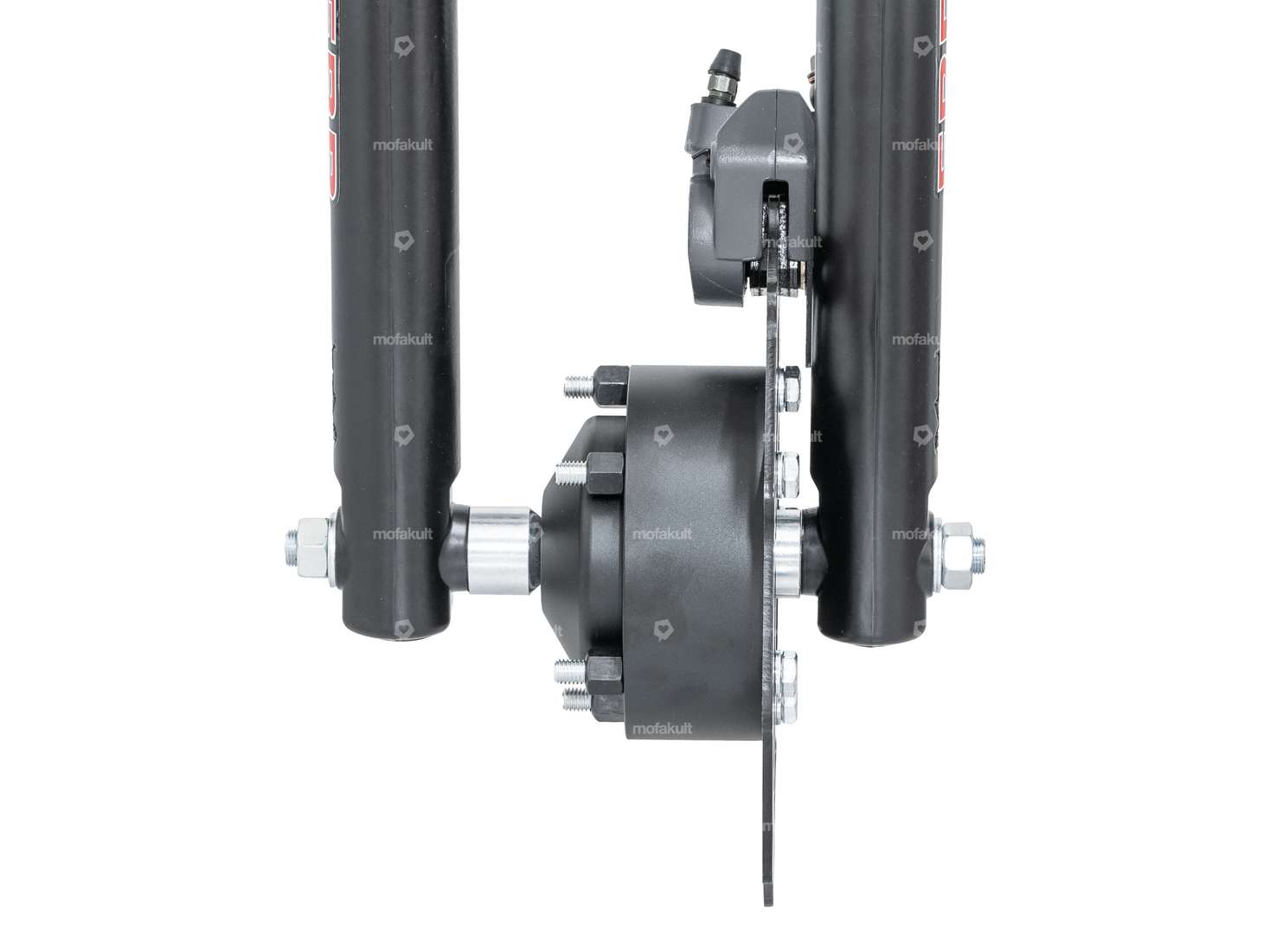

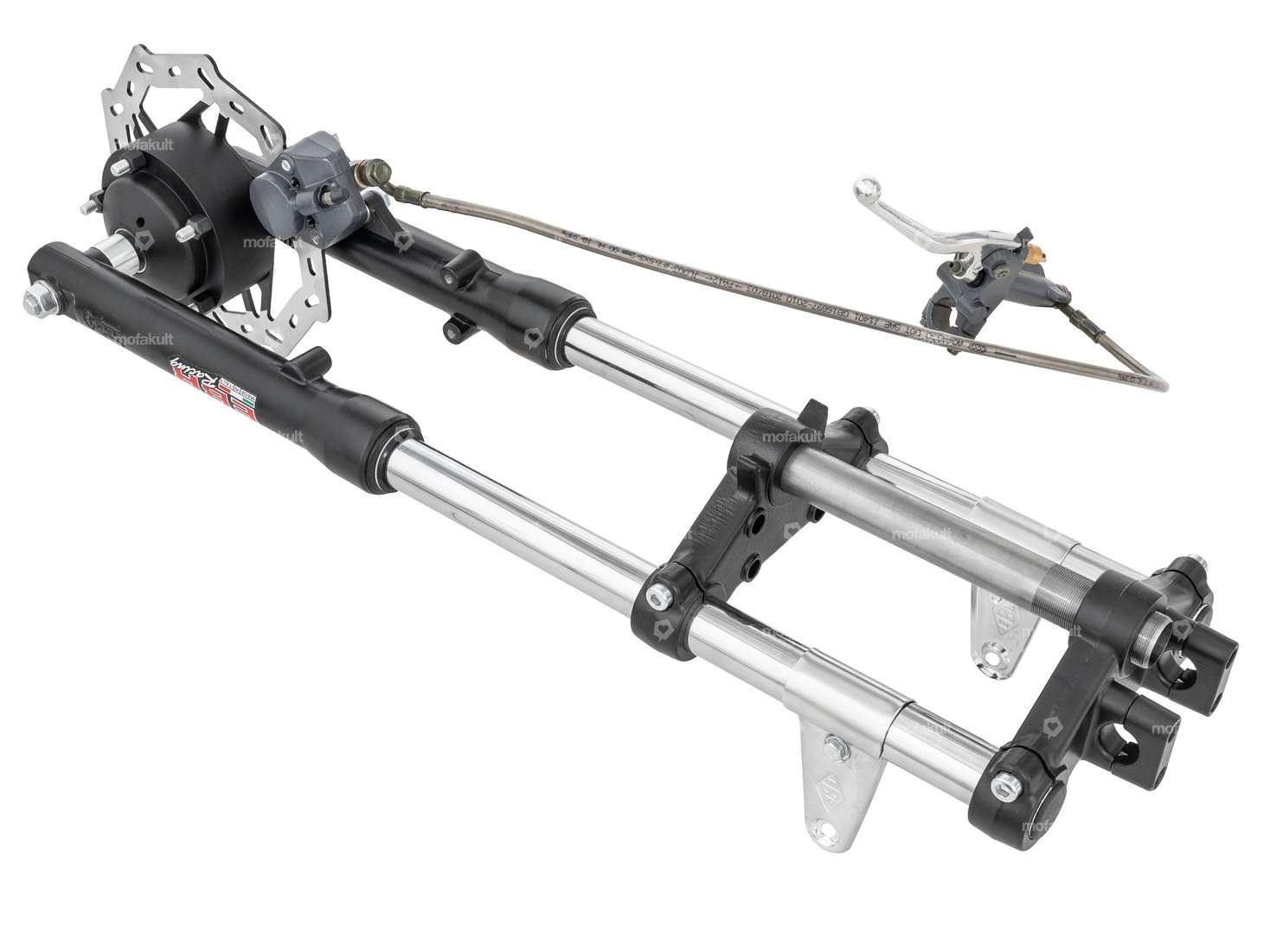

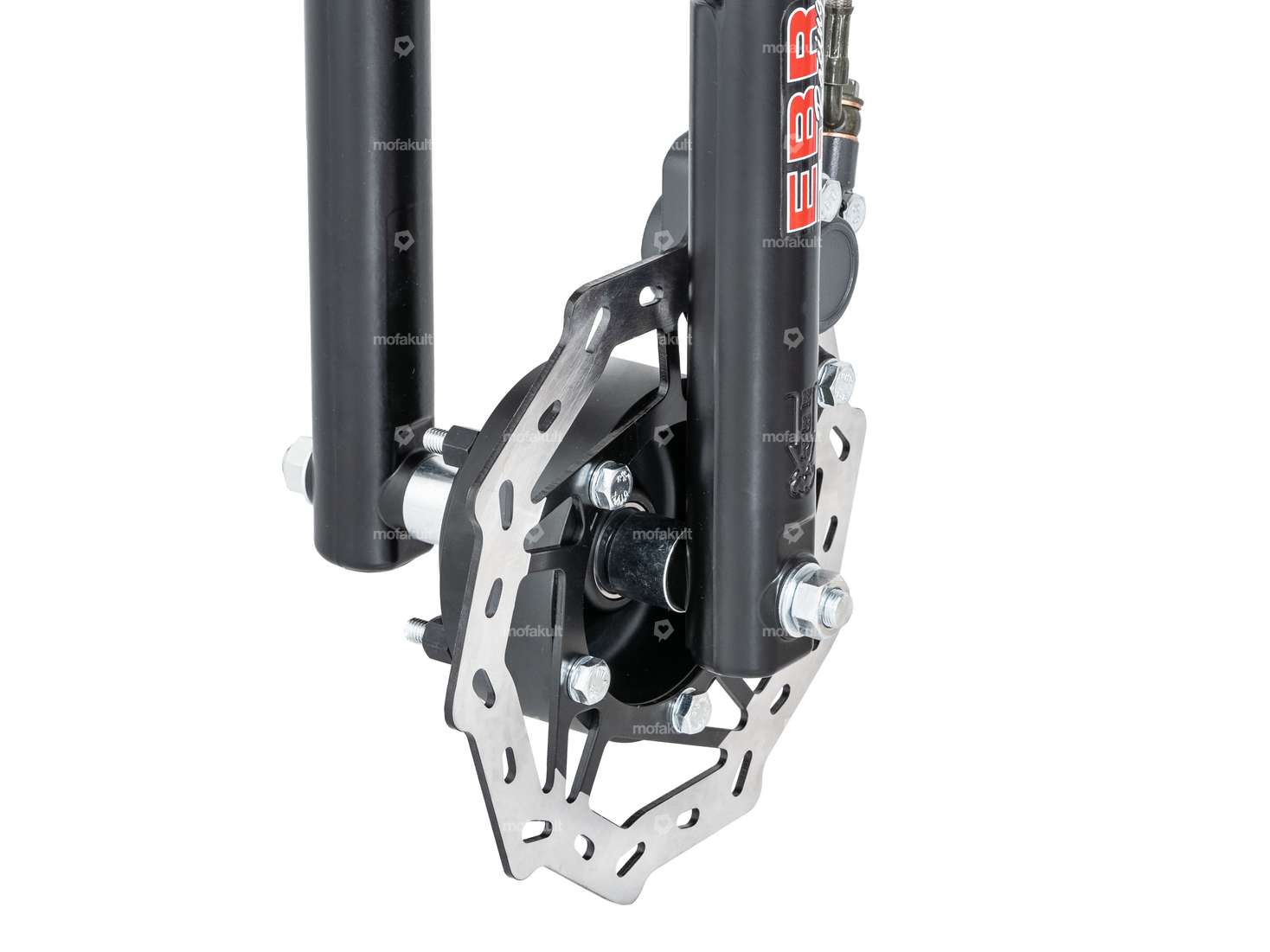

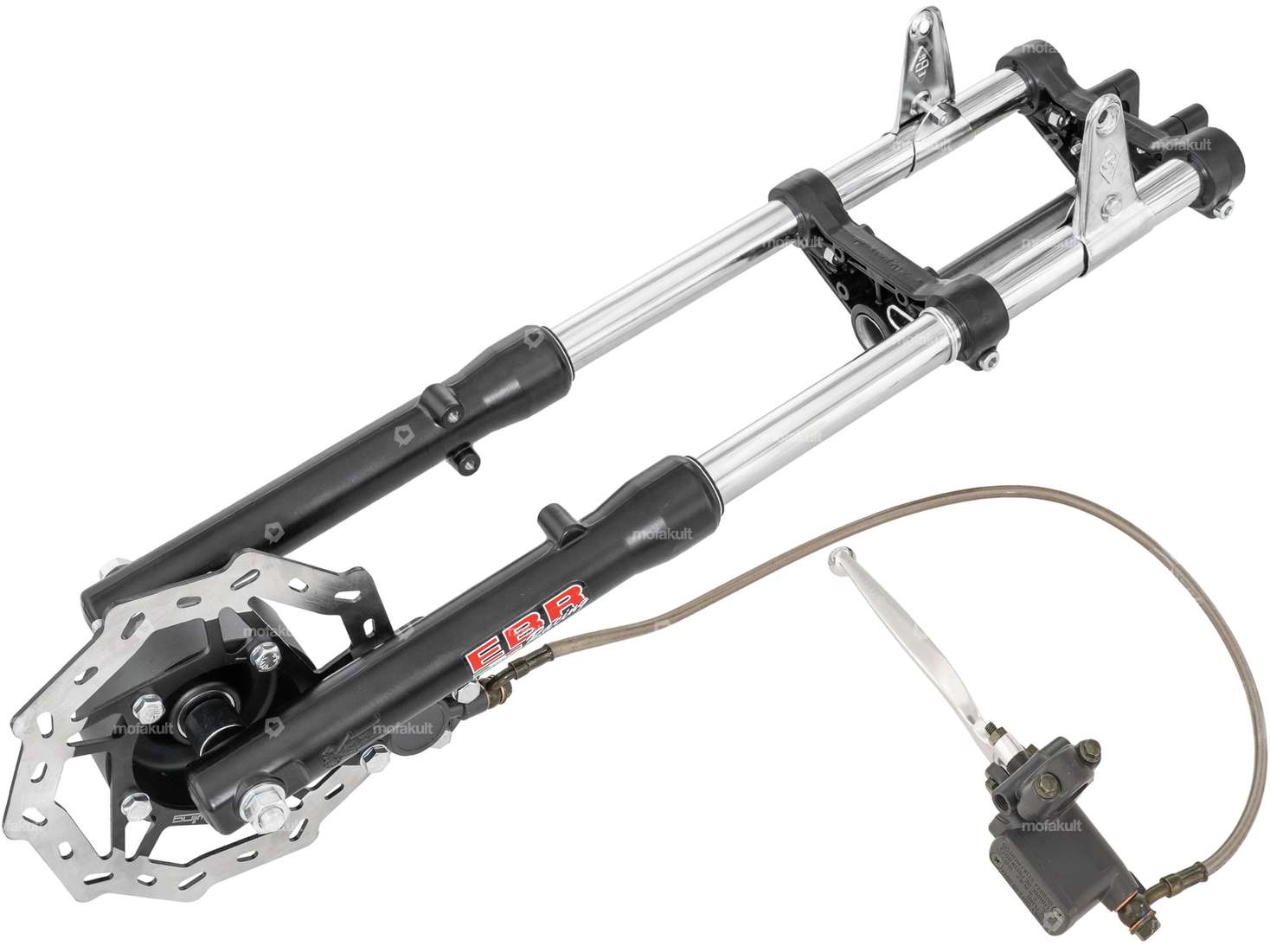

Complete disc brake system for your Puch moped / moped, which can be fitted without any modifications.
All add-on parts are of the highest quality and fit perfectly.
The components are designed for the 5-star cast rim for Puch mopeds. You can find the corresponding rim in the accessories section.

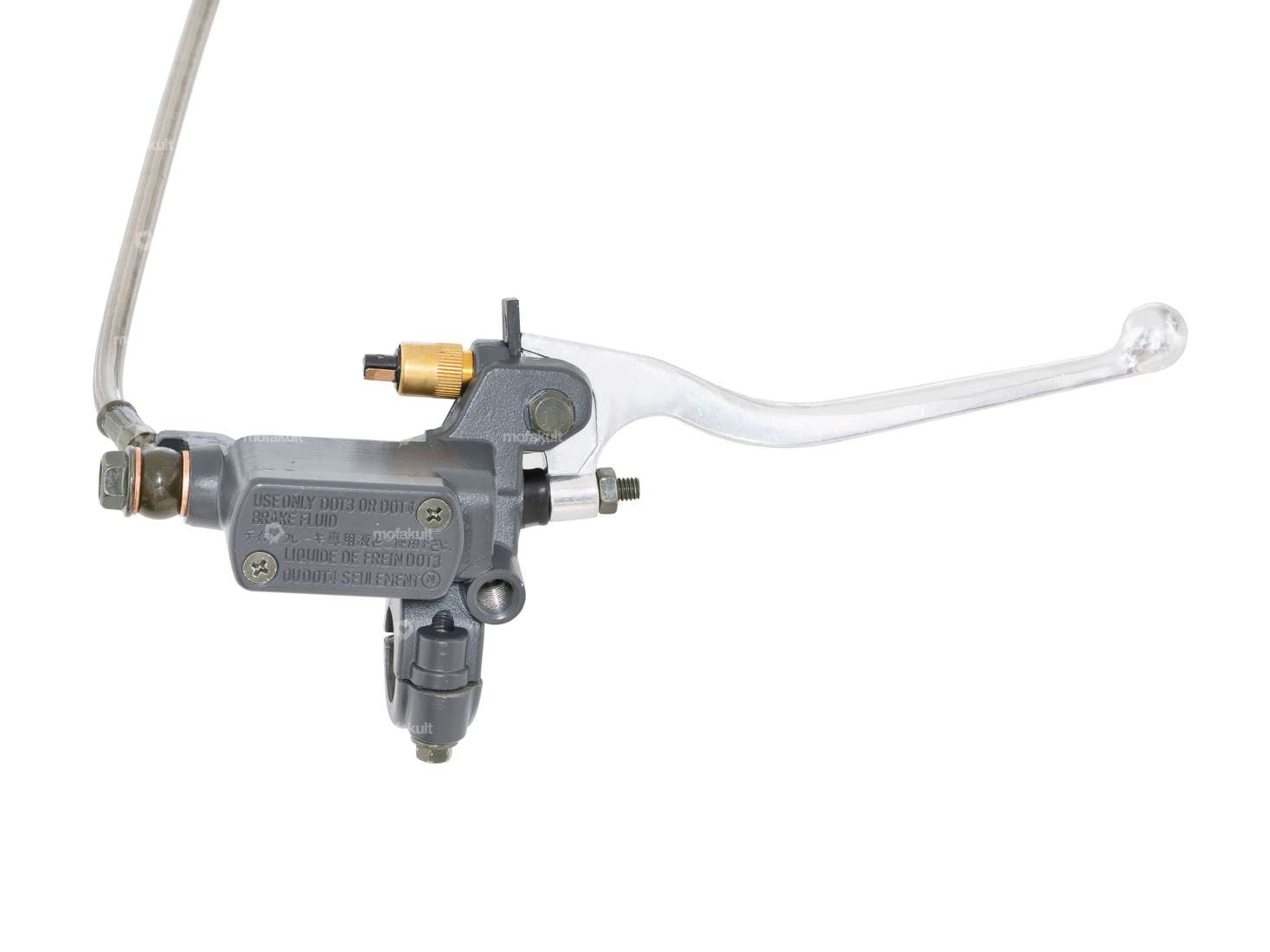

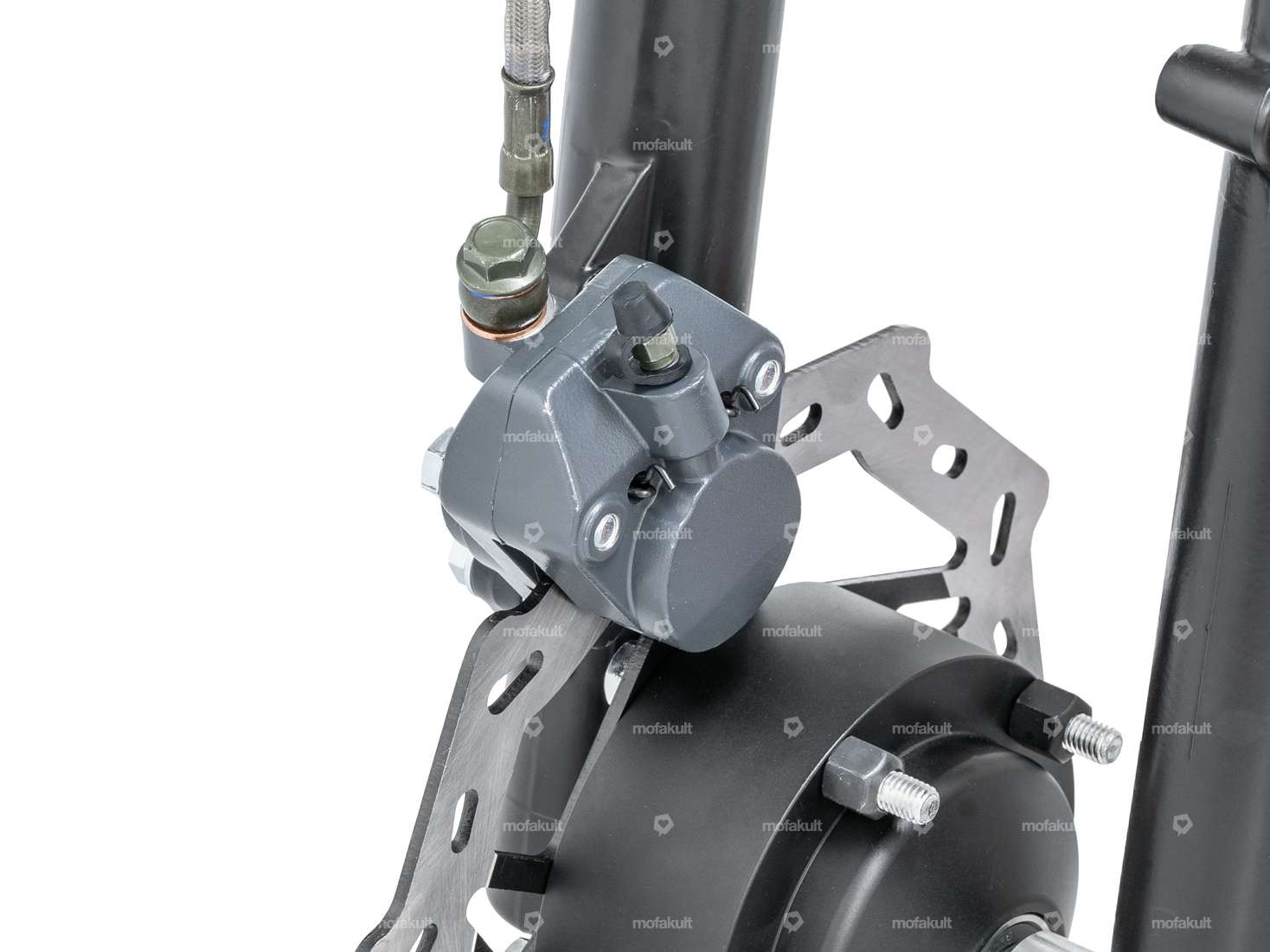

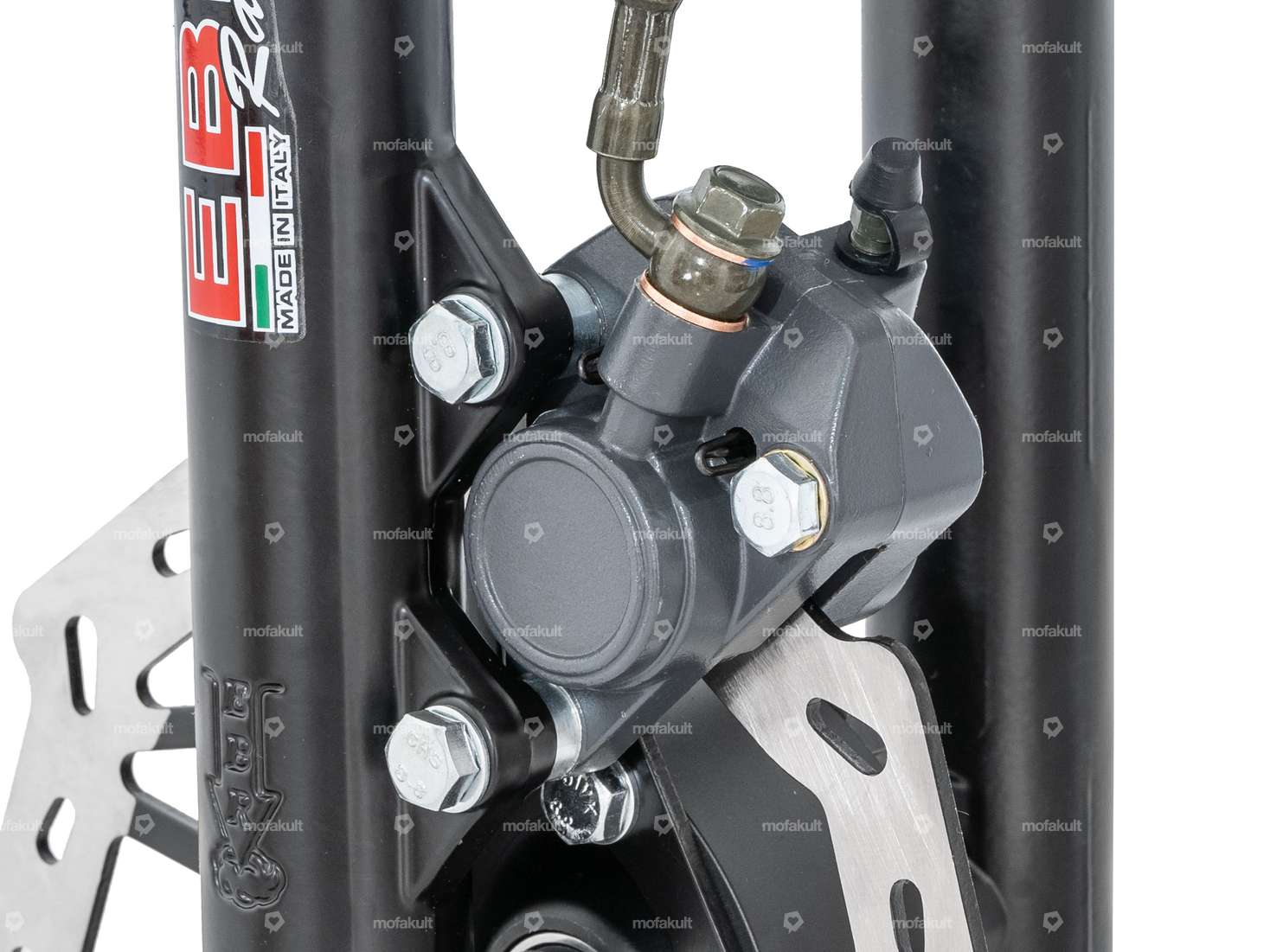

The brake calliper including brake lever are already provided with brake fluid and therefore only need to be screwed on. The steel flex brake cable is 90 cm long. Take this into account when choosing the handlebars.

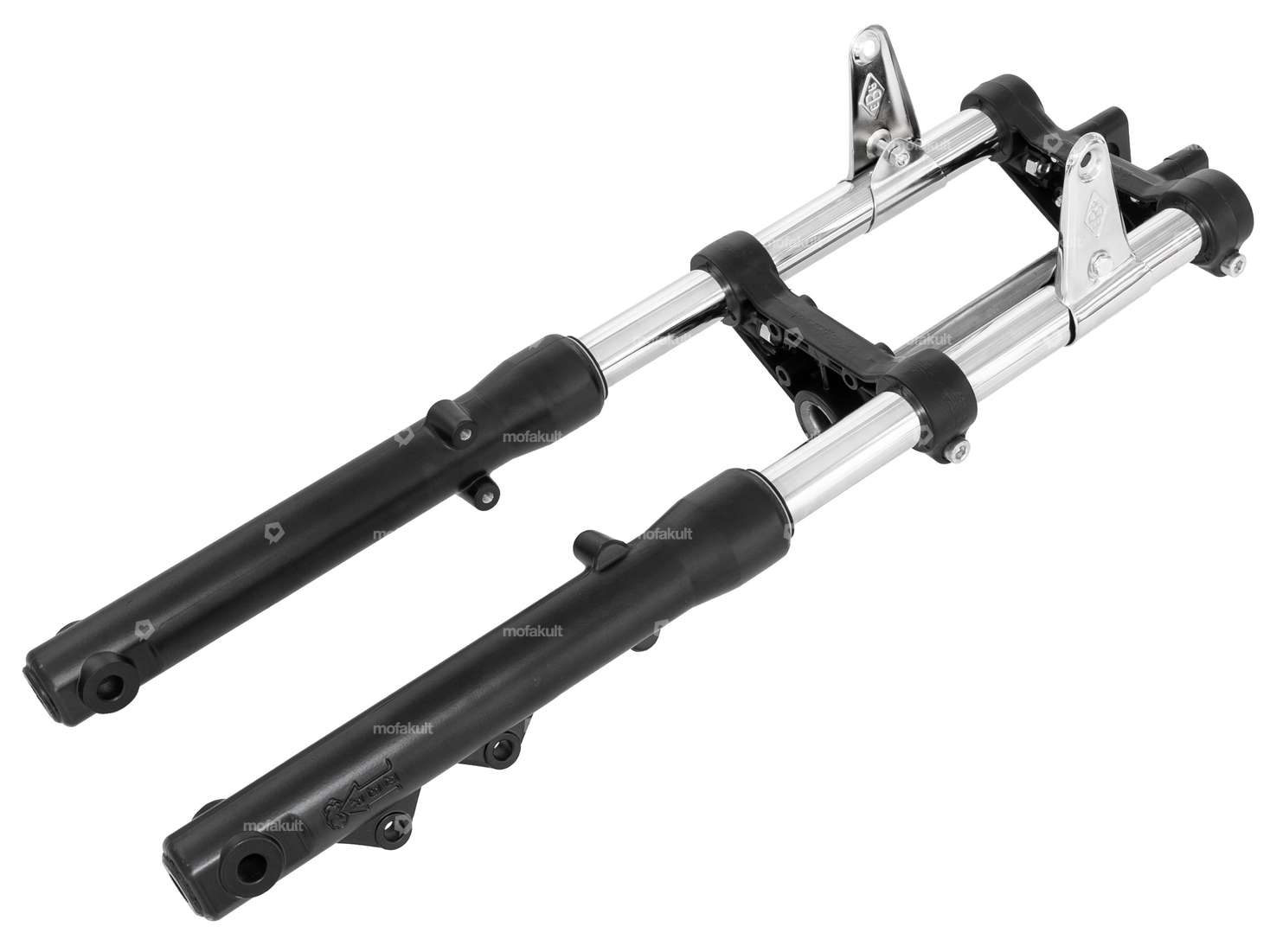

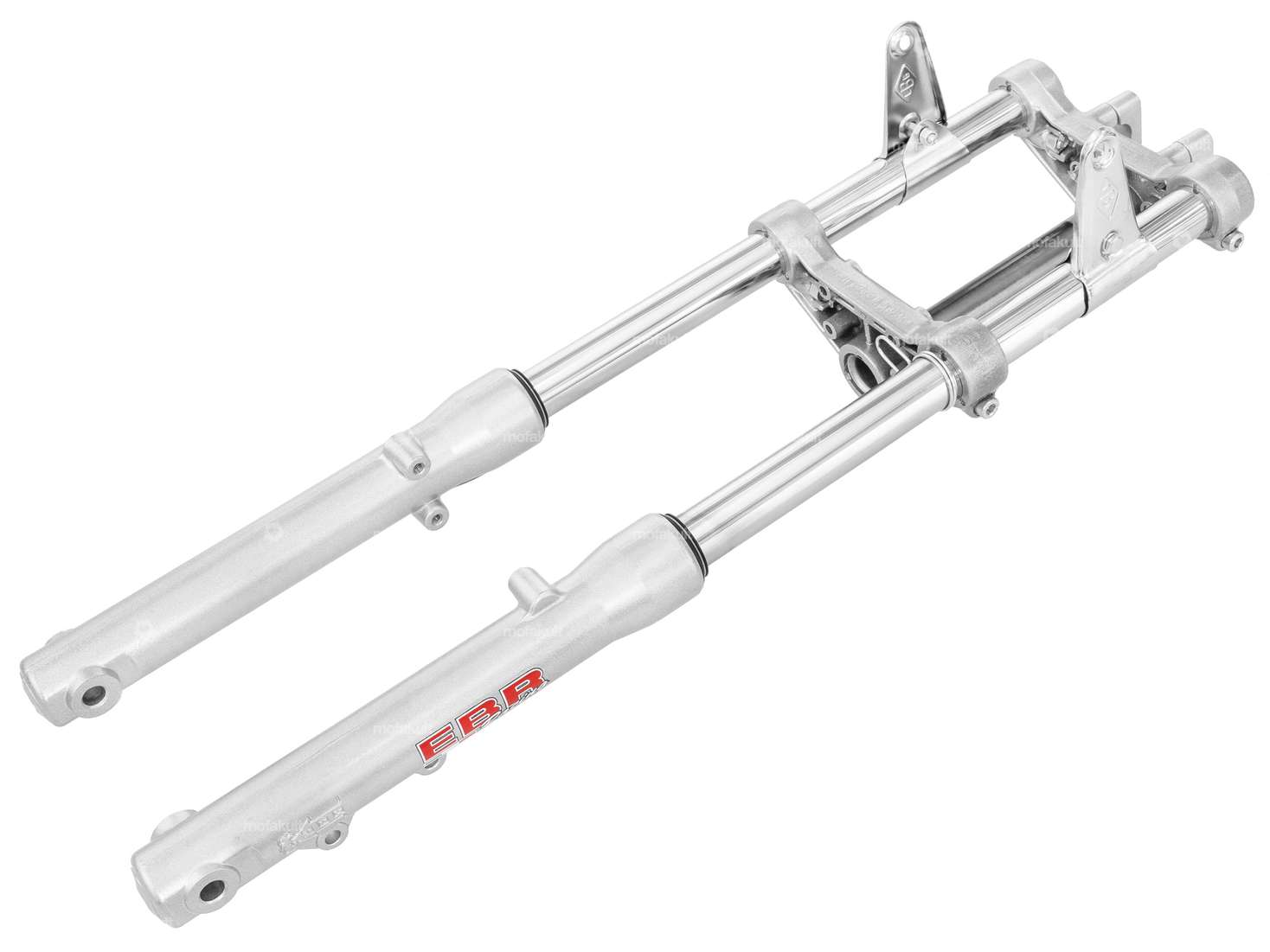

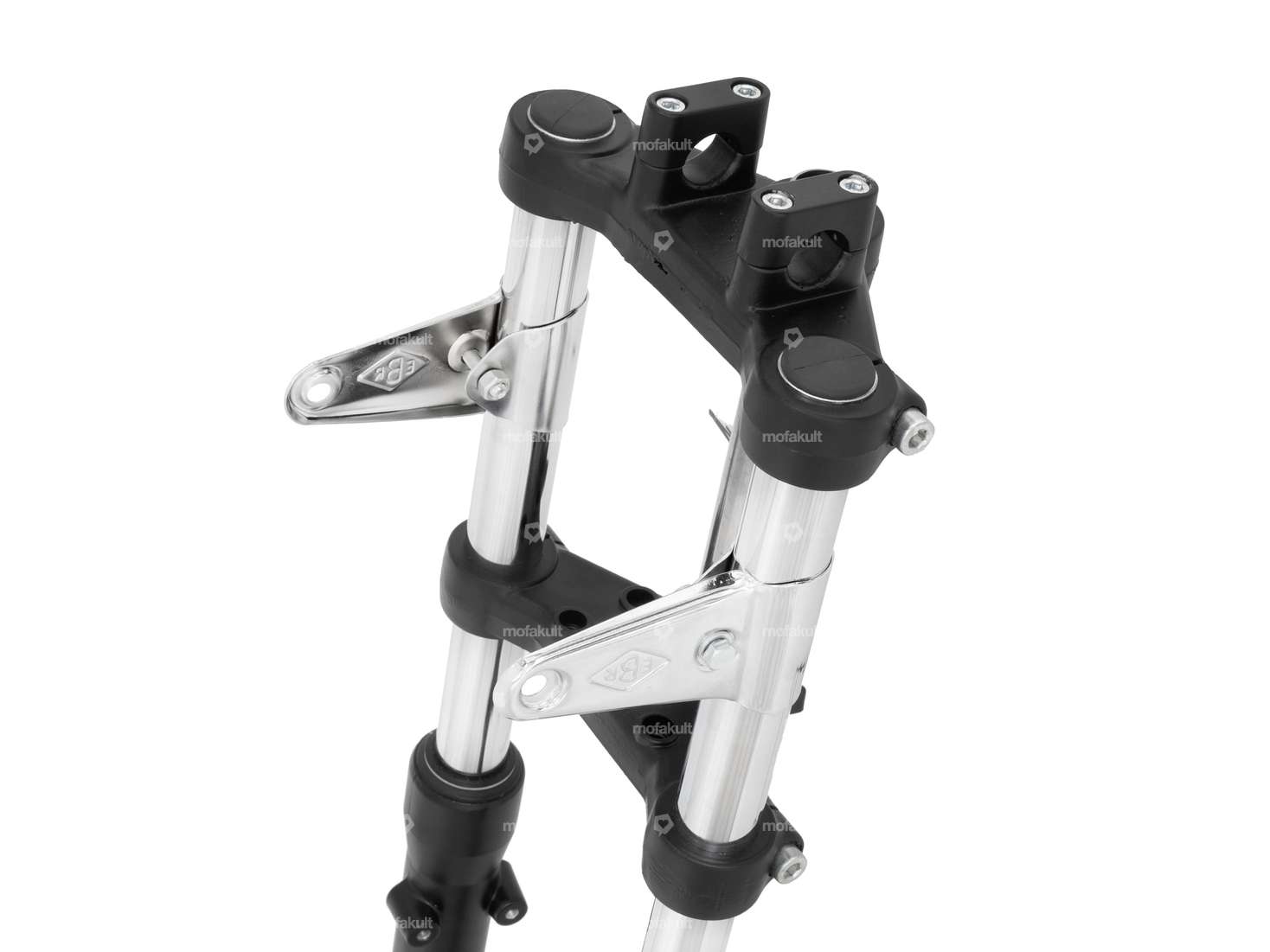

For a more detailed view, the different forks are shown in pictures 9 and 10.
The complete set is supplied in individual parts. All screw connections must be secured with Loctite.
The two spacers are mounted in the direction of travel as follows: left: 26.25 mm long / right: 23.5 mm long.
Please select the desired EBR Harry fork (black / silver) and the remaining parts in the selection field.
When you buy this complete set, you will receive a substantial percentage off the retail price of the individual parts.
The set includes the following fixed parts:
Material: Cast aluminum · Surface: varnished · Color: gray · Cable length: 900 mm · Brake lever length (lever length): 162 mm · Mounting type: Nuts & bolts · Number of fixing points: 4 pcs · Ø Handlebars: 22 mm · Hole spacing: 60 mm, 32 mm · Thread type: M8x1.25 (standard thread)
Manufacturer: swiing® ingenious parts
Manufacturer: swiing® revival parts · Material: Steel · Surface: blue galvanized · Ø shaft: 11.95 mm · Thread type: MF12x1 (fine pitch thread) · Thread length: 25 mm · Total length: 220 mm
Manufacturer: swiing® ingenious parts · Drive: External hexagon · Screw head: Hexagon · Number of components: 5 pcs · Material: Steel · Surface: blue galvanized
Details
Manufacturer | swiing® ingenious parts, EWC |
