High-quality disc brake system for your Puch moped / moped, which can be fitted without any modifications.
All add-on parts are of the highest quality and accuracy of fit. The components are designed for the 5-star cast rim for Puch mopeds. The corresponding rim and matching EBR Harry forks can be found in the accessories section.
The brake calliper and brake lever are already fitted with brake fluid and therefore only need to be bolted on. The steel flex brake cable is 90 cm long. Bear this in mind when selecting the handlebars. All screw connections must be secured with Loctite.
The two spacers are mounted in the direction of travel as follows: left: 26.25 mm long / right: 23.5 mm long.
When you buy this complete set, you get a big percentage off the retail price of the individual parts.

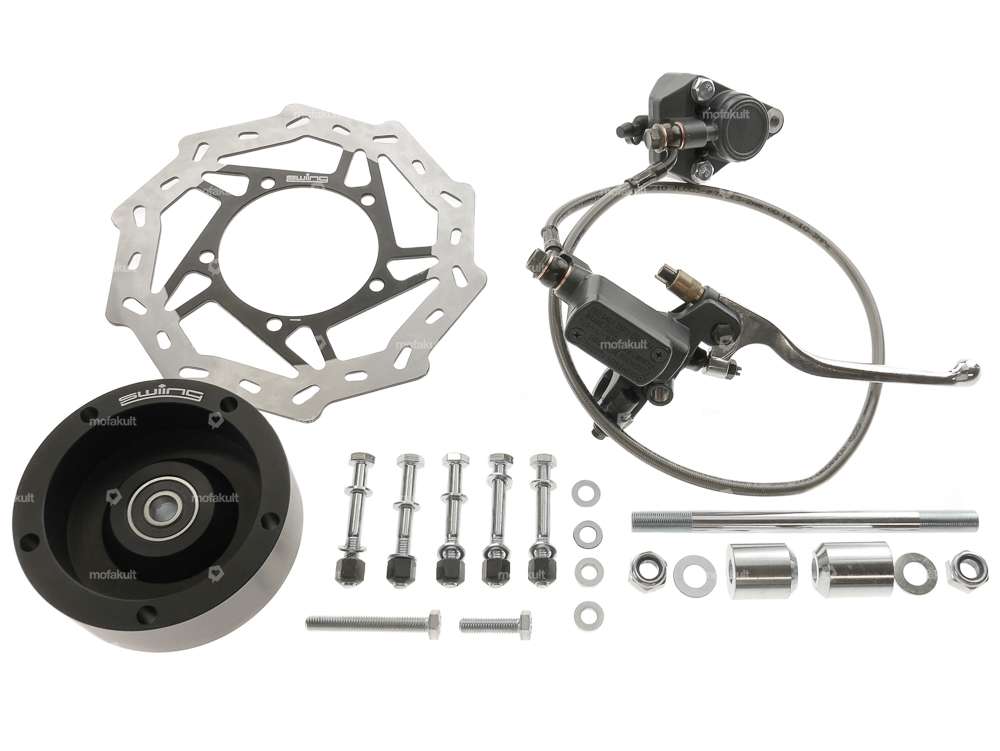

The set includes the following fixed parts:
Material: Cast aluminum · Surface: varnished · Color: gray · Cable length: 900 mm · Brake lever length (lever length): 162 mm · Mounting type: Nuts & bolts · Number of fixing points: 4 pcs · Ø Handlebars: 22 mm · Hole spacing: 60 mm, 32 mm · Thread type: M8x1.25 (standard thread)
Manufacturer: swiing® ingenious parts
Manufacturer: swiing® revival parts · Material: Steel · Surface: galvanized (blue) · Ø shaft: 11.95 mm · Thread type: MF12x1 (fine pitch thread) · Thread length: 25 mm · Total length: 220 mm
Manufacturer: swiing® ingenious parts · Drive: External hexagon · Screw head: Hexagon · Number of components: 5 pcs · Material: Steel · Surface: galvanized (blue)
Details
| Manufacturer | swiing® ingenious parts |
| Color | black |
Suitable for the following models
| Puch |
Accessories & related products
EBR telescopic fork aluminum (Harry) silver | Puch
Manufacturer: EWC · Material: Aluminum · Material: Steel · Color: Chrome · Color: silver · Thread type: MF26x1 (fine pitch thread) · Adjustable: Yes · Ø spars: 30 mm · Total length: 705 mm · Surface: chrome-plated · Surface: varnished · Spar end distance (center-center): 150 mm · Ø outer head tube: 26 mm · Ø head tube inside: 22 mm · Thread length: 57 mm · Head tube length: 200 mm · Fork bridge - center wheel axle: 458 mm
267,10 EUR
Loctite 243 medium-strength threadlocker 10 ml
Temperature resistance (min.): -75 - 200 °C · Manufacturer: Loctite · Material to be used: Aluminum · Material to be used: Metal · Material to be used: Steel · Color: blue · Hazard warning: Causes serious eye irritation · Hazard warning: Causes skin irritation · Hazard warning: Harmful to aquatic organisms (with long-term effects) · Hazard warning: May cause allergic skin reactions · Hazard warning: May irritate the respiratory tract · Contents [ml]: 10 ml · Signal word: Attention · Hazard pictogram: GHS07 - Caution dangerous · Hazard pictogram: GHS09 - Hazardous to the aquatic environment · Adhesion: medium strength · Gap dimension (max.): 0.01 mm · Type of application: 1K · Alignment time: 600 sec · Breakaway torque (according to material): 3 N/m · Breakaway torque (according to material): 12 N/m · Breakaway torque (according to material): 26 N/m · Area of application: Chemistry
24,50 EUR
2.450,00 EUR/l
Racing handlebar fork plate 8 cm / wide aluminum silver
Material: Aluminum · Surface: anodized · Width: 810 mm · Color: silver · Ø outside: 22 mm · Fork plate holder length: 150 mm · Clamping diameter: 22 mm · Length handlebar ends: 215 mm · Crossbar: Yes · Mounting type: Fork plate · Height: 80 mm
49,10 EUR
EBR telescopic fork aluminum (Harry) black | Puch
Total length: 680 mm · Manufacturer: EWC · Material: Aluminum · Material: Steel · Surface: chrome-plated · Surface: varnished · Color: Chrome · Color: black · Thread type: MF26x1 (fine pitch thread) · Adjustable: Yes · Spar end distance (center-center): 150 mm · Ø outer head tube: 26 mm · Ø head tube inside: 22.3 mm · Ø spars: 30 mm · Thread length: 58 mm · Head tube length: 200 mm · Fork bridge - center wheel axle: 450 mm
267,10 EUR
Brake caliper, brake hose & brake lever for EBR forks
Material: Cast aluminum · Surface: varnished · Color: gray · Cable length: 900 mm · Brake lever length (lever length): 162 mm · Mounting type: Nuts & bolts · Number of fixing points: 4 pcs · Ø Handlebars: 22 mm · Hole spacing: 32 mm · Hole spacing: 60 mm · Thread type: M8x1.25 (standard thread)
183,20 EUR
Motorex brake fluid DOT4 250 ml
Manufacturer: Motorex · Area of application: Standard · DOT class (brake fluid): DOT 4 (230°C) · Contents [ml]: 250 ml · Hazard warning: Can harm the child in the womb · Hazard warning: Causes serious eye irritation · Signal word: Attention · Hazard pictogram: GHS07 - Caution dangerous · Hazard pictogram: GHS08 - Harmful to health
9,70 EUR
38,80 EUR/l
Brake line 0.9 - 1.9 m (selection) black 28 / 90° incl. banjo bolts
Material: Rubber · Material: Steel · Color: black · Cable length: 900 mm · Cable length: 1000 mm · Cable length: 1150 mm · Cable length: 1400 mm · Cable length: 1600 mm · Cable length: 1700 mm · Cable length: 1900 mm · Mounting type: Screws · Thread type: MF10x1.25 (fine pitch thread)
26,70 EUR
