The first disc brake system for spoke wheels that can be fitted without any adjustments!
The disc brake system can be fitted universally for various mopeds in conjunction with the corresponding EBR Harry telescopic fork.
All add-on parts are of the highest quality and accuracy of fit.

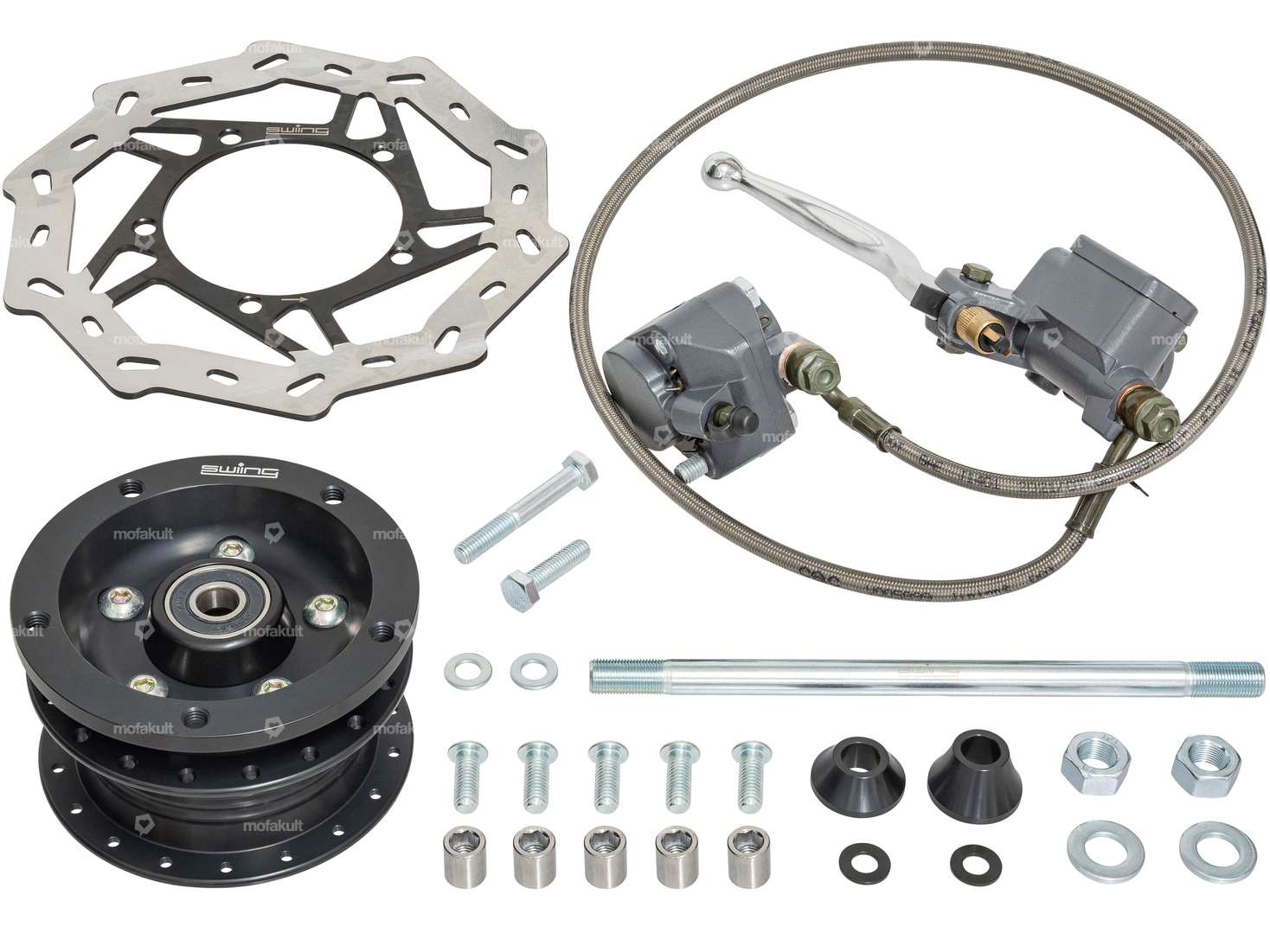

The set includes the following fixed parts:
Manufacturer: swiing® ingenious parts
Manufacturer: swiing® revival parts · Material: Steel · Surface: galvanized (blue) · Ø shaft: 11.95 mm · Thread type: MF12x1 (fine pitch thread) · Thread length: 25 mm · Total length: 220 mm

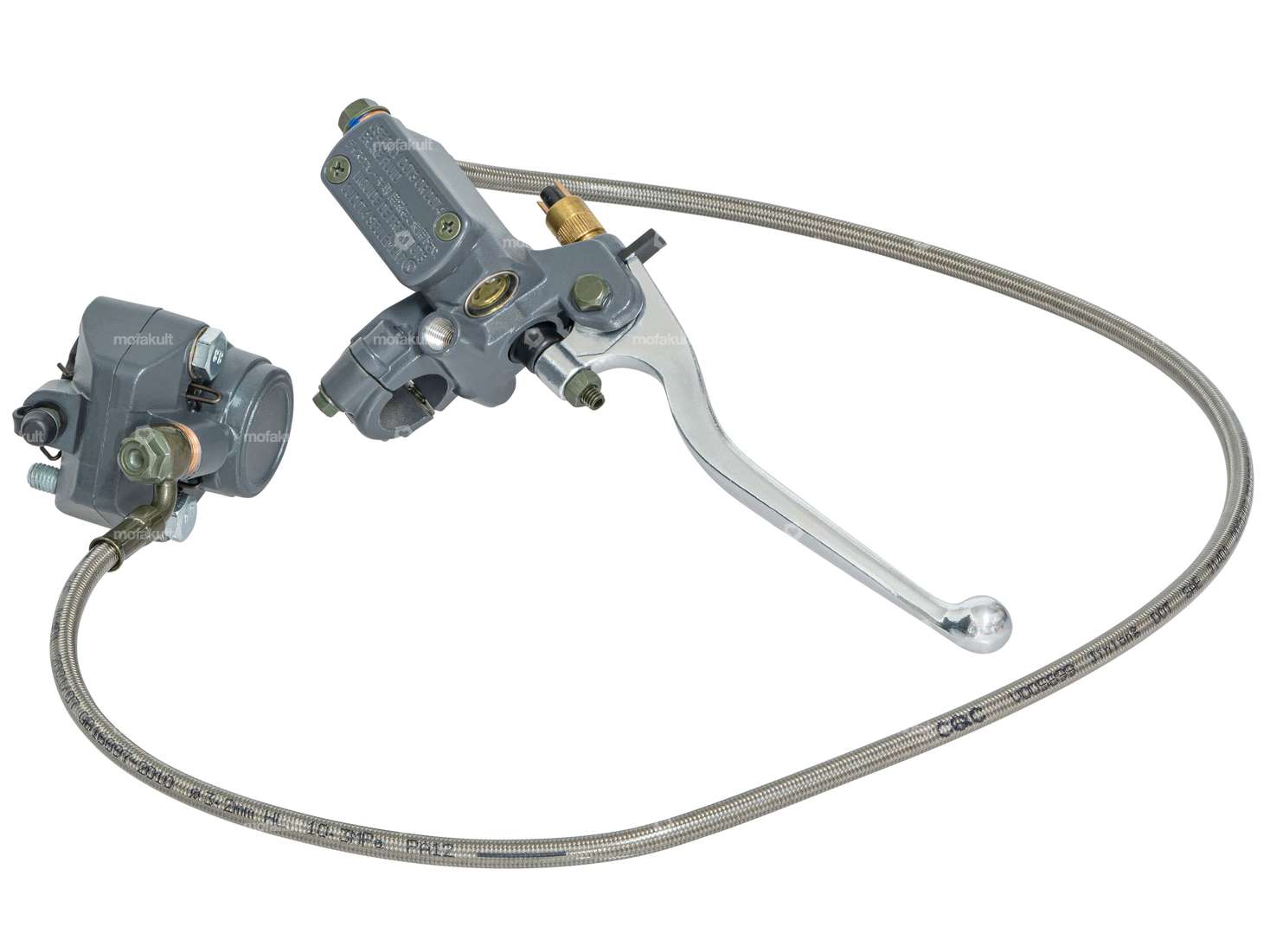

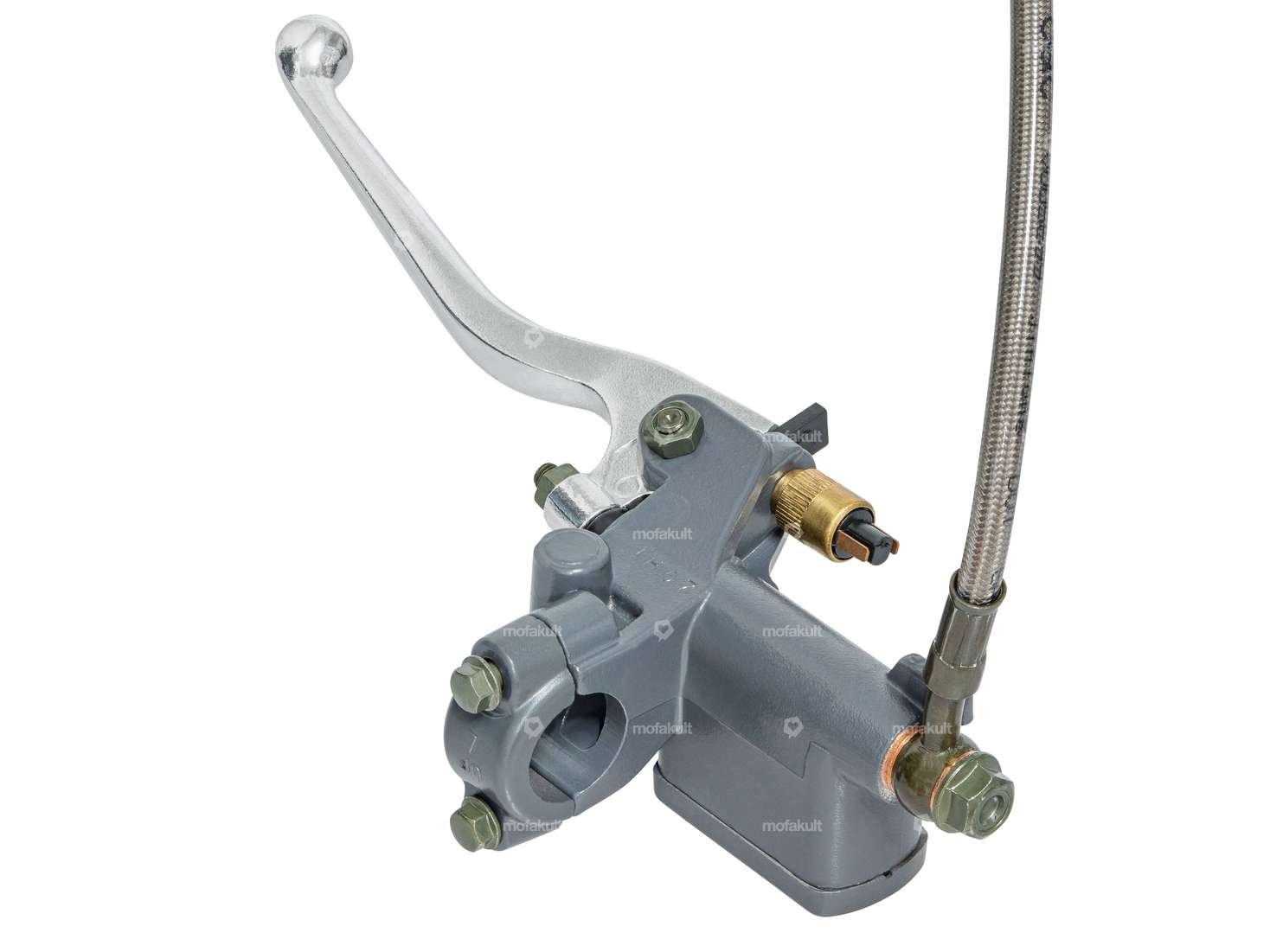

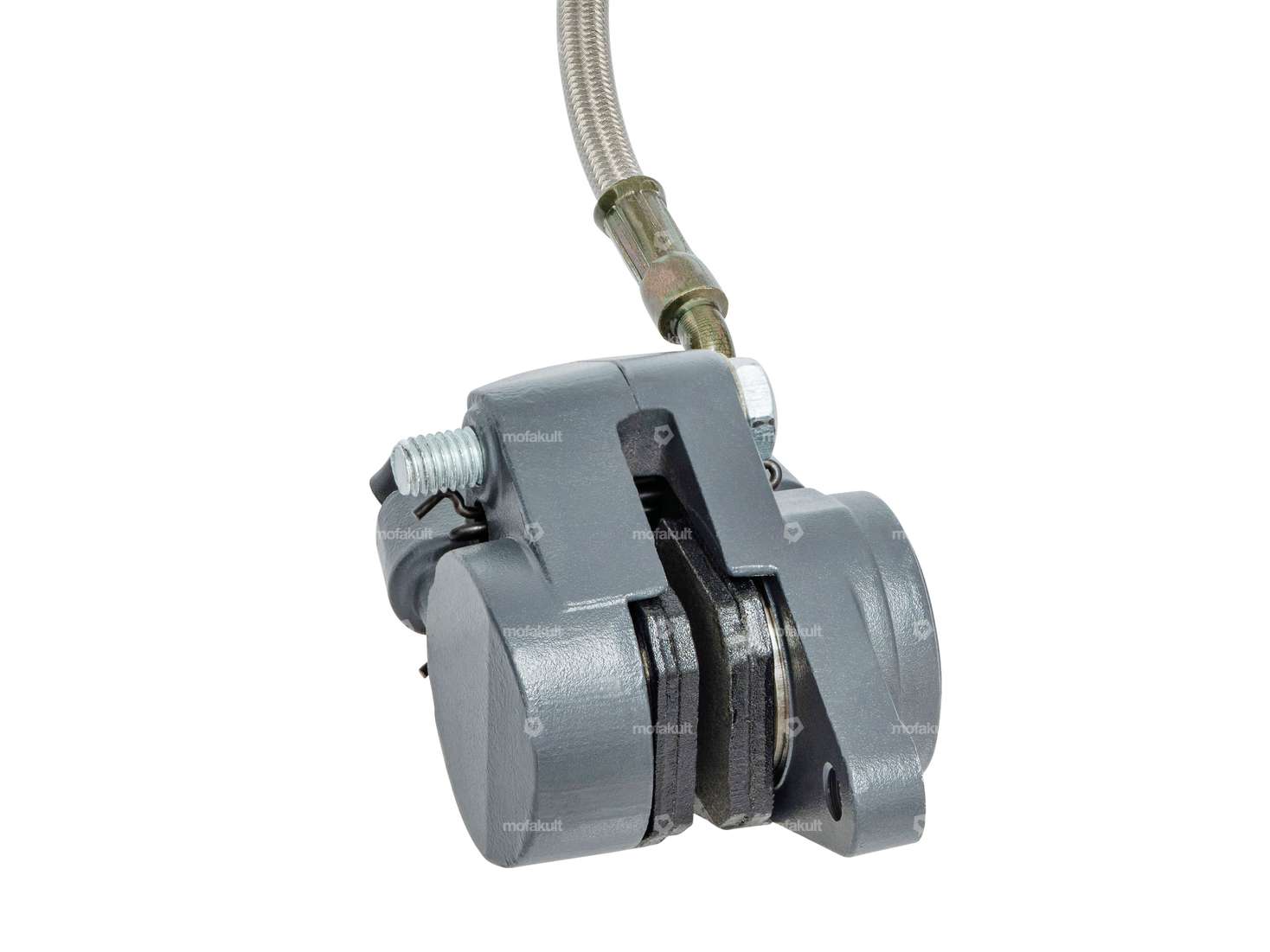

Material: Cast aluminum · Surface: varnished · Color: gray · Cable length: 900 mm · Brake lever length (lever length): 162 mm · Mounting type: Nuts & bolts · Number of fixing points: 4 pcs · Ø Handlebars: 22 mm · Hole spacing: 60 mm, 32 mm · Thread type: M8x1.25 (standard thread)

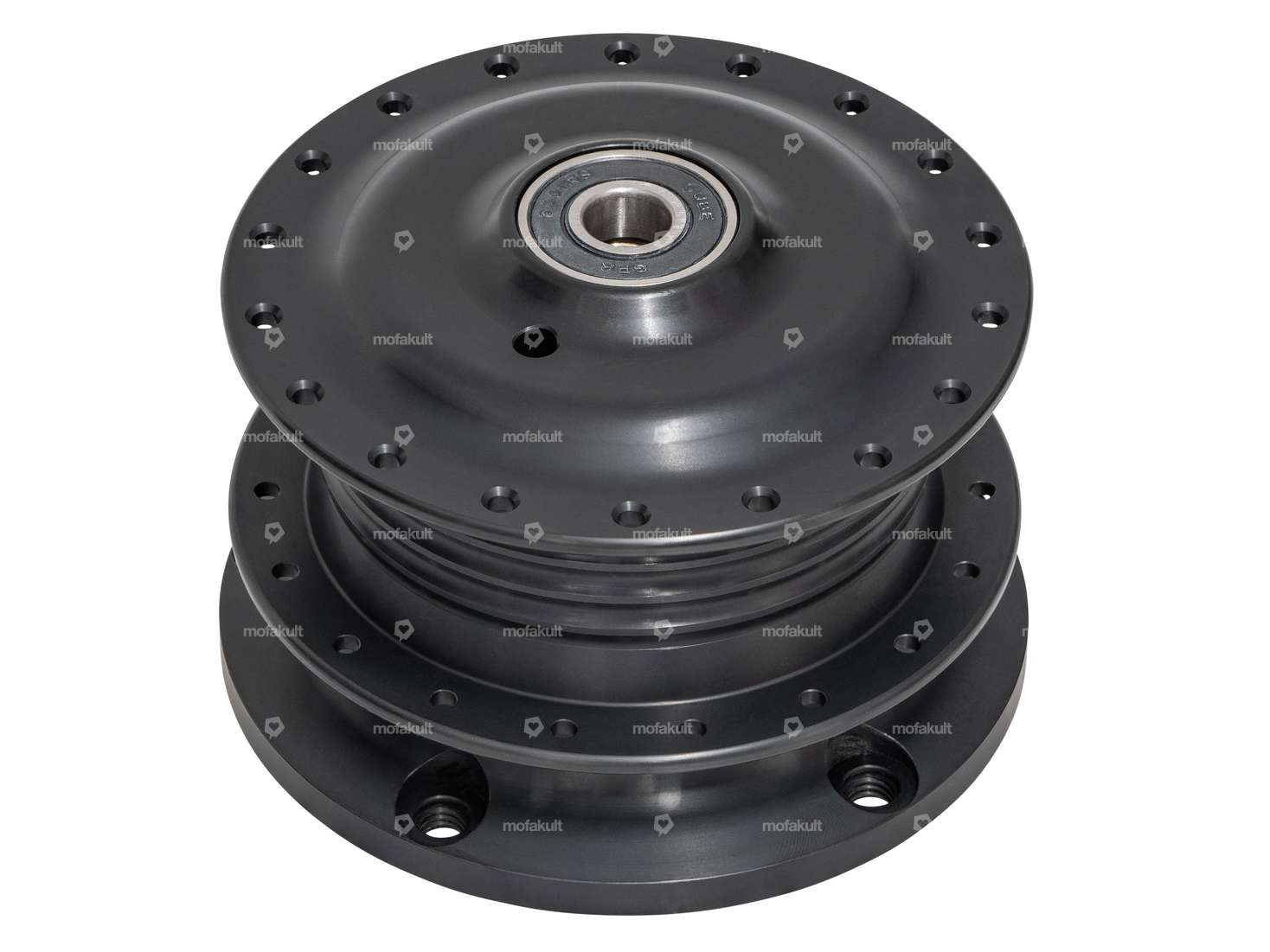

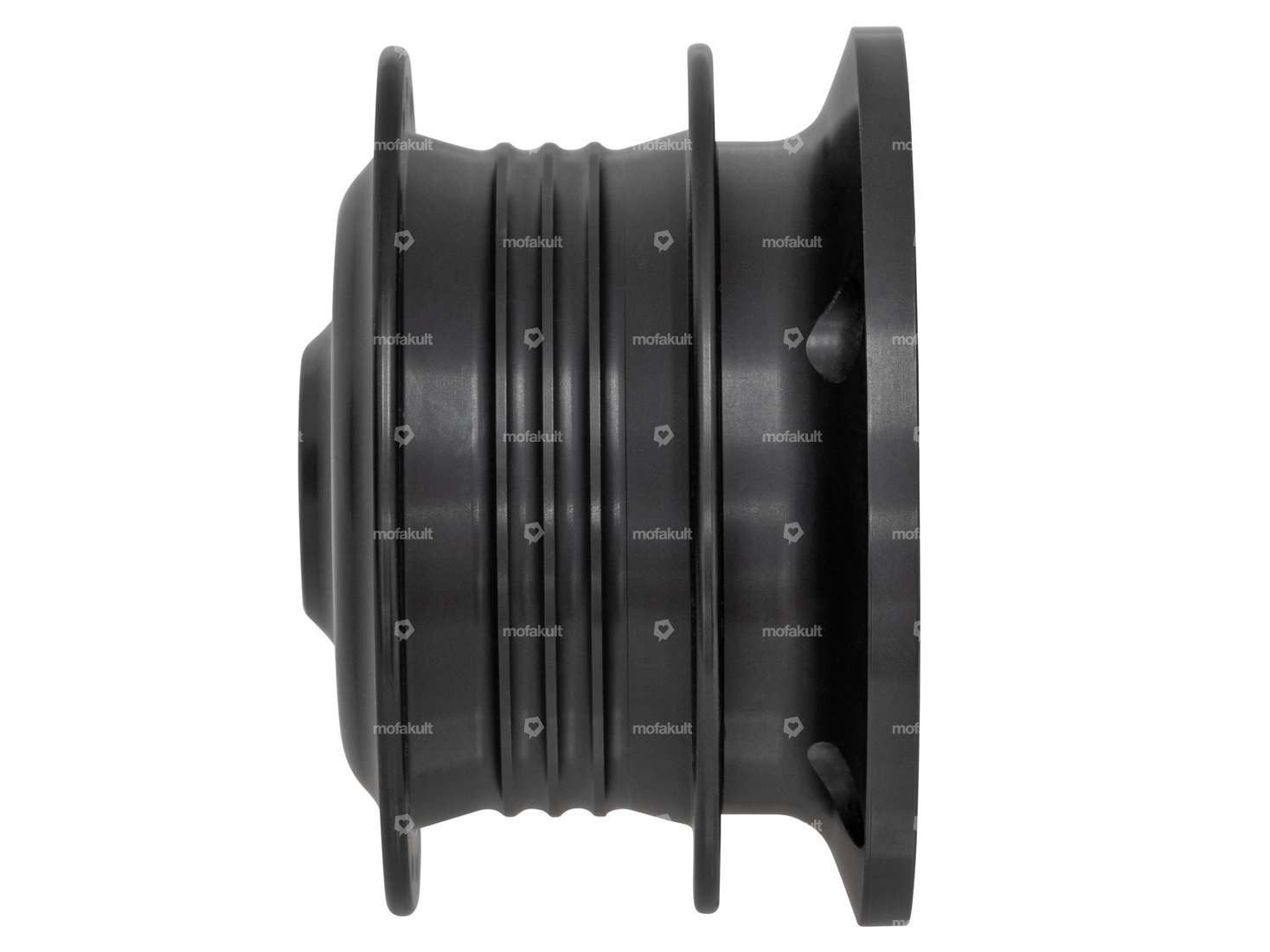

Manufacturer: swiing · Color: black · Material: Aluminum · Surface: anodized · Ø inside: 12 mm · Ø outside: 32 mm · Ø bolt circle: 104.5 mm · Width: 77 mm · Number of spoke holes: 36 pcs · Ø spoke hole: 3.7 mm
Manufacturer: swiing® ingenious parts
Details
| Manufacturer | swiing® ingenious parts |
Suitable for the following models
| Puch | |
| Sachs | |
| Tomos |
