This set contains the tools required for overhauling a manual Z50 engine on Puch X30 Sport / Puch X30 Velux mopeds.
Optional tools that are useful for a complete engine overhaul can be found below in the accessories section.

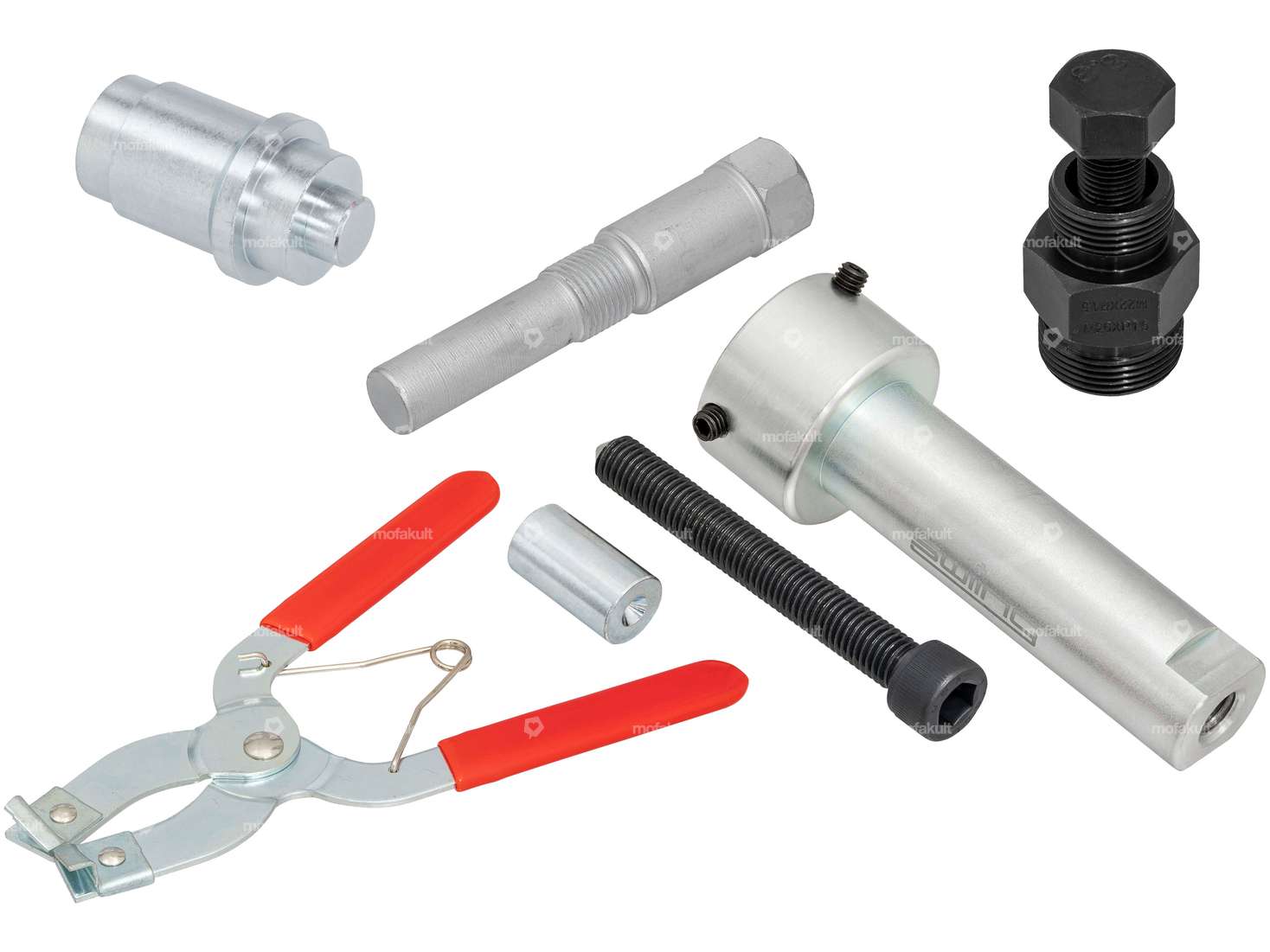

The following special tools are included in the set:
- Press-in bolt bearings & oil seals
- Bearing puller
- Piston stopper
- Piston ring pliers
- Flywheel holder
- Flywheel puller
When purchasing this complete set, there are whopping percentages off the retail price of the individual parts.
Exceptional product for the highest demands of the quality brand swiing®.
The set includes the following fixed parts:
Manufacturer: swiing® revival parts · Area of application: Special tool · Material: Steel · Surface: blue galvanized · Number of components: 1 pcs · Total length: 79.9 mm · Diameter: 34.6 mm · Ø inside: 17.4 mm · Ø outside: 39.5 mm · Ø Pin: 16.5 mm
Manufacturer: GPO · Area of application: Special tool · Material: Steel · Surface: blue galvanized · Number of components: 1 pcs · Total length: 83 mm · Diameter: 12 mm, 16 mm · Thread type: MF14x1.25 (fine pitch thread) · Width across flats SW: 17 mm
Manufacturer: Buzzetti · Area of application: (Dis)assembly tool
Manufacturer: swiing® ingenious parts · Area of application: Special tool · Material: Steel · Surface: blue galvanized, rubberized · Number of components: 1 pcs · Total length: 290 mm · Height: 80 mm · Thickness: 5 mm · Diameter: 19 mm · Ø inside: 27 mm · Ø outside: 93 mm · Ø Pin: 8 mm
Manufacturer: GPO · Area of application: (Dis)assembly tool · Material: Steel · Surface: blackened · Number of components: 1 pcs · Clamping depth: 10 mm · Thread type: MF22x1.5 (fine pitch thread), MF26x1.5 (fine pitch thread) · Width across flats (trigger): 27 mm · Width across flats Screw: 19 mm · Strength class: 8.8 · Total length: 55 mm, 75 mm
Manufacturer: swiing® ingenious parts · Area of application: (Dis)assembly tool · Surface: blue galvanized · Number of components: 1 pcs · Span: 24 mm · Clamping depth: 10 mm · Peel-off tray: L17, BO15, E15 · Diameter: 40.3 mm, 24 mm · Thread type: M6x1 (standard thread), M8x1.25 (standard thread) · Width across flats (trigger): 8 mm, 19 mm · Total length: 120 mm
Details
| Manufacturer | swiing® ingenious parts |
| Number of components | 7 pcs |
| Area of application | Special tool |
Suitable for the following models
| Puch | Z50 (X30 Sport) Z50 (X30 Velux) |
