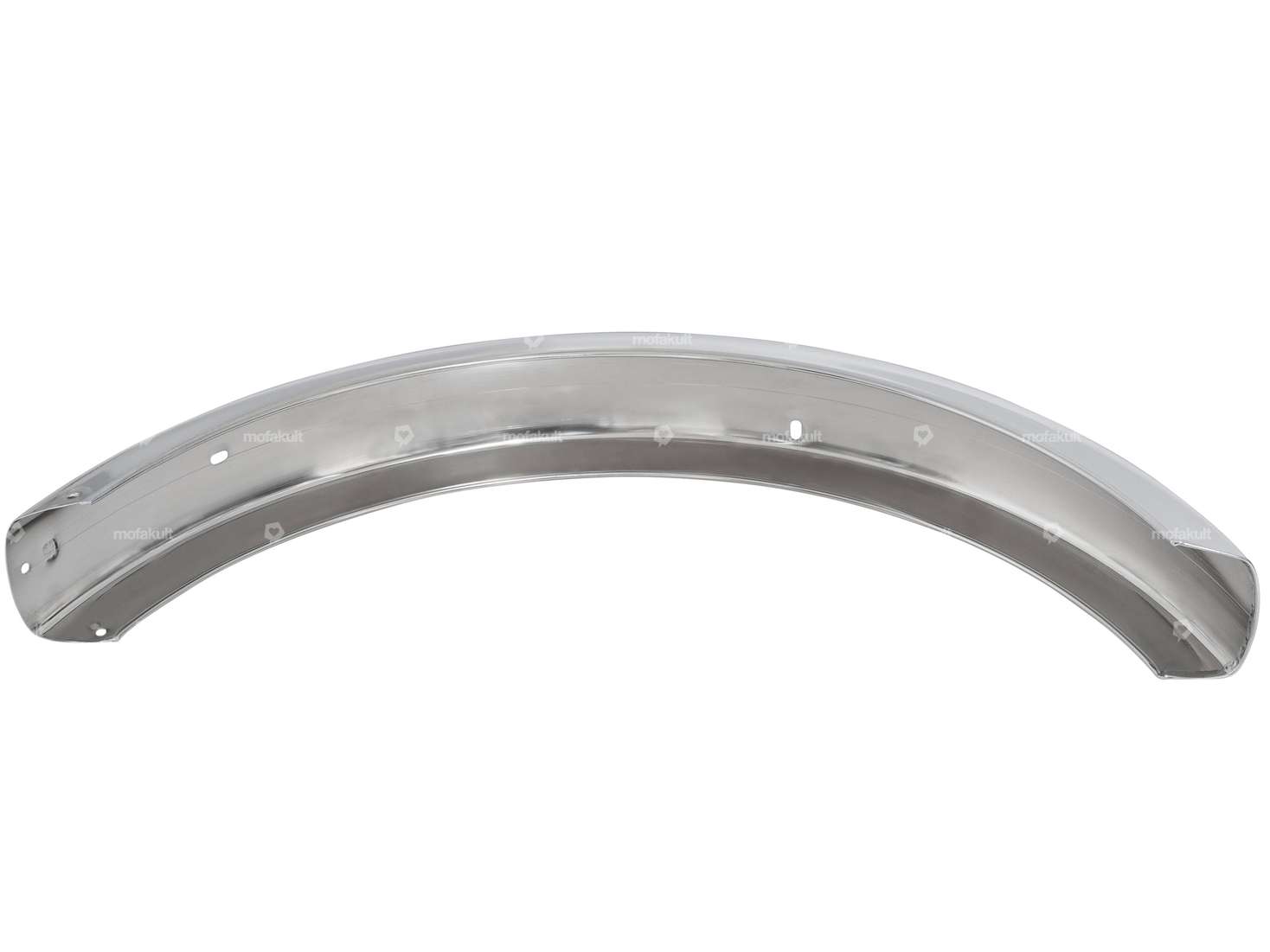

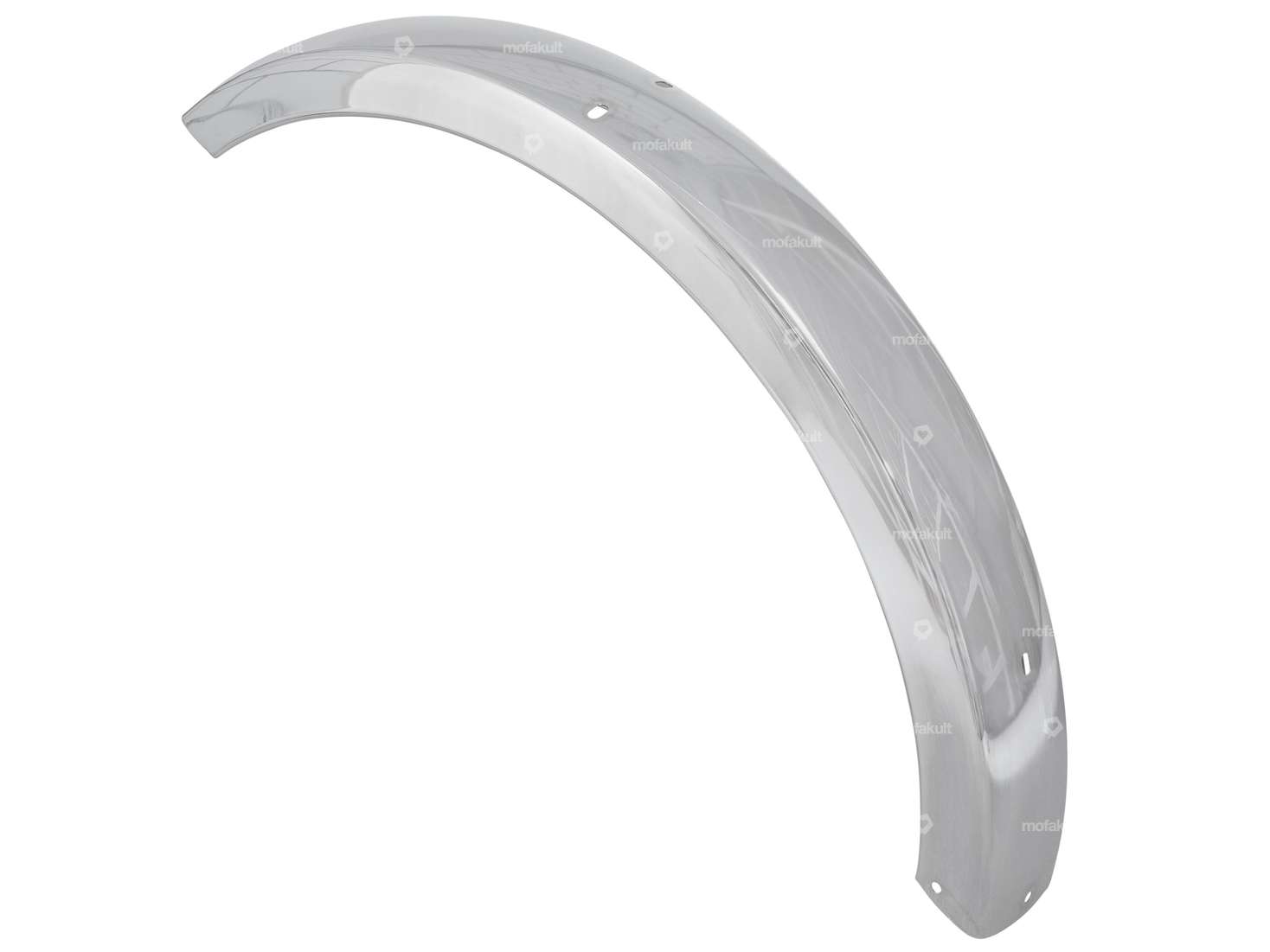

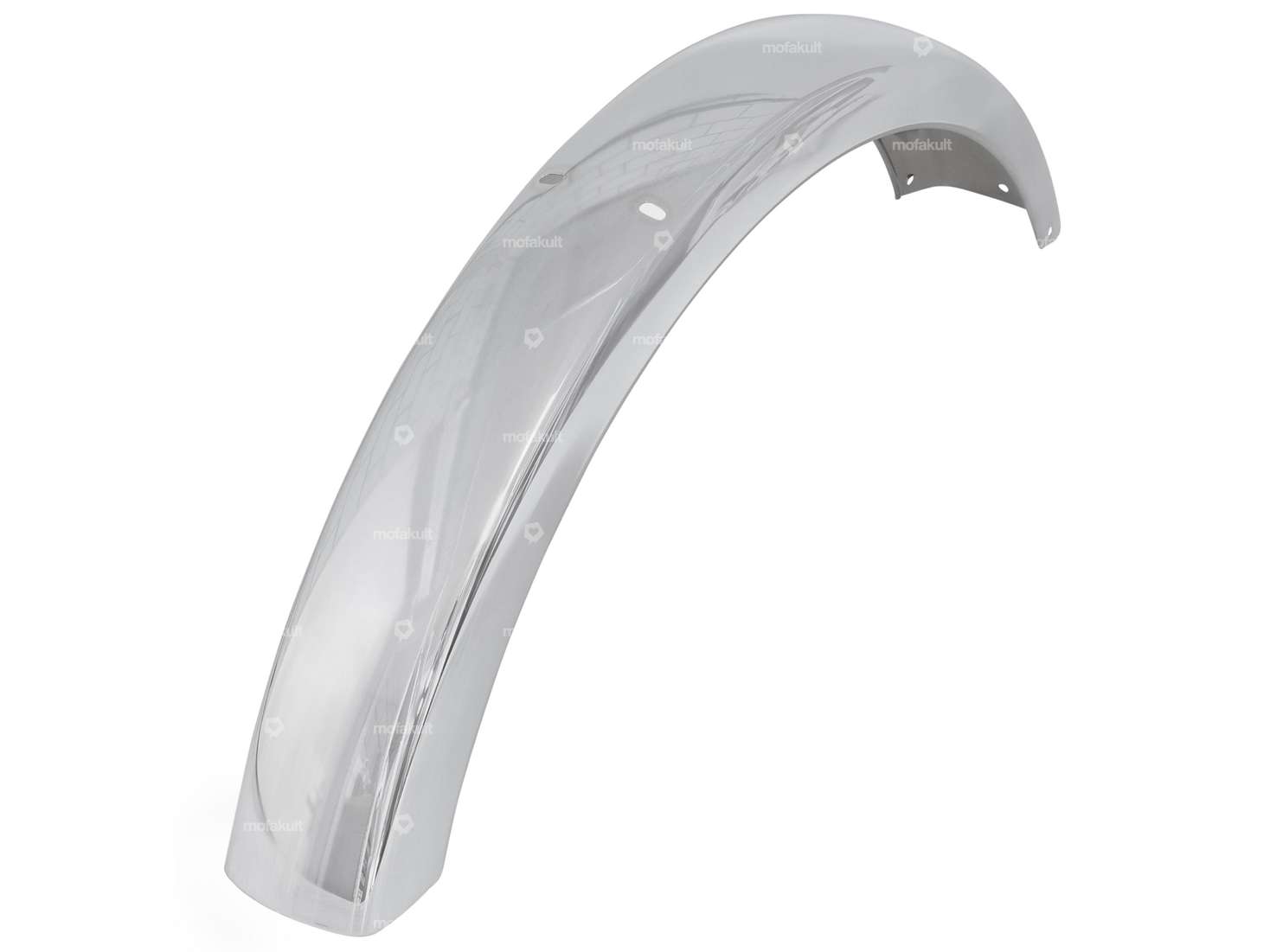

Front mudguard made of chrome-plated steel for your Peugeot 103 MVL or SPX moped / moped with 17-inch rim.
The highly polished and chrome-plated surface ensures a first-class look and gives your moped the necessary shine.
Since the mudguard is folded on the front, there are no sharp edges in the direction of travel, which significantly reduces the risk of injury. The underside of the mudguard is prepared for the installation of an edge protector or splash guard flap. The corresponding holes are already provided for mounting using struts.
Shape: semi-circular
Width of mudguard profile (A): 80 mm
Height of mudguard profile (B): 40 mm
End: folded closed at the front / not folded at the rear
Material: steel, high-gloss polished chrome-plated
Total height from support surface to top edge (C): 205 mm
Total length over ends (D): 585 mm
Circumference (E): 760 mm
Further parts for your wheel fairing, such as chrome polish or fastening material, can be found in the accessories section.
Nostalgic product for the highest demands of the quality brand swiing®.
Details
| Manufacturer | swiing® revival parts |
| Material | Steel |
| Surface | chrome-plated |
| Color | Chrome |
| Wheel size [inch] | 17 " |
| Folding the ends | closed folded, not folded |
| Shape of the mudguard | partly round |
| Total length over ends | 585 mm |
| Scope | 760 mm |
| Wide mudguard profile | 80 mm |
| Height of mudguard profile | 40 mm |
| Total height from support surface to top edge | 205 mm |
| Mounting type | Nuts & bolts |
Suitable for the following models
| Peugeot |
Accessories & related products
Motorex high gloss chrome polish 200 ml
Manufacturer: Motorex · Material to be used: Chrome steel (stainless steel) · Area of application: Chemistry · Contents [ml]: 200 ml · Hazard warning: Flammable liquid and vapor · Signal word: Attention · Hazard pictogram: GHS02 - Highly flammable
17,30 EUR
86,50 EUR/l
swiing® revival front fender chrome | Peugeot 103 SP
Manufacturer: swiing® revival parts · Material: Steel · Surface: chrome-plated · Color: Chrome · Wheel size [inch]: 17 " · Folding the ends: closed folded · Folding the ends: not folded · Shape of the mudguard: partly round · Total length over ends: 550 mm · Scope: 680 mm · Wide mudguard profile: 83 mm · Height of mudguard profile: 27 mm · Total height from support surface to top edge: 170 mm · Mounting type: Nuts & bolts
56,90 EUR

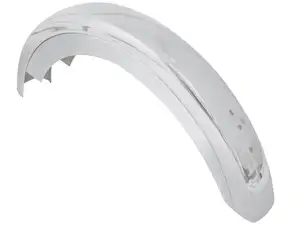

swiing® revival rear fender chrome | Peugeot 103 MVL, SP
