Mudguard set consisting of the front mudguard made of stainless steel from the brand swiing® revival and chrome-plated mudguard struts from the brand GPO for your Puch Maxi S or N moped with 17-inch rims.
The highly polished surface of the mudguard ensures a first-class look and gives your moped the necessary shine.
Since the mudguard is folded on both sides, there are no sharp edges, which significantly reduces the risk of injury. Furthermore, it is still possible to use an edge protector or splash guard. Corresponding holes must still be drilled if required.
All original holes are available for mounting the side and lower mudguard struts.
To mount the enclosed cable guides, holes are also already provided on both sides of the mudguard.

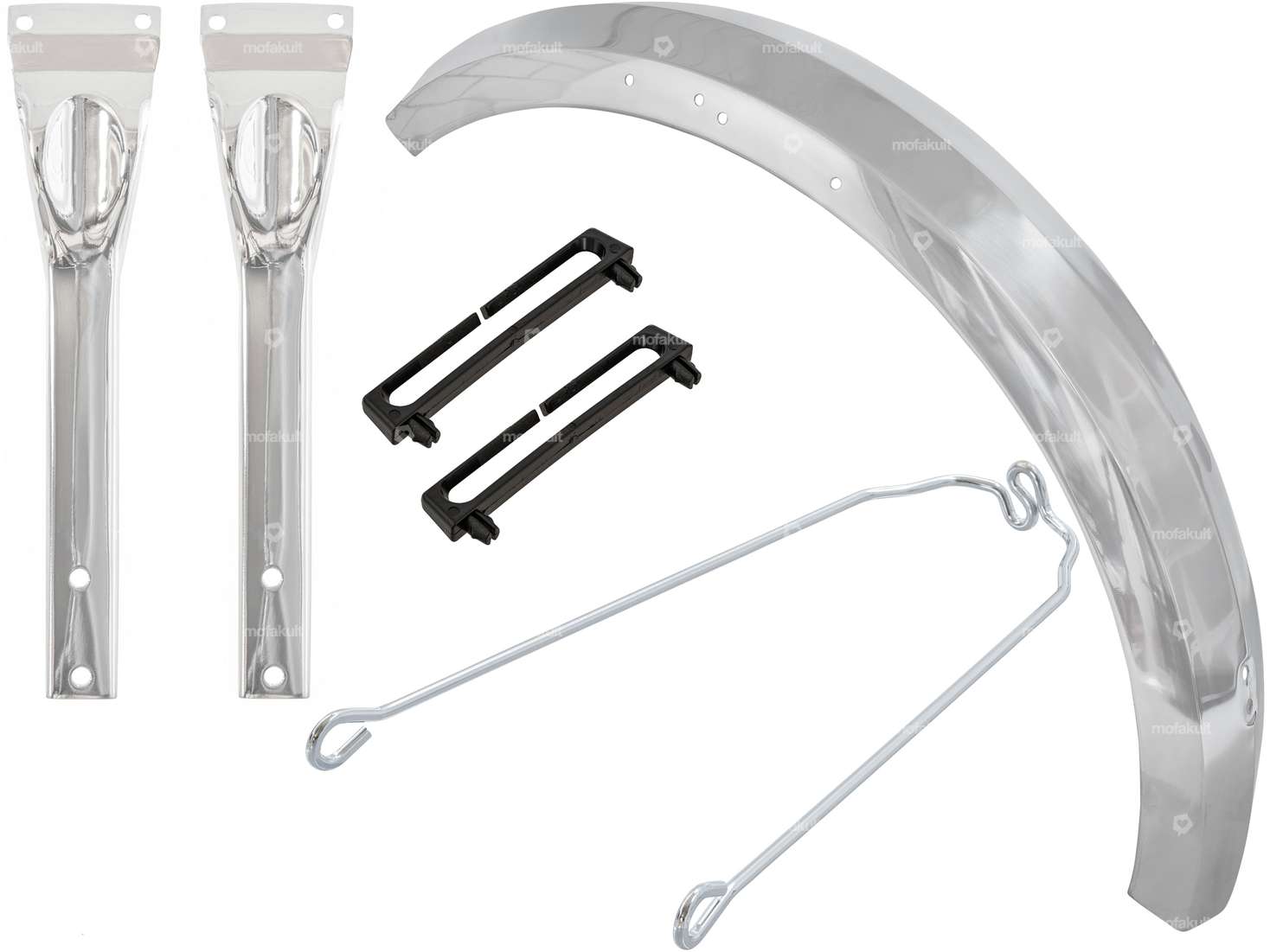

The set consists of the following individual parts:
- swiing® revival mudguard Art. No. 10453
- GPO mudguard attachment Art. No. 18122
- GPO mudguard strut Art. No. 19547
- 2 pcs. Cable guides Art. No. 10029

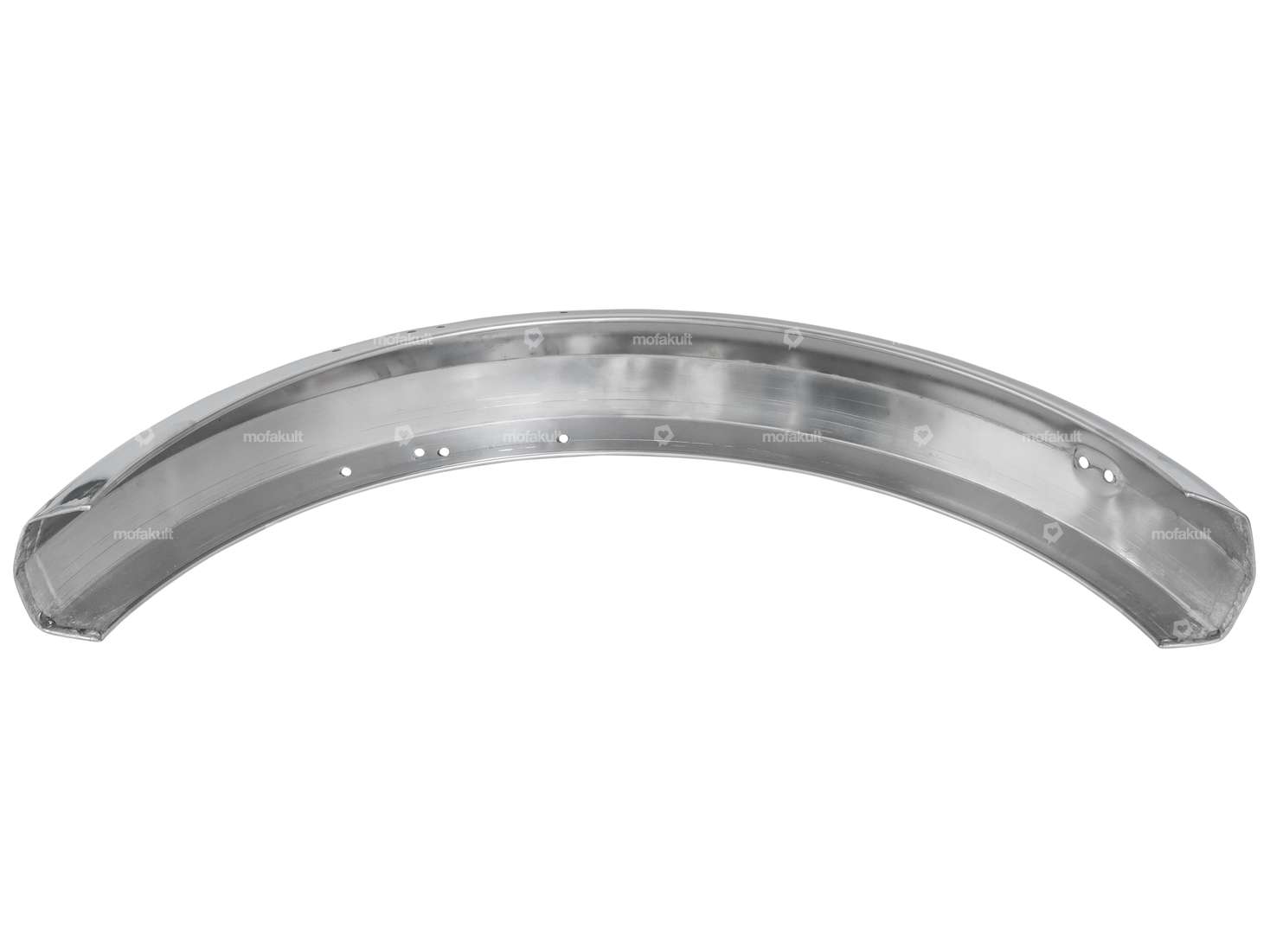

Technical data mudguard:
- Material: chrome steel (stainless steel)
- Shape: angular
- Width of mudguard profile (A): 82 mm
- Height of mudguard profile (B): 35 mm
- Endings: folded closed on both sides
- Material: Chrome steel (stainless steel), highly polished
- Total height from support surface to top edge (C): 200 mm
- Total length over ends (D): 565 mm
- Circumference (E): 740 mm

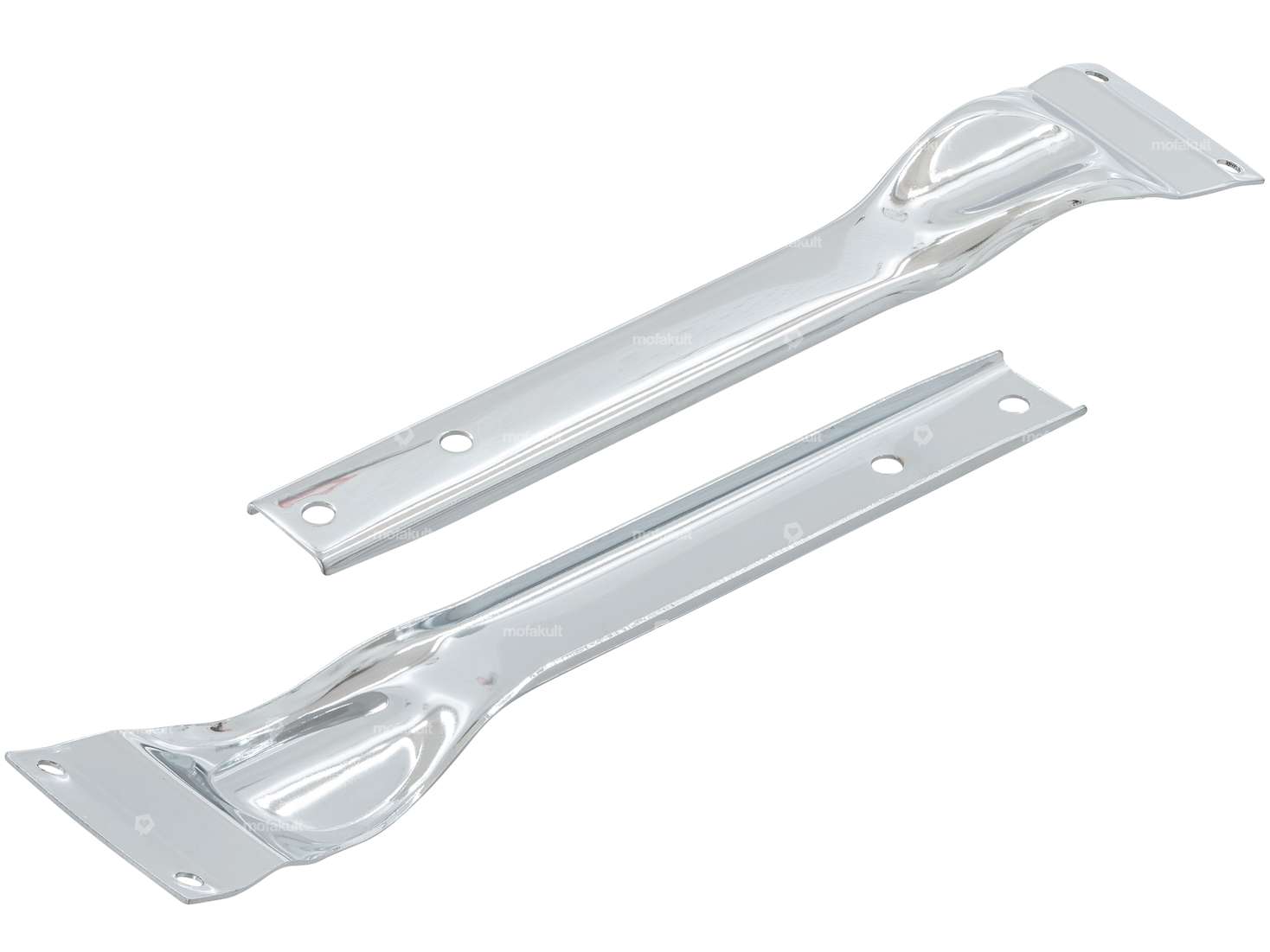

Technical data upright struts:
- Material: steel, chrome-plated
- Total length: 240 mm
- Width: 25.5 mm
- Hole spacing fender mount: 53 mm
- Hole spacing fork mount: 34 mm
Technical data lower strut:
- Material: steel, chrome-plated
- Total length: 305 mm
When you buy this complete set, you get a big discount on the retail price of the individual parts.
Other parts for your wheel fairing, such as stainless steel polish or fastening material, can be found in the accessories section.
Nostalgic product for the highest demands of the quality brand swiing®.
Good, inexpensive standard spare part. GPO – GOOD PARTS ONLY.
The set includes the following fixed parts:
Manufacturer: swiing® revival parts · Material: Chrome steel (stainless steel) · Surface: polished · Color: Chrome · Wheel size [inch]: 17 " · Folding the ends: closed folded · Shape of the mudguard: angular · Total length over ends: 565 mm · Scope: 740 mm · Wide mudguard profile: 82 mm · Height of mudguard profile: 35 mm · Total height from support surface to top edge: 200 mm · Mounting type: Nuts & bolts
Manufacturer: GPO · Material: Steel · Surface: chrome-plated · Color: Chrome · Wheel size [inch]: 17 " · Total length: 305 mm · Distance mudguard - center hole: 300 mm · Outer width: 160 mm · Mounting type: Nuts & bolts · Number of fixing points: 4 pcs · Ø mounting hole: 12.5 mm
Manufacturer: swiing® revival parts · Material: Plastic · Color: black · Total length: 74 mm · Height: 12.5 mm · Mounting type: Plug connection · Number of fixing points: 2 pcs · Hole spacing: 63 mm
Manufacturer: GPO · Material: Steel · Surface: chrome-plated · Color: Chrome · Wheel size [inch]: 17 " · Total length: 240 mm · Distance mudguard - center hole: 197 mm, 231 mm · Outer width: 25.5 mm · Mounting type: Nuts & bolts · Number of fixing points: 8 pcs · Hole spacing: 34 mm, 40 mm · Ø mounting hole: 6 mm · Wide intake: 53 mm
Details
| Manufacturer | swiing® revival parts, GPO |
| Material | Chrome steel (stainless steel), Steel, Rubber |
| Surface | polished, chrome-plated |
| Color | Chrome, black |
| Folding the ends | closed folded |
| Shape of the mudguard | angular |
| Total length over ends | 565 mm |
| Scope | 740 mm |
| Wide mudguard profile | 82 mm |
| Height of mudguard profile | 35 mm |
| Mounting type | Nuts & bolts |
| Total height from support surface to top edge | 200 mm |
| Wheel size [inch] | 17 " |
Suitable for the following models
| Puch |
