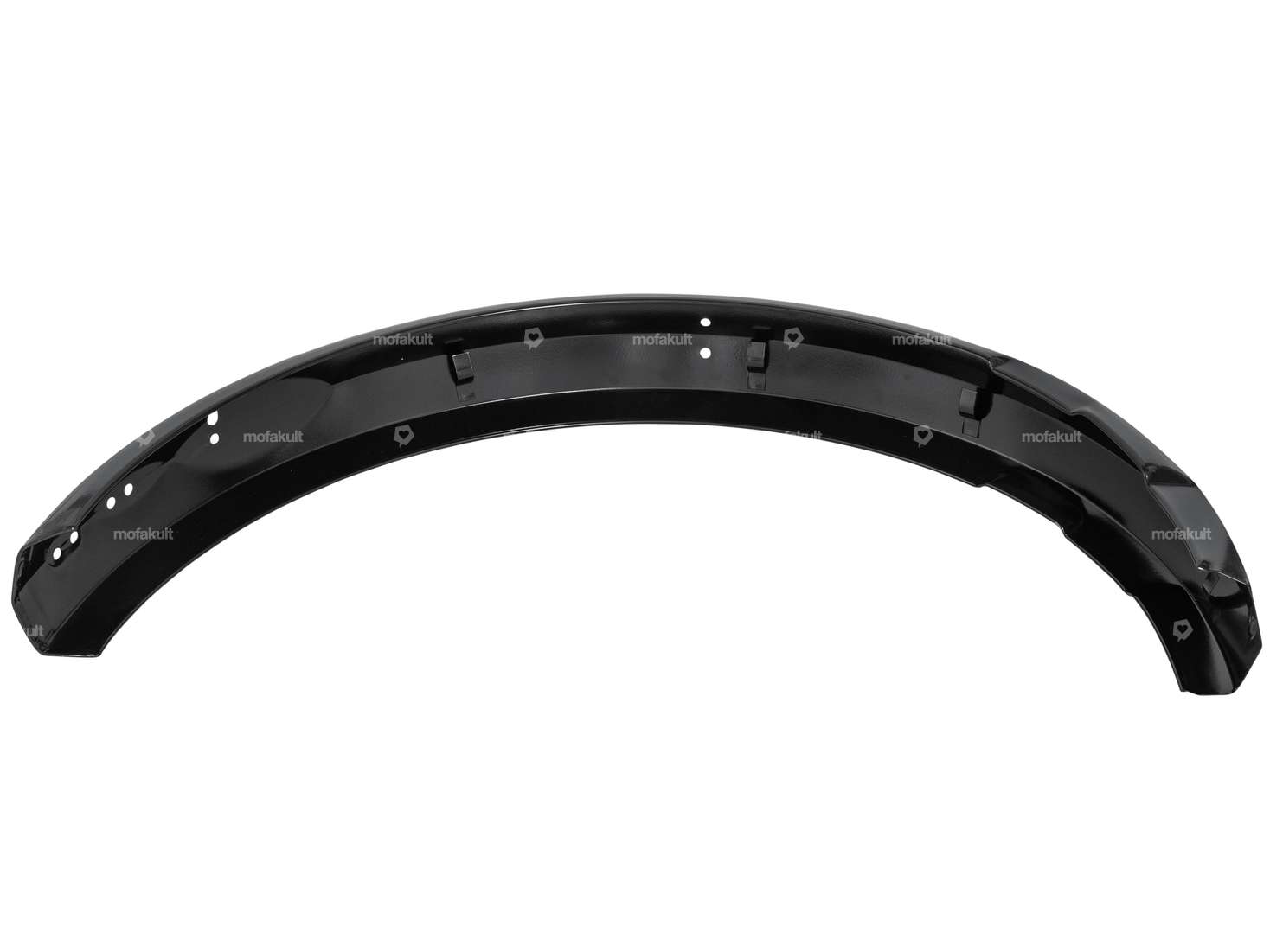

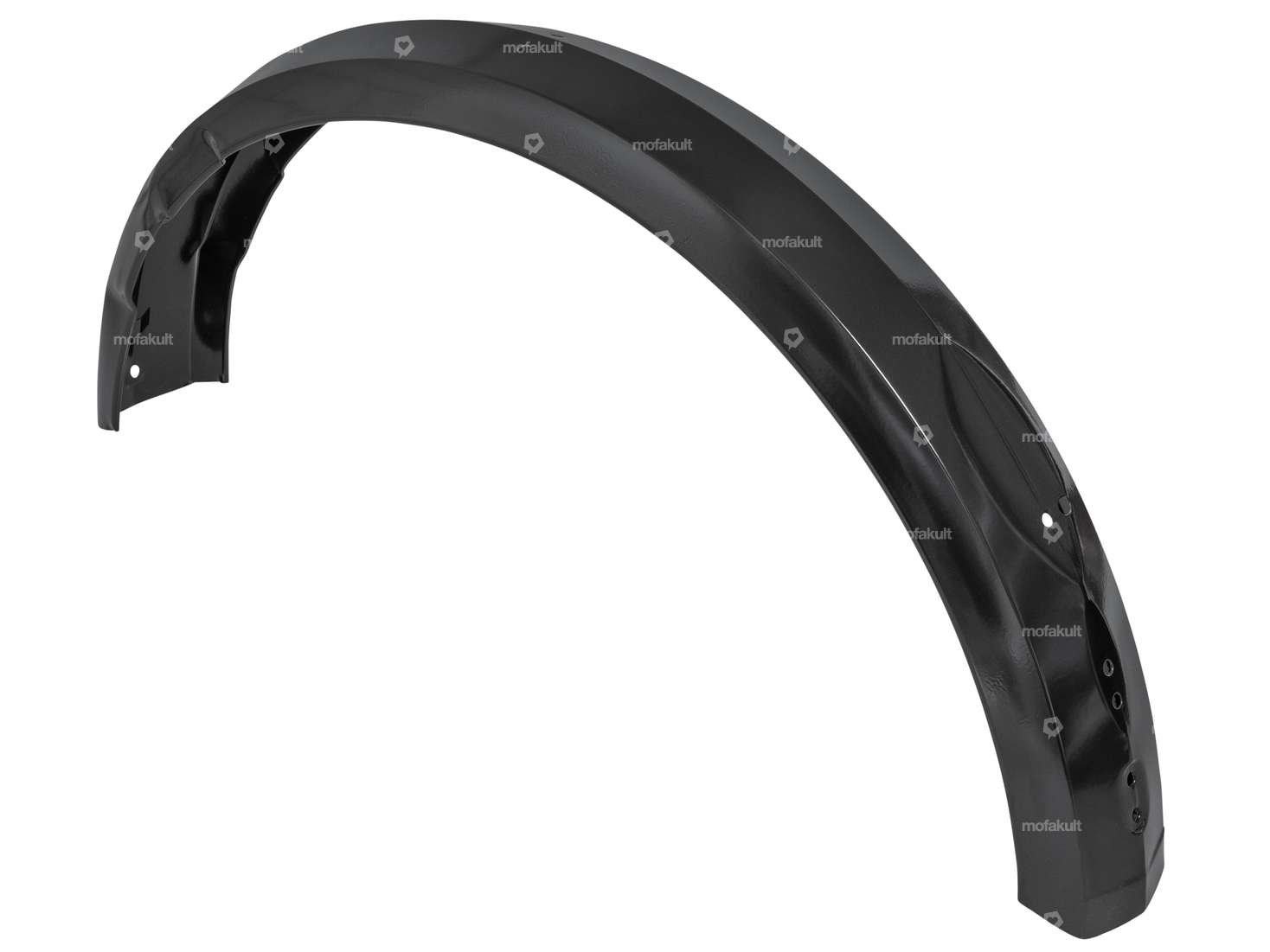

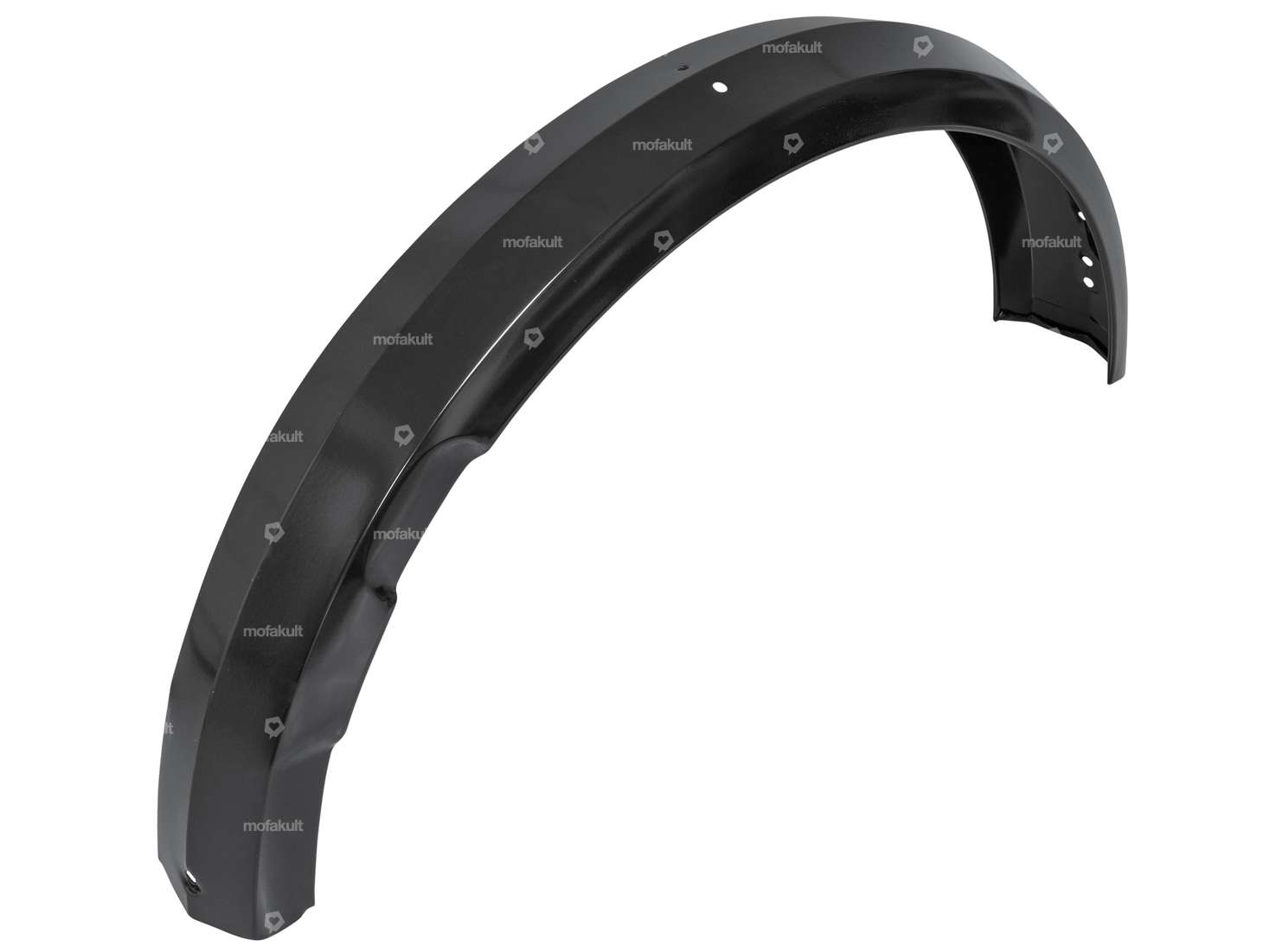

Rear, black primed steel mudguard for your Puch Maxi N moped / moped with 17" rims.
Since the mudguard is folded at the rear, there is no sharp edge, which significantly reduces the risk of injury.
The mudguard has all the original mounting holes, the frame cut-outs and the tabs for the cable routing.
Shape: angular
Width of mudguard profile (A): 82 mm
Height of mudguard profile (B): 35 mm
Endings: not folded at the front / folded closed at the rear
Material: Steel, black primed
Total height from support surface to top edge (C): 285 mm
Total length over ends (D): 625 mm
Circumference (E): 940 mm
The mudguard is only primed, meaning there may be slight scratches.
Other parts for your bike fairing, such as paint polish or mounting material, can be found under accessories.
Nostalgic product for the highest demands of the quality brand swiing®.
Details
| Manufacturer | swiing® revival parts |
| Material | Steel |
| Color | black |
| Surface | primed |
| Folding the ends | not folded, closed folded |
| Shape of the mudguard | angular |
| Total length over ends | 625 mm |
| Scope | 940 mm |
| Wide mudguard profile | 82 mm |
| Height of mudguard profile | 35 mm |
| Total height from support surface to top edge | 285 mm |
| Wheel size [inch] | 17 " |
| Mounting type | Nuts & bolts |
Suitable for the following models
| Puch |
