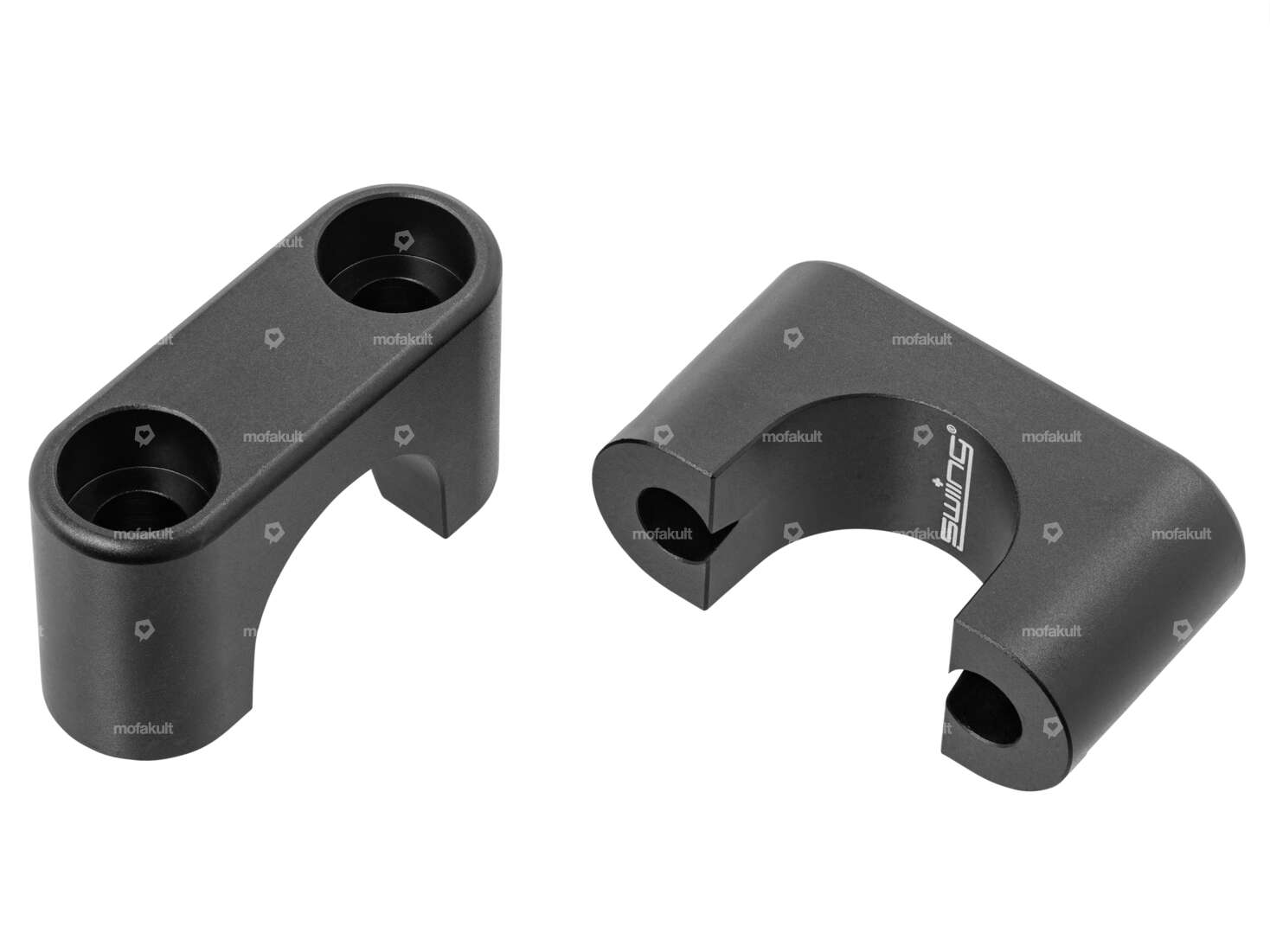

swiing® revival clamping bridges aluminum black | Puch

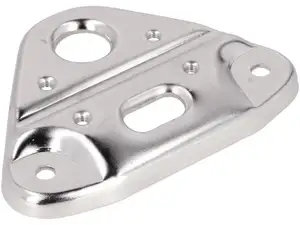

EBR upper triple tree standard chrome | Puch

Manufacturer: EWC · Color: Chrome · Material: Steel · Surface: chrome-plated · Spar end distance (center-center): 120 mm · Ø head tube inside: 26 mm · Hole pattern [mm]: 29.5 x 60 · Thread type: M7x1 (standard thread)

Loctite 243 medium-strength threadlocker 10 ml

Manufacturer: Loctite · Material to be used: Aluminum · Material to be used: Metal · Material to be used: Steel · Type of application: 1K · Area of application: Chemistry · Contents [ml]: 10 ml · Color: blue · Hazard warning: Causes serious eye irritation · Hazard warning: Causes skin irritation · Hazard warning: Harmful to aquatic organisms (with long-term effects) · Hazard warning: May cause allergic skin reactions · Hazard warning: May irritate the respiratory tract · Signal word: Attention · Hazard pictogram: GHS07 - Caution dangerous · Hazard pictogram: GHS09 - Hazardous to the aquatic environment · Adhesion: medium strength · Temperature resistance (min.): -75 - 200 °C · Gap dimension (max.): 0.01 mm · Alignment time: 600 sec · Breakaway torque (according to material): 3 N/m · Breakaway torque (according to material): 12 N/m · Breakaway torque (according to material): 26 N/m

EBR Upper triple tree standard black | Puch

Manufacturer: EWC · Material: Steel · Color: black · Surface: varnished · Spar end distance (center-center): 120 mm · Ø head tube inside: 26 mm · Hole pattern [mm]: 29.5 x 60 · Thread type: M7x1 (standard thread)

Screw M7x40 cylinder head Allen key galvanized (clamping bridge)

Manufacturer: Made in Italy · Material: Steel · Surface: blue galvanized · Drive: Hexagon socket · Thread length: 40 mm · Screw head: Cylinder head · Shank: No · Width across flats SW: 6 mm · Strength class: 8.8 · Thread type: M7x1 (standard thread)

66HEROES Clamping bridges aluminum chrome | Puch

Manufacturer: 66HEROES · Material: Aluminum · Color: Chrome · Surface: chrome-plated · Total length: 49 mm · Width: 22 mm · Height: 26 mm · Number of fixing points: 2 pcs · Ø mounting hole: 7.3 mm · Hole spacing: 30 mm

66HEROES Clamping bridges aluminum black | Puch

Manufacturer: 66HEROES · Material: Aluminum · Color: black-matt · Surface: anodized · Total length: 49 mm · Width: 22 mm · Height: 26 mm · Number of fixing points: 2 pcs · Ø mounting hole: 7.3 mm · Hole spacing: 30 mm · Clamping diameter: 22 mm

swiing clamping bridges aluminum chrome | Puch

Manufacturer: swiing · Material: Aluminum · Color: Chrome · Surface: chrome-plated · Total length: 47 mm · Width: 17 mm · Height: 26 mm · Number of fixing points: 2 pcs · Ø mounting hole: 7.3 mm · Hole spacing: 30 mm

swiing® revival clamping bridges aluminum red | Puch

Manufacturer: swiing® revival parts · Material: Aluminum · Color: red · Surface: anodized · Total length: 47 mm · Width: 17 mm · Height: 26 mm · Number of fixing points: 2 pcs · Ø mounting hole: 7.3 mm · Hole spacing: 30 mm

GPO control bearing set M26x1 mm | Puch

Ø inside: 26.8 mm · Manufacturer: GPO · Material: Steel · Surface: blue galvanized · Color: silver · Bearing type: Bearing ring · Ø mounting frame: 31 mm · Ø outside: 41 mm · Thread type: MF26x1 (fine pitch thread)

Side panels black matt | Puch Maxi S

Manufacturer: Made in Italy · Material: Plastic · Color: black · Puch spare part no.: 349.4.28.502.2 · Alternative version of the Puch spare part no.: 349.4.28.603.2 · Puch spare part no.: 349.7.28.503.2

Gas cable Ø 1.25 mm x 220 cm (cylindrical nipple) Bing

Ø nipple: 3 mm · Nipple length: 5 mm · Manufacturer: Made in Germany · Area of application: Standard · Material: Steel · Surface: blue galvanized · Ø Stranded wire: 1.25 mm · Nipple shape: Cylinder · Cable length: 2200 mm · Number of components: 1 pcs

GPO cable duct black | Puch Maxi, Supermaxi

Manufacturer: GPO · Material: Plastic · Color: black · Width: 58 mm · Height: 22 mm · Number of fixing points: 2 pcs · Ø mounting hole: 5.3 mm · Total length: 320 mm

Magura gas cable clamp / deco cable clamp Ø 5 x 6 mm

Manufacturer: Magura · Material: Brass · Material: Steel · Surface: nickel-plated · Ø Cable bushing: 1.6 mm · Drive: Slot · Screw head: Lens head · Ø outside: 5 mm · Thread type: M4x0.7 (standard thread) · Total length: 6 mm · Thread length: 4 mm · Number of components: 2 pcs

swiing® revival side protection screw set black | Puch Maxi S

Manufacturer: swiing® revival parts · Material: Plastic · Material: Steel · Surface: blue galvanized · Surface: raw · Color: silver · Drive: Slot · Drive: Triangular head · Total length: 47 mm · Total length: 60 mm · Thread type: M5x0.8 (standard thread) · Thread length: 35 mm · Thread length: 50 mm

Handlebar fork plate 30 cm curved black

Manufacturer: Made in Portugal · Material: Steel · Color: black · Surface: varnished · Fork plate holder length: 75 mm · Width: 610 mm · Ø outside: 22 mm · Height: 300 mm · Mounting type: Fork plate · Length handlebar ends: 145 mm · Crossbar: No · Clamping diameter: 22 mm

GPO steerer tube nut M26x1 closed fork plate chrome

Manufacturer: GPO · Area of application: Standard · Material: Steel · Surface: chrome-plated · Nut type: Cap nut · Drive: External hexagon · Height: 13.8 mm · Ø outside: 28.9 mm · Ø outside: 36.4 mm · Width across flats SW: 30 mm · Thread depth: 12 mm · Thread type: MF26x1 (fine pitch thread)

Screw M7x40 cylinder head Allen key galvanized (clamping bridge)

Manufacturer: Made in Italy · Material: Steel · Surface: blue galvanized · Drive: Hexagon socket · Thread length: 40 mm · Screw head: Cylinder head · Shank: No · Width across flats SW: 6 mm · Strength class: 8.8 · Thread type: M7x1 (standard thread)

Screw M5x16 countersunk head Inox

Material: Chrome steel (stainless steel) · Drive: Slot · Screw head: Countersunk head · Thread type: M5x0.8 (standard thread) · Total length: 16 mm
