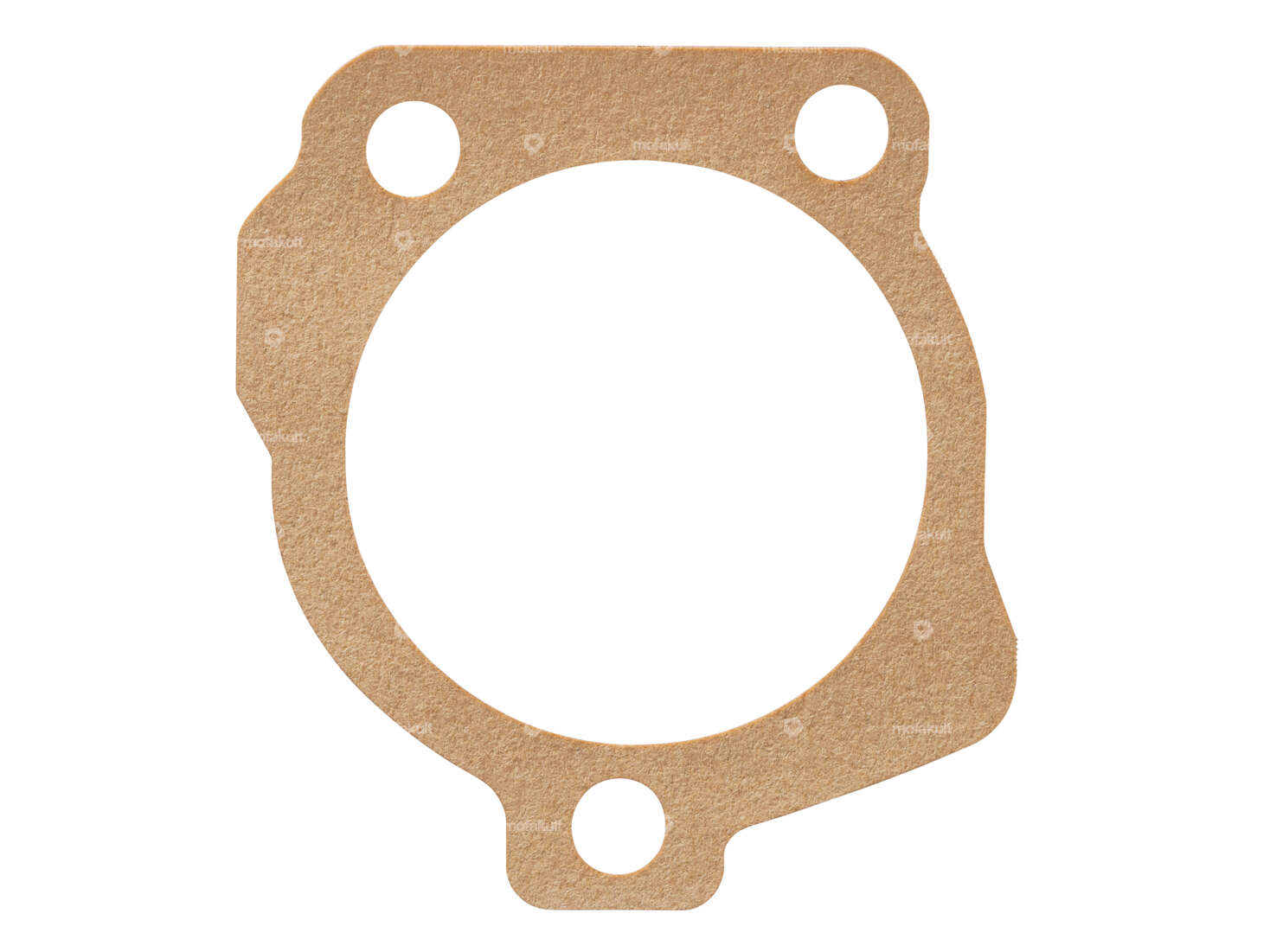

Cylinder base gasket without cut-outs for the overflow channel for your Piaggio Ciao, SI, Bravo and Boxer moped / moped.
The blank can be cut individually with scissors or a cutter to fit the overflow channel of your cylinder.
This base sealing paper is designed for cylinders from 38 to 43 mm.
Ø inside: 46 mm
Thickness of the base gasket: 0.50 mm
Material: Ölpapier
This cylinder gasket is a perfect fit and of the highest quality.
You can find more cylinder flange gaskets in the accessories section.
Nostalgic product for the highest demands of the quality brand swiing®.
Details
| Manufacturer | swiing® revival parts |
| Material | Oiled paper |
| Nominal diameter | 46 mm |
| Area of application | Standard |
| Place of use | Cylinder base |
| Ø inside | 46 mm |
| Thickness | 0.5 mm |
Suitable for the following models
| Piaggio | Ciao - Ciao, Ciao, Ciao, Ciao Si Bravo/Superbravo Boxer Grillo |
