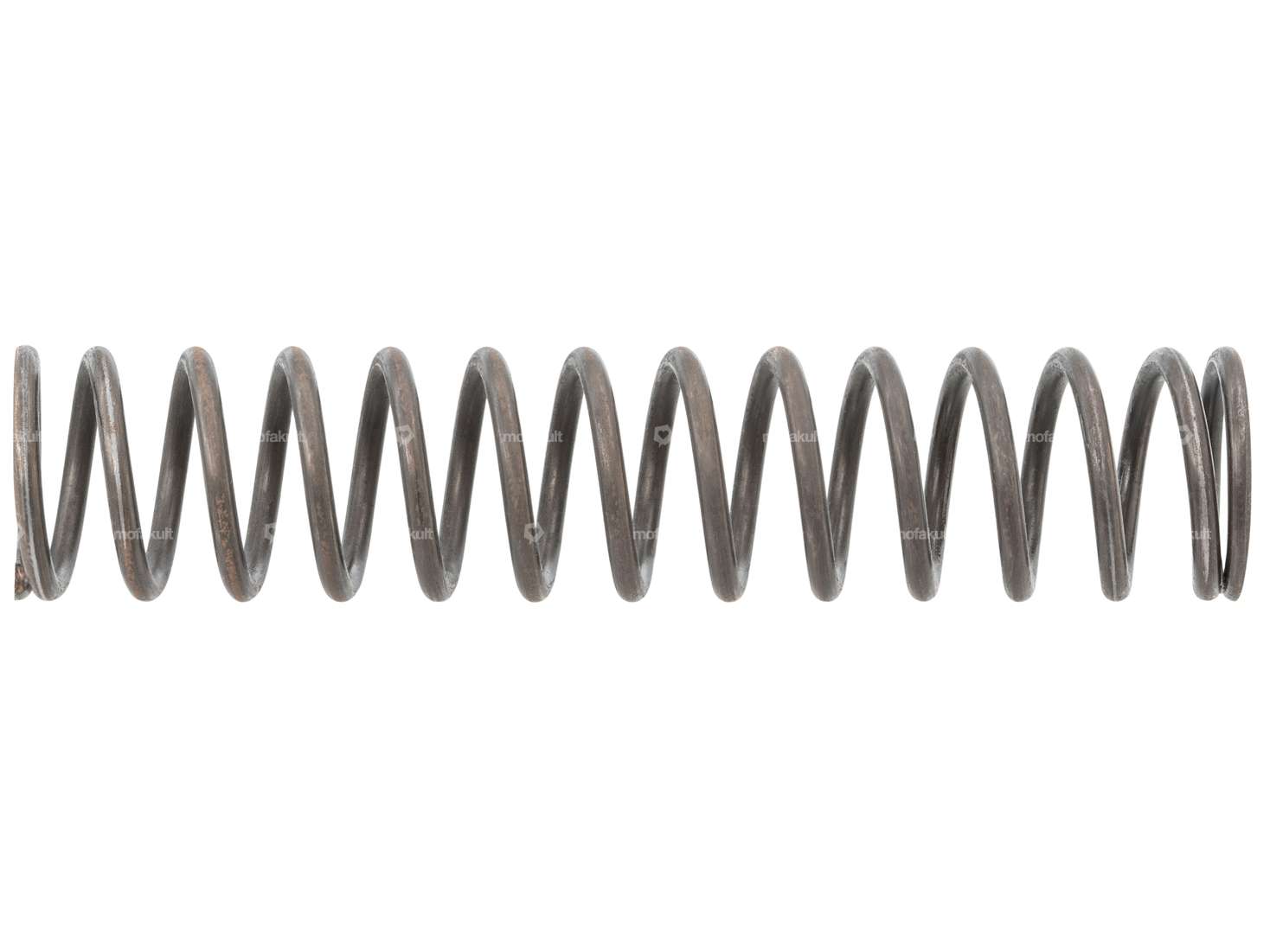

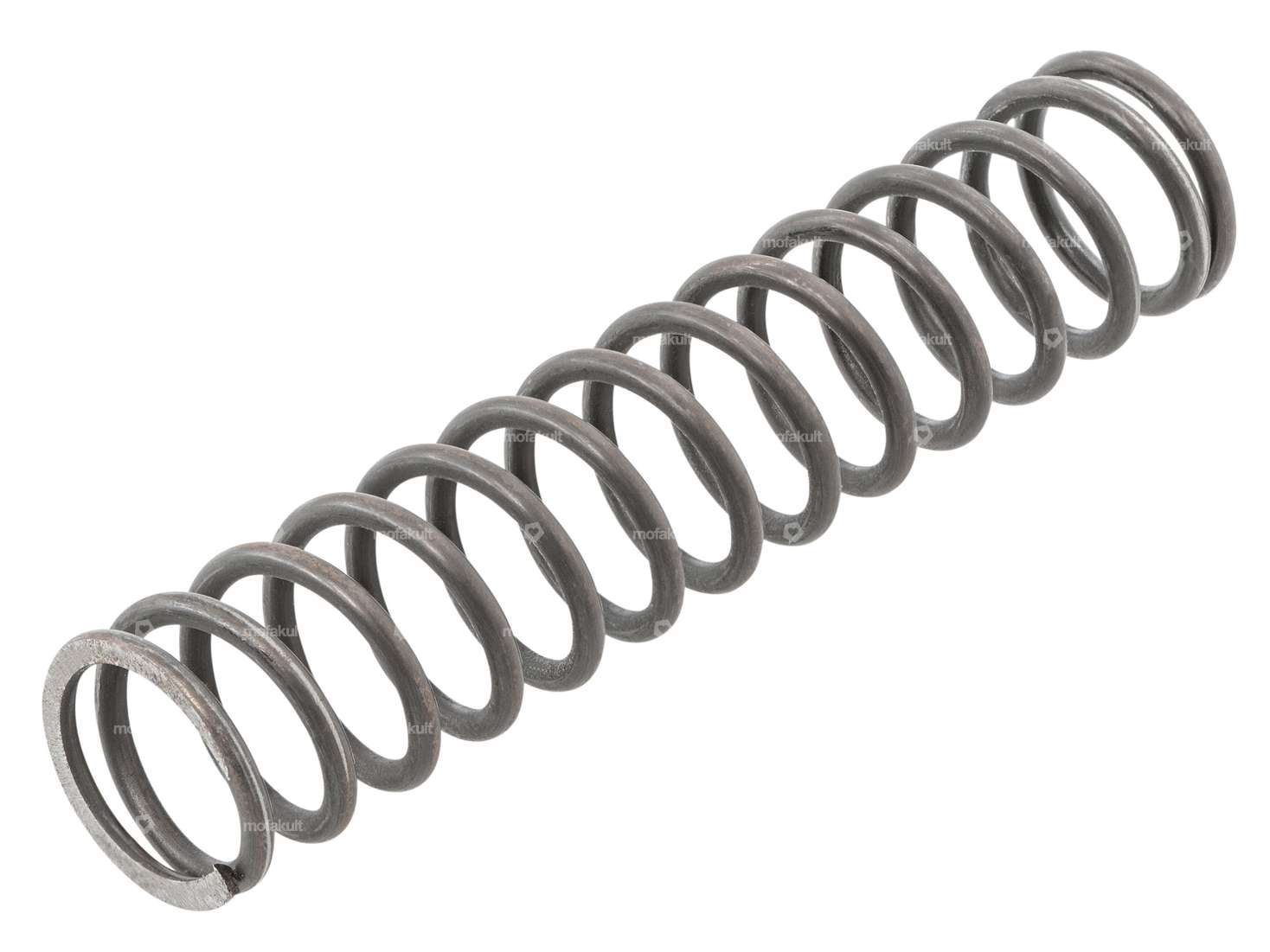

Single fork spring for your Piaggio Si Europe, Si PTT, Bravo 2 and Bravo 3 (Super-Bravo) as well as Boxer BTV1 and BTV2 moped / moped.
This is the reinforced spring from the Piaggio Si PTT model with a wire diameter of 4 mm. Springs with a wire diameter of 3.5 mm were installed ex works on the other models listed.
Ø wire: 4 mm
Ø outer: 36 mm
Ø inner: 28 mm
Total length: 170 mm
Surface: raw, polished
Price per piece.
Note: The fork spring does not fit the Piaggio Si Montecarlo with telescopic fork or the first Bravo model with spoke wheels and rear light on the mudguard.
Wearing parts as well as complete forks for your Piaggio SI can be found in the accessories section.
Nostalgic product for the highest demands of the quality brand swiing®.
Original Piaggio spare part number: 122624
Details
| Total length | 170 mm |
| Ø wire | 4 mm |
| Manufacturer | swiing® revival parts |
| Material | Spring steel |
| Surface | raw |
| Ø inside | 28 mm |
| Ø outside | 36 mm |
| Piaggio OEM number | 122624 |
Suitable for the following models
| Piaggio | Si Bravo / Super Bravo Boxer |
